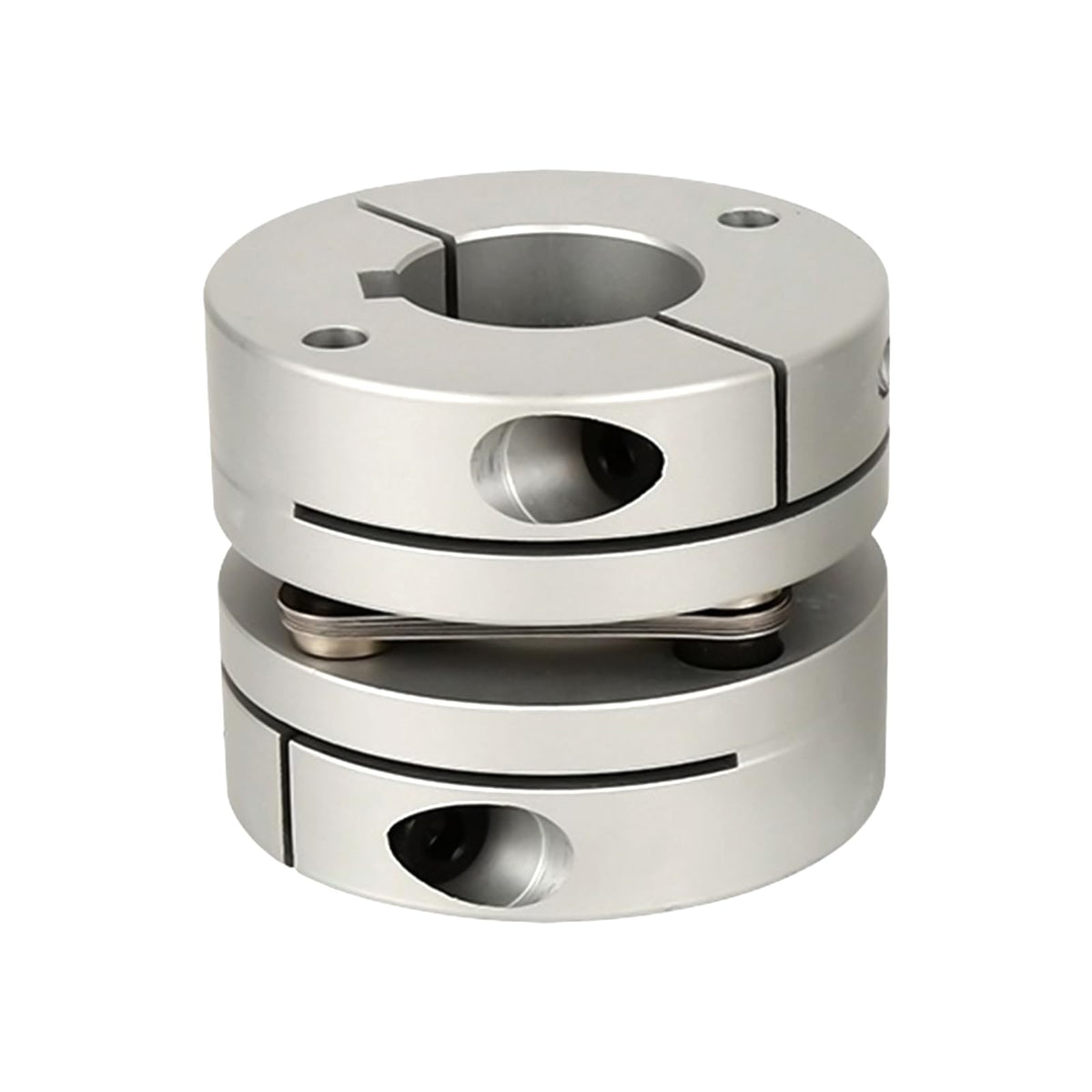

BORDSTRACT 6.35mm to 9.525mm Flexible Diaphragm Coupling,D32 L28

Key features

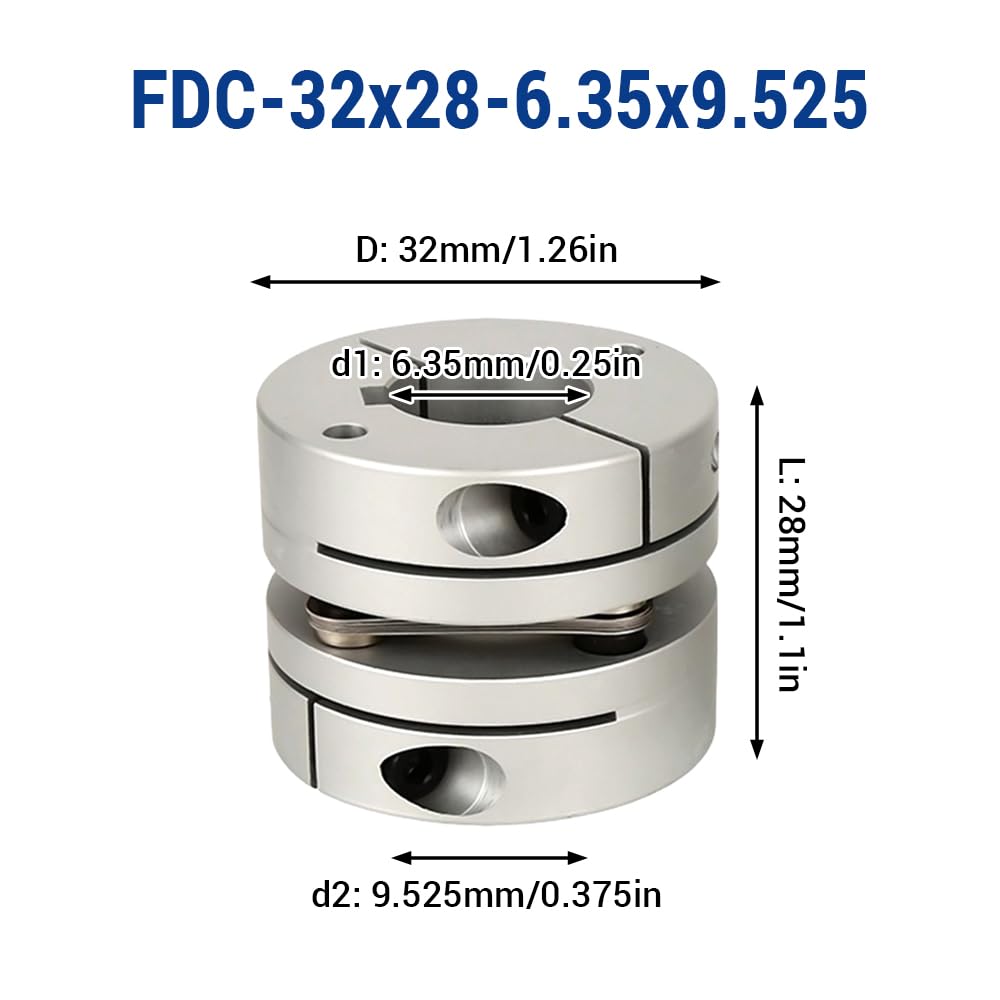

• Compact Dimensions for Precise Shaft Fit – This component has a total diameter of 32mm (1.26in) and a length of 28mm (1.1in), with a bore diameter ranging from 6.35mm to 9.525mm (0.25 to 0.375in) for a secure shaft connection.

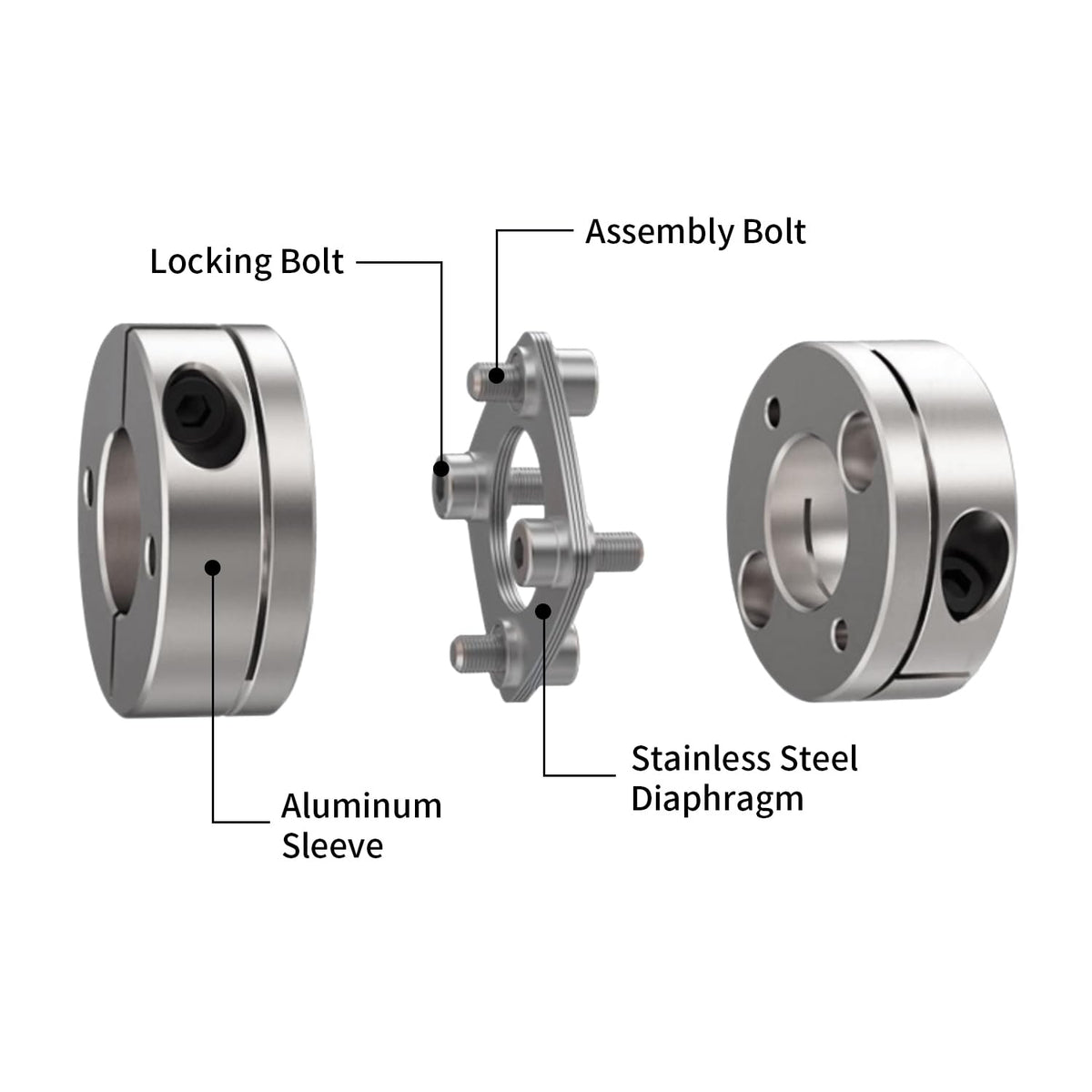

• Durable Aluminum Alloy with Stainless Steel Diaphragm – The shaft coupler body is made from sturdy aluminum alloy for high torque capacity, while the stainless steel diaphragm provides efficient vibration damping and anti-abrasion performance.
• Effective Vibration Reduction and Misalignment Compensation – This flexible diaphragm coupling effectively reduces stress and vibration during transmission, compensates for axial misalignment, and is suitable for high torque applications.
• Broad Usage for Motors and Machines – Suitable for servo motors, step motors, 3D printers, DIY encoders, CNC router machines, screw driving, and machine platforms for versatile use.
• More Coupling Models Available – BORDSTRACT offers a wide range of couplings including rigid, flange, flexible plum, and single and double diaphragm types, available for various connection needs.

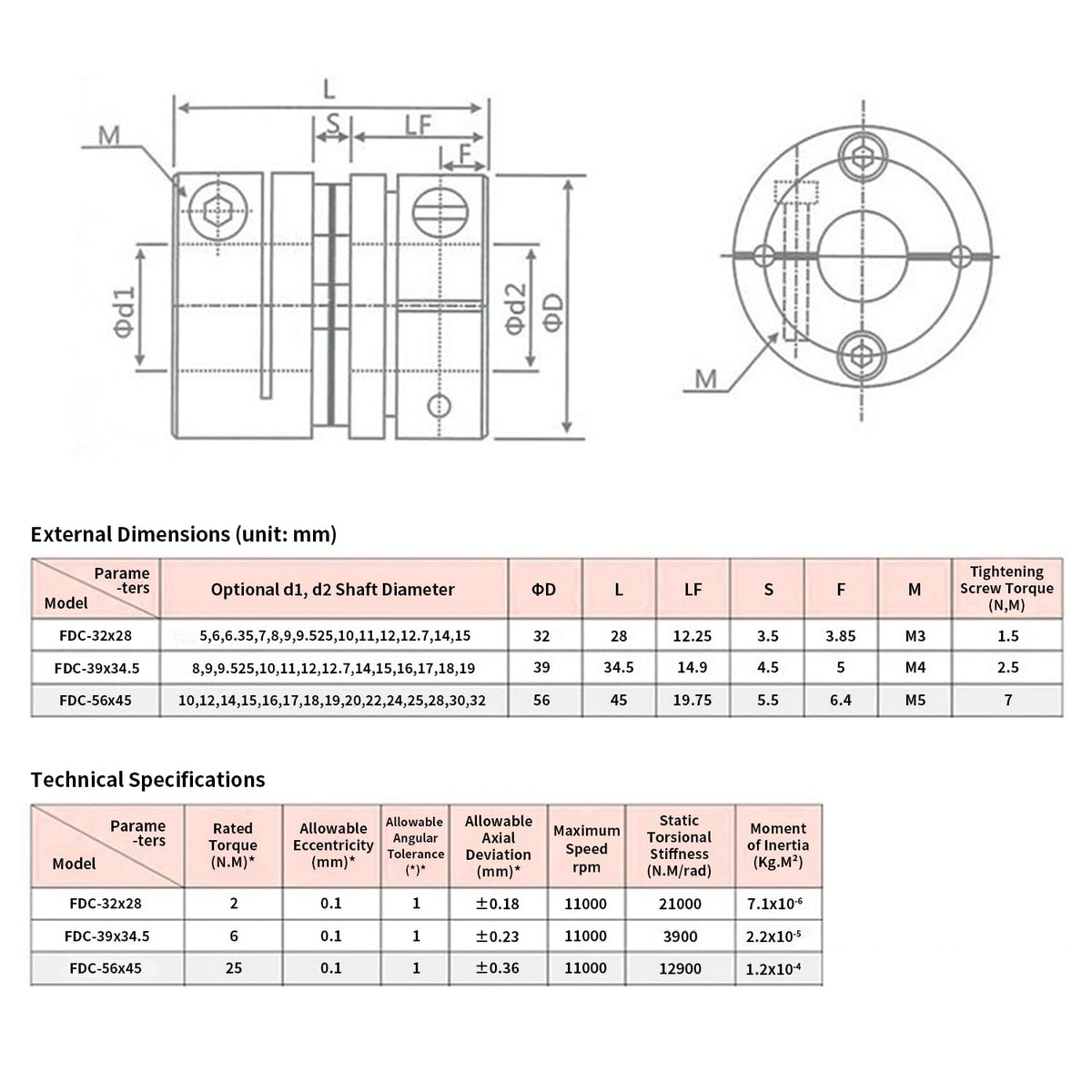

Specification: Product Name: Flexible Diaphragm Coupling Type: Single Diaphragm Total Diameter: 32mm/1.26inch Length 28mm/1.1inch Bore Diameter: 6.35mm to 9.525mm/0.25inch to 0.375inch Material: Aluminum Alloy, 304 Stainless Steel Shaft locking Type: Clamp-On Bore: Through Package List: 1 x Single Diaphragm Coupling
