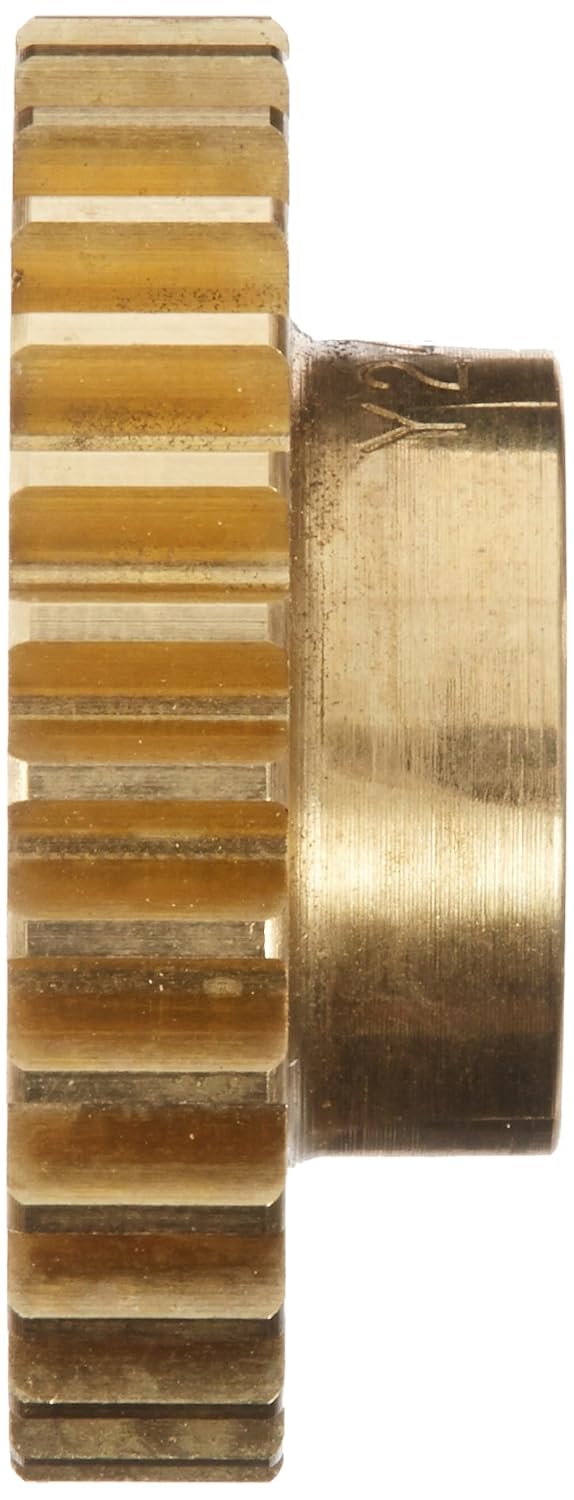

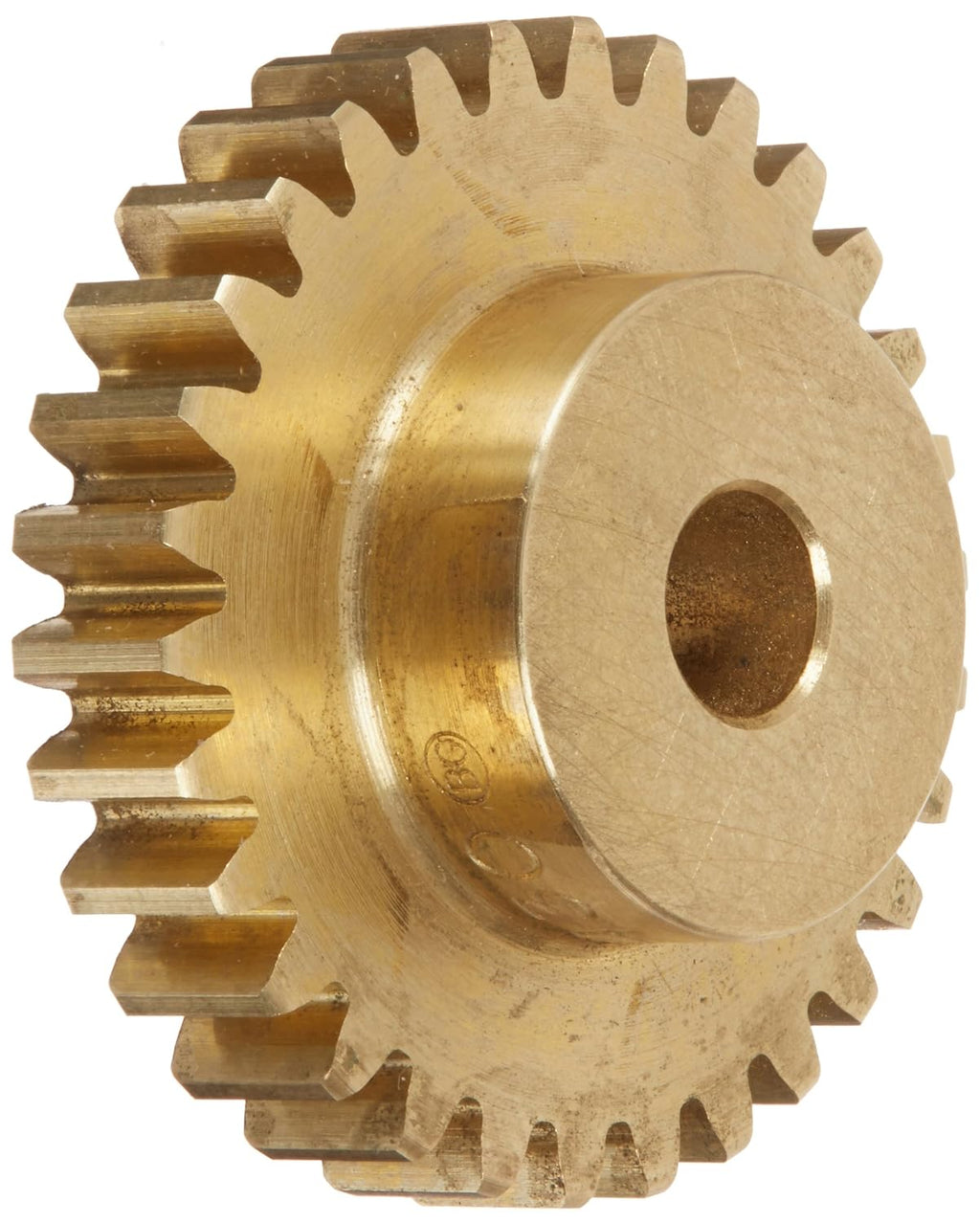

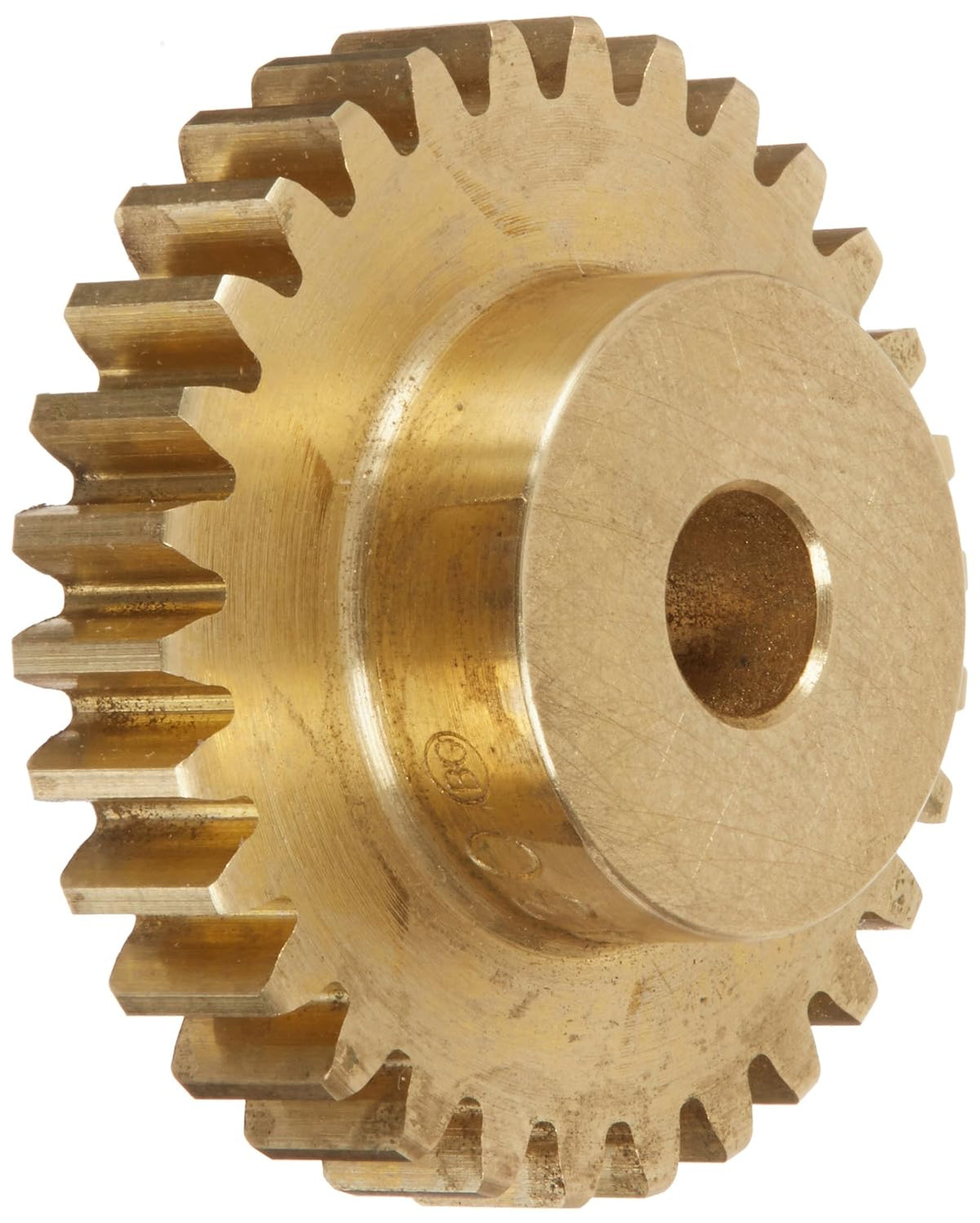

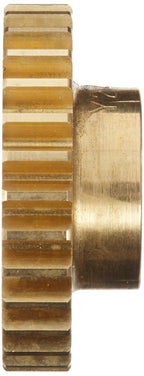

Boston Gear Y2430 Spur Gear, Brass, Inch, 24 Pitch, 0.250" Bore, 1.333" OD, 0.250" Face Width, 30 Teeth

Key features

• Transmits torque between parallel shafts to provide rotational power to another part of a motorized system
• Pressure angle of 20 degrees for a lower contact ratio between gears, resulting in higher load capacity than smaller pressure angles
• Diametral pitch of 24 for applications where controlling changes in speed and direction of rotation with precision is more important than transferring torque
• Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability

The Boston Gear brass spur gear with 20-degree pressure angle (PA) and a diametral pitch (DP) of 24 transmits torque between parallel shafts to provide rotational power to another part of a motorized system. It has a 20-degree pressure angle for lower contact ratio between gears, resulting in higher load capacity than smaller pressure angles, and a 24-diametral pitch for applications for applications where controlling changes in speed and direction of rotation with precision is more important than transferring torque. This spur gear, which can mesh only with spur gears that have the same pressure angle and diametral pitch, is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability. This Boston Gear spur gear is suitable for use in a variety of commercial and industrial applications, such as construction equipment, aeronautics, conveyors, and manufacturing equipment, among others.Spur gears, the most common gear type, have a circular or cylindrical shape with teeth bordering the outer perimeter and are used for transmitting rotational torque and motion between parallel rotating shafts. A spur gear's pressure angle (PA), diametral pitch (
