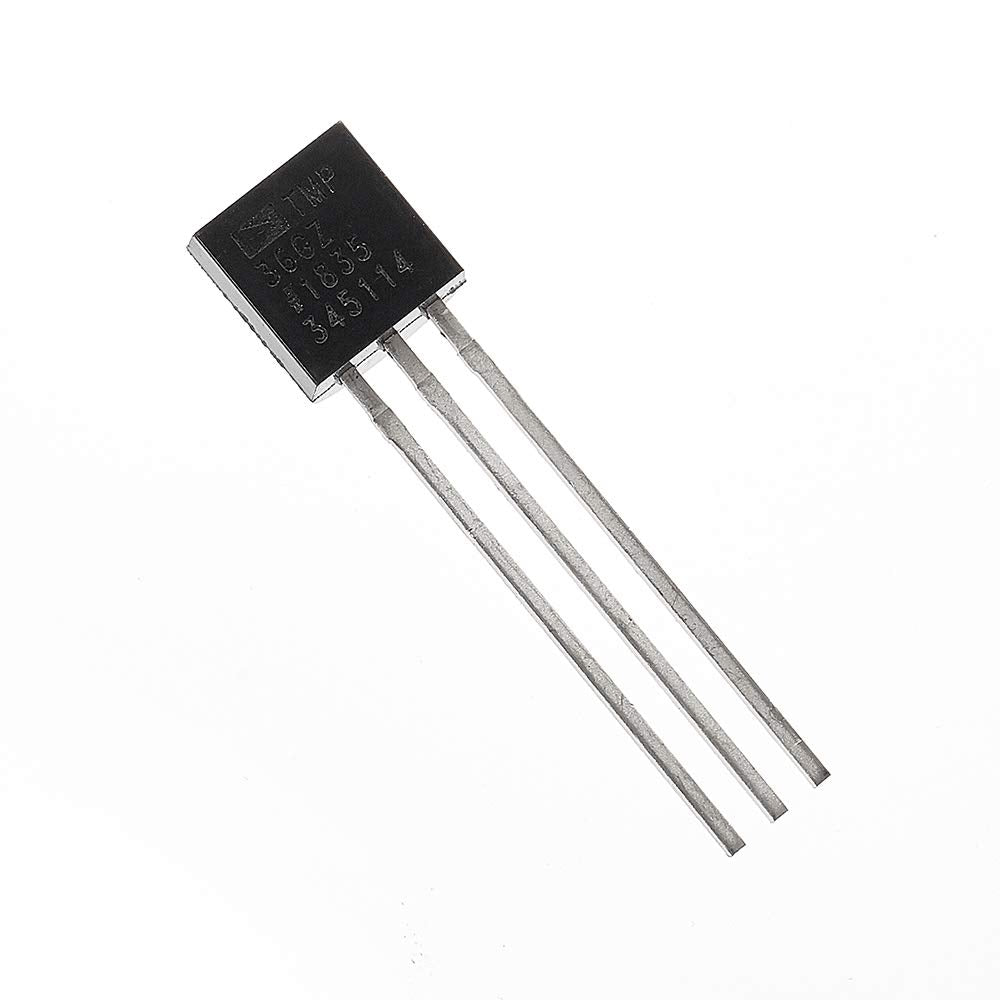

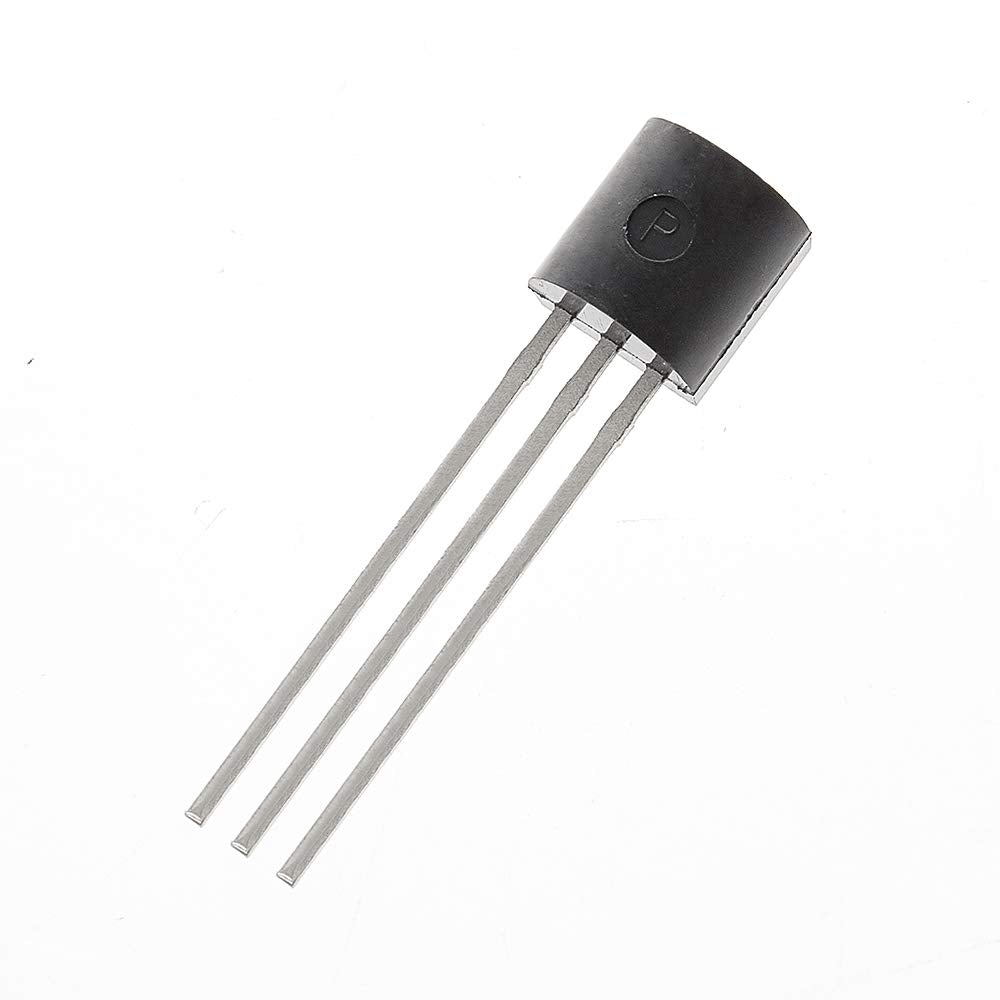

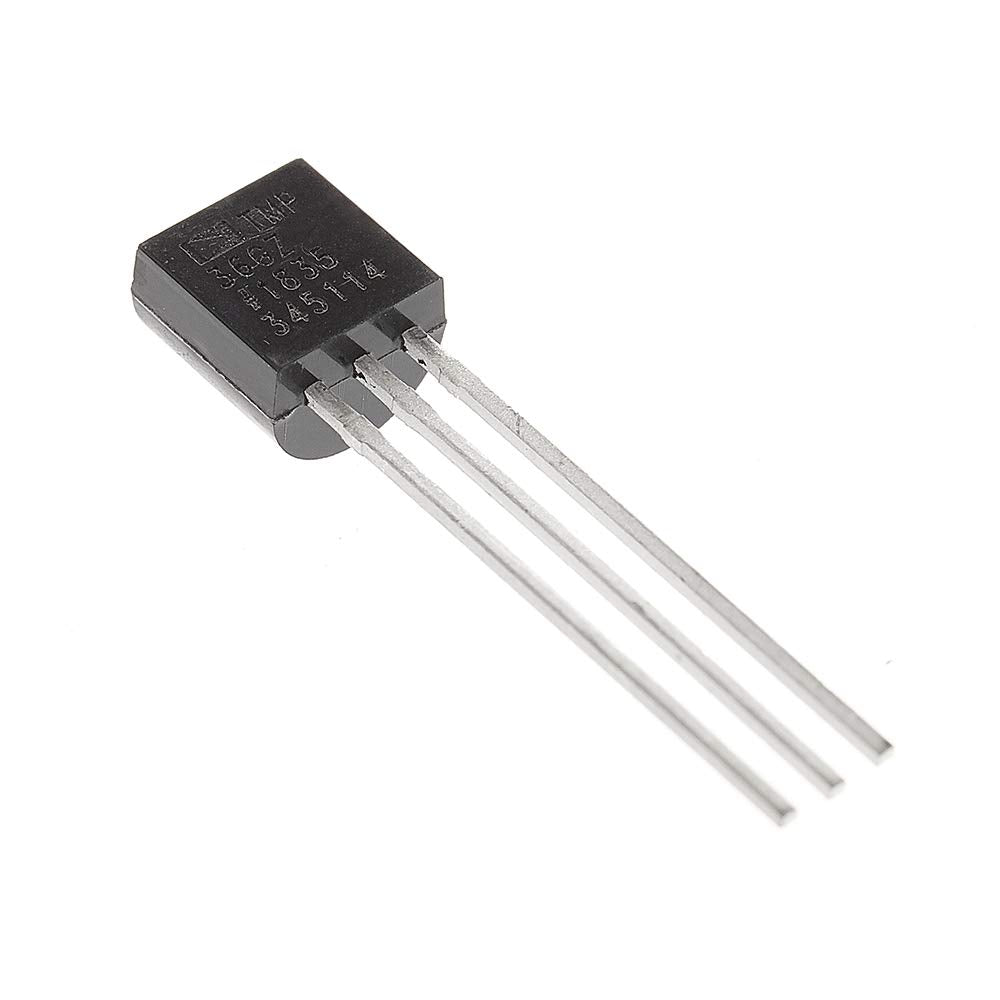

Bridgold 5pcs TMP36GT9Z TMP36 36GT Low Voltage Temperature Sensors,3-Pin.
Bridgold 5pcs TMP36GT9Z TMP36 36GT Low Voltage Temperature Sensors,3-Pin.

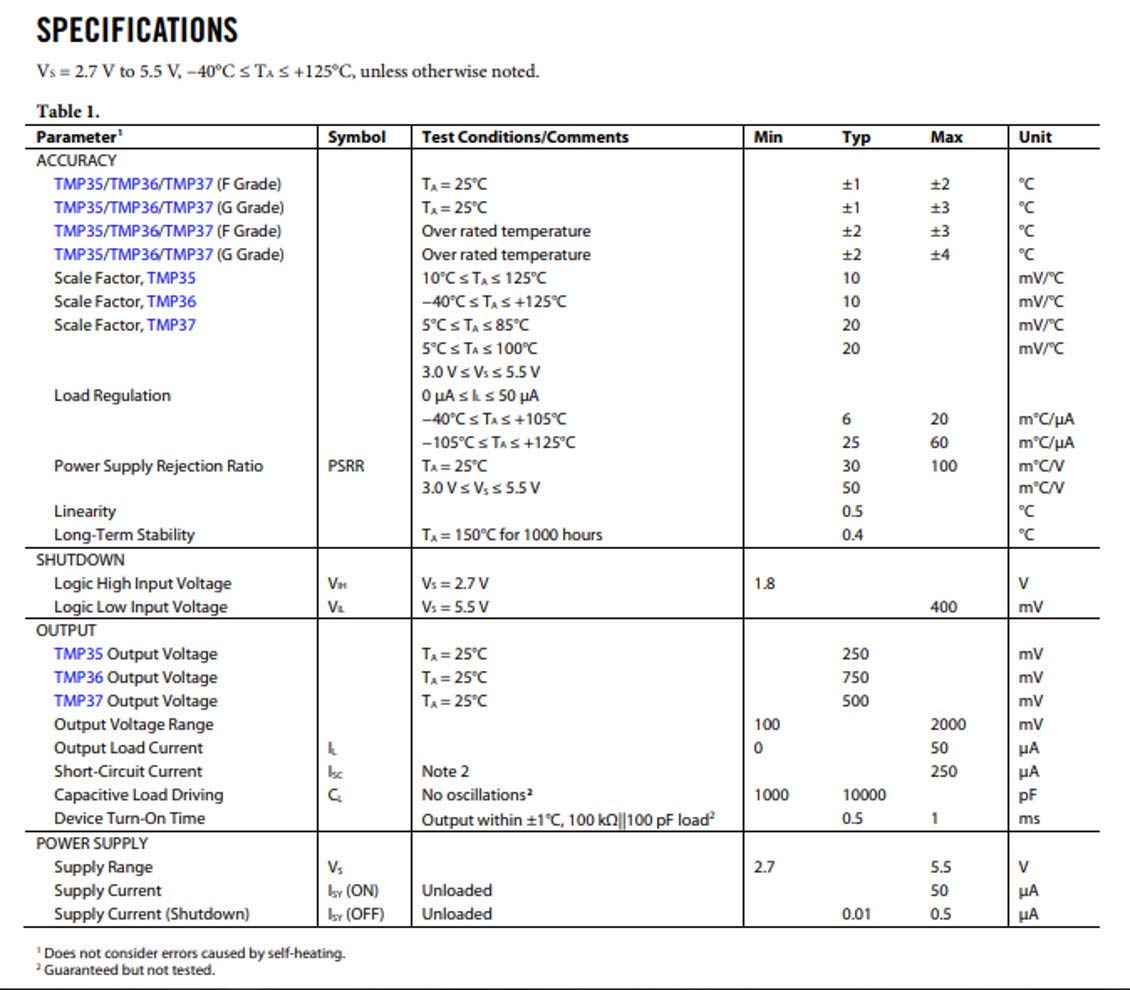

Key features
- Specified −40°C to +125°C, operation to +150°C
- Low voltage operation (2.7 V to 5.5 V)
- Stable with large capacitive loads
- Less than 50 μA quiescent current
- Qualified for automotive applications

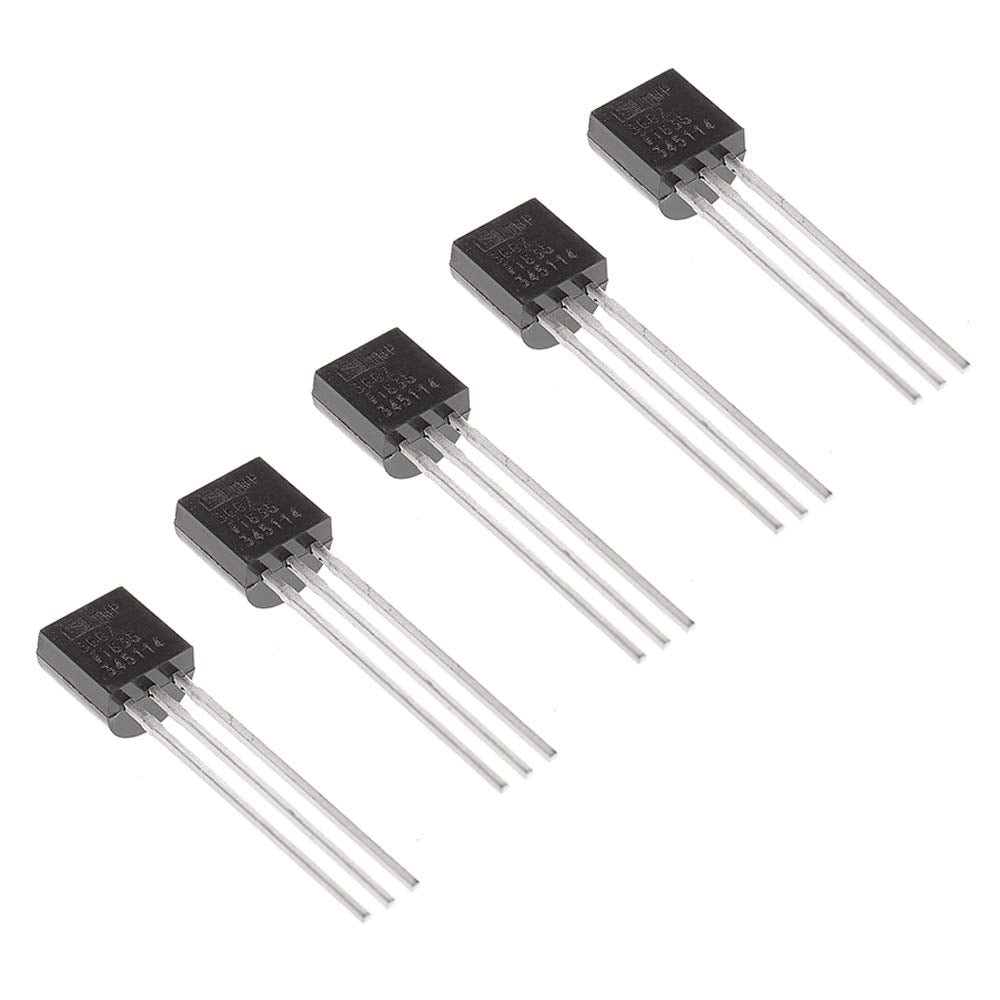

The TMP36 is low voltage, precision centigrade temperature sensors. They provide a voltage output that is linearly proportional to the Celsius (centigrade) temperature. The TMP36 do not require any external calibration to provide typical accuracies of ±1°C at +25°C and ±2°C over the −40°C to +125°C temperature range. The low output impedance of the TMP36 and its linear output and precise calibration simplify interfacing to temperature control circuitry and ADCs.The intended for single-supply operation from 2.7 V to 5.5 V maximum. The supply current runs well below 50 μA, providing very low self-heating—less than 0.1°C in still airr Package include: 5pcs*TMP36GT9Z
