Brushed Motor Controller 36V 1000W 30A with 3 Speed Switch

Brushed Motor Controller 36V 1000W 30A with 3 Speed Switch

Key features

• Precise Power Control for 36V Brushed Motor: Brushed controller 1000W, engineered specifically for 36V brushed motors from 500W to 1000W, rated current: 30A, this brush controller delivers precise speed management. Please note its design is compatible with brushed motors only and is not intended for use with brushless motor systems.

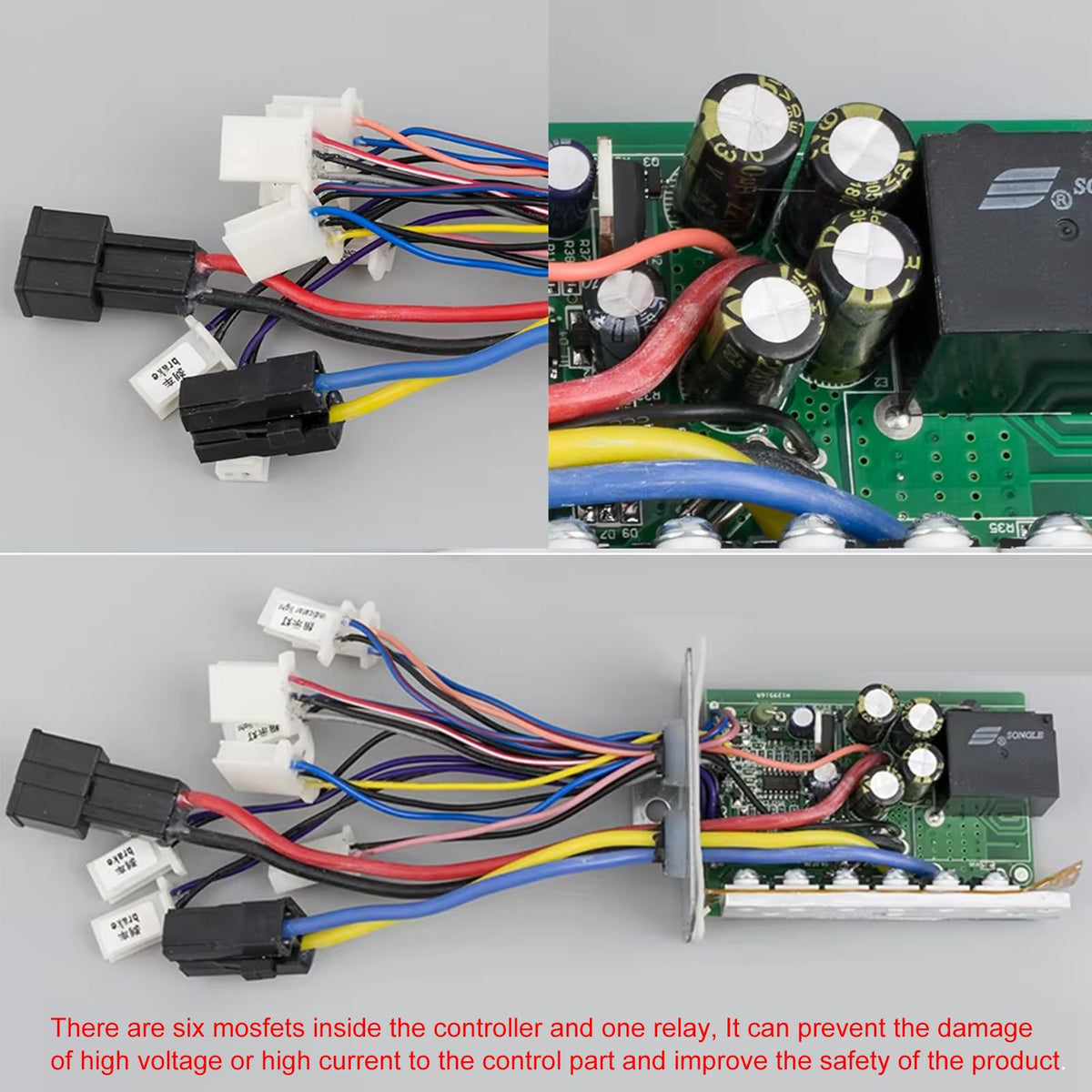

• Built with 6 Mosfets and 1 Relay for Stable Performance: Designed for reliability, this 36V 1000W brushed controller features a robust configuration including industrial-grade relays and six MOSFETs. This synergy ensures consistent current output and efficient operation under load.
• Durable Aluminum Housing for Enhanced Protection: The sturdy aluminum alloy casing serves a dual purpose: it protects the internal circuitry from physical damage and acts as an effective heat sink to promote thermal dissipation, helping to reduce the thermal overload during extended use.

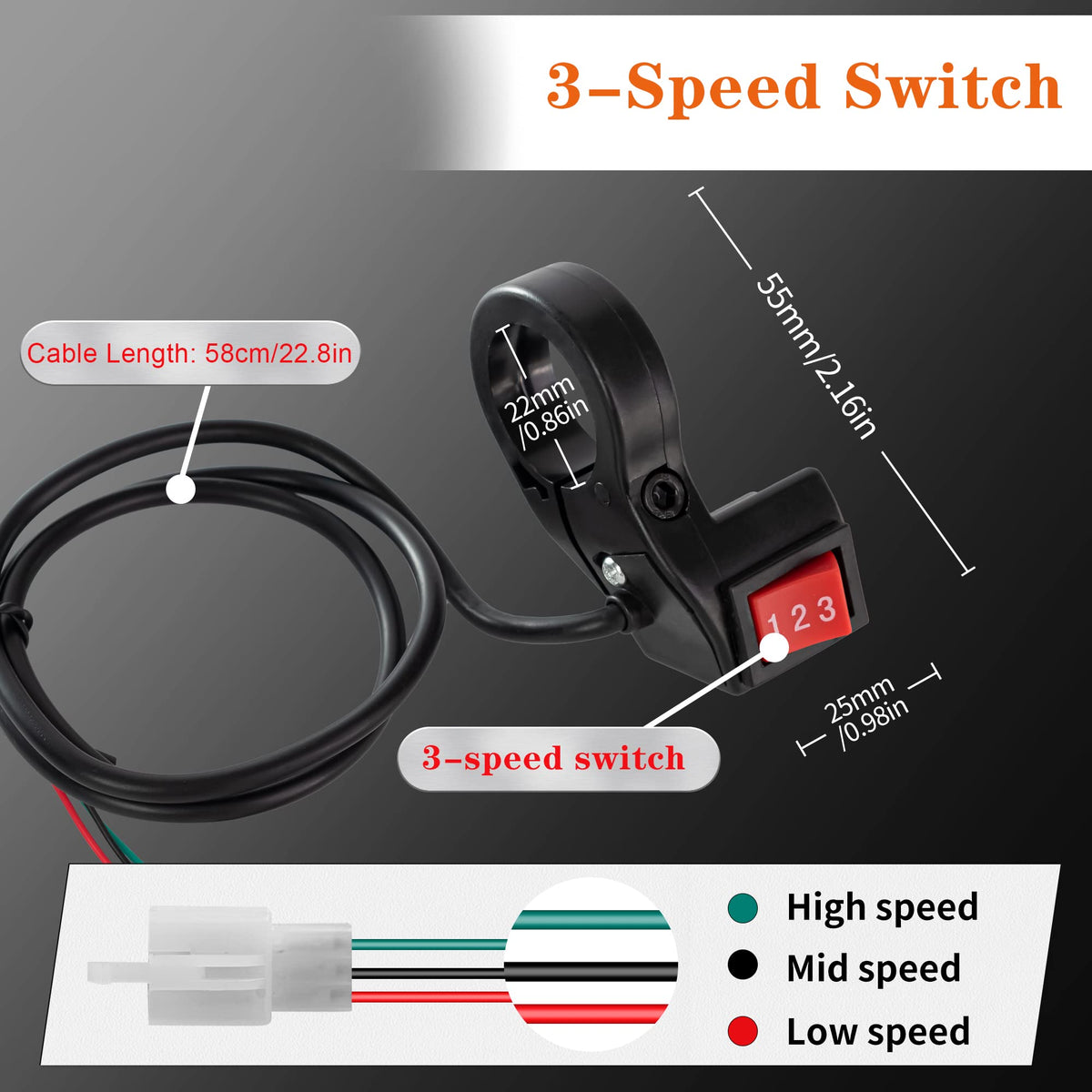

• Three-Speed Switch with Adjustable Output: The 36V brushed motor controller comes with a 3 speed switch. Easily select between approximately 50%, 75%, or 100% power output to match your riding or application needs. The switch wire measures approximately 55 cm (21.65 inches) for convenient placement.

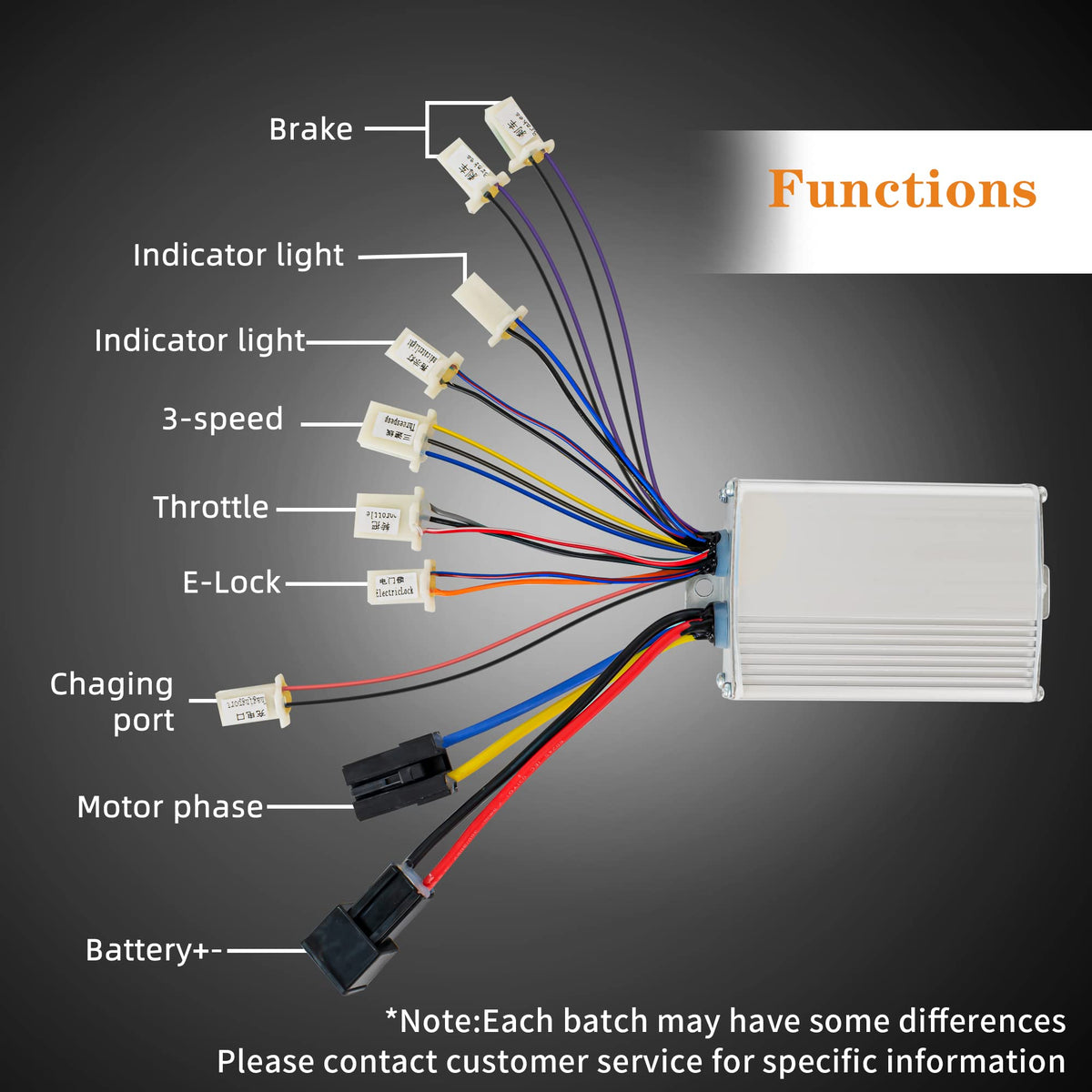

• Clearly Marked Wiring Harness for Straightforward Connection: Simplify your installation with the clearly labeled and color-coded wiring ports. Function connections include Brake, indicator light, 3-speed, throttle, E-lock, charging port. Thickened wires and secure connectors, durable performance and easy setup.
