BT175 Cast Iron 56C 60:1 Worm Gear Speed Reducer Shaft Right

BT175 Cast Iron 56C 60:1 Worm Gear Speed Reducer Shaft Right

$395.99
$395.99 $618.99
Skip to product information
BT175 Cast Iron 56C 60:1 Worm Gear Speed Reducer Shaft Right
  • BT175 Cast Iron 56C 60:1 Worm Gear Speed Reducer Shaft Right
  • BT175 Cast Iron 56C 60:1 Worm Gear Speed Reducer Shaft Right
  • BT175 Cast Iron 56C 60:1 Worm Gear Speed Reducer Shaft Right
  • BT175 Cast Iron 56C 60:1 Worm Gear Speed Reducer Shaft Right
  • BT175 Cast Iron 56C 60:1 Worm Gear Speed Reducer Shaft Right
  • BT175 Cast Iron 56C 60:1 Worm Gear Speed Reducer Shaft Right
  • BT175 Cast Iron 56C 60:1 Worm Gear Speed Reducer Shaft Right
  • BT175 Cast Iron 56C 60:1 Worm Gear Speed Reducer Shaft Right
BT175 Cast Iron 56C 60:1 Worm Gear Speed Reducer Shaft Right

BT175 Cast Iron 56C 60:1 Worm Gear Speed Reducer Shaft Right

$395.99
$395.99 $618.99
FREE shipping on this itemShips from West Long Branch, NJ. Typically arrives in 3–7 business days.
30-day returnsChanged your mind? Send it back within 30 days. Return policy
Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET

Key features

  • Ratio: 60:1
  • Input Shaft Diameter: 5/8
  • Output Shaft Diameter: 7/8
  • Output Shaft Configuration: Right
  • Rated HP: 0.35

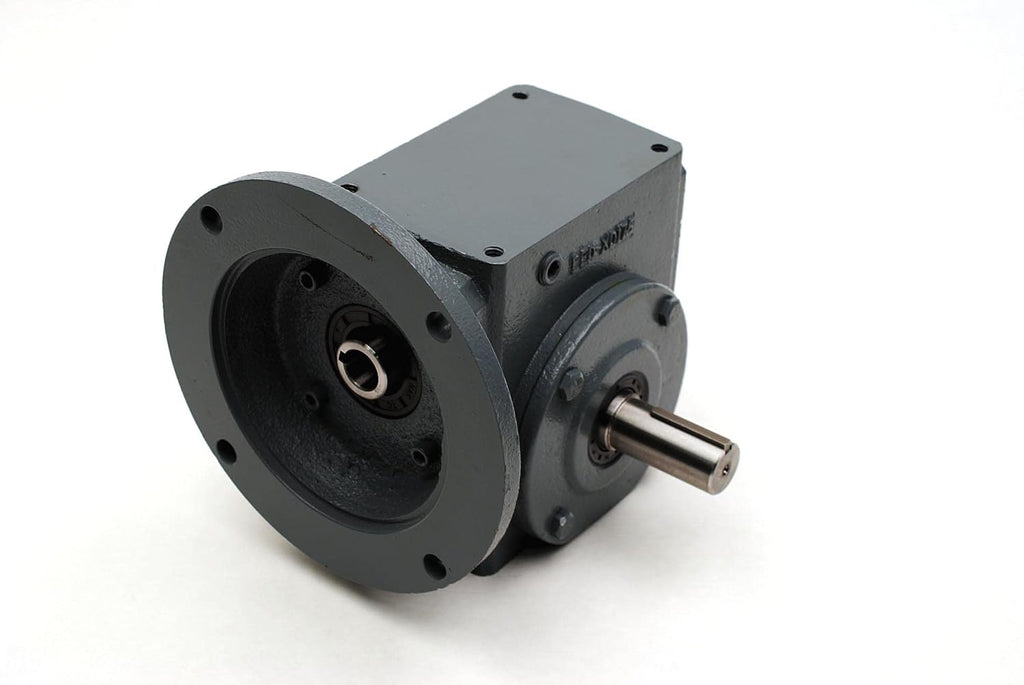

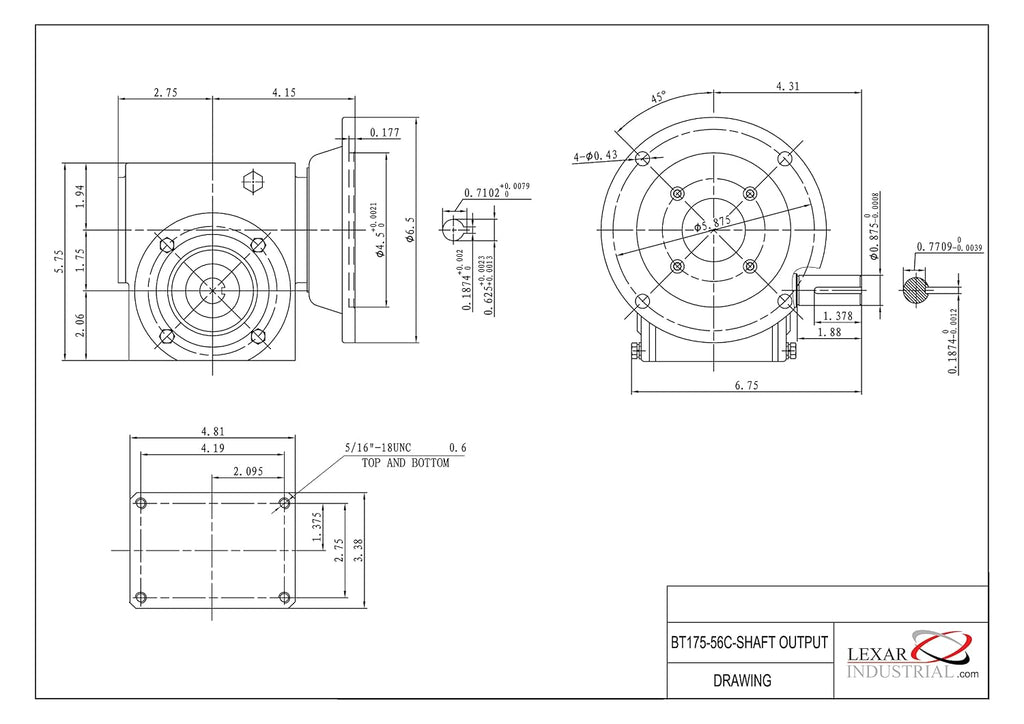

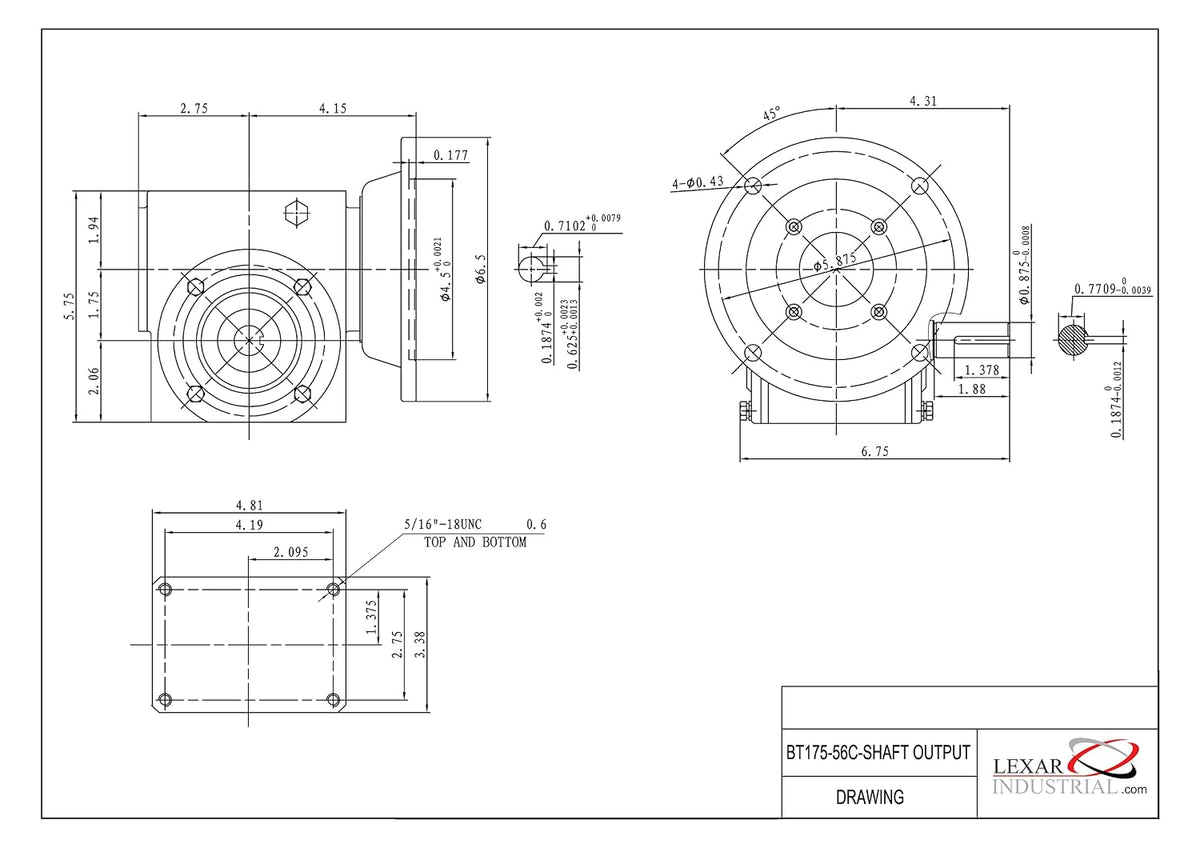

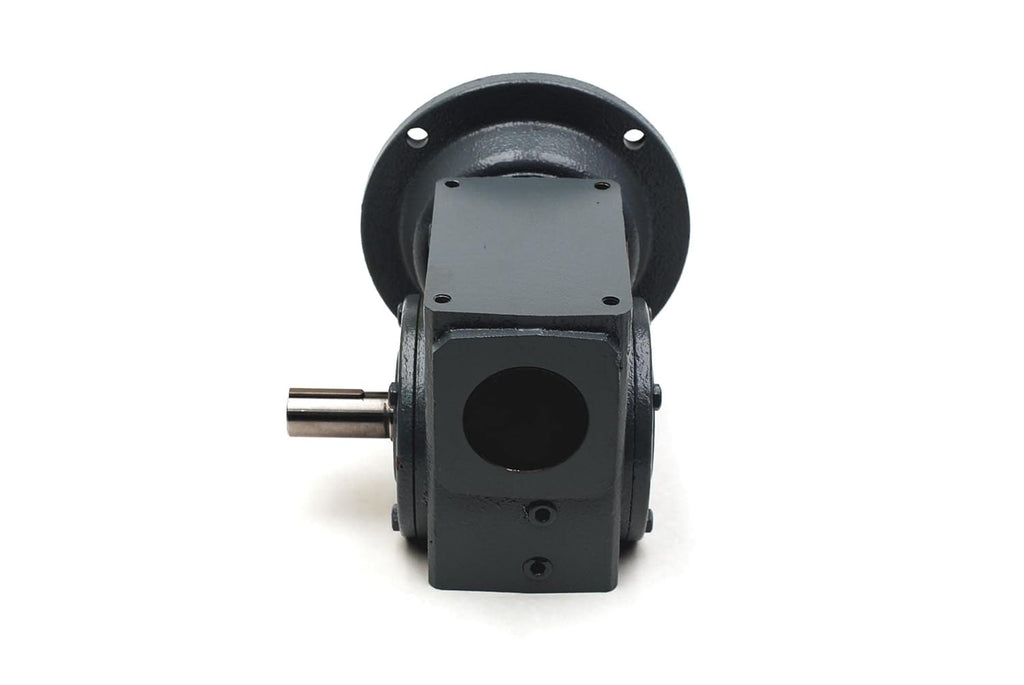

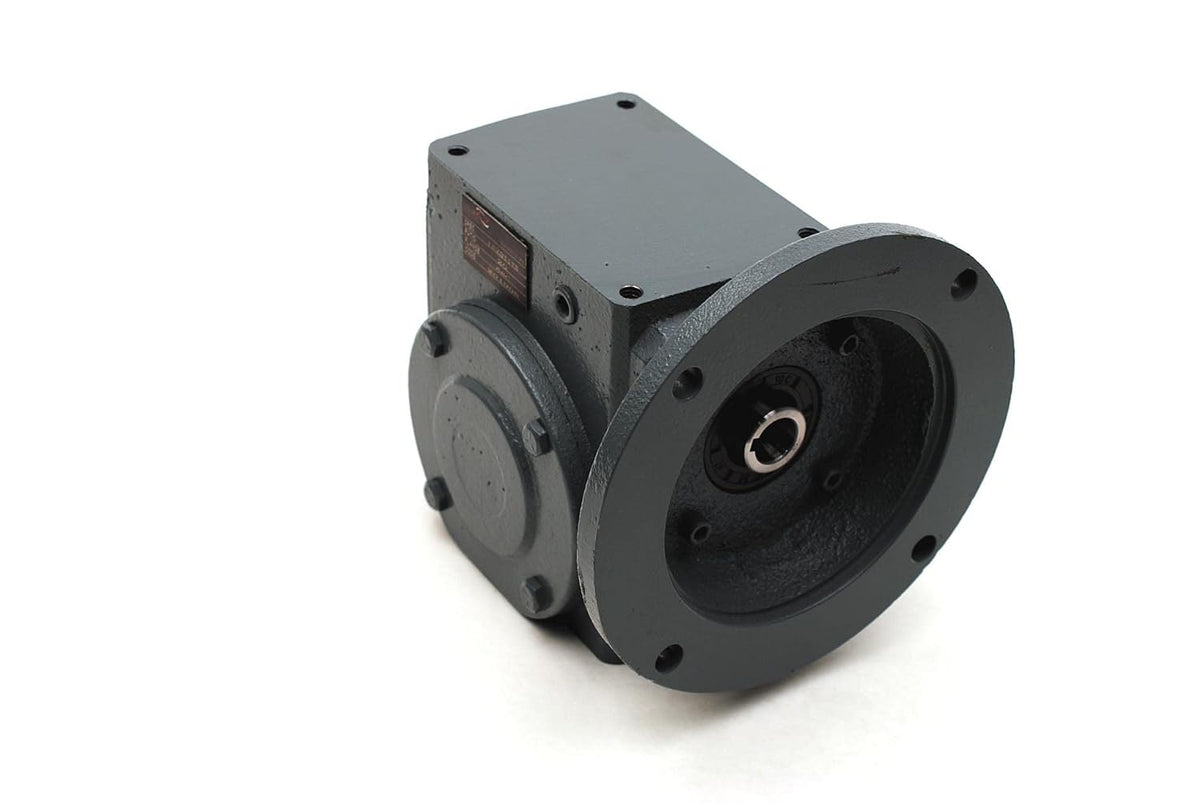

BT175 cast iron worm gear speed reducer.This 60:1 ratio speed reducer is rated for 0.35 HP input at 1750 RPM on a hollow 5/8" diameter x 1-7/8" long keyed shaft and 56C mounting flange.Output is 527 lb/in on a 7/8" diameter x 1-7/8" long keyed shaft.Common mounting pattern of 4-3/16" x 2-3/4" with 5/16-18 tapped holes top and bottom.Comparable to F718, 175Q, 175WBM, BMQ218, F118, and others.This reducer features a durable cast iron housing finished in gray and comes pre-filled with synthetic ISO 320 oil.

Free shipping included. 30-day hassle-free returns.
