BT206 Cast Iron 56C 40:1 Worm Gear Speed Reducer Shaft Right

BT206 Cast Iron 56C 40:1 Worm Gear Speed Reducer Shaft Right

$503.99
$503.99 $826.99
Skip to product information
BT206 Cast Iron 56C 40:1 Worm Gear Speed Reducer Shaft Right
  • BT206 Cast Iron 56C 40:1 Worm Gear Speed Reducer Shaft Right
  • BT206 Cast Iron 56C 40:1 Worm Gear Speed Reducer Shaft Right
  • BT206 Cast Iron 56C 40:1 Worm Gear Speed Reducer Shaft Right
  • BT206 Cast Iron 56C 40:1 Worm Gear Speed Reducer Shaft Right
  • BT206 Cast Iron 56C 40:1 Worm Gear Speed Reducer Shaft Right
  • BT206 Cast Iron 56C 40:1 Worm Gear Speed Reducer Shaft Right
  • BT206 Cast Iron 56C 40:1 Worm Gear Speed Reducer Shaft Right
  • BT206 Cast Iron 56C 40:1 Worm Gear Speed Reducer Shaft Right
BT206 Cast Iron 56C 40:1 Worm Gear Speed Reducer Shaft Right

BT206 Cast Iron 56C 40:1 Worm Gear Speed Reducer Shaft Right

$503.99
$503.99 $826.99
FREE shipping on this itemShips from West Long Branch, NJ. Typically arrives in 3–7 business days.
30-day returnsChanged your mind? Send it back within 30 days. Return policy
Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET

Key features

  • Ratio: 40:1
  • Input Shaft Diameter: 5/8
  • Output Shaft Diameter: 1
  • Output Shaft Configuration: Right
  • Rated HP: 0.81

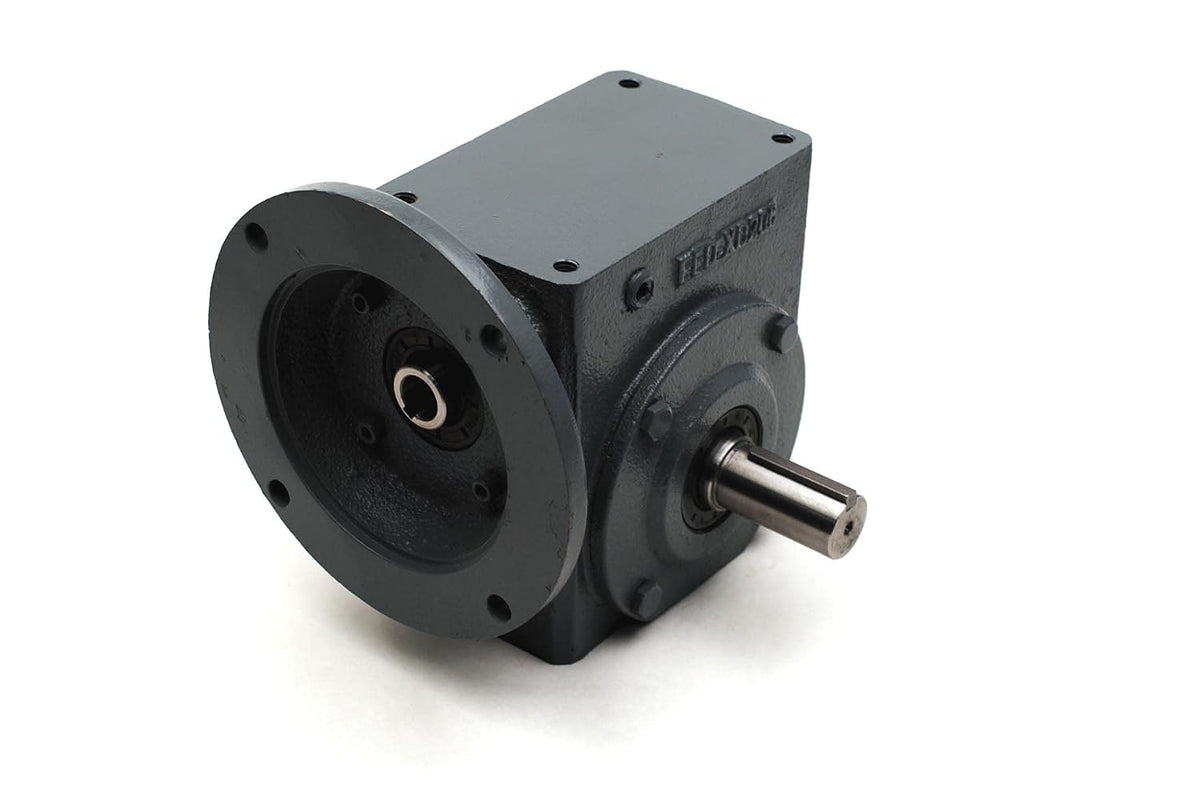

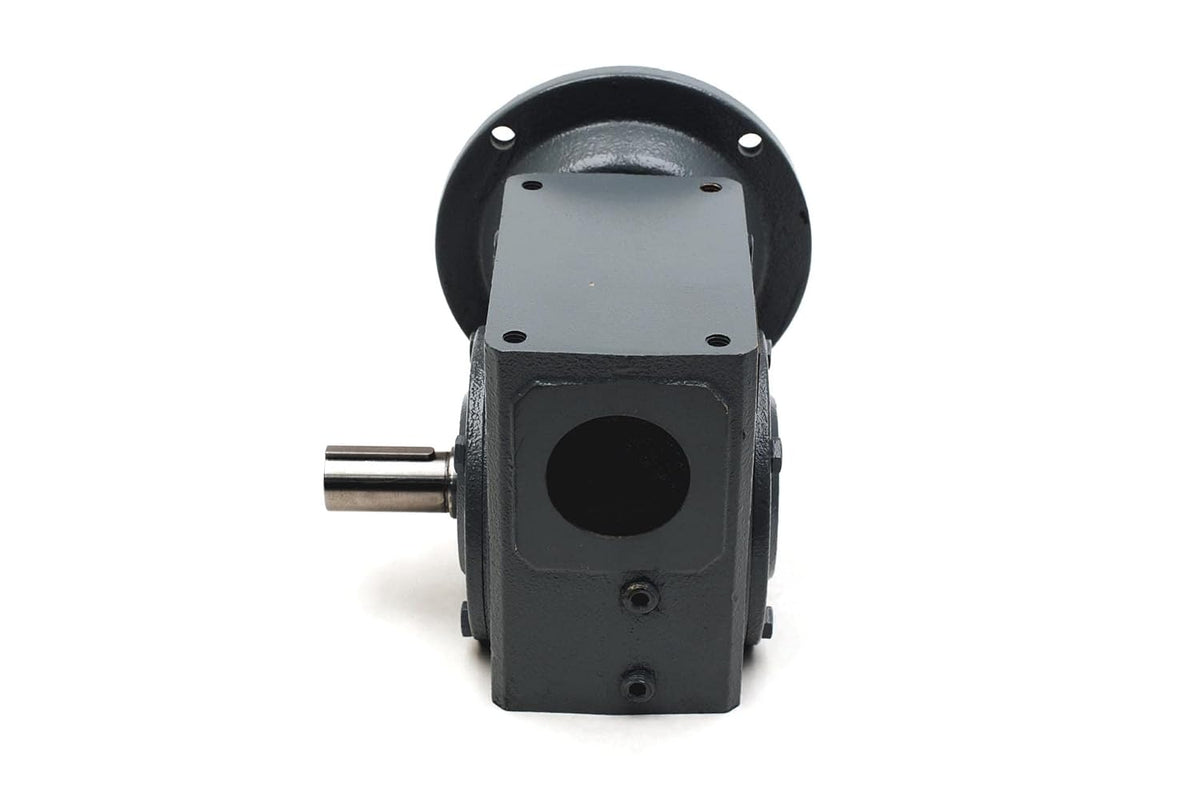

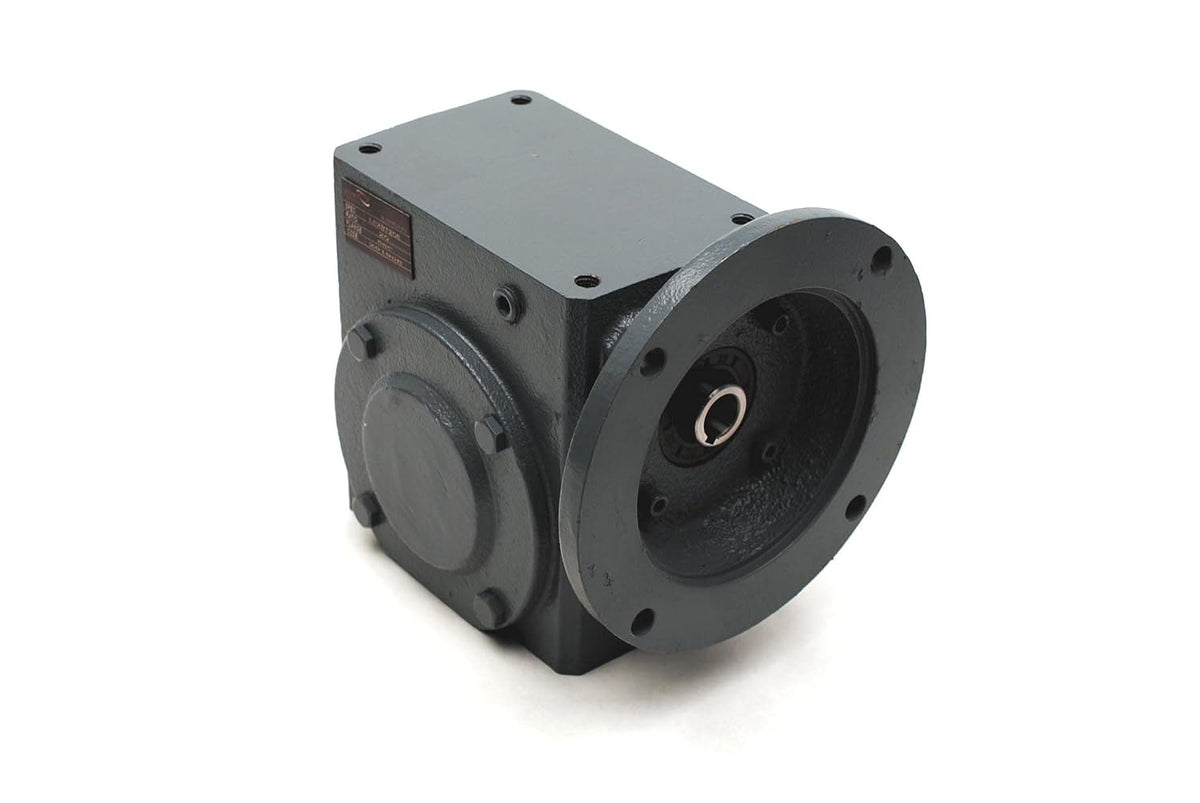

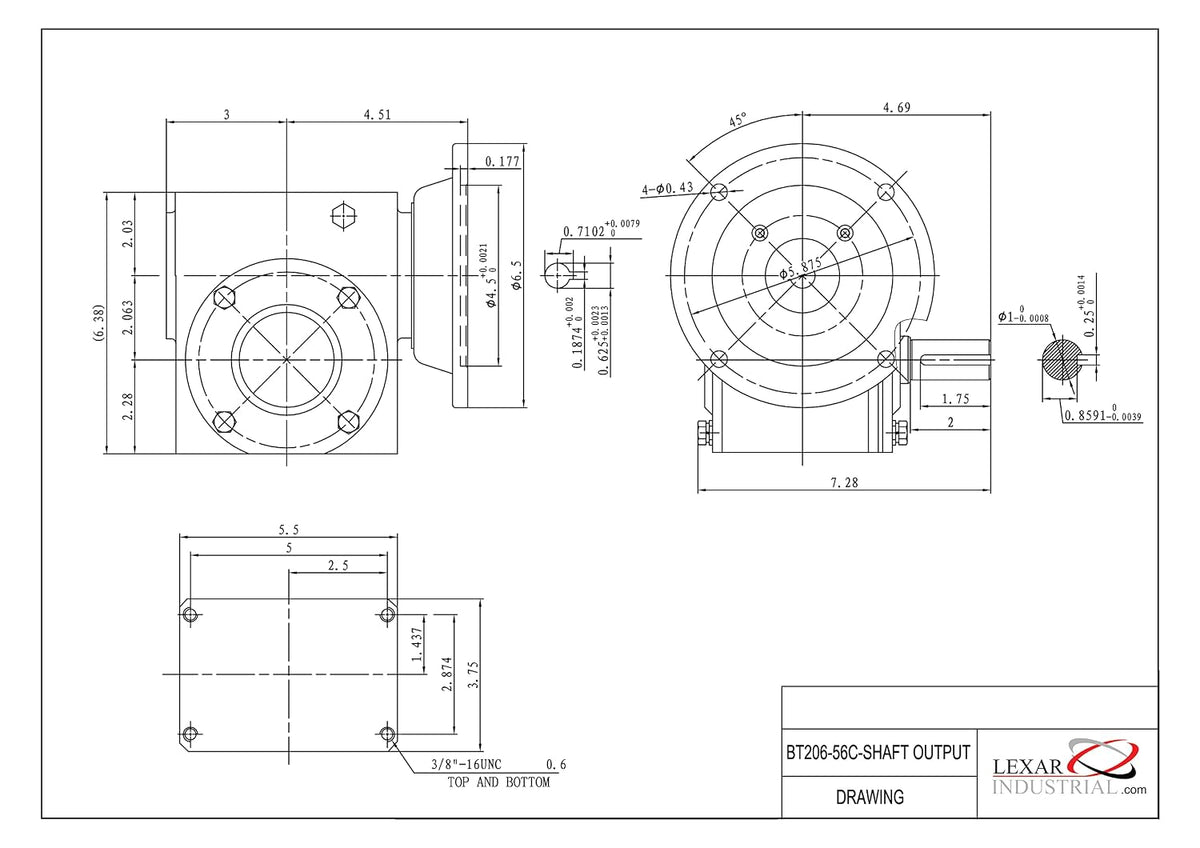

BT206 cast iron worm gear speed reducer.This 40:1 ratio speed reducer is rated for 0.81 HP input at 1750 RPM on a hollow 5/8" diameter x 1-7/8" long keyed shaft and 56C mounting flange.Output is 876 lb/in on a 1" diameter x 2" long keyed shaft.Common mounting pattern of 5" x 2-7/8" with 3/8-16 tapped holes top and bottom.Comparable to F721, 206Q, 206WBM, BMQ220, F121, and others.This reducer features a durable cast iron housing finished in gray and comes pre-filled with synthetic ISO 320 oil.

Free shipping included. 30-day hassle-free returns.
