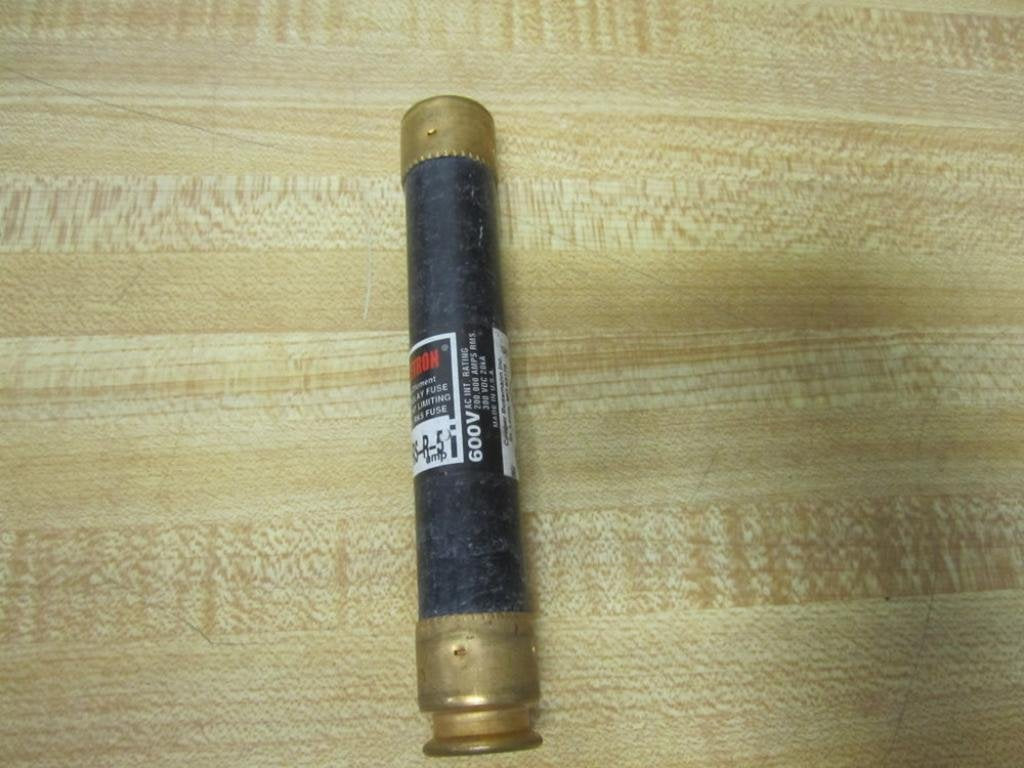

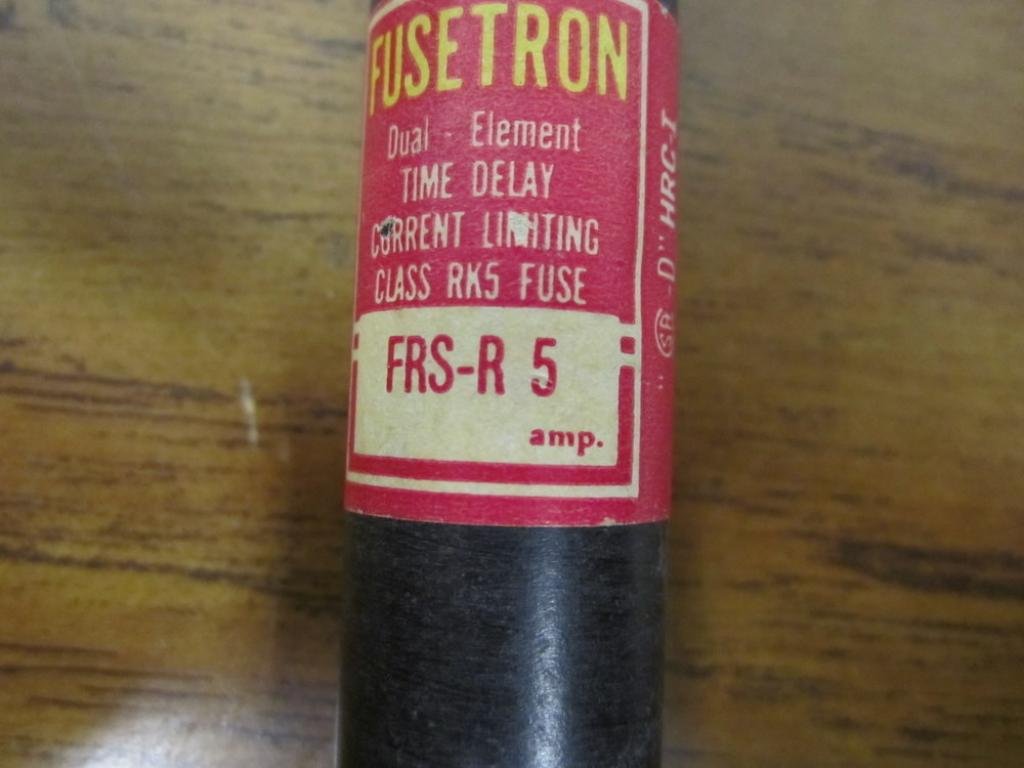

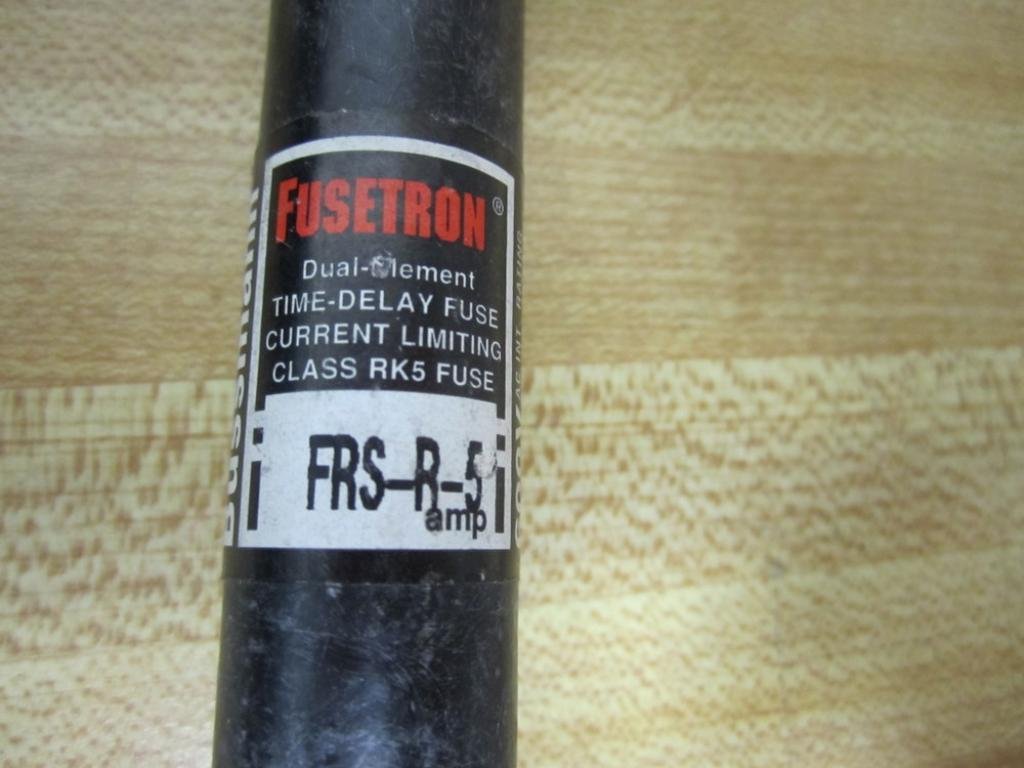

Bussmann FRS-R-5 Fuse (Pack of 10)

Key features

• Class RK5 fuses with a 200 kA interrupting rating for use in a broad range of applications
• Provides motor overload, ground fault, and short-circuit protection
• Provides current limitation to help protect downstream components from high fault currents

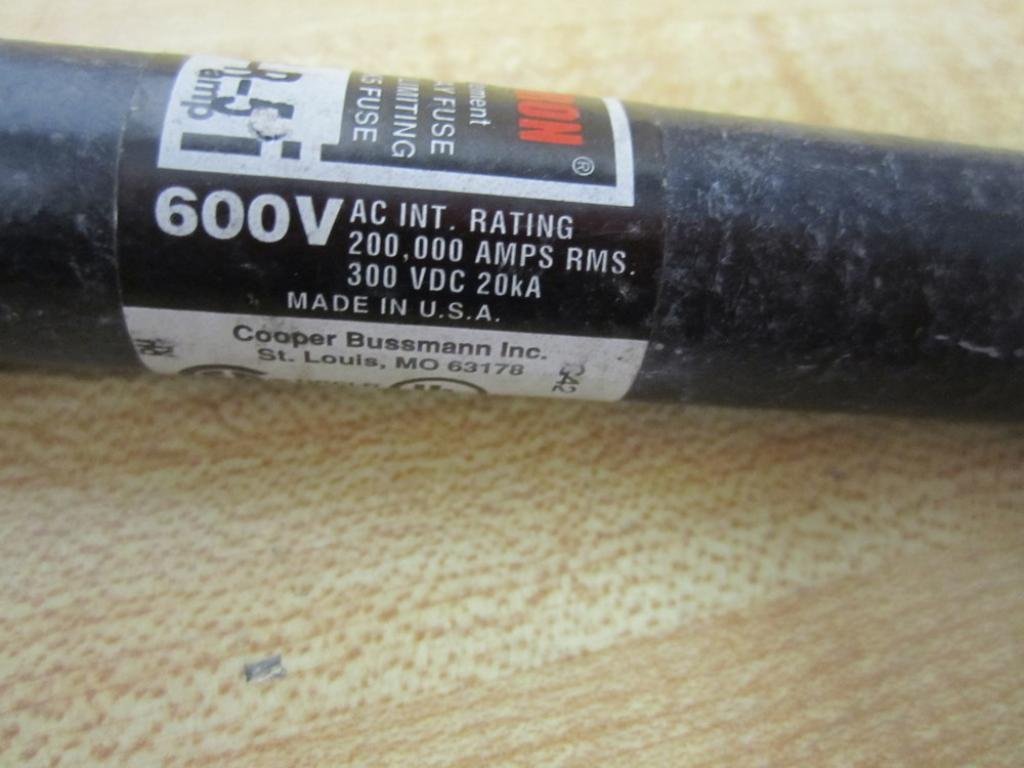

• 600 Vac/200 kA IR, 300 Vdc/20 kA IR
• Agency Information: UL Listed, Std. 248-12, Class RK5, Guide JDDZ, File E4273 -- CSA Certified, C22.2 No. 248.12, Class 1422-02, File 53787 -- CE

Advanced protection, energy-efficient Class RK5 dual-element, current-limiting, time-delay fuses. Time-delay — 10 second (minimum) at 500% of rated current. Dual-element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short-circuit and overload protection.
