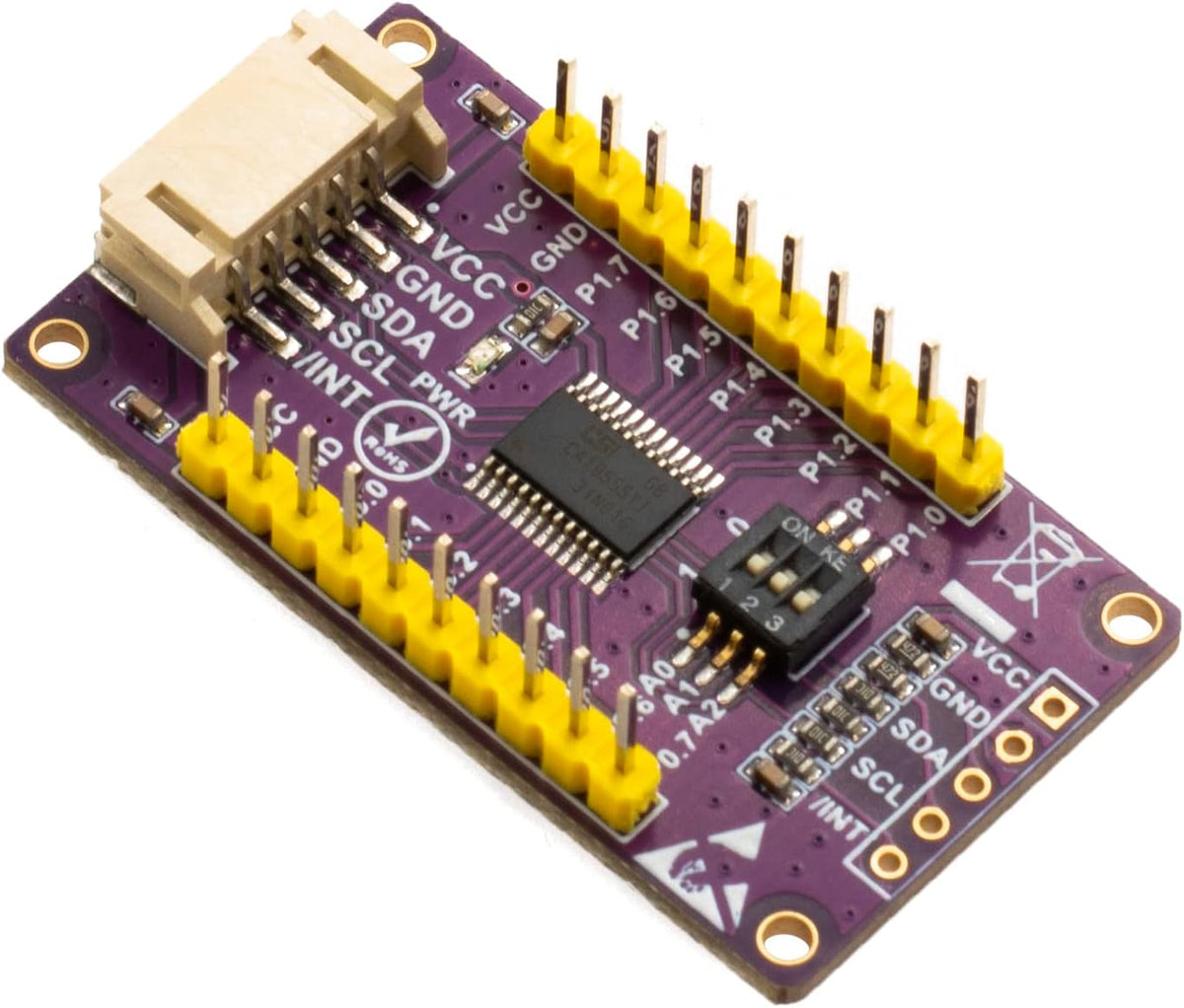

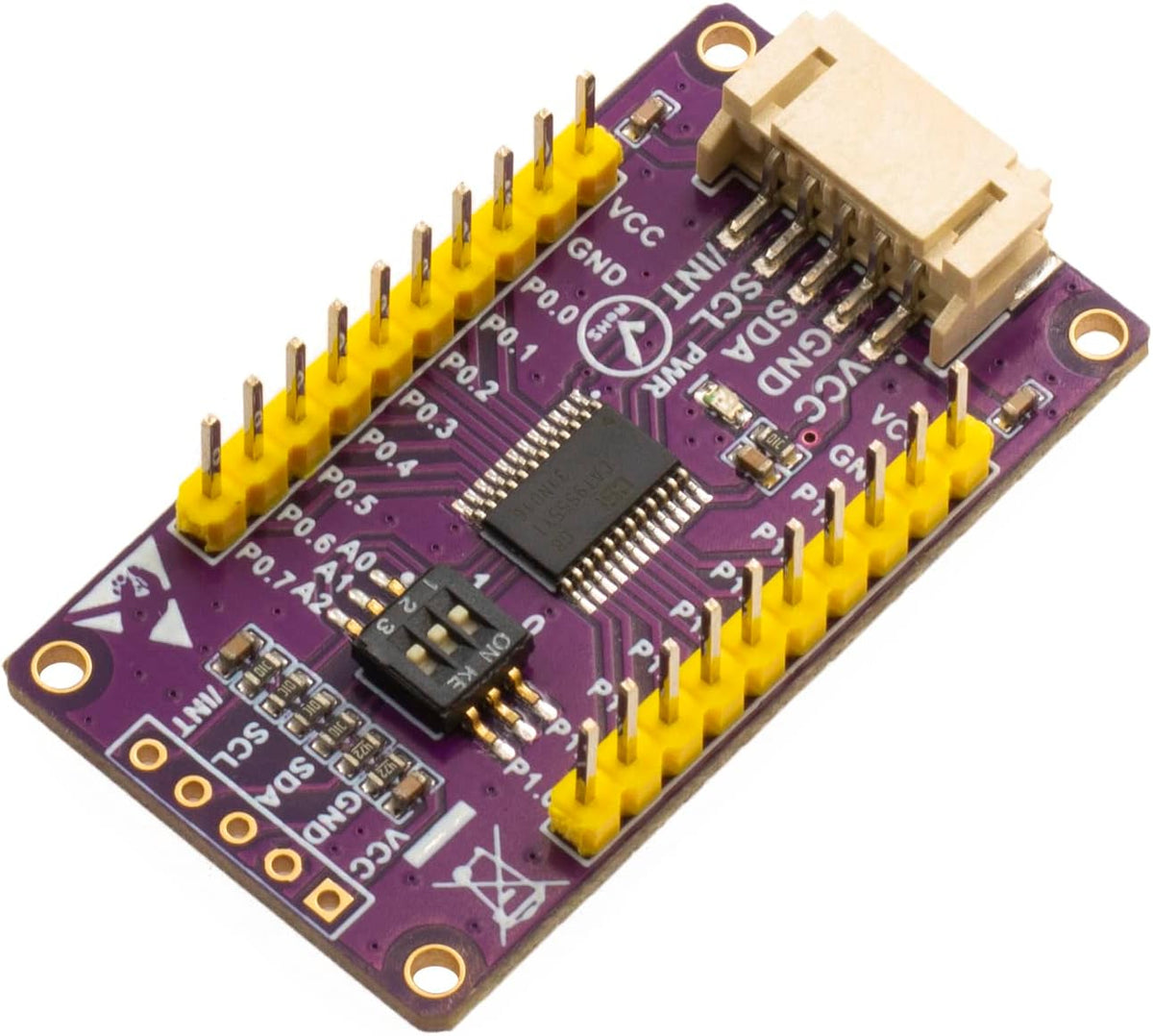

CAT9555 IO Expansion Module Board I2C Interface, SMBus I/O Port, 16 bit Parallel GPIO Expander, with Pre-soldered Header

CAT9555 IO Expansion Module Board I2C Interface, SMBus I/O Port, 16 bit Parallel GPIO Expander, with Pre-soldered Header

$16.99
$16.99 $22.99
FREE shipping on this itemShips from West Long Branch, NJ. Typically arrives in 3–7 business days.
30-day returnsChanged your mind? Send it back within 30 days. Return policy
Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET

Key features

  • 5V tolerant I/O, high drive capability of I/O ports
  • 400 kHz I2C bus compatible
  • Polarity inversion register, active low interrupt output
  • Internal power−on reset
  • Low stand−by current

Overview The CAT9555 IO Expansion Module specifically provides 16−bit parallel input/output port expansion for I2C and SMBus compatible applications. These I/O expanders provide a simple solution in applications where additional I/Os are needed: sensors, power switches, LEDs, buttons, and fans. In order to be convenient for users, we provide the demo codes based on Raspberry Pi, Ardui. UNO and STM32. Specifications Dimensions: 45mm(Length)*25mm(Width) Number of I/O PORTS: 16 Control Chip: CAT9555 Signal Interface: I2C Supply Voltage: 3.3V/5V Package contents: 1. CAT9555 IO Expansion Module x1 2. PH2.0 20cm 5Pin x1 Please feel free to contact us via Amazon message if you have any problem.

Free shipping included. 30-day hassle-free returns.
