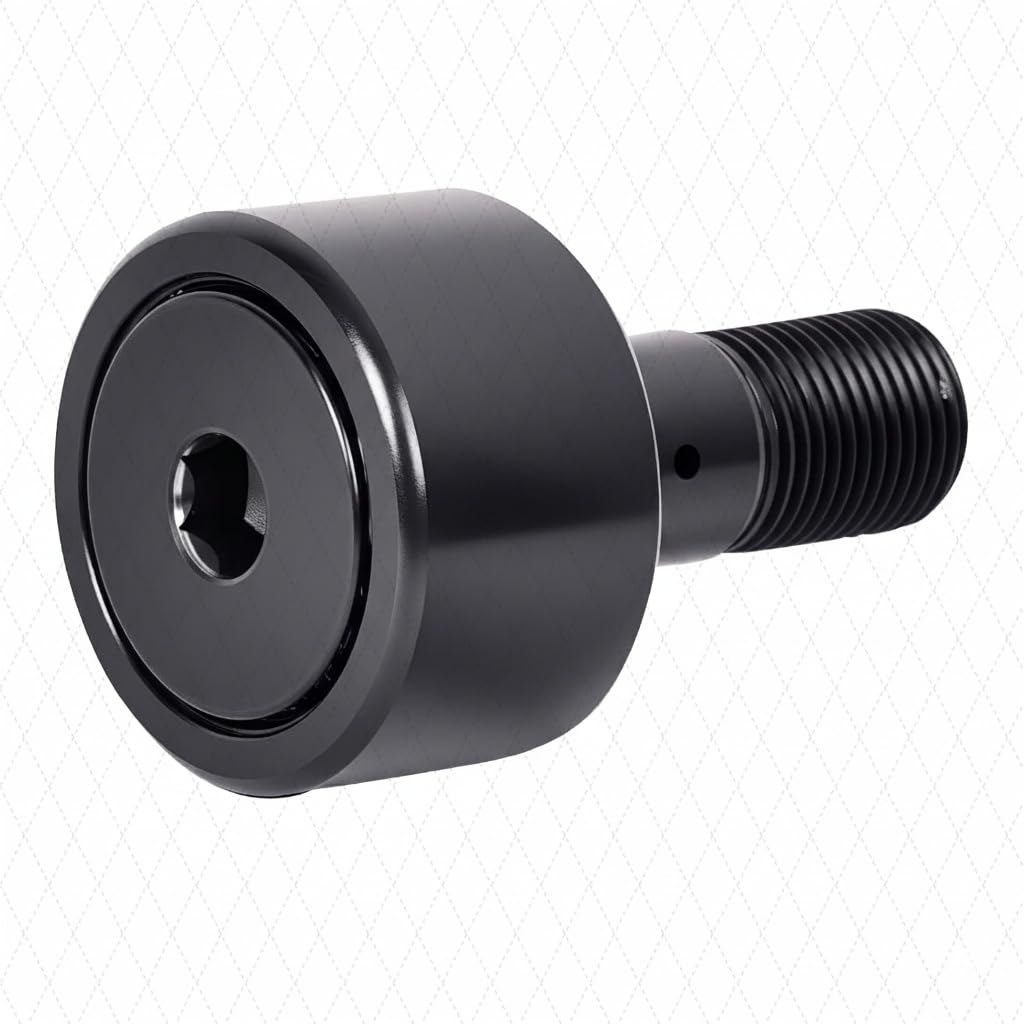

CF 3/4 SB Stud Cam Track Roller Follower Bearing

Key features

• Load Capacity: It has a maximum static capacity of 2065 lbs and a maximum dynamic capacity of 1660 lbs. 1 PCS in package
• Surface Treatment: The surface of the bearing has a black oxide coating to prevent corrosion.
• Sealing Design: It is sealed with internal thrust washers to extend service life in dusty environments.
• Lubrication: It comes pre-lubricated with high-quality multipurpose grease and can be re-lubricated through a radial hole in the stem of the stud.
• Easy Mounting: There is a hex socket in the stud head for easier mounting.

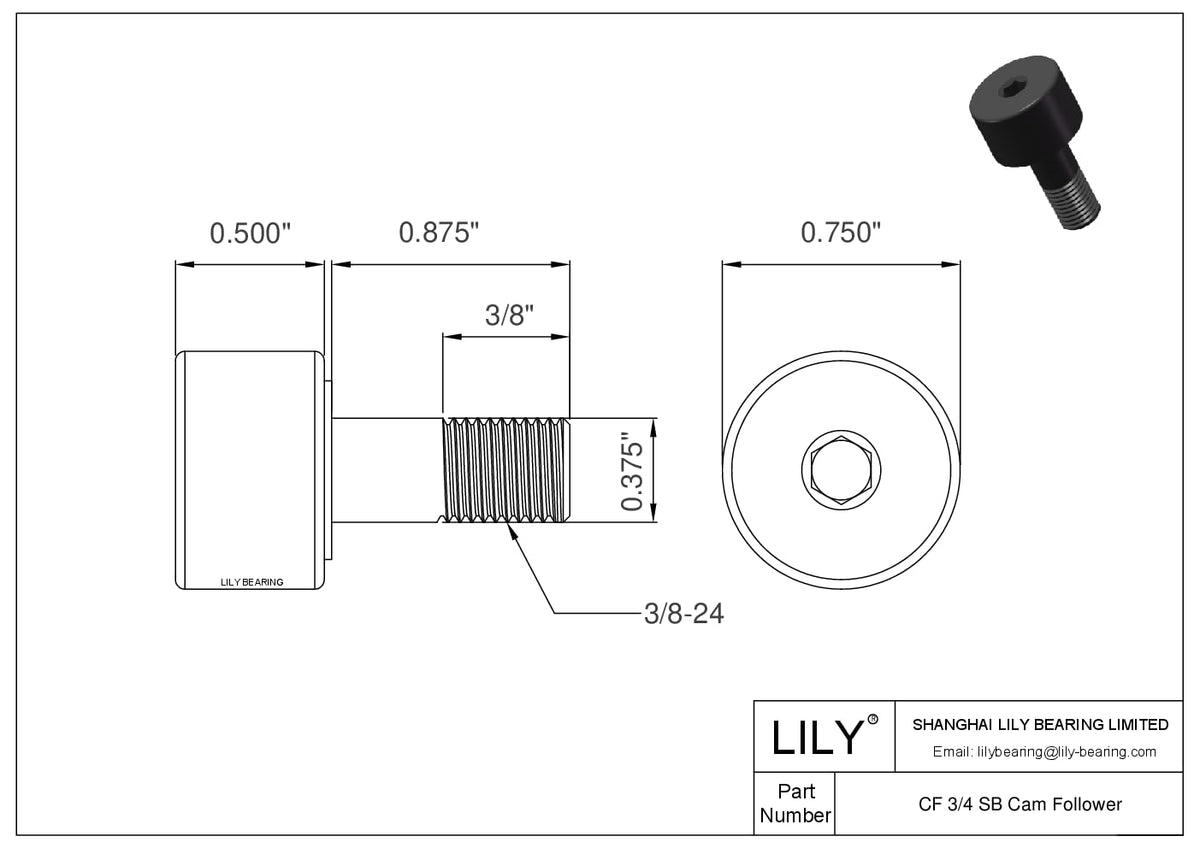

Product Description of CF 3/4 SB Cam Follower Bearing The CF 3/4 SB cam follower bearing has a roller diameter of 3/4" and a roller width of 1/2". It is a full complement sealed bearing with a black oxide finish for corrosion resistance. The stud head has a hex socket for easy mounting. It is pre-lubricated with high-quality multipurpose grease and can be re-lubricated through a radial hole in the stem of the stud. This bearing is designed with a thick outer ring to run directly in a track, which permits high-load carrying capacities with minimal distortion or bending. It is commonly used in conveyor equipment, material handling, ram support rollers, indexing equipment, etc.
