CHANCS Permanent Magnet DC 775 Motor Resolution 20PPR ABZ Phase Hall Magnetic High Precision Encoder Brush Motor Encoder 795
CHANCS Permanent Magnet DC 775 Motor Resolution 20PPR ABZ Phase Hall Magnetic High Precision Encoder Brush Motor Encoder 795
Key features

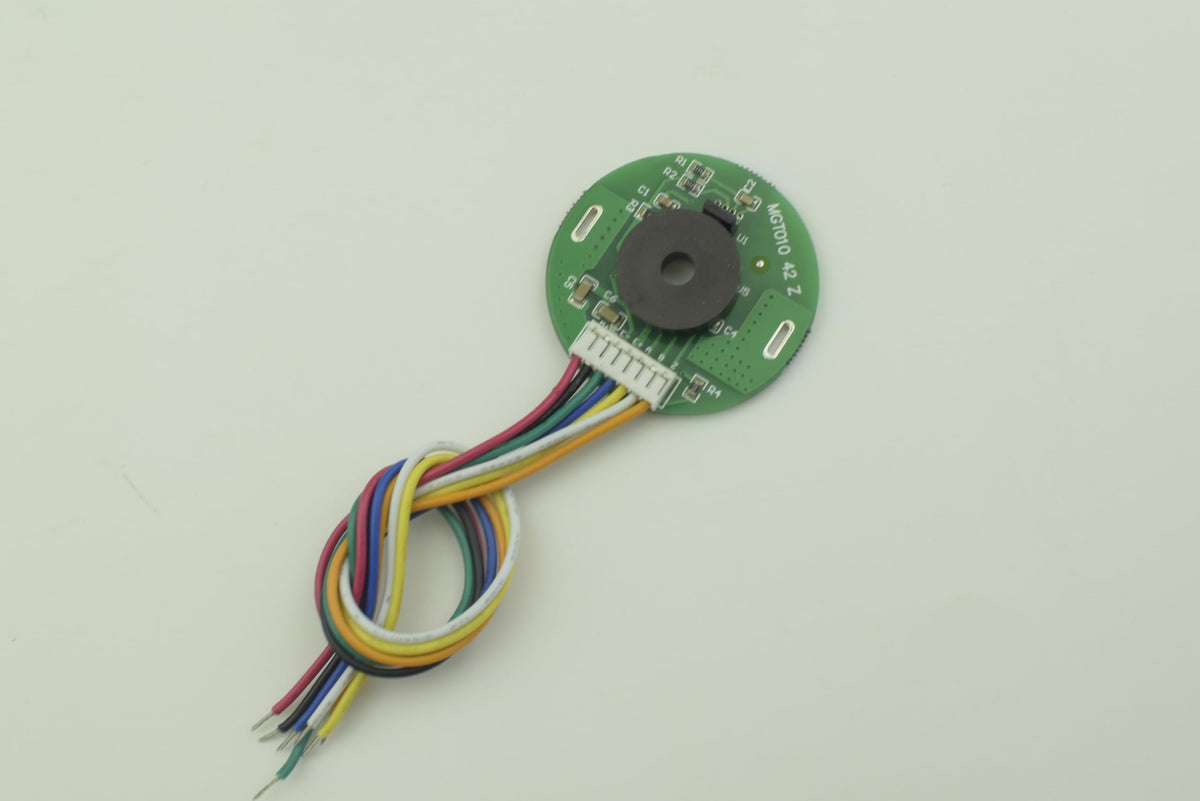

- 775 Motor ABZ Phase Hall Magnetic Encoder is a high performance, low cost, two channel incremental Type magnetic encoders, suitable for any harsh environment, each magnetic encoder contains a magnetic grid And a magneto-sensitive detection circuit that outputs two channels with a quadrature phase angle of 90° square wave.
- Size: Shaft diameter: 5mm; Resolution: 20PPR; Working frequency:100KHZ; According to the motor diameter size and spindle size production, The PCE plate and the motor are equipped with sensors, the tail electrode is welded and fixed, and the magnetic grid is set on the tail shaft.
- Motor installation requirements:Dual-axis DC motor, tail shaft length > 8mm, motor end piece length > 1mm.
- Package:1×Encoder
- Note: 1. Each set of magnetic encoder contains a magnetic grid and magnetic sensitive detection circuit, DC motor and control circuit are not included. 2. Pay attention to the wiring of the encoder, if the wrong connection will cause the chip to burn. 3. The actual product shall prevail.
Description： 775 Motor ABZ Phase Hall Magnetic Encoder is a high performance, low cost, two channel incremental Type magnetic encoders, suitable for any harsh environment, each magnetic encoder contains a magnetic grid And a magneto-sensitive detection circuit that outputs two channels with a quadrature phase angle of 90° square wave. Size: Shaft diameter: 5mm; Resolution: 20PPR; Working frequency:100KHZ; According to the motor diameter size and spindle size production, The PCE plate and the motor are equipped with sensors, the tail electrode is welded and fixed, and the magnetic grid is set on the tail shaft. Motor installation requirements: Dual-axis DC motor, tail shaft length > 8mm, motor end piece length > 1mm. Package: 1×Encoder Note: 1. Each set of magnetic encoder contains a magnetic grid and magnetic sensitive detection circuit. DC motor and control circuit are not included. 2. Pay attention to the wiring of the encoder, if the wrong connection will cause the chip to burn. 3. The actual product shall prevail.
