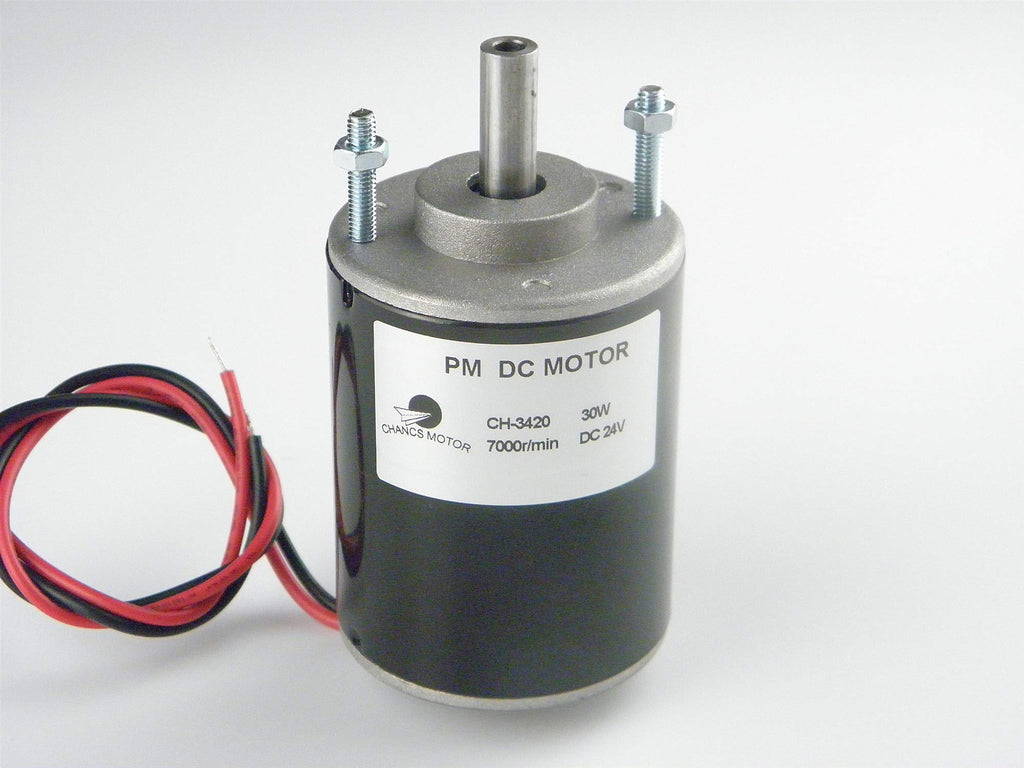

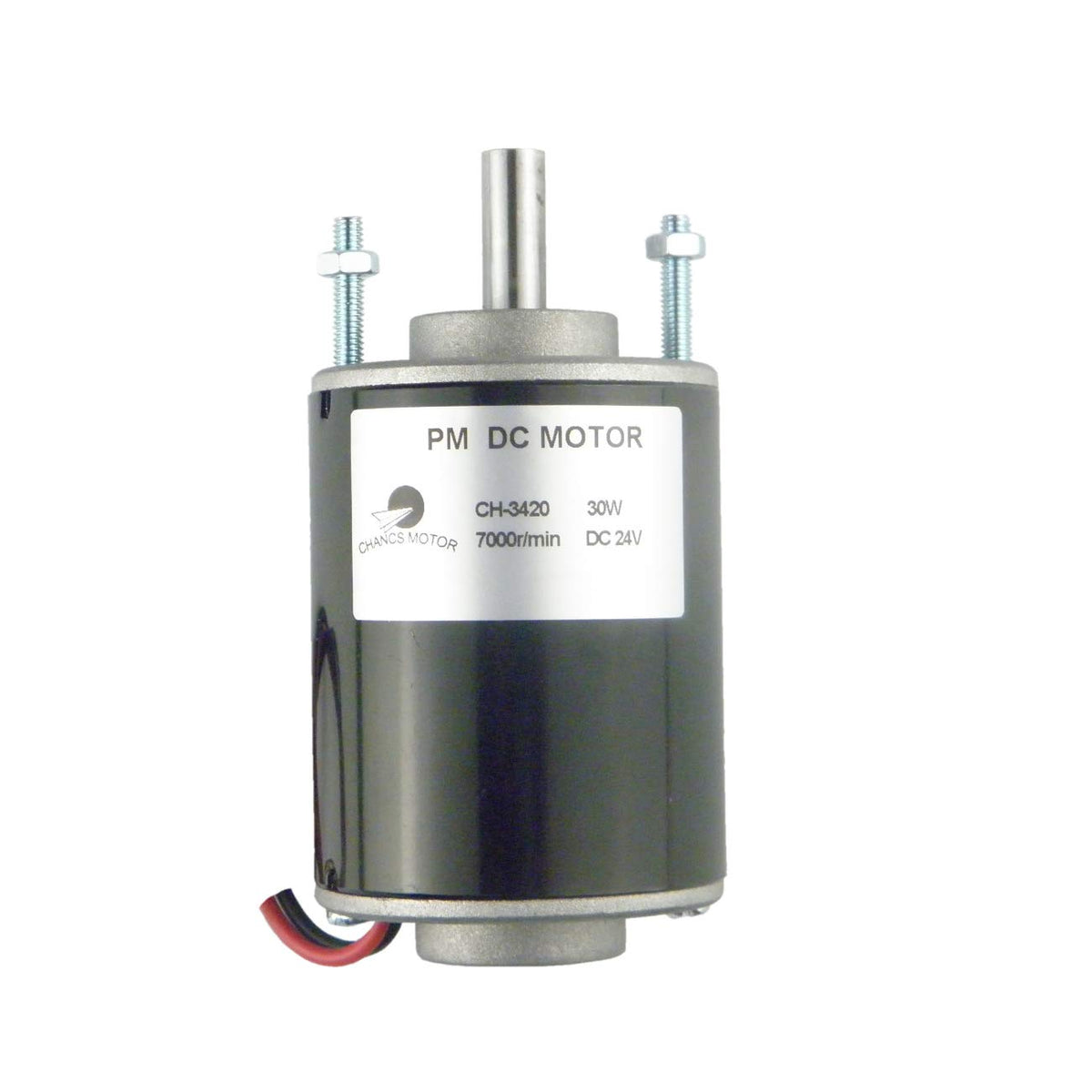

CHANCS Permanent Magnet DC Motor CH-3420 24V DC 7000RPM Hollow Shaft for Circular Saw
CHANCS Permanent Magnet DC Motor CH-3420 24V DC 7000RPM Hollow Shaft for Circular Saw
Key features

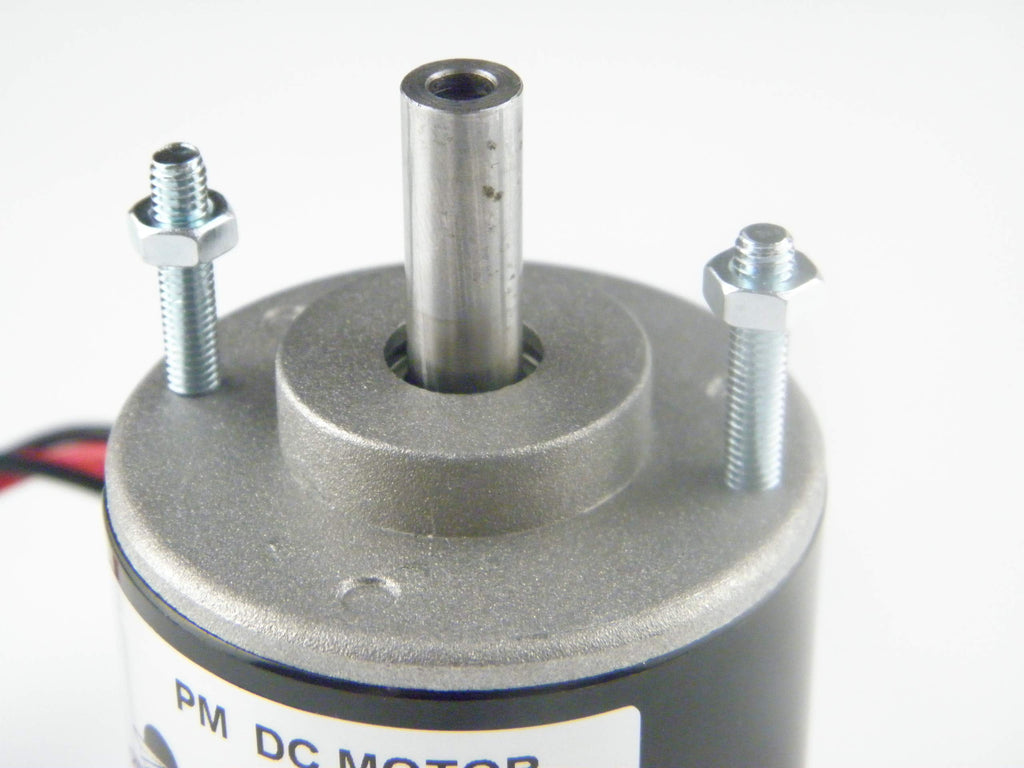

- *This DC permanent magnet motor features small size, stable performance, high speed with little noise and CW/CCW rotation. Ball bearing, small friction, strong oil seal, high bearing capacity It's all-metal construction, so it's strong and durable. Provide two threaded screw outlet for easy connection.

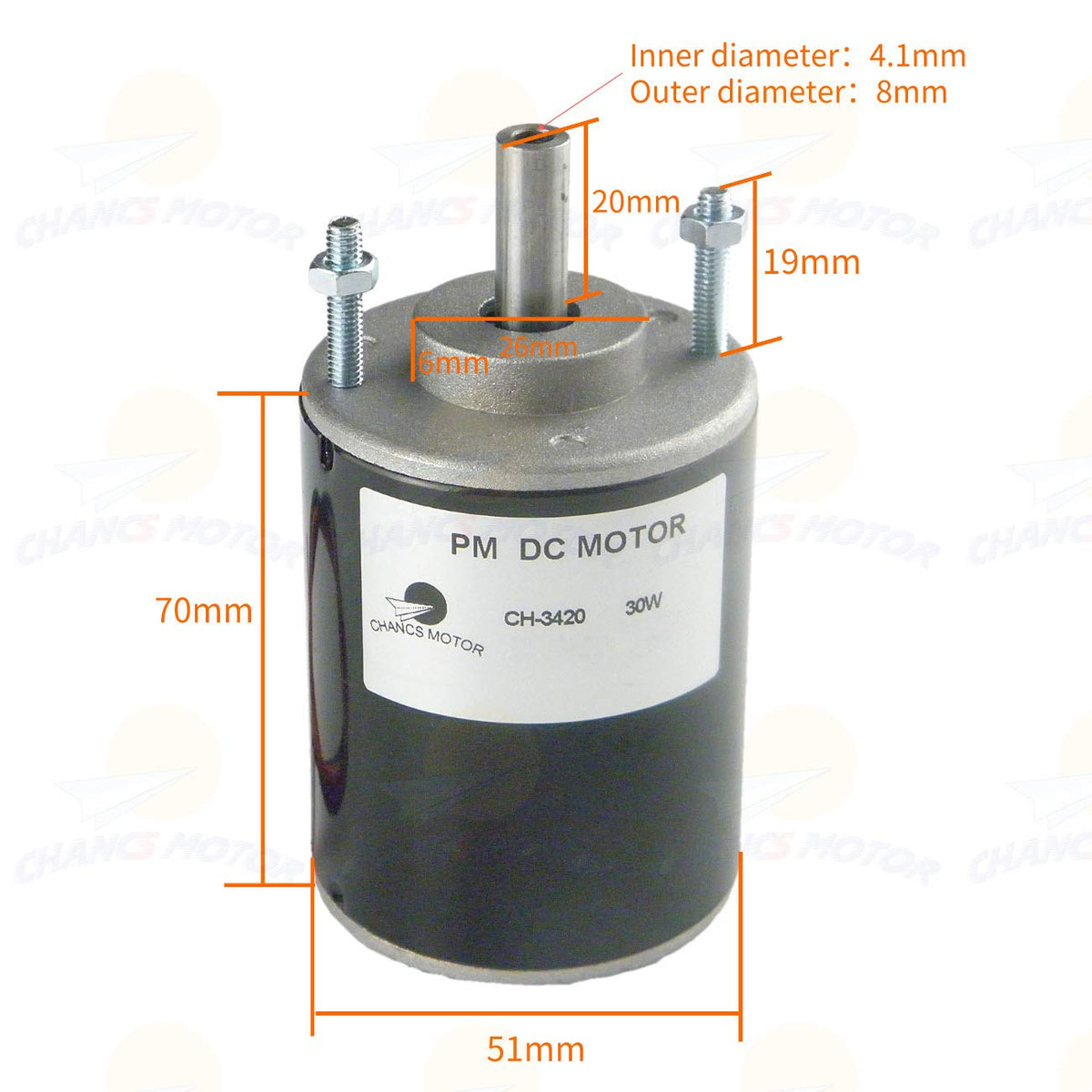

- *The specification of motor: Rated Voltage: DC 12V, Unloaded Speed: 3500RPM, Load Speed: 2400RPM； Rated Voltage: DC 24V, Unloaded Speed: 7000RPM, Load Speed: 5100RPM;Rated Current:2.42-3.37A; Rated power : 30W; Shaft: Hollow Shaft, Size:51*70mm; Shaft diamater:8mm; Shaft length: 20mm, Rotation:CW/CCW.
- *Shaft: Threaded Shaft, Common Shaft, Minor Shaft, Hollow Shaft Size:51*70mm, Shaft diamater:8mm, Shaft length: 38mm, 45mm, 25mm, 20mm Rotation:CW/CCW.
- *This permanent magnet DC motor is for DIY generator.Need for external direct current governor, it can achieve speed adjustment function.
- *Application:Used for electric fan, shredder, sprayer, small cutting machine, small table saw, money counter, printer, etc.
- *Package : 1 x DC Motor
*This DC permanent magnet motor features small size, stable performance, high speed with little noise and CW/CCW rotation. Ball bearing, small friction, strong oil seal, high bearing capacity It's all-metal construction, so it's strong and durable. Provide two threaded screw outlet for easy connection. *The specification of motor: Rated Voltage: DC 12V, Unloaded Speed: 3500RPM, Load Speed: 2400RPM； Rated Voltage: DC 24V, Unloaded Speed: 7000RPM, Load Speed: 5100RPM; Rated Current:2.42-3.37A; Rated power : 30W; Shaft: Hollow Shaft, Size:51*70mm; Shaft diamater:8mm; Shaft length: 20mm, Rotation:CW/CCW. *Shaft: Threaded Shaft, Common Shaft, Minor Shaft, Hollow Shaft Size:51*70mm, Shaft diamater:8mm, Shaft length: 38mm, 45mm, 25mm, 20mm Rotation:CW/CCW. *This permanent magnet DC motor is for DIY generator.Need for external direct current governor, it can achieve speed adjustment function. *Application: Used for electric fan, shredder, sprayer, small cutting machine, small table saw, money counter, printer, etc. *Package : 1 x DC Motor
Free shipping included. 30-day hassle-free returns.
