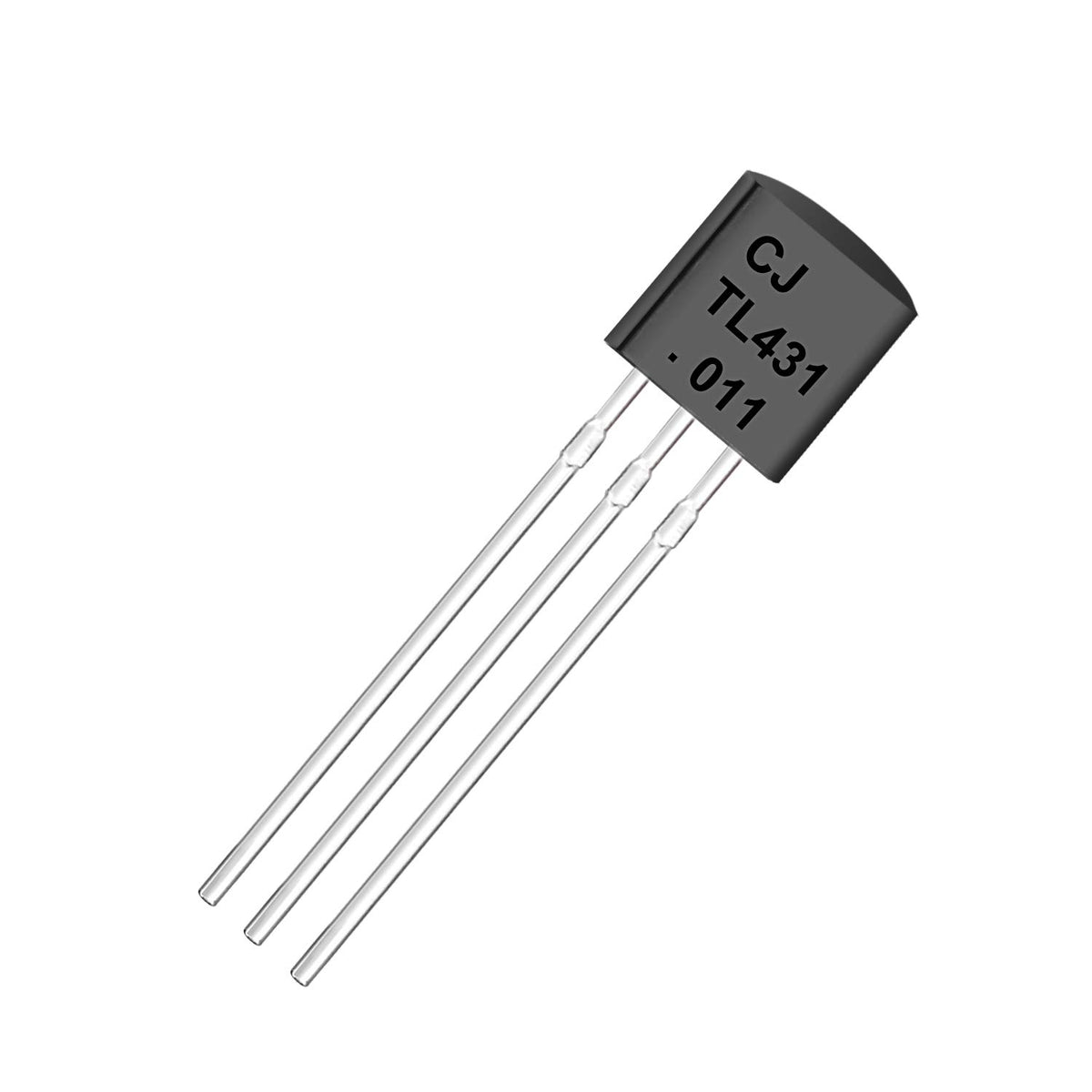

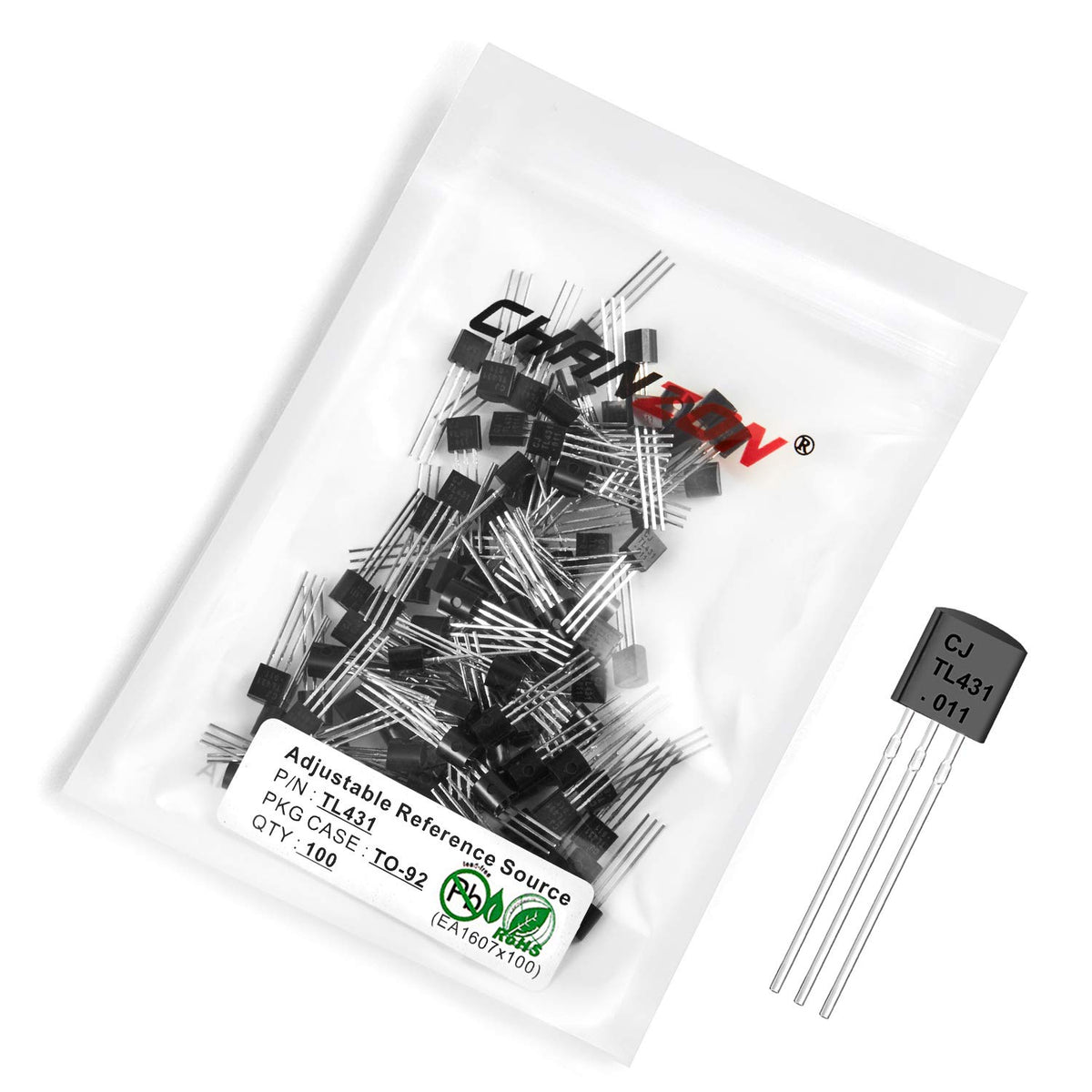

Chanzon 100pcs TL431 TO-92 Positive Adjustable Voltage Regulator IC

Key features

• Transistor Type: Precision programmable reference/regulator transistor
• Transistor Specification: Manages maximum output current (IO) up to 0.1 A, dissipation power (PD) up to 0.7 W, output voltage (VO) between 2.5-36 V.
• Functionality: Regulates a voltage that is stable across a wide range of currents and input voltages, acting as an adjustable shunt regulator.
• Application: Widely used as a replacement for traditional zener diodes, offering improved performance for stabilizing voltage in electronic circuits.

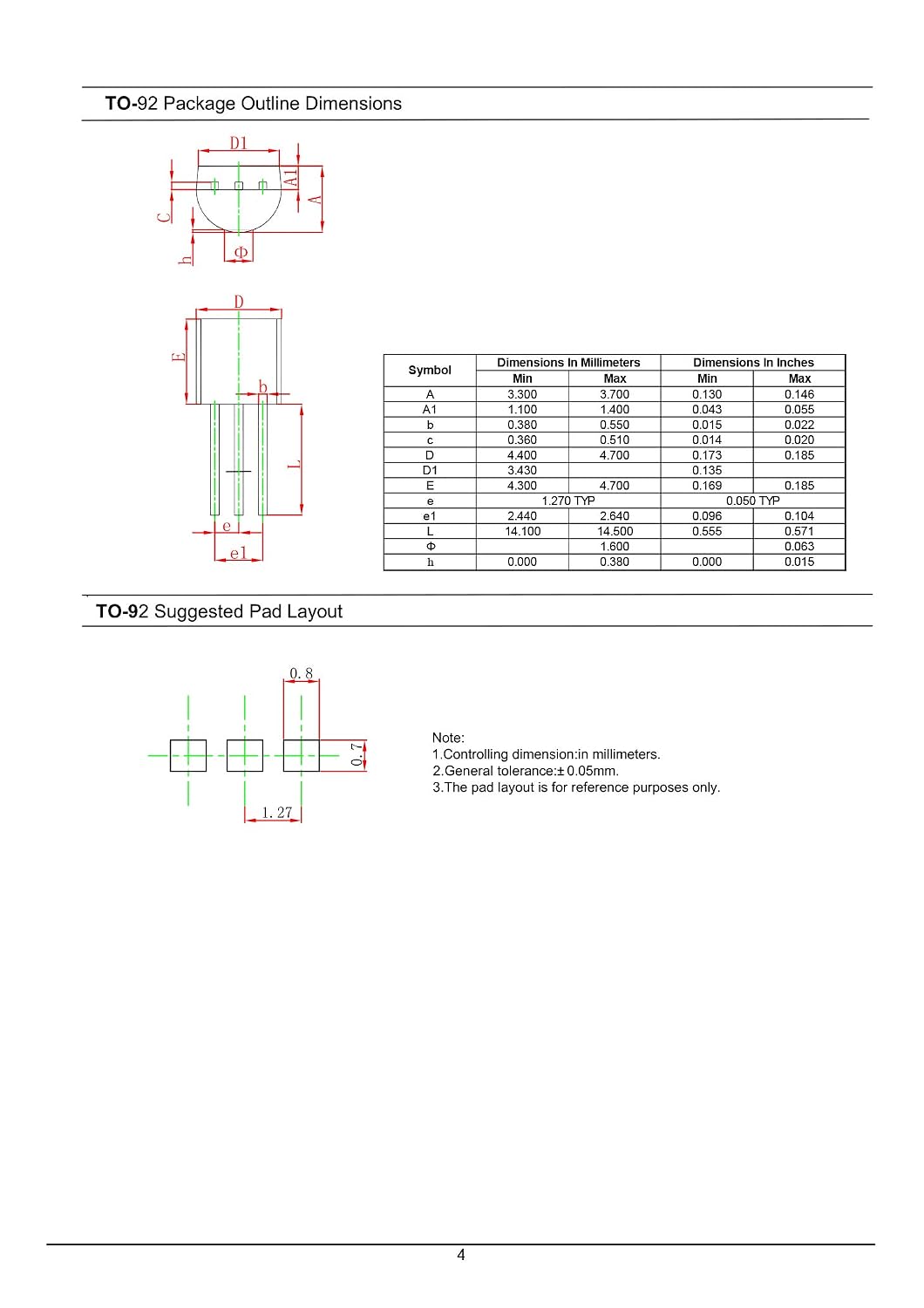

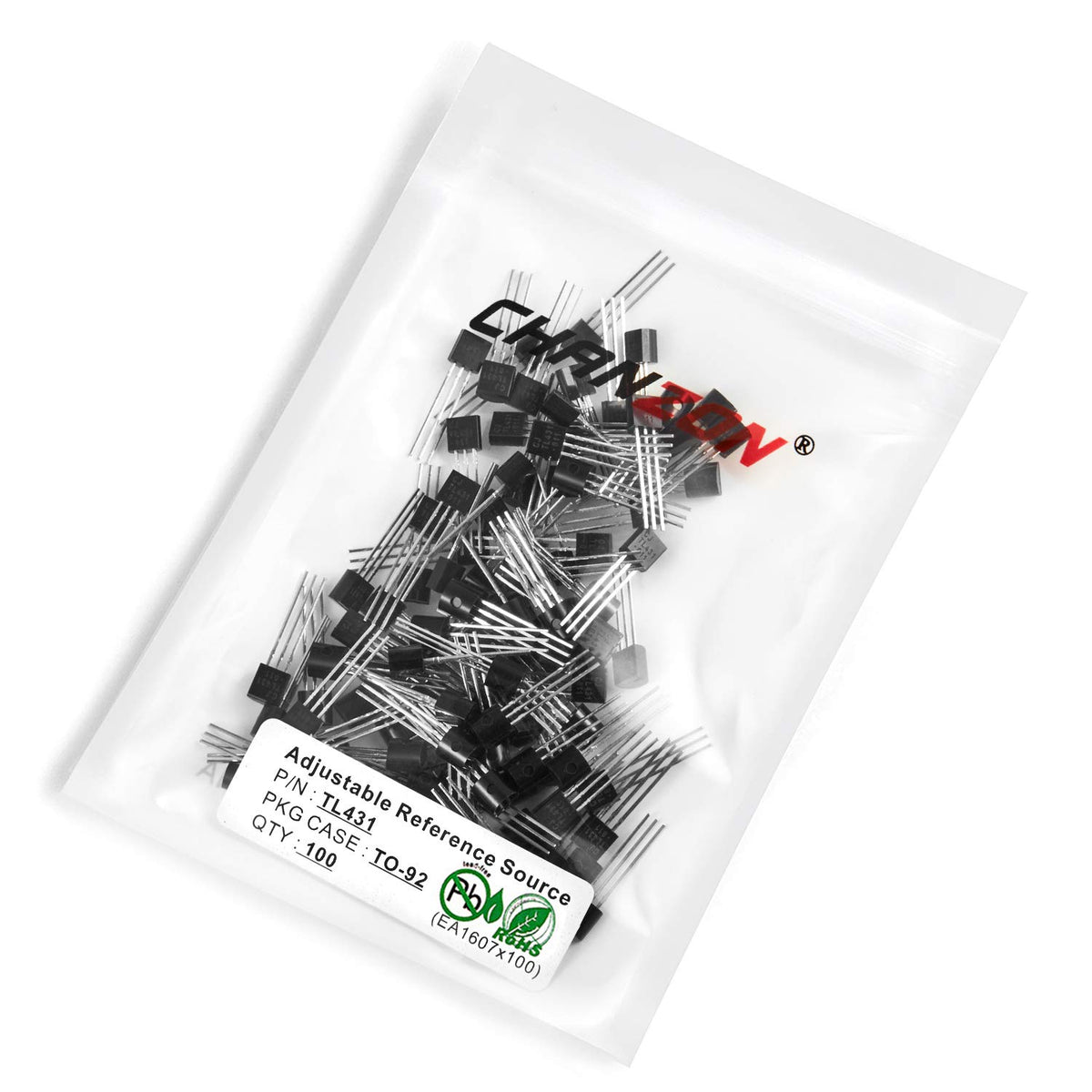

• Package: Comes in a TO-92 package and includes an anti-static bag for electrostatic protection, ESD safety, and extended shelf life.

Product Description:This TO-92 encapsulated adjustable reference source is designed for precision applications requiring a stable and adjustable output voltage up to 36V. With its low dynamic output impedance of 0.2Ω, it ensures reliable performance across a wide range of operating conditions.Key Features:- Adjustable Output Voltage: 0 to 36V- Low Dynamic Output Impedance: 0.2Ω (typical)- Trapping Current Capability: 1 to 100mA- Temperature Coefficient: 50 ppm/°C (typical) across the full temperature range- Effective Temperature Compensation: Optimized for the entire operating temperature range- Low Output Noise Voltage: For high signal integrity- Fast On-State Response: Quick to adapt to changes in loadAbsolute Maximum Ratings:- Cathode Voltage (VKA): 37V- Cathode Current Range: -100 to +150 mA (Continuous)- Reference Input Current Range: 0.05 to +10 mA- Power Dissipation: 770 mW- Storage Temperature Range: -65°C to +150°CElectrical Characteristics (at Ta=25°C):- Reference Input Voltage (Vref): 2.475V to 2.525V- Deviation of Reference Input Voltage Over Temperature: 4.5 to 17 mV/°C- Change in Reference Input Voltage to Cathode Voltage Ratio: -0.5 to -2.0 mV/V- Reference Input Curr
