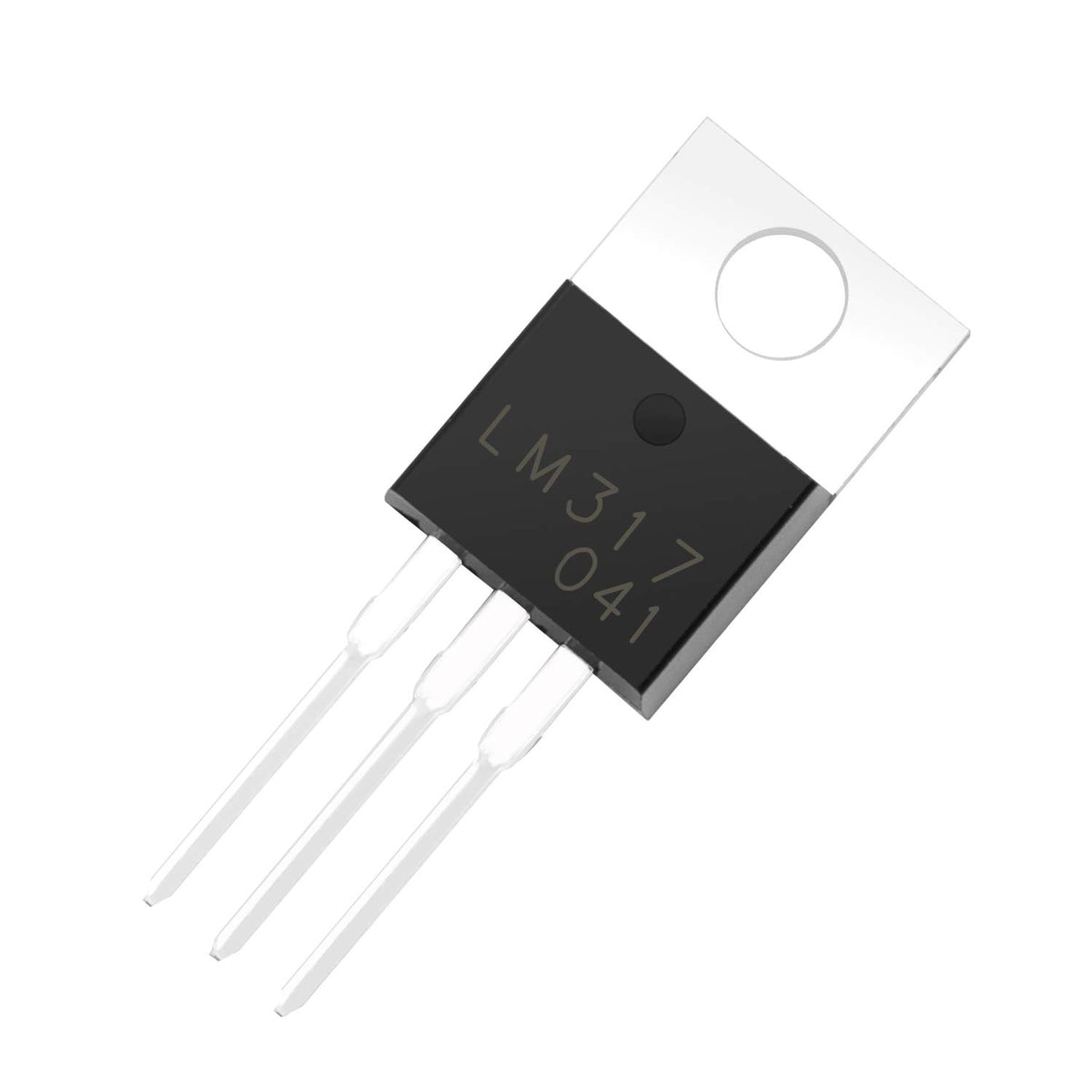

Chanzon 10pcs LM317T TO-220-3L Positive Adjustable Voltage Regulator IC

Key features

• Transistor Type: Positive Voltage Regulator Transistor for power regulation.
• Specification: Outputs VO of 1.2~37V and IO of 1.5A, with an input voltage limit (VI) of 40V and a minimum voltage drop (VD) of 3V.
• Application: Widely utilized in power supply designs for output voltage regulation, ensuring consistent power for your electronics.
• Features: Adjustable 3-Terminal voltage regulation, providing flexibility and adaptability in various electronic circuit designs.

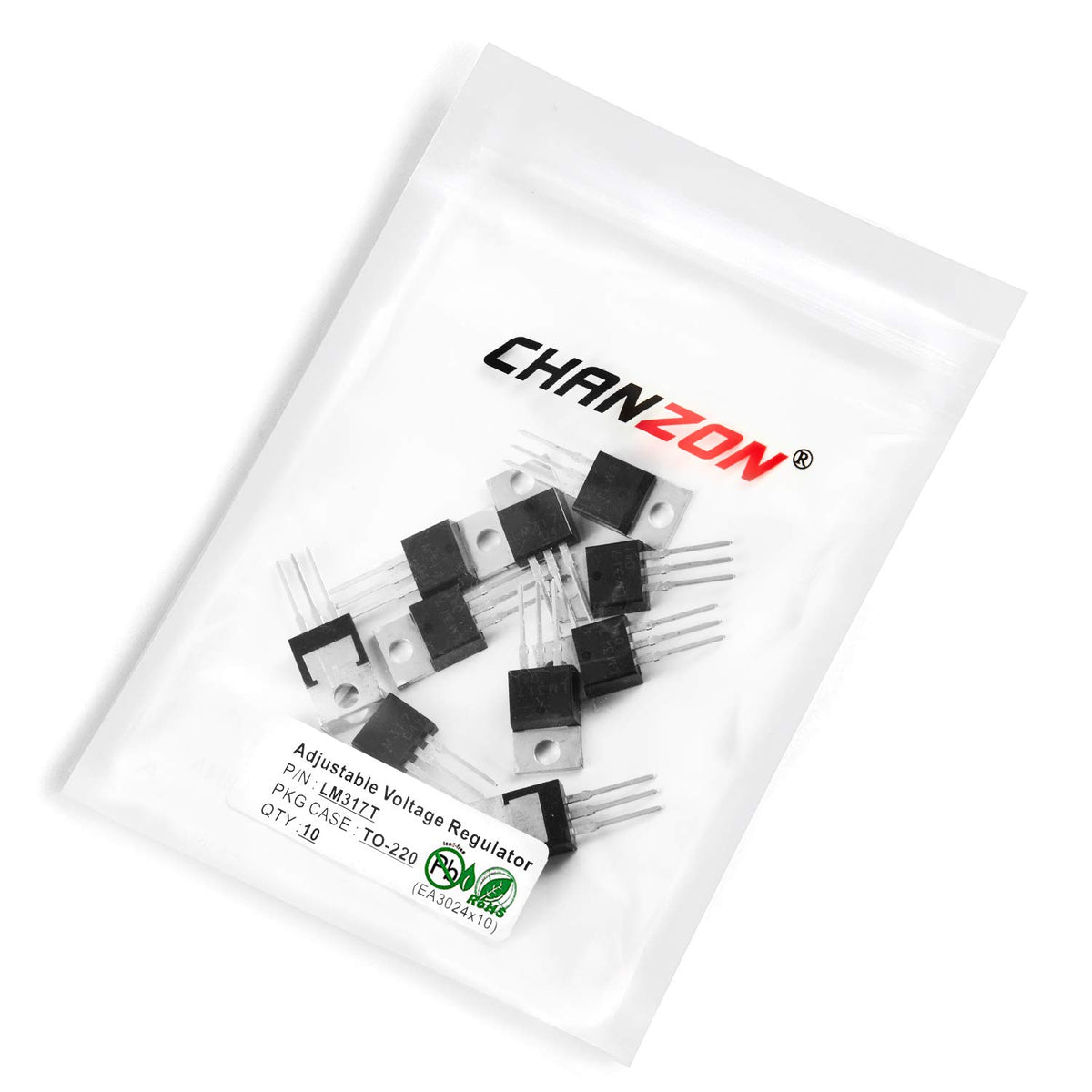

• Package: Shipped in an Anti-Static bag for electrostatic protection, ESD safety, and prolonged shelf life.

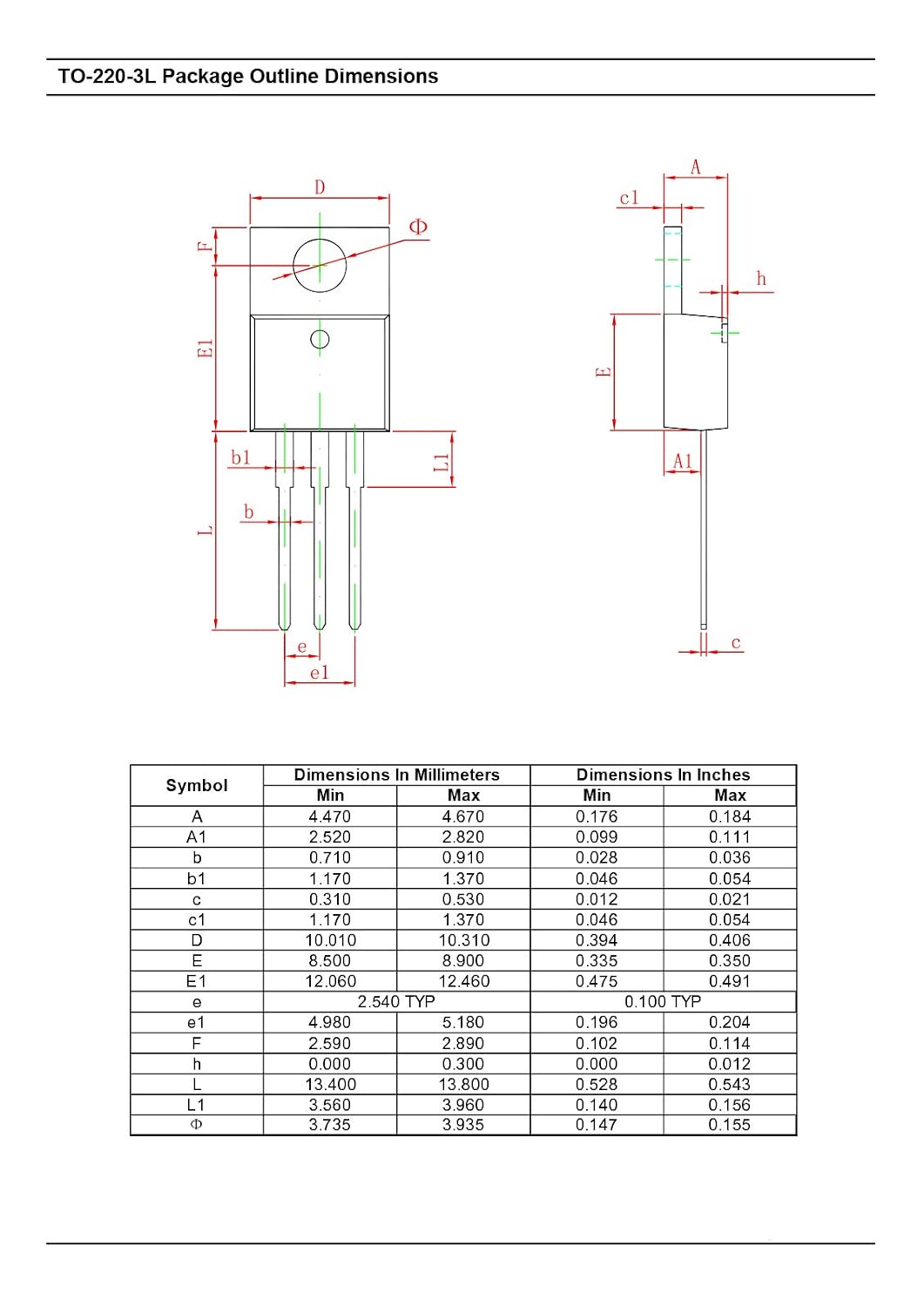

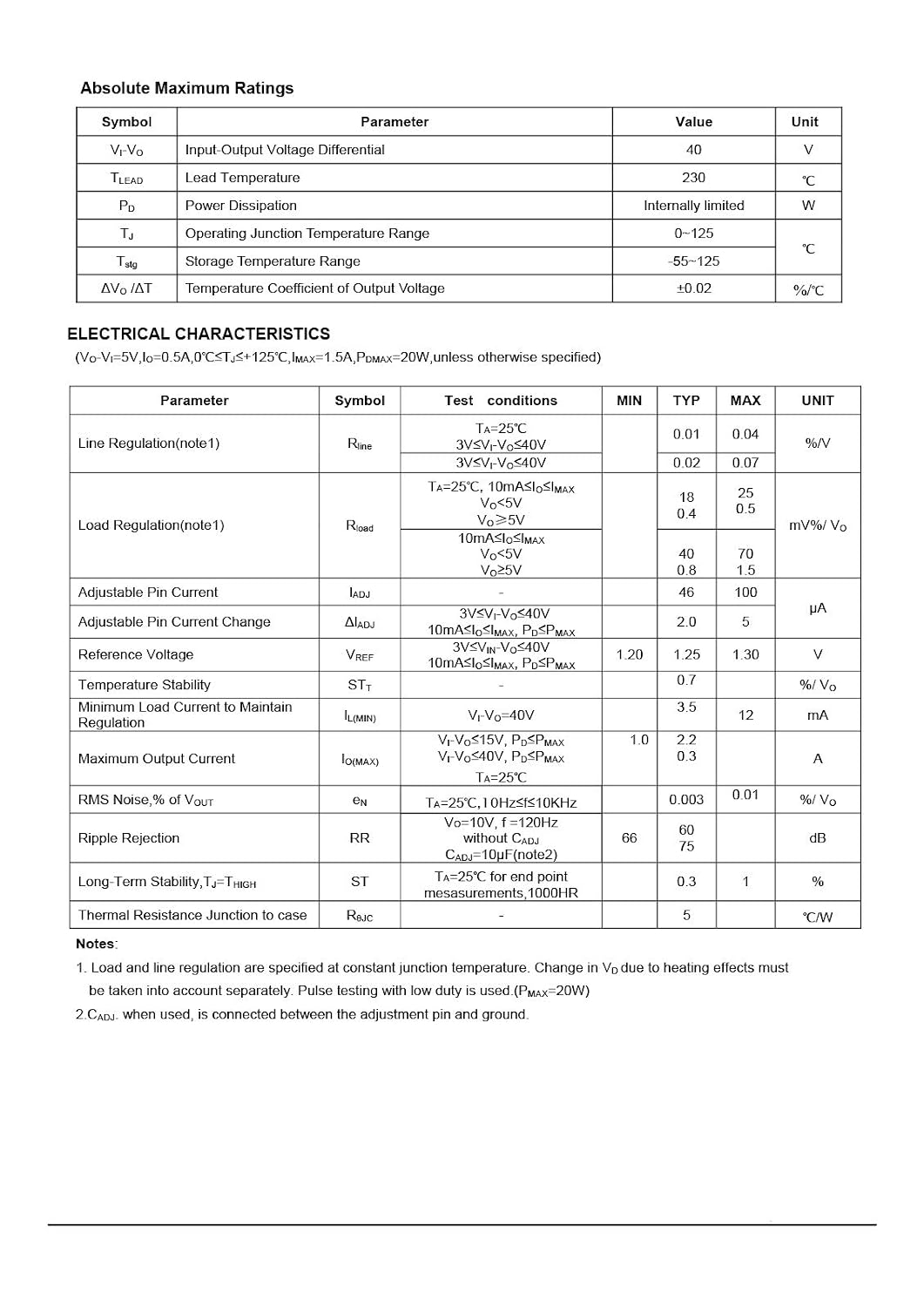

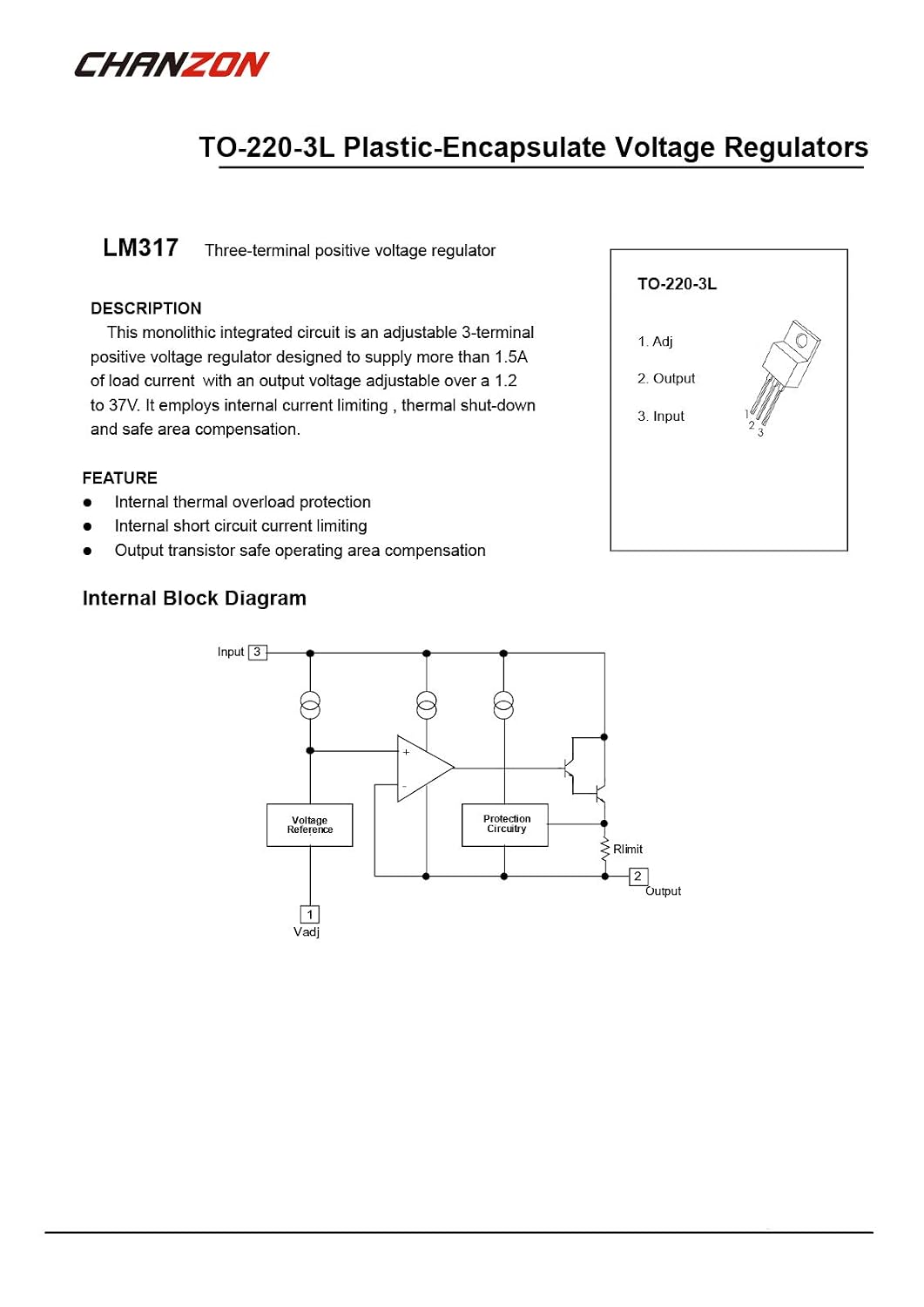

Product Description:The TO-220-3L is a high-performance, adjustable 3-terminal positive voltage regulator designed to deliver over 1.5A of load current with an adjustable output voltage ranging from 1.2V to 37V. This monolithic integrated circuit offers a reliable solution for a wide range of applications requiring stable voltage regulation.Features:- Adjustable Output Voltage: 1.2V to 37V- High Load Current: Over 1.5A- Internal Current Limiting and Thermal Overload Protection- Safe Operating Area Compensation for Output TransistorKey Electrical Characteristics:- Line Regulation: 0.02%/V to 0.07%/V- Load Regulation: 40mV% to 1.5mV%- Adjustable Pin Current (IADJ): 46μA to 100μA- Reference Voltage (VREF): 1.20V to 1.30V- Temperature Stability: 0.7%/VO- Maximum Output Current (IOM): 1.0A to 2.2A- RMS Noise: 0.003% to 0.01% of VOUT- Ripple Rejection: 60dB to 75dB- Long-Term Stability: 0.3% to 1% over 1000 hours- Thermal Resistance (RθJC): 5°C/WTypical Application:Suitable for use in applications where a stable voltage supply is required at a distance from the power supply filter. The inclusion of a capacitor (Ci) is recommended for improved transient response.Dimensions:- Package Outli

Free shipping included. 30-day hassle-free returns.
