Chanzon 50pcs PC817C Phototransistor Optocoupler DIP Installation DIP-4

Key features

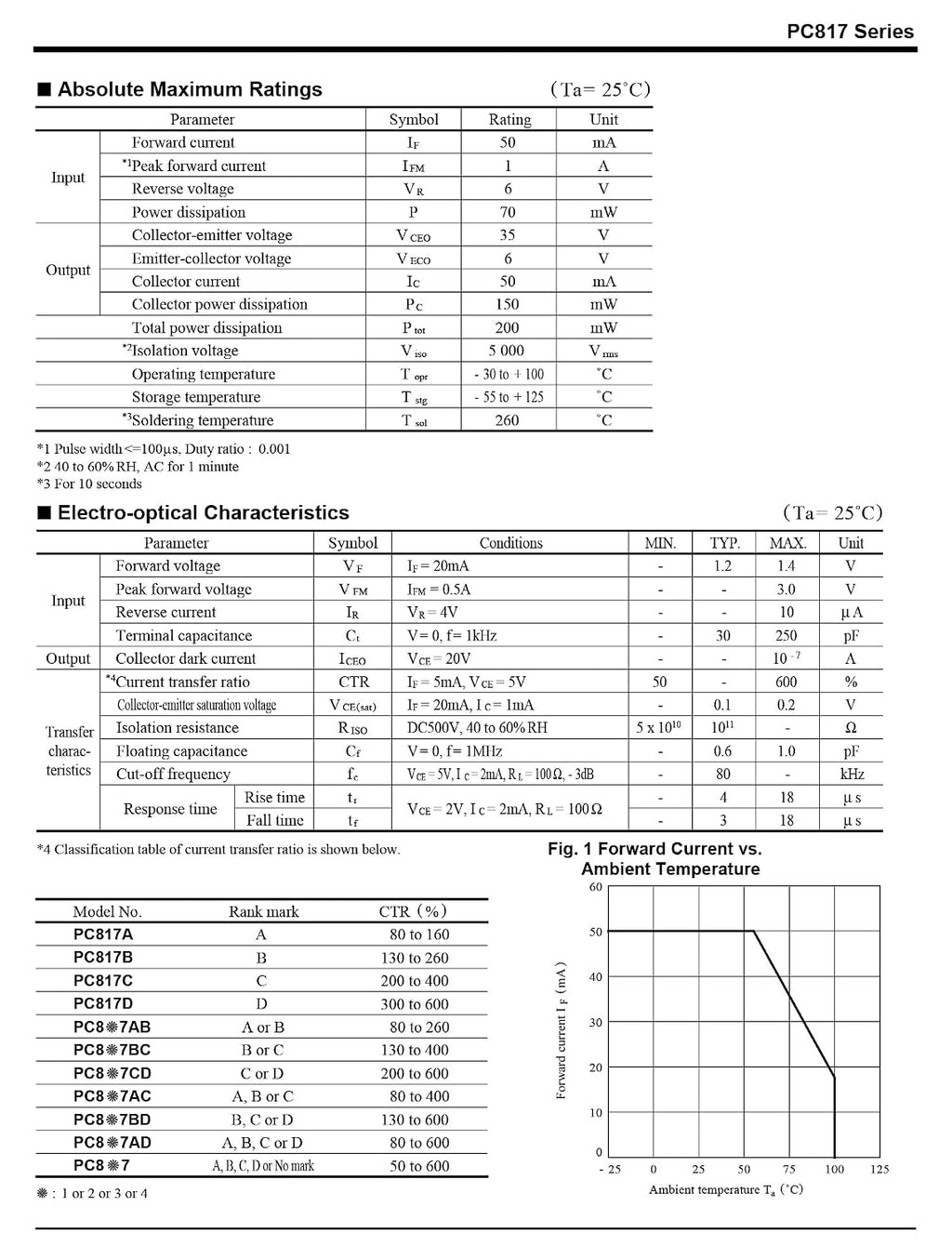

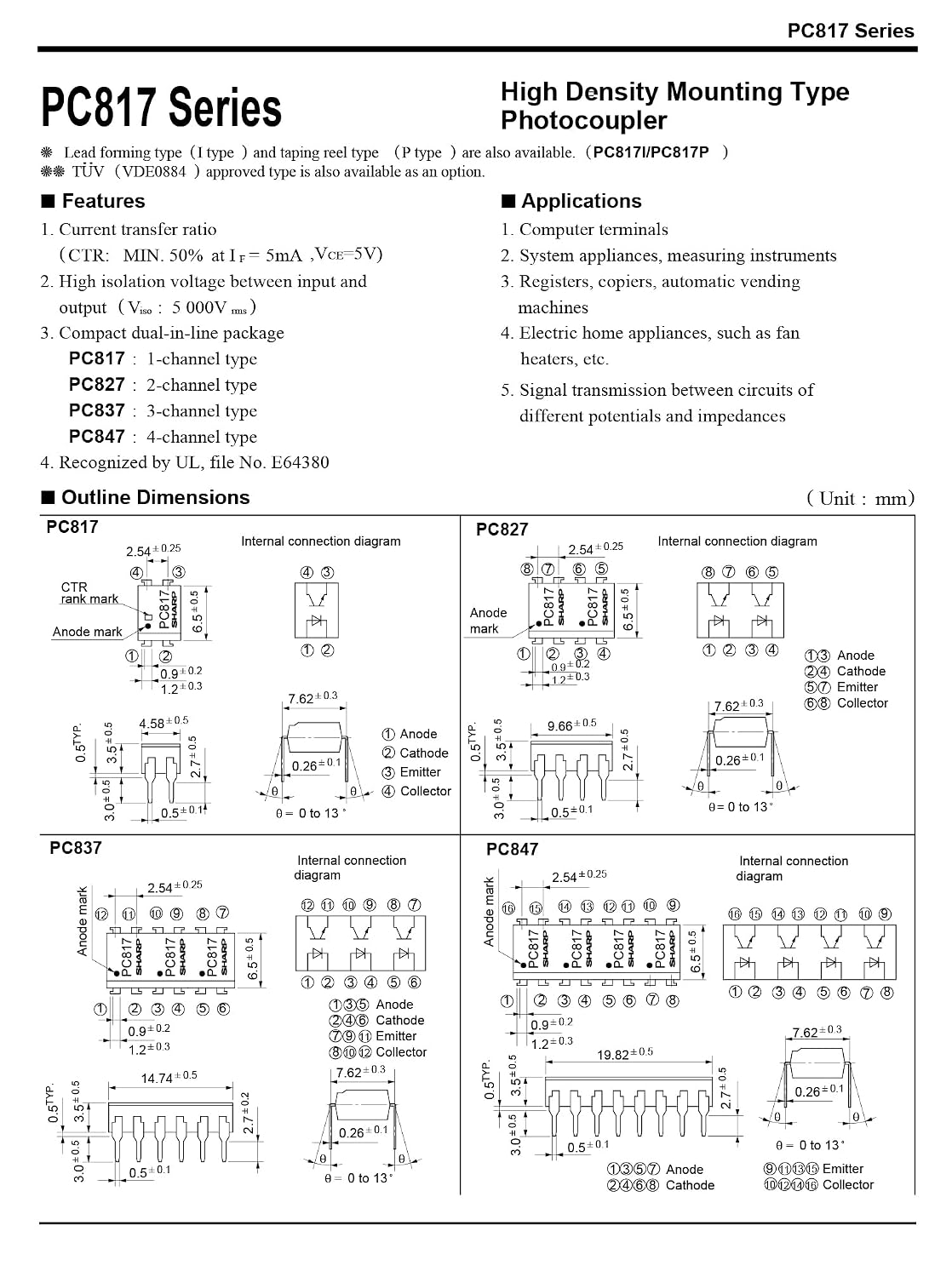

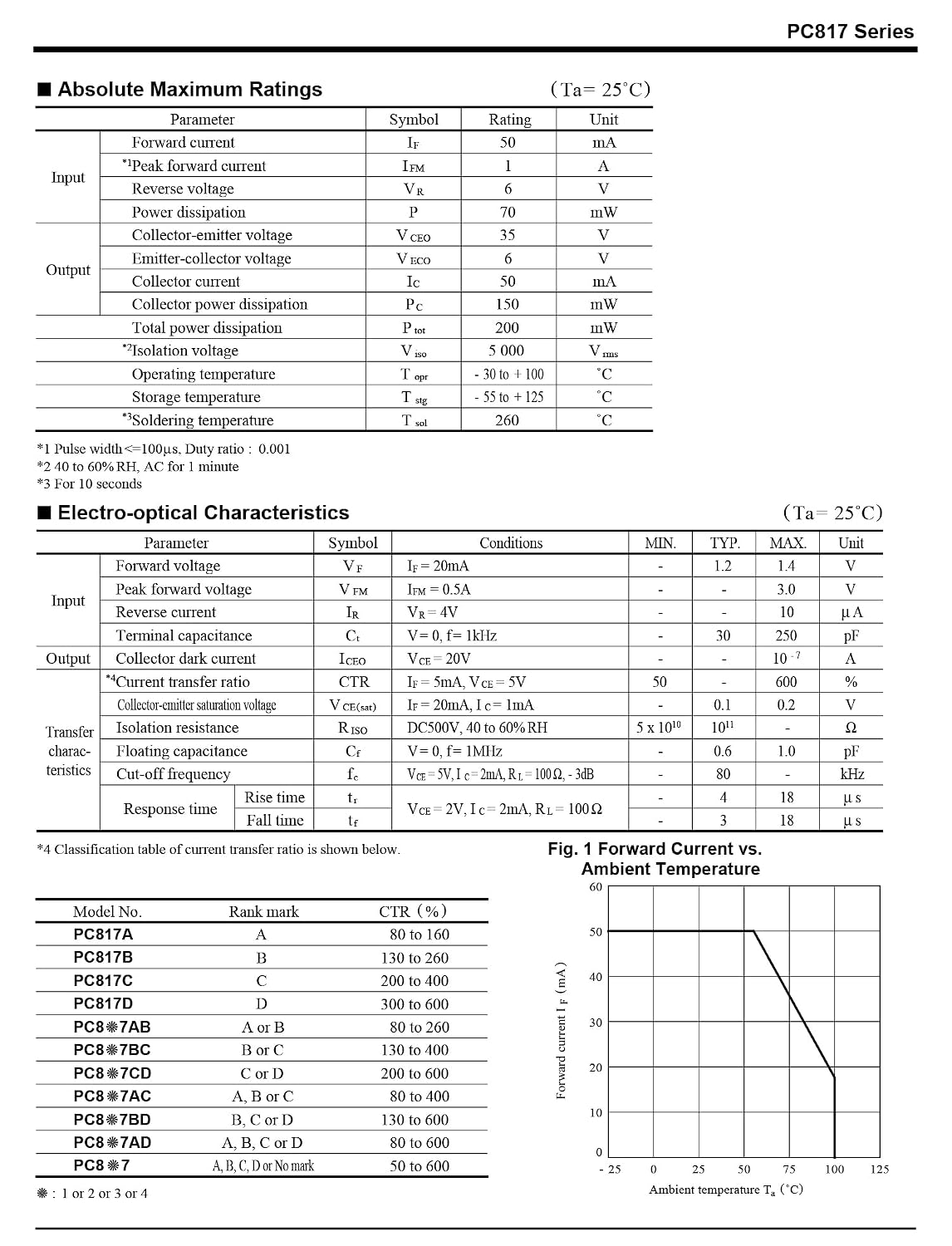

• Spec: 1-channel type, Transfer Ratio CTR Min.CTR 50% Max 600% (IF = 5mA, V = 5V),Isoration Voltage: 5000Vrms, Please see pic3-pic5 for detail parameters.

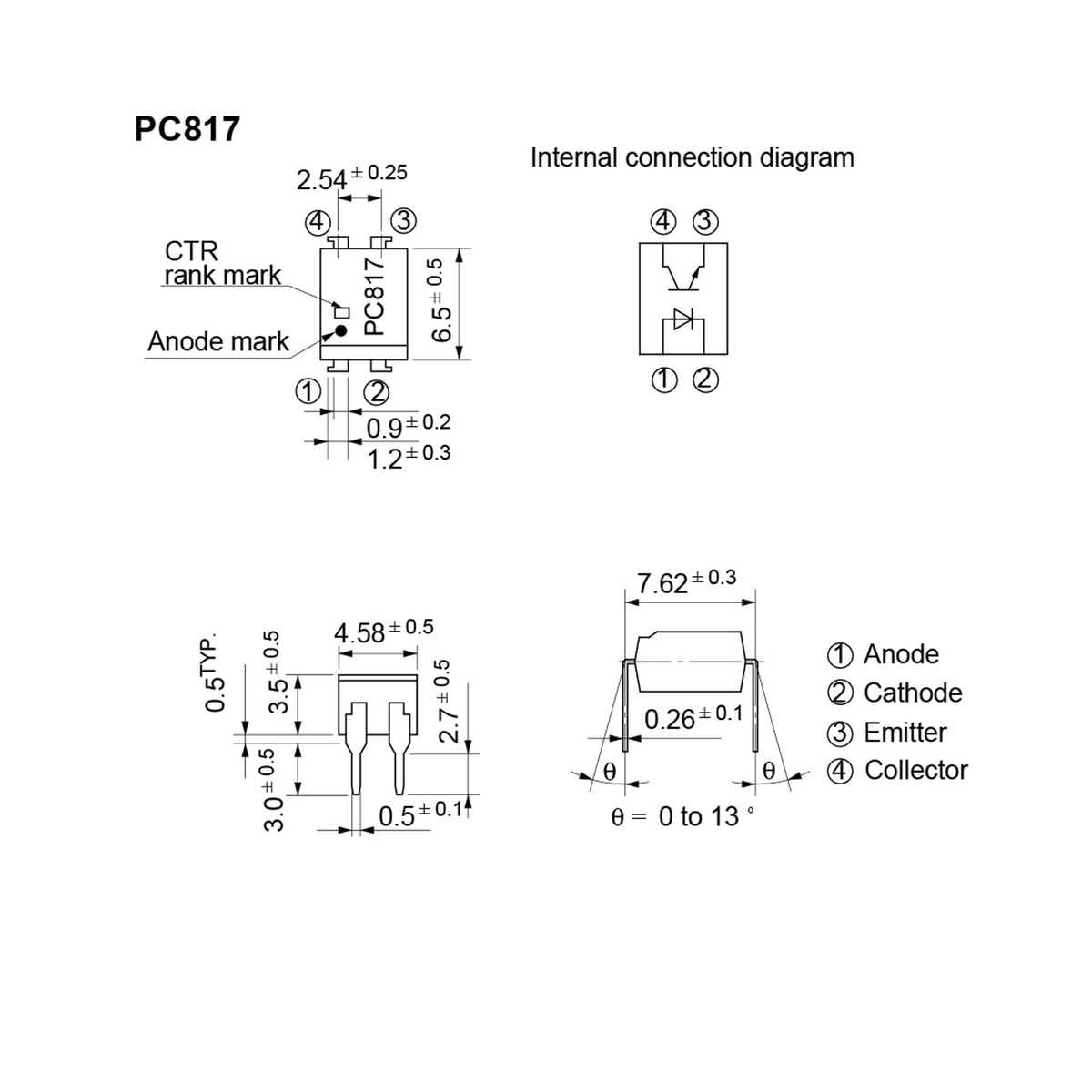

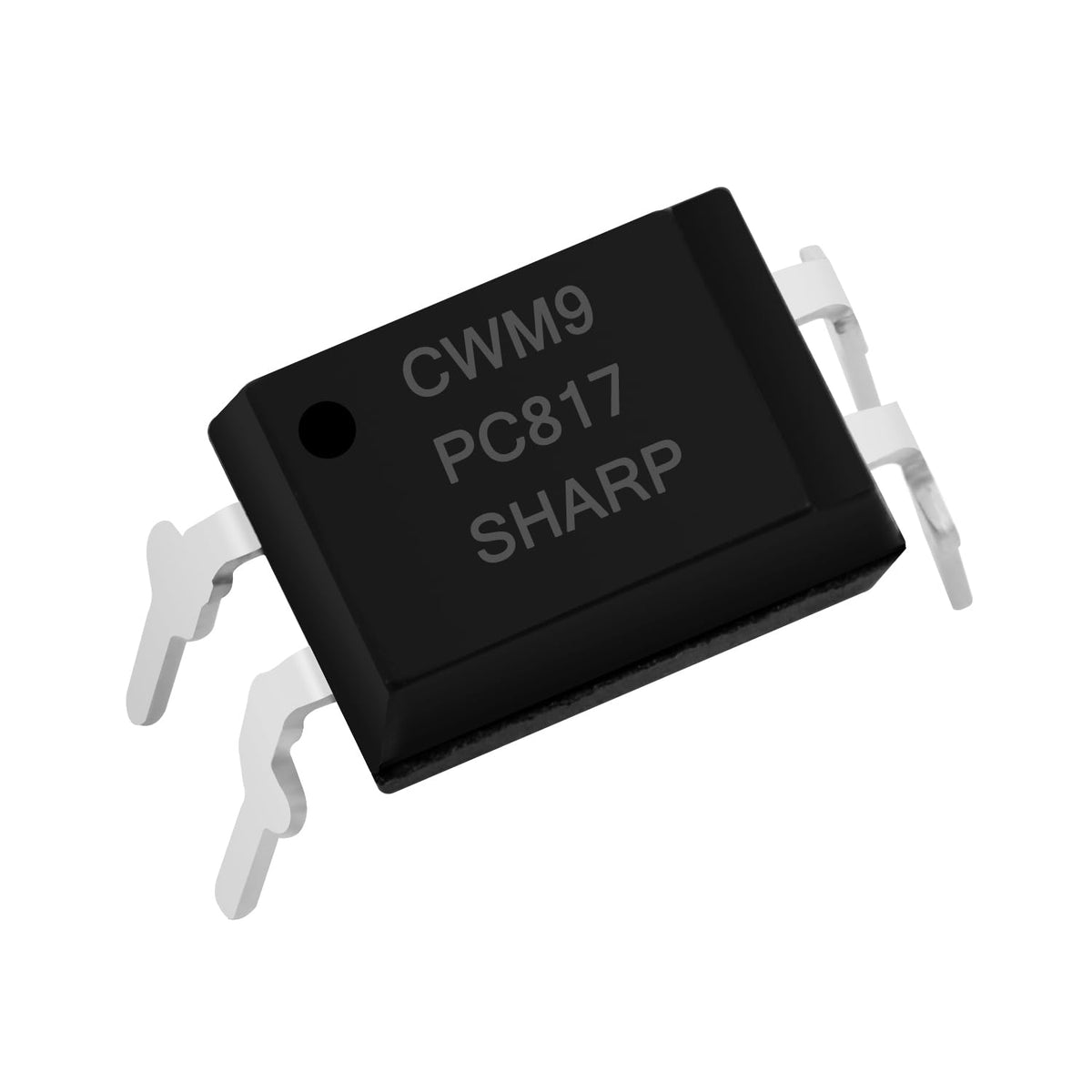

• Number of Pins: 4 pin(dip-4), Through Hole

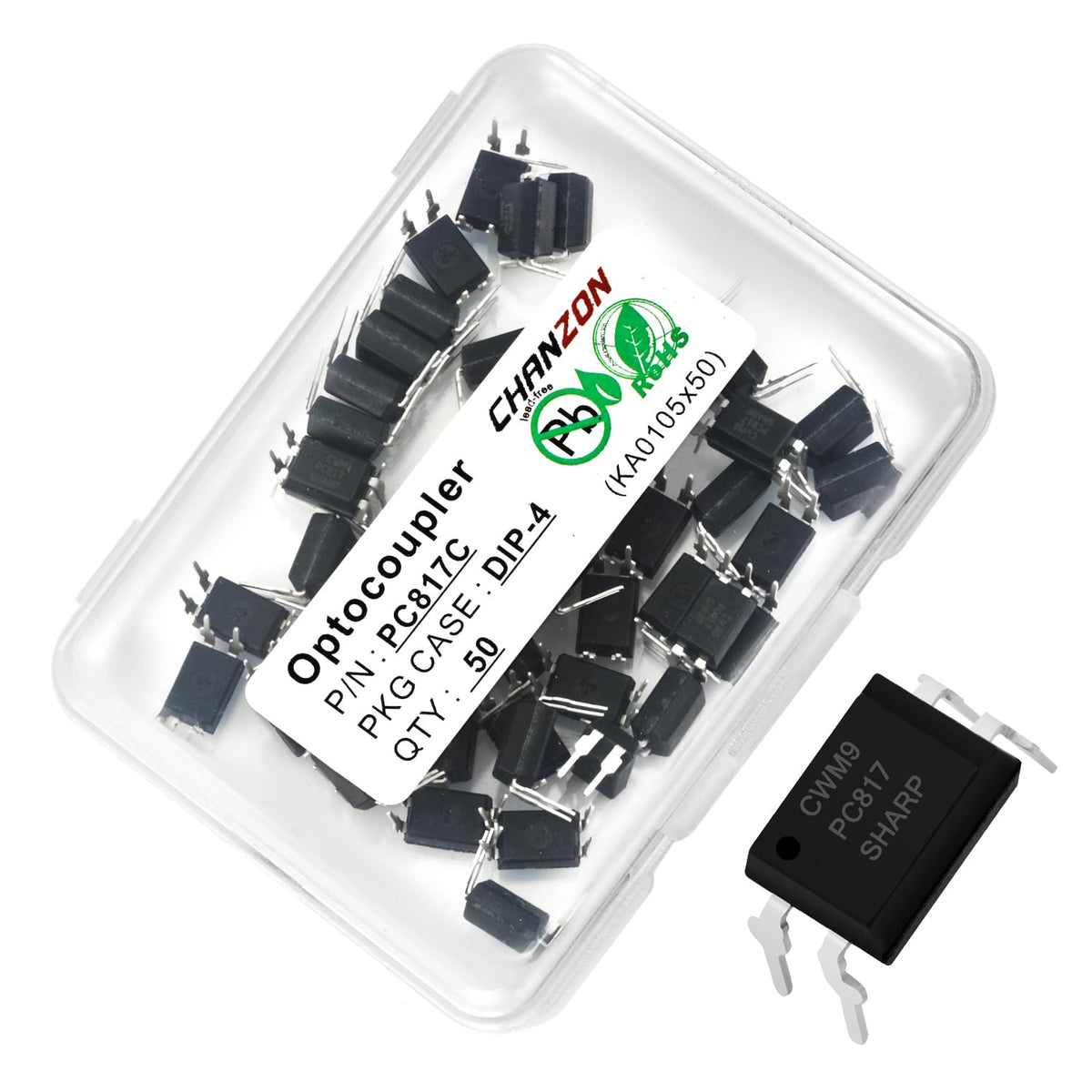

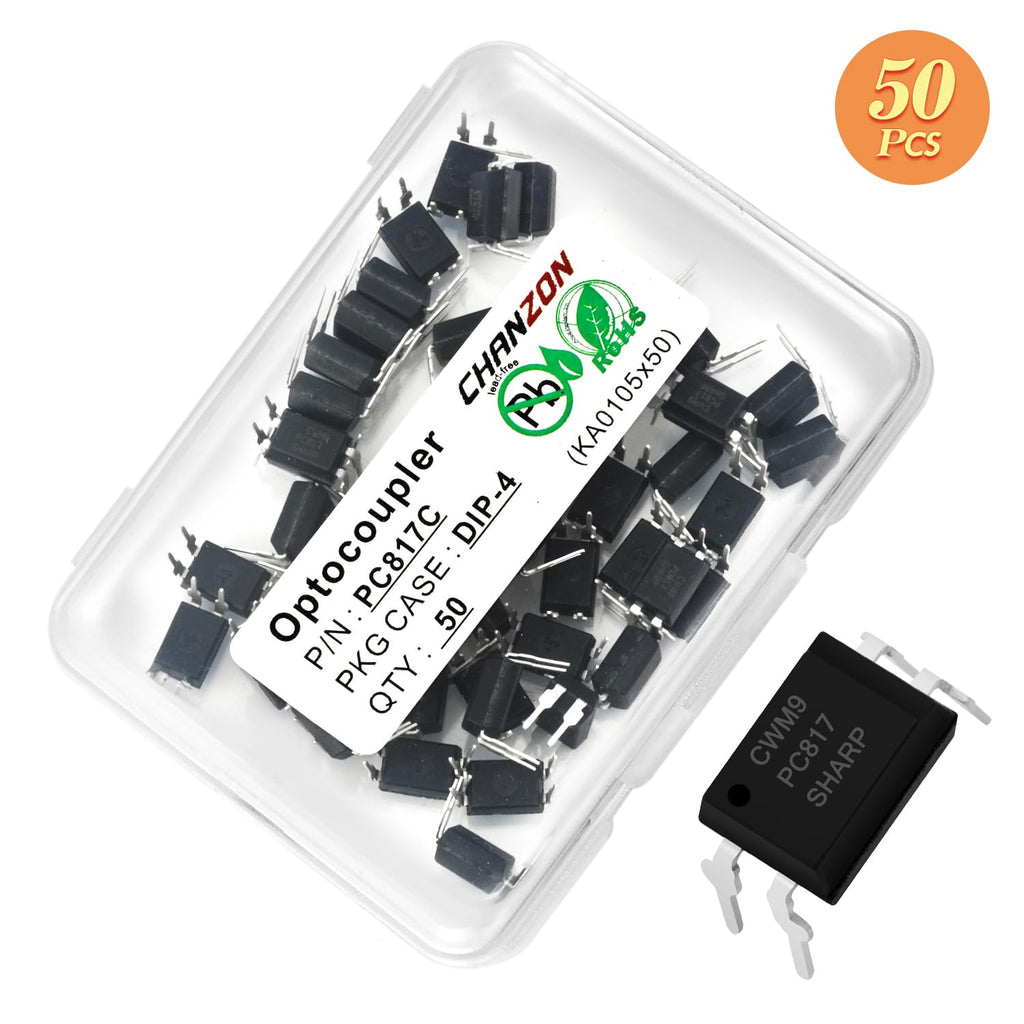

• Package quantity: 50 pieces, packed in a durable and resealable plastic bag.
• Compatible with: EL817C/LTV817C/FL817C Optocouplers
• Used for: Opto isolator breakout circuit board, breadboard,arduino DIY, coupler replacement.

PC817: Single-channel compact dual in-line package photocouplerCurrent transmission rate: (CTR: minimum 50%, IF = 5mA, V CE = 5V);high isolation voltage between input and output is 5000V effective value.Forward current (ICEO): 50mAForward peak current (ICE max) :1AReverse voltage :6VPower consumption: 70mWCollector emitter voltage :35VEmitter collector voltage: 6VCollector current: 50mACollector power consumption: 150mWTotal power consumption: 200mWWorking temperature: -30℃~+100℃Collector emitter saturation voltage: 0.1V (typical value)

Free shipping included. 30-day hassle-free returns.
