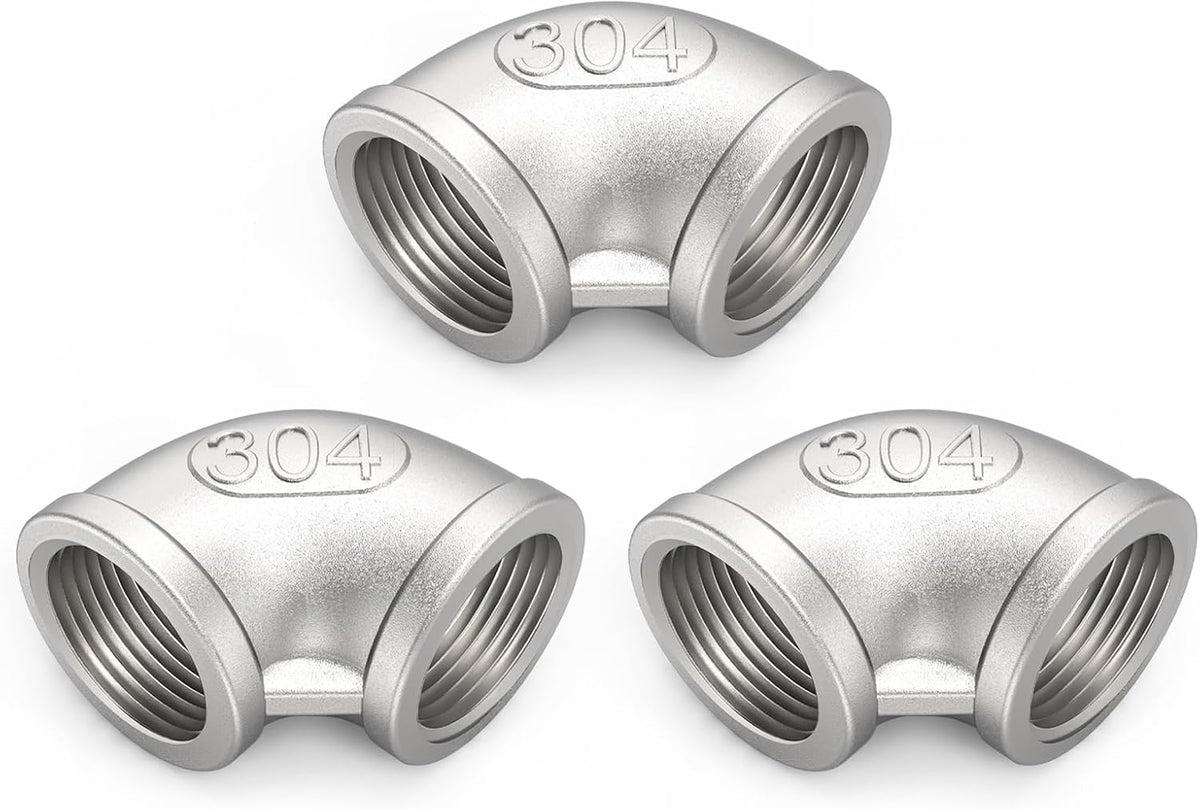

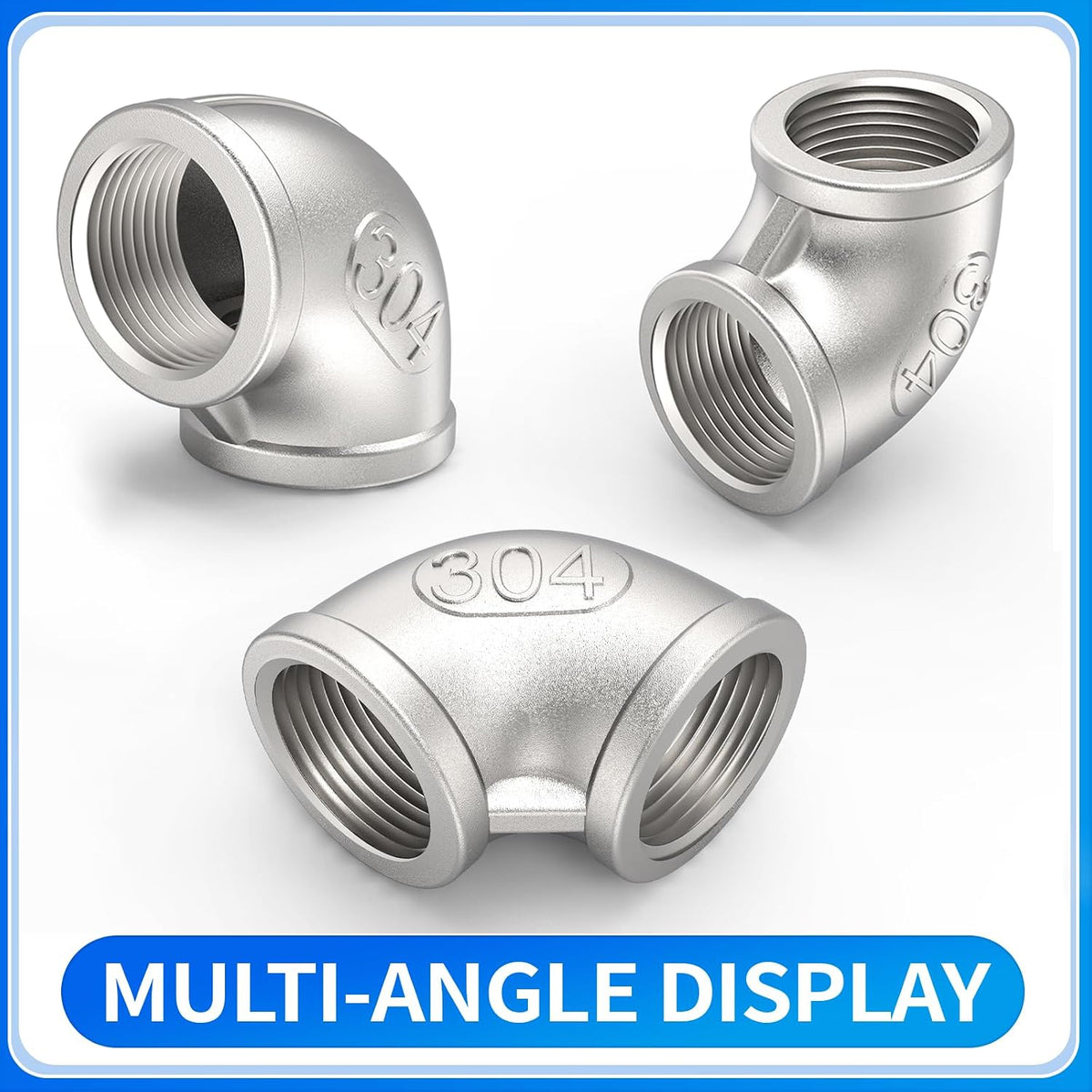

ChillWaves 304 Stainless Steel Pipe Fitting, 90 Degree Elbow 1" NPT Female x 1" NPT Female Thread Adapter(3-PACK)

Key features

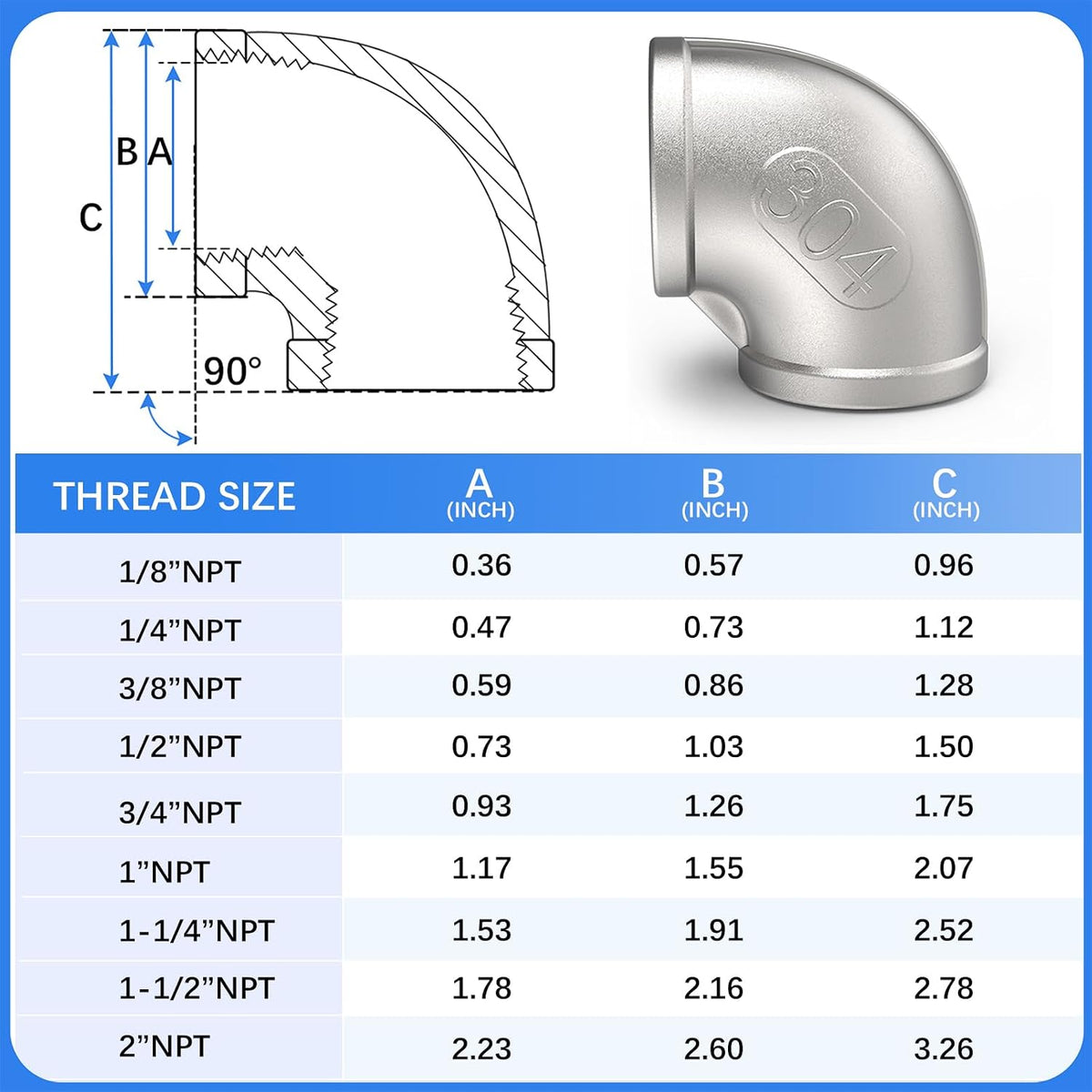

• SIZE - 1" NPT Female x 1" NPT Female 90 Degree Elbow. Note, NPT thread is the nominal pipe size and does not represent the actual diameter, please refer to the dimension drawing for specific diameter.

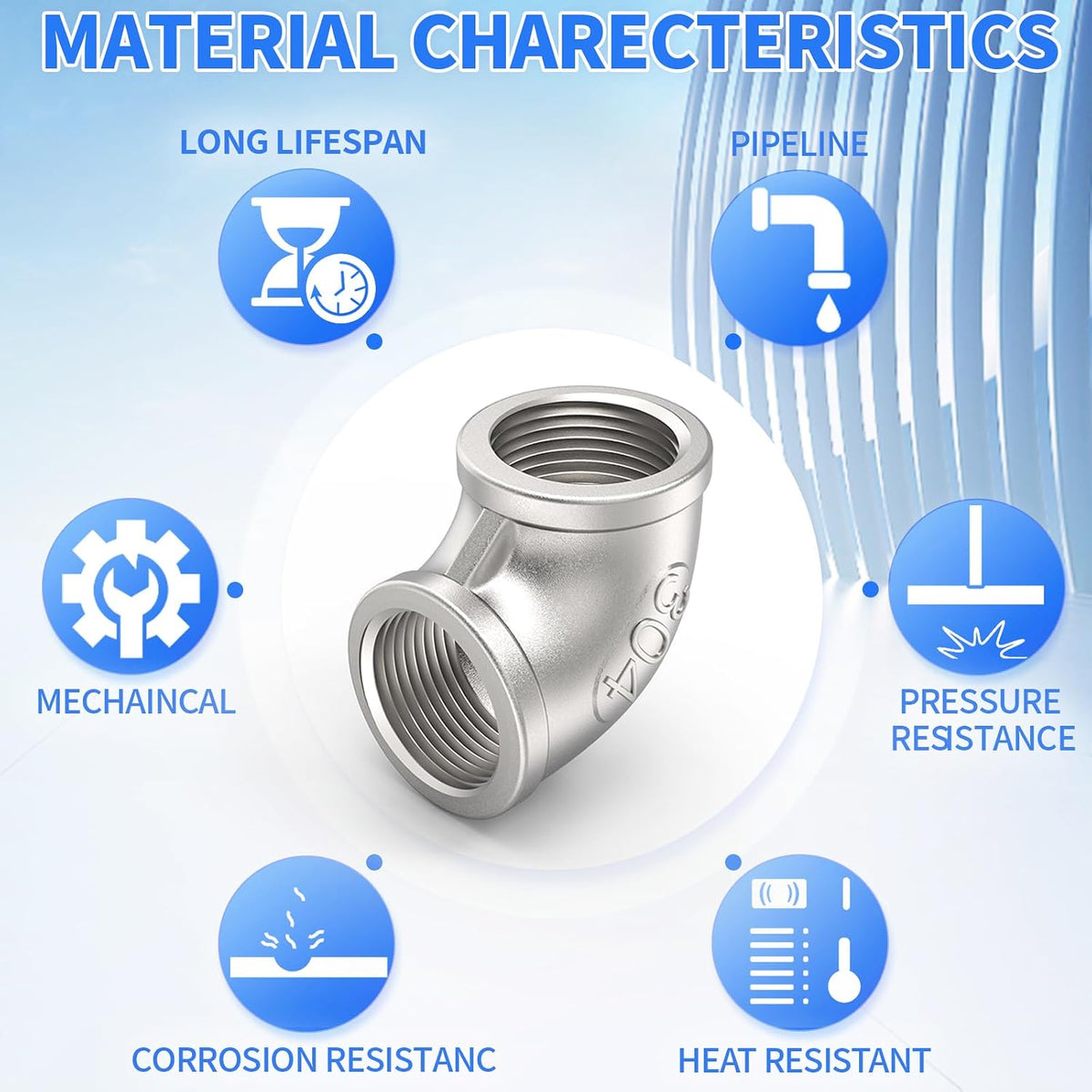

• MATERIAL - Made of high quality 304 stainless steel, it has excellent oxidation and corrosion resistance, high compressive strength, abrasion resistance, durability, good low temperature toughness, heat resistance and mechanical properties.
• USE - Connects male threaded fittings of the same diameter at an angle of 90° to change the direction of flow between pipes.It is a fitting specially used in pipeline connection engineering.It is suitable for use with gases, water, oil, and non-corrosive liquids.
• WORKING PRESSURE & TEMPERATURE - 225PSI maximum working pressure, temperature range -65°F to +250°F (-53°C to +121°C)

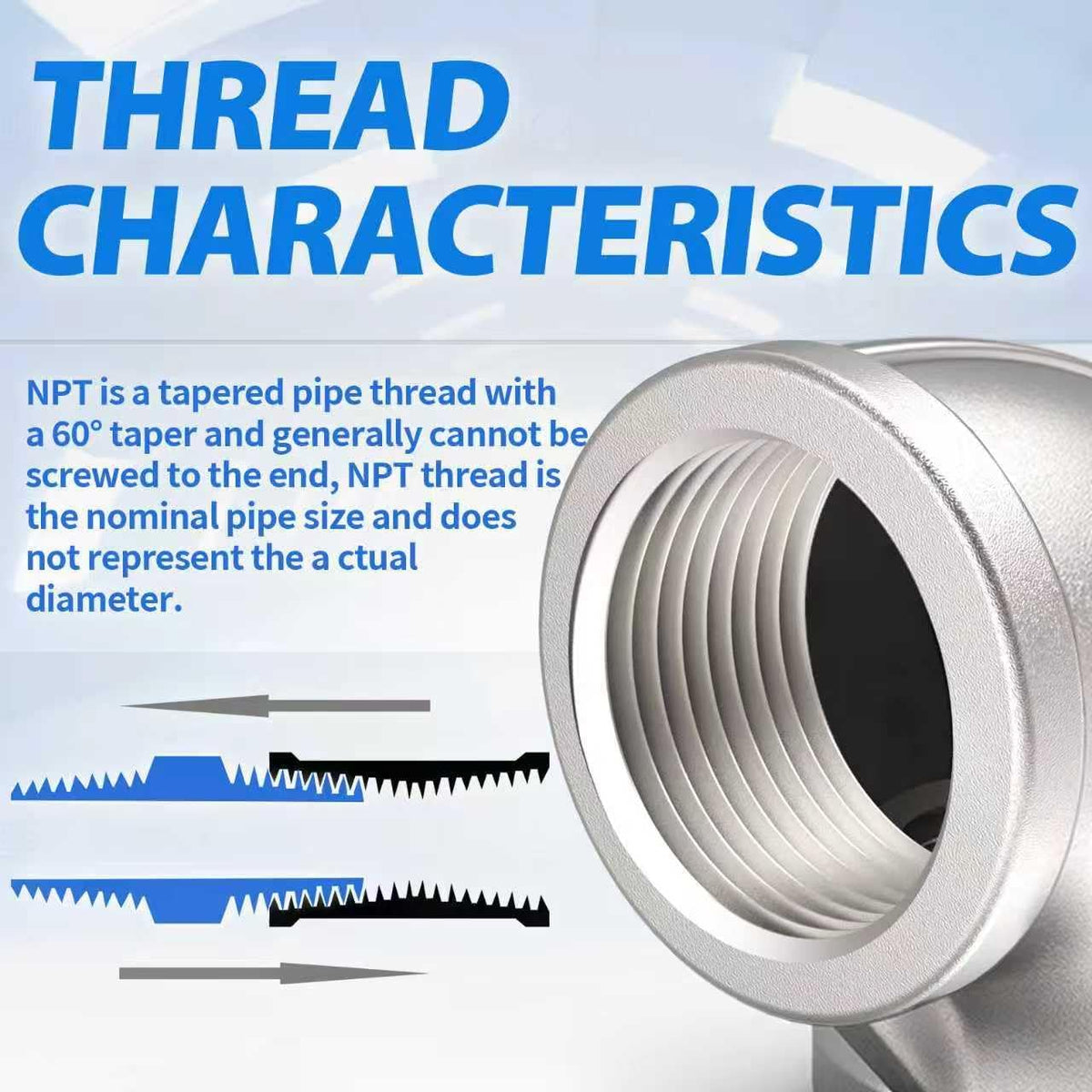

• NOTE - NPT is a tapered pipe thread with a 60°taper and generally cannot be screwed to the end.

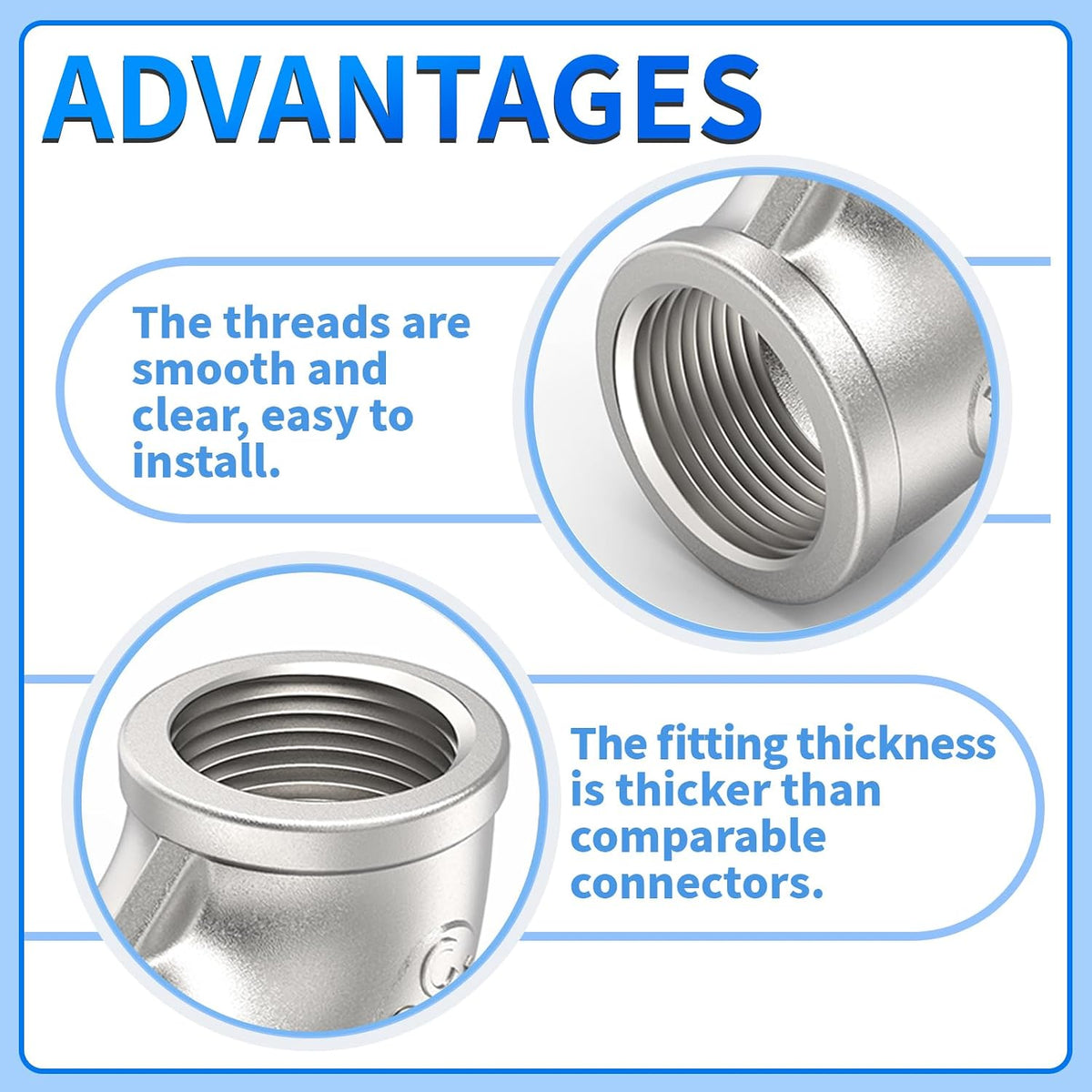

Pipe fittings are the components in the pipeline system that play the roles of connection, control, reversal, diversion, sealing, and support.Note that the 304 Stainless Steel 90 Degree Elbow are US NPT standard threads with a 60 degree taper.Product introduction：1. It is used to connect male pipe fittings of the same diameter to change the flow direction of the pipe. NPT female and male threads are hard connections, which typically require sealing.2. It is suitable for gases, water, oil and non-corrosive liquids. Widely used in grease, fuel, refrigeration, water, oil and gas and hydraulic systems.3. Thicker elbow walls are designed for longer service life and are ideal for a variety of pipelines and filters. 4. The threads are smooth and clear, easy to install, and a sufficient number of threads are designed to ensure that the joint is stronger after tightening and prevent loosening. To ensure a seal, Teflon tape can be used, just wrap a few turns around the threads. 5. When purchasing pipe fittings, consider the application as this will affect the material type, shape, size and desired durability. Fittings are threaded or unthreaded and come in many shapes, styles, sizes and sche
