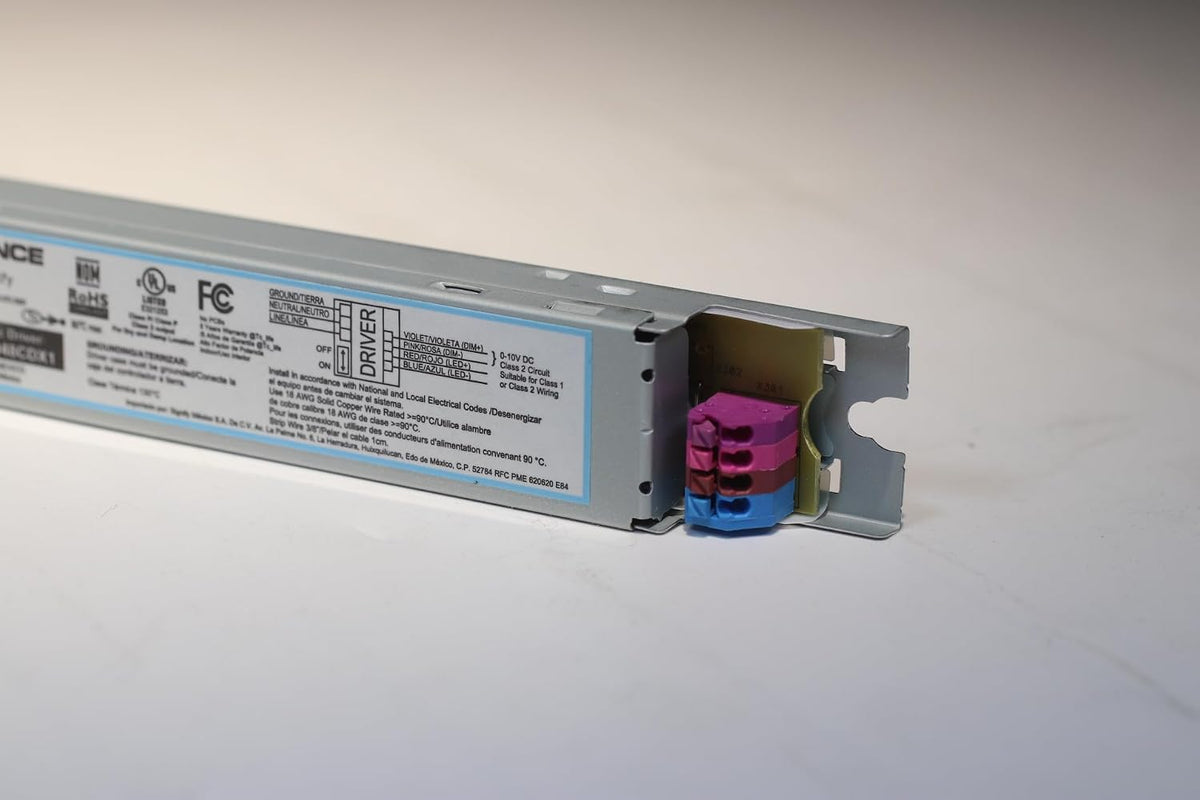

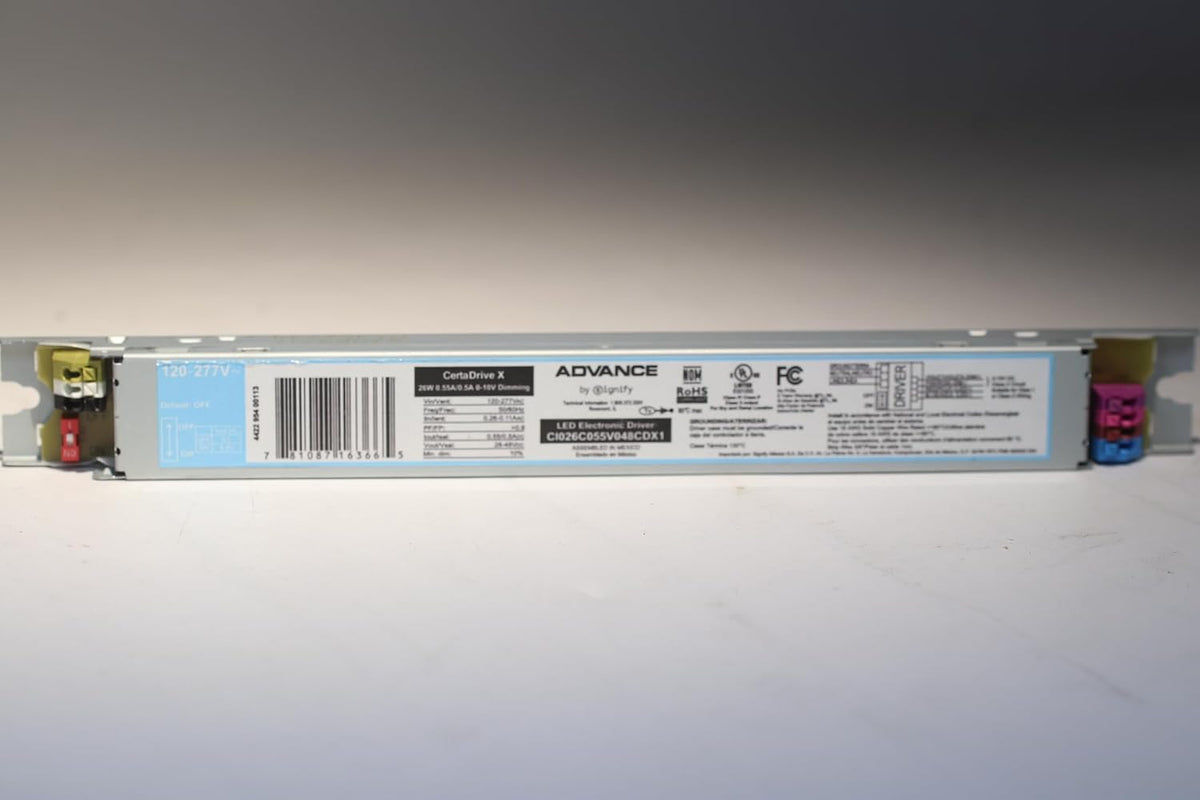

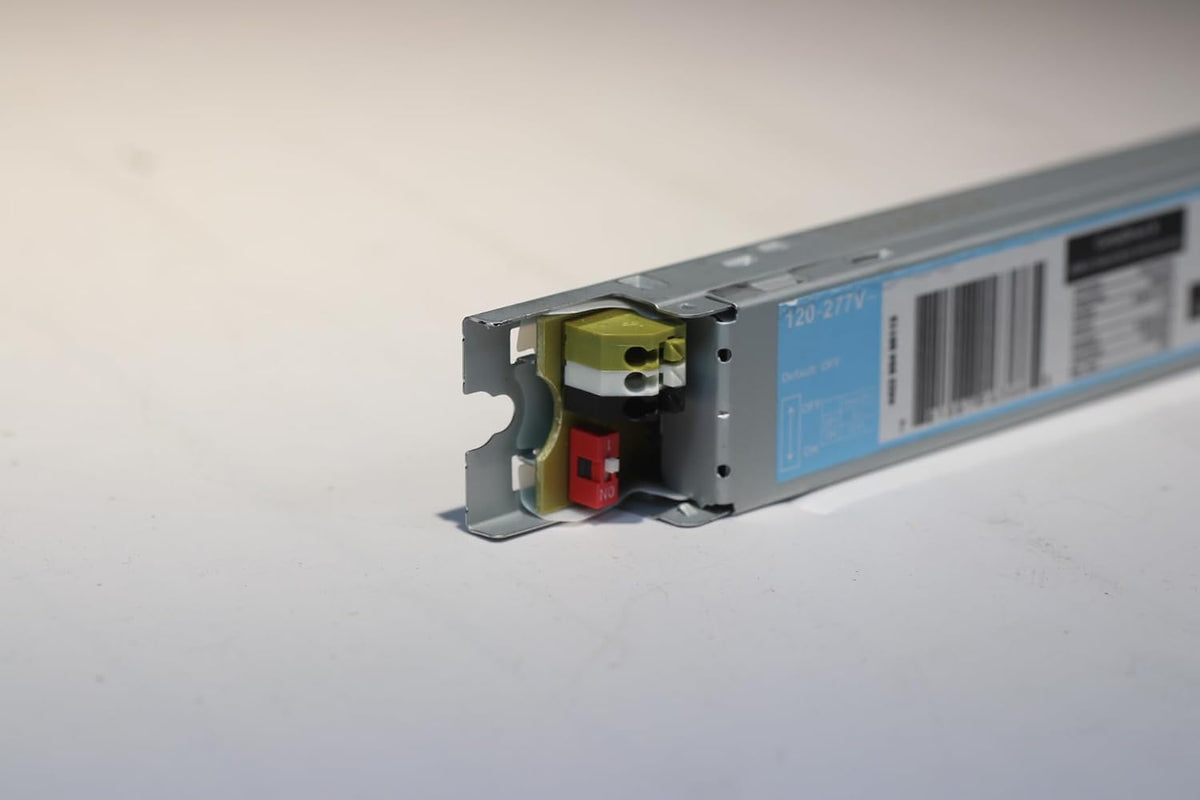

CI026C055V048CDX1 26 Watt Advance LED Driver

Key features

• Output Specifications: 26W, 0.5-0.55A, 48V, 0-10V dimmable
• Line Frequency: 50/60Hz
• Operational Mains Voltage: 108-305Vac
• Maximum Open Circuit Voltage: 60Vdc, Class 2 output
• Output Current Ripple: 30% max @ max Iout
• Output Current Tolerance: <8%

Introducing the Advance CertaDrive X-Series LED Driver, a reliable and cost-effective solution designed to meet basic lighting needs. The CertaDrive X LED drivers, exemplified by the CI026C055V048CDX1 model, offer specific voltage-current settings, optimizing specifications for applications and ensuring an affordable LED conversion. Order Information: Full Product Code: CI026C055V048CDX1 (Mid-Pack, 18pcs/Box) 12NC: 929001791513 Key Features: Output Specifications: 26W, 0.5-0.55A, 48V, 0-10V dimmable Line Frequency: 50/60Hz Operational Mains Voltage: 108-305Vac Maximum Open Circuit Voltage: 60Vdc, Class 2 output Output Current Ripple: 30% max @ max Iout Output Current Tolerance: <8% Protections: Short Circuit protection, Over Voltage Protection (52V+/-4V), Hiccup mode protection Dimming Features: 0-10V Dimming: See dim curve for details Environment & Approbation: Operating Ambient Temp. Range: -20°C to +40°C Max Case Temperature (Tcase): 80°C, Tcase Life: 70°C Safety Agency Approbations: UL8750, UL1310, cUL, Class P (UL, cUL) Electromagnetic Compliance: FCC Title 47 Part 15 Class A Audible Noise: <20dB Class A Weight: 0.390Lbs / 0.177kgs Product Data: Electrical Specifications: All
