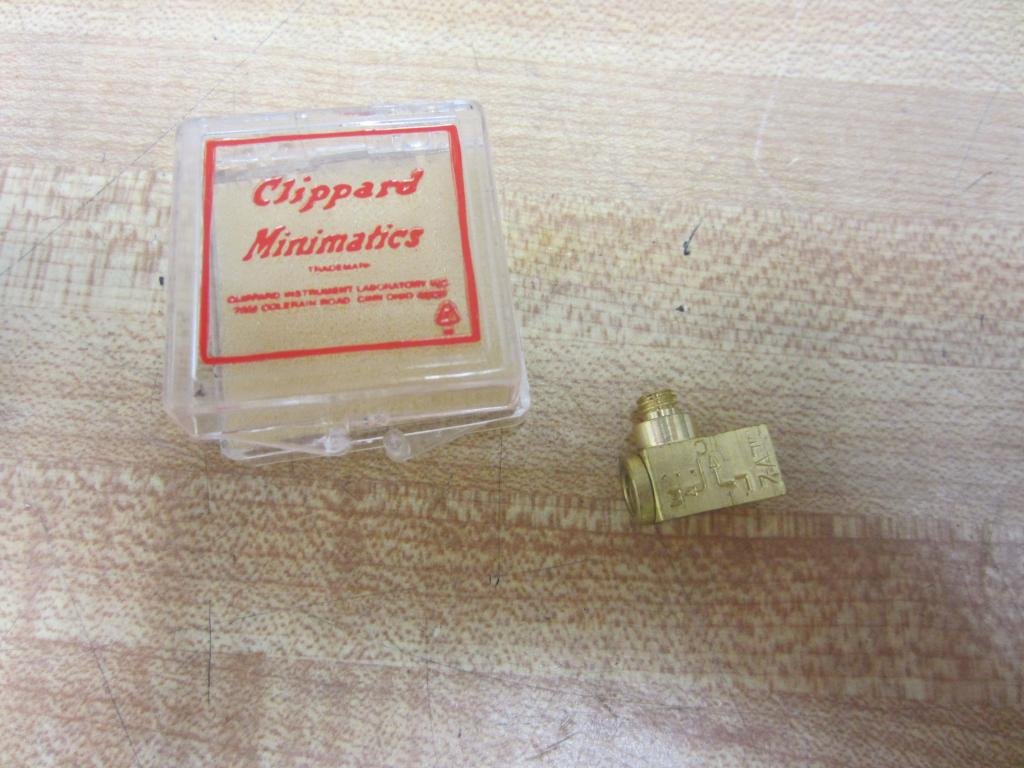

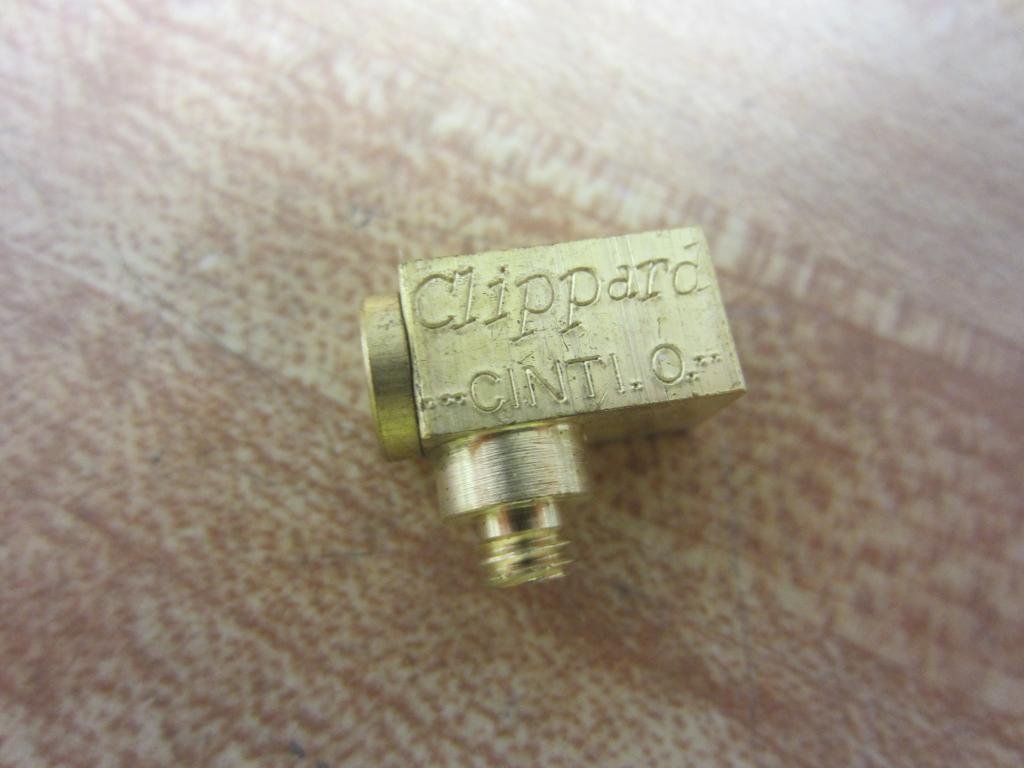

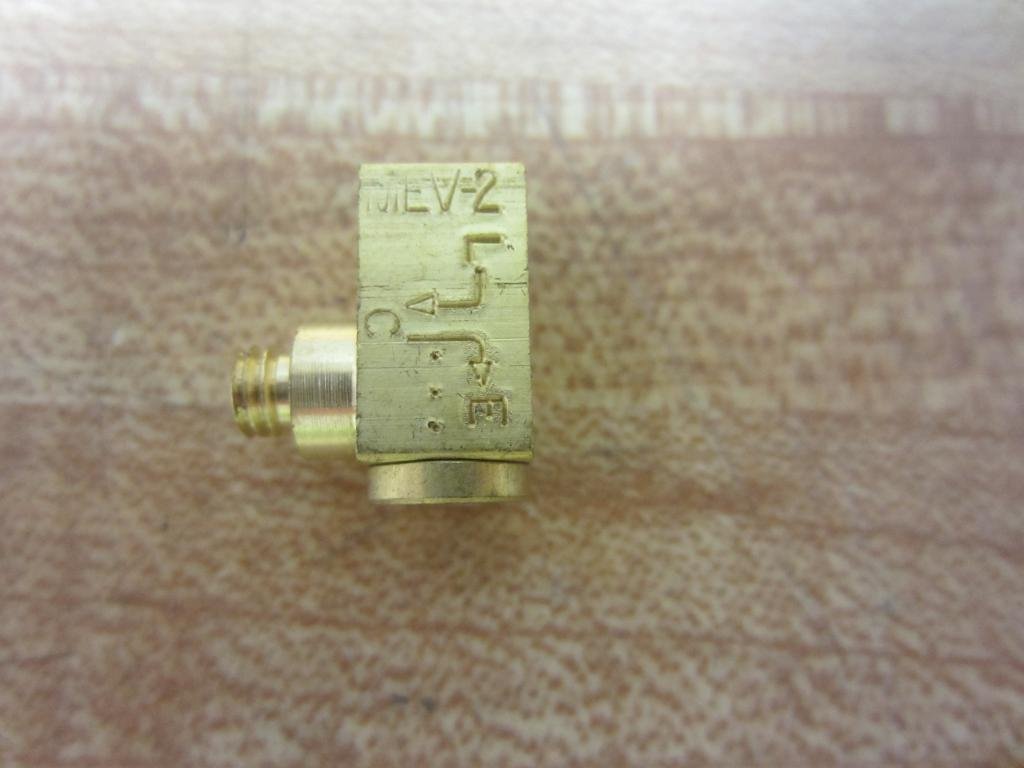

Clippard MEV-2 Miniature Exhaust Valve, #10-32

Key features

• Medium: Air
• Working Range: 15 to 150 psig
• Air Flow: 5 scfm @ 50 psig; 9 scfm @ 100 psig (exhaust rate)
• Mounting: Direct to cylinder

In a typical application the exhaust valve is installed in the inlet of a spring return or double acting pneumatic cylinder. Supply air from a control valve is directed into the inlet port of the exhaust valve. The Nitrile poppet seals the exhaust port and allows air to flow from the outlet port of the valve into the cylinder. The pressurized air pushes against the piston and extends the rod, compressing the spring, until full rod extension is achieved.
