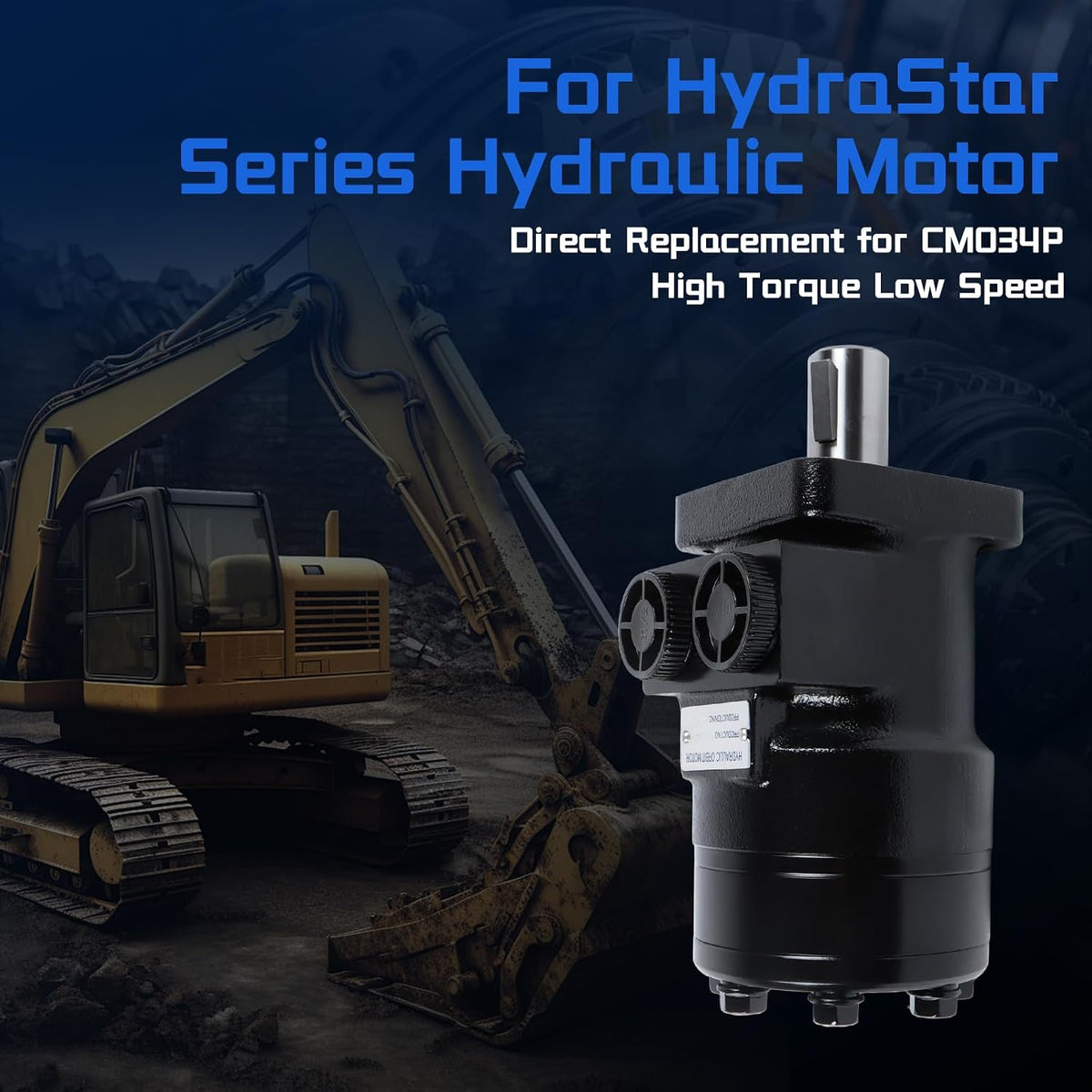

CM034P Hydraulic Motor for SaltDogg Spreaders & Augers

Key features

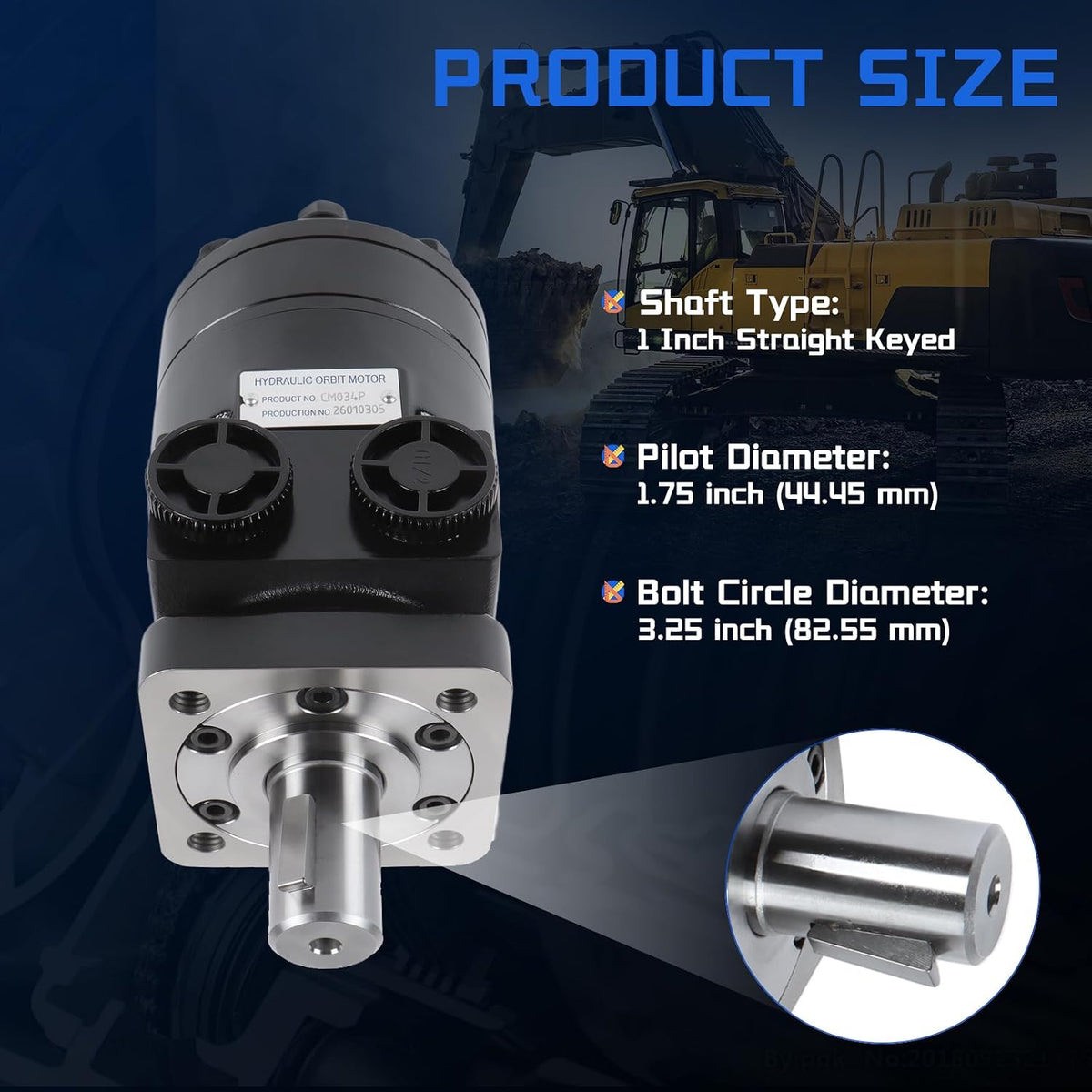

• [📦] Ready-to-Install – Complete Assembly: Box contains one CM034P hydraulic motor. 𝐈𝐦𝐩𝐨𝐫𝐭𝐚𝐧𝐭: 𝐕𝐞𝐫𝐢𝐟𝐲 𝟏.𝟕𝟓 𝐢𝐧𝐜𝐡 𝐩𝐢𝐥𝐨𝐭 𝐝𝐢𝐚𝐦𝐞𝐭𝐞𝐫, 𝟒-𝐛𝐨𝐥𝐭 𝐩𝐚𝐭𝐭𝐞𝐫𝐧 (𝟑.𝟐𝟓 𝐢𝐧𝐜𝐡 𝐛𝐨𝐥𝐭 𝐜𝐢𝐫𝐜𝐥𝐞), 𝐚𝐧𝐝 𝟏 𝐢𝐧𝐜𝐡 𝐤𝐞𝐲𝐞𝐝 𝐬𝐡𝐚𝐟𝐭 𝐛𝐞𝐟𝐨𝐫𝐞 𝐨𝐫𝐝𝐞𝐫𝐢𝐧𝐠. 𝐕𝐞𝐫𝐢𝐟𝐲 𝐭𝐡𝐚𝐭 𝐭𝐡𝐞 𝐦𝐨𝐭𝐨𝐫 𝐦𝐚𝐭𝐜𝐡𝐞𝐬 𝐲𝐨𝐮𝐫 𝐞𝐪𝐮𝐢𝐩𝐦𝐞𝐧𝐭'𝐬 𝐦𝐨𝐮𝐧𝐭𝐢𝐧𝐠 𝐩𝐚𝐭𝐭𝐞𝐫𝐧, 𝐬𝐡𝐚𝐟𝐭 𝐬𝐢𝐳𝐞, 𝐚𝐧𝐝 𝐩𝐨𝐫𝐭 𝐜𝐨𝐧𝐟𝐢𝐠𝐮𝐫𝐚𝐭𝐢𝐨𝐧. Fill motor housing with fluid prior to any load application. Flush hydraulic lines before installation.
• [🔧] Direct Swap – 7.3 CIR Displacement: CM034P hydraulic motor replaces with 7.3 cu in/rev displacement . The 4-bolt flange mount with 1.75 inch pilot diameter and 3.25 inch bolt circle lets this 7.3 CIR hydraulic motor bolt directly onto SaltDogg spreaders, compressors, and augers without modifications .

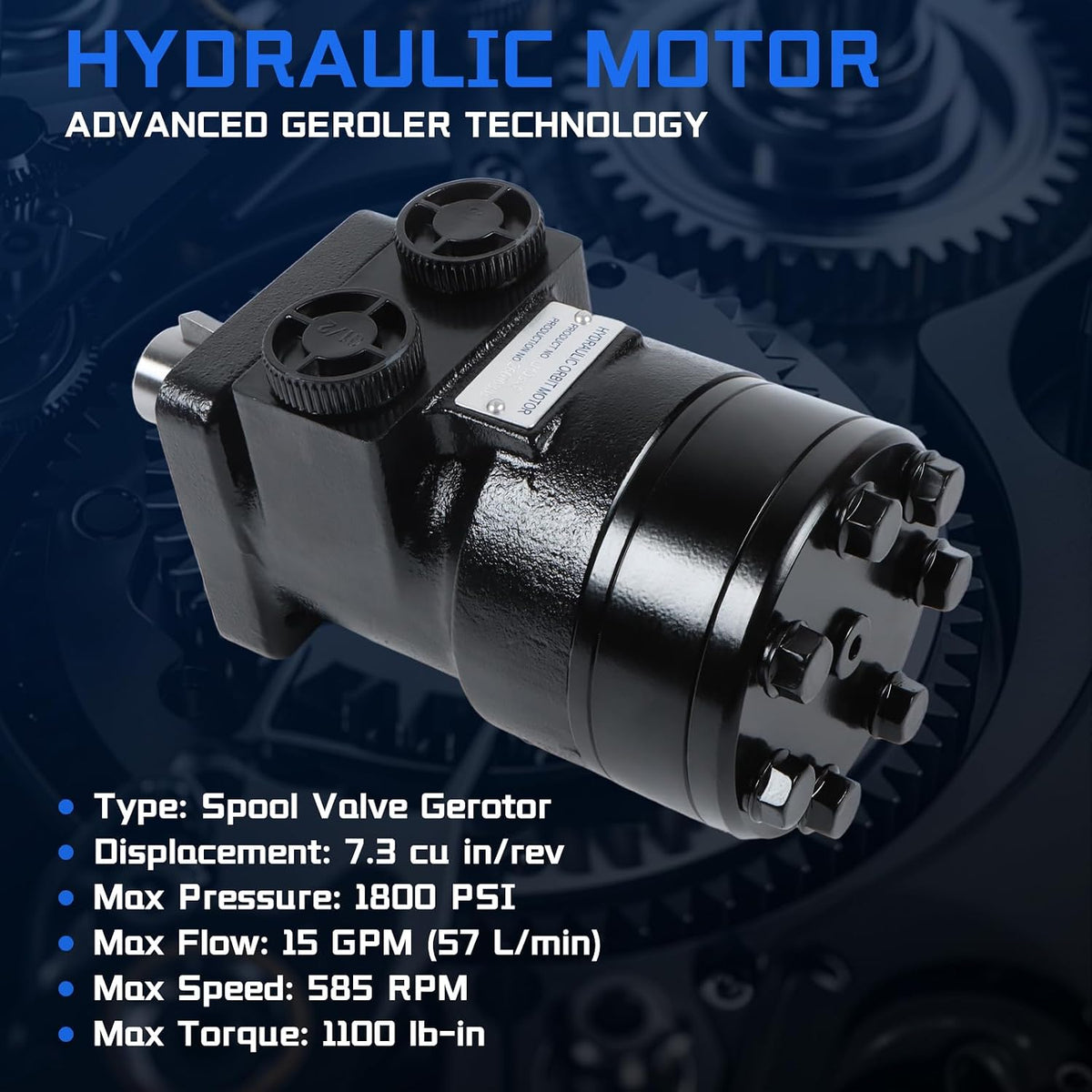

• [⚙️] High Torque – 1100 lb-in at 585 RPM: CM034P hydraulic motor delivers 1100 lb-in continuous torque at 585 RPM, with max pressure 1800 PSI continuous and 2400 PSI intermittent . Max flow 15 GPM continuous, 18 GPM intermittent . The spool valve Gerotor design on this CM034P replacement hydraulic motor provides high start-up torque for demanding applications .
• [🛢️] NPT Ports – 1/2 Inch Side Ports: Hydraulic motor features 1/2 NPT side ports for easy plumbing connections . The NPT threads on this CM034P hydraulic motor create reliable seals without additional sealant, saving installation time. No case drain required – max case pressure 1500 PSI .

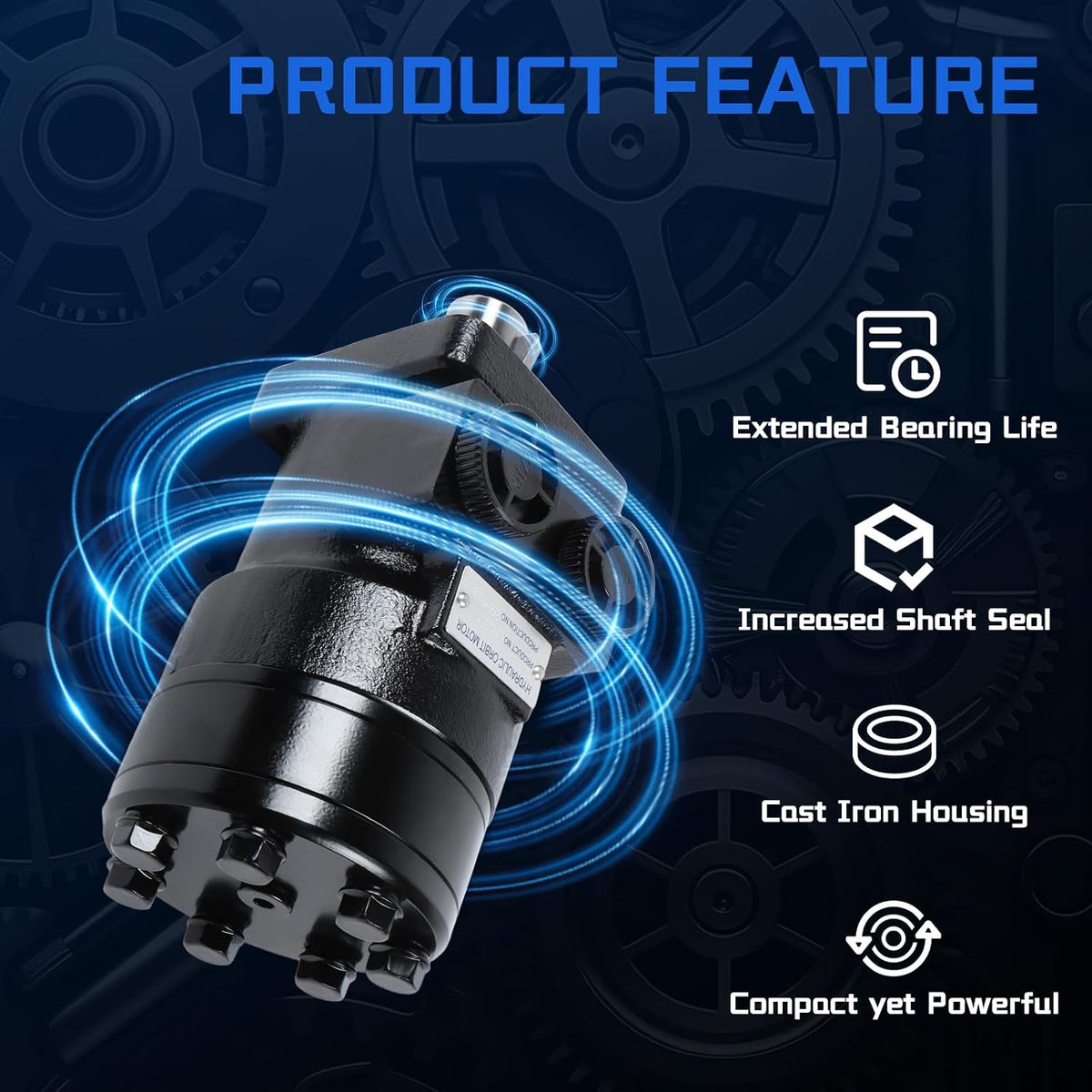

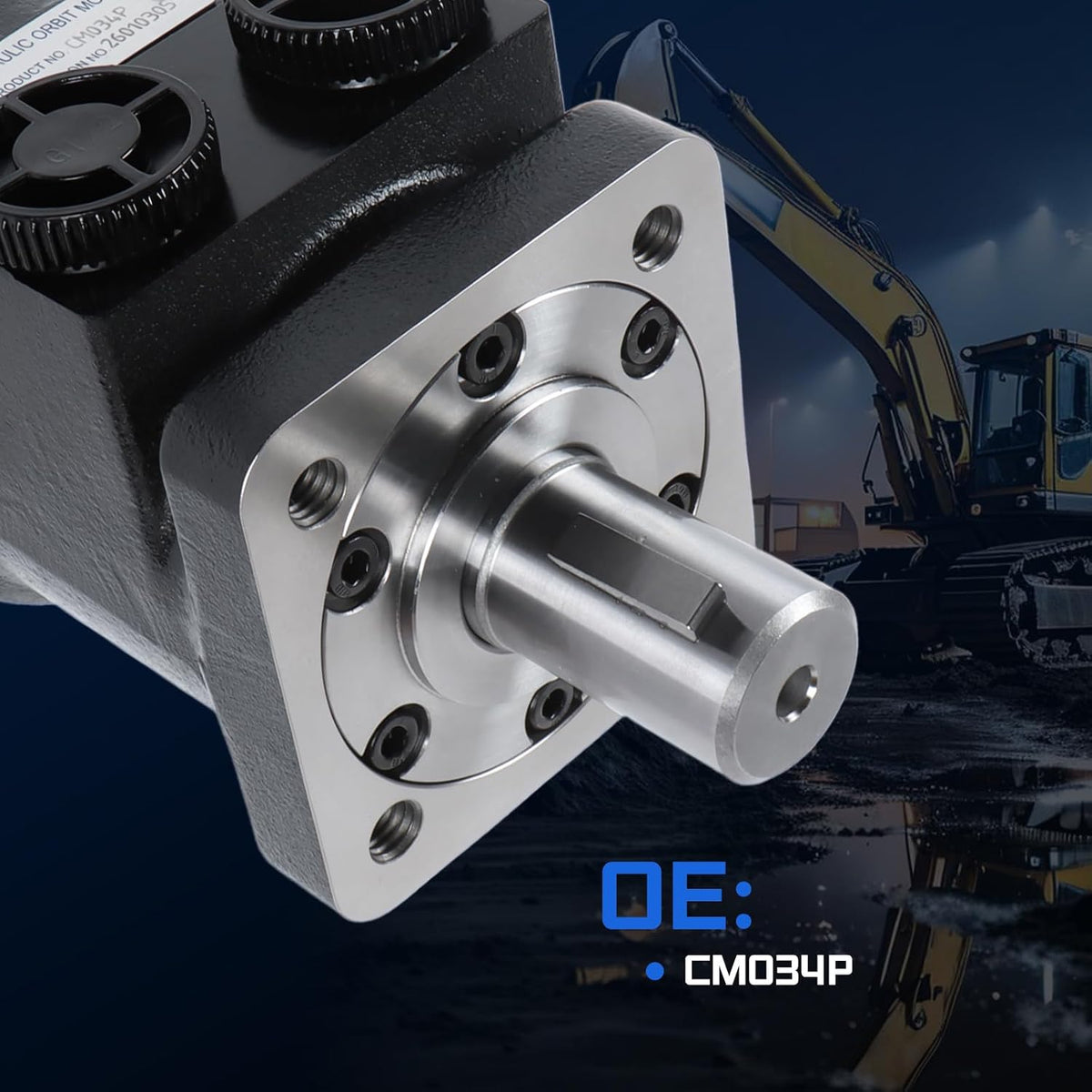

• [🏗️] Keyed Shaft – 1 Inch with 1/4 Keyway: This CM034P replacement hydraulic motor comes with 1 inch straight keyed shaft and 0.25 inch keyway . Cast iron housing withstands harsh environments. Max operating temperature 180°F . Weight 13.37 lbs . Compares to 101-1755-009 .

Free shipping included. 30-day hassle-free returns.
