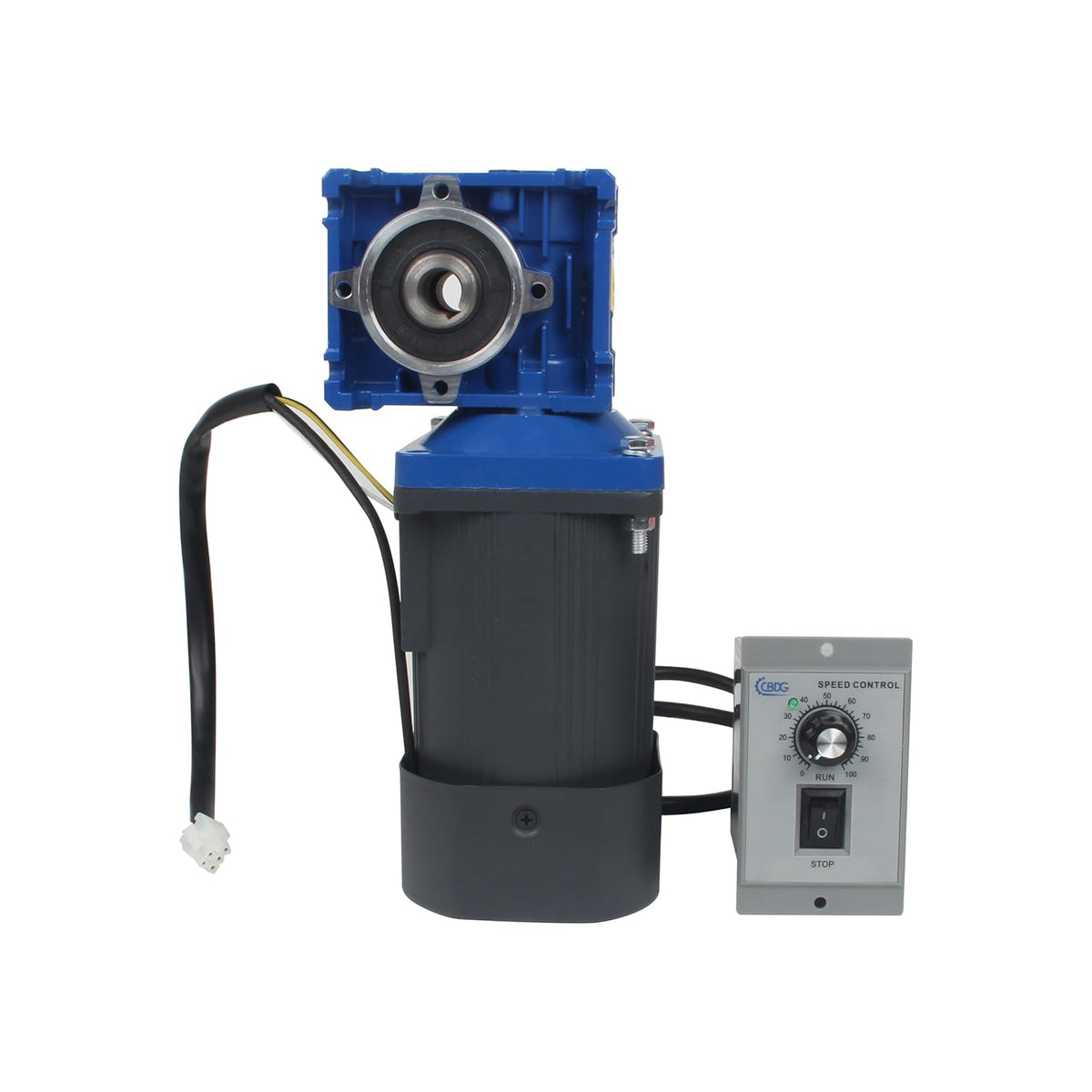

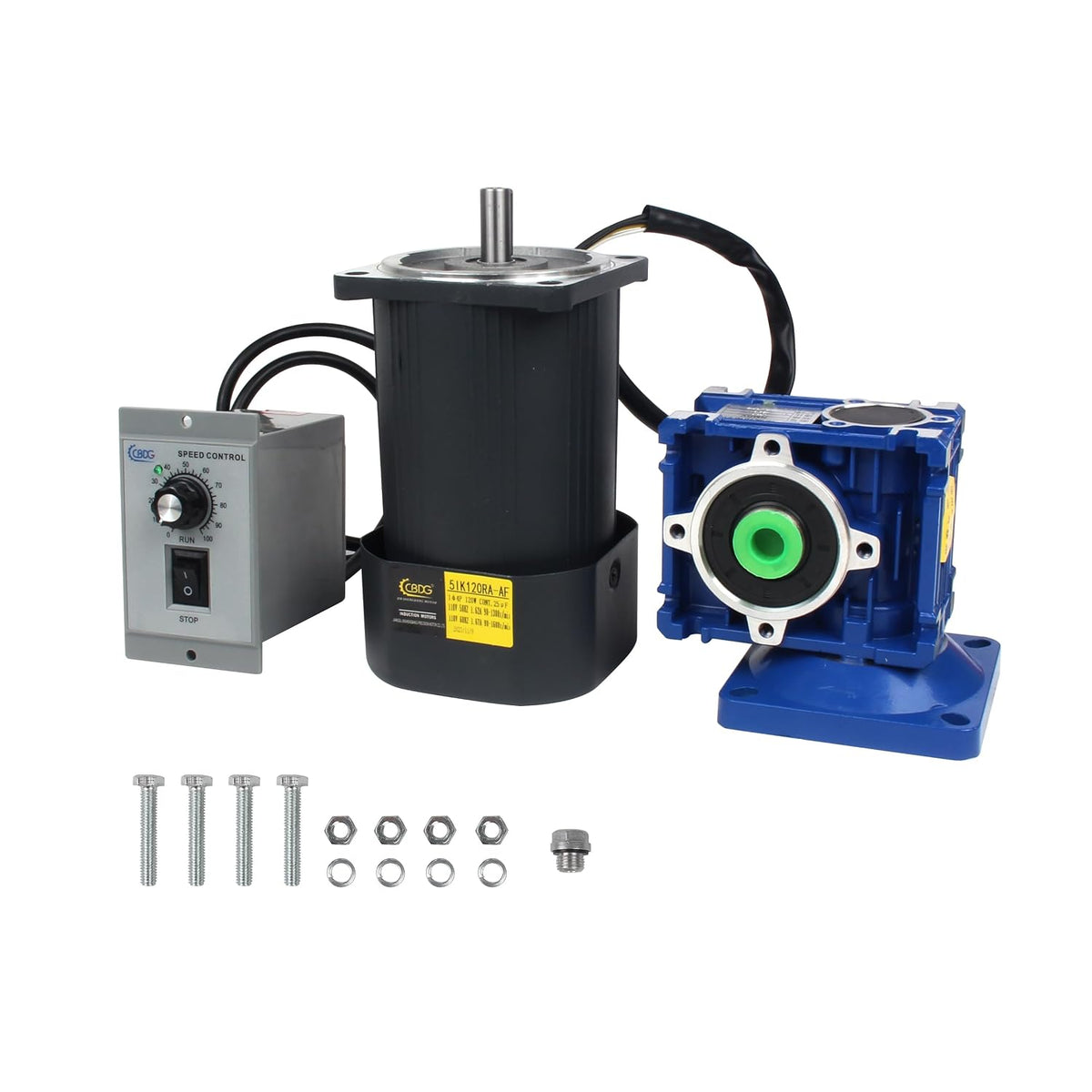

CNCTOPBAOS 120W Worm Gear Motor NMRV30 Gearbox 40:1 40K w/Speed Governor

Key features

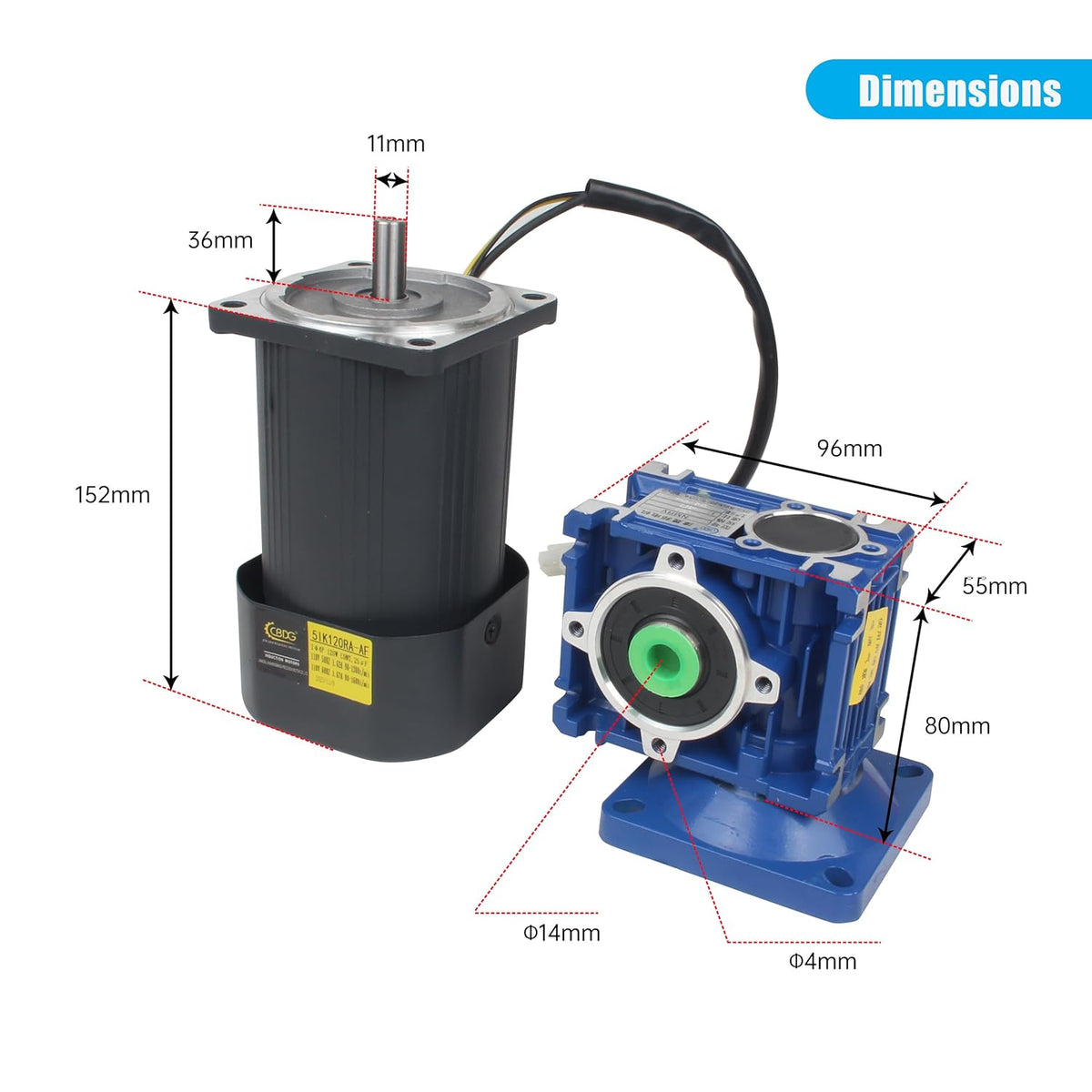

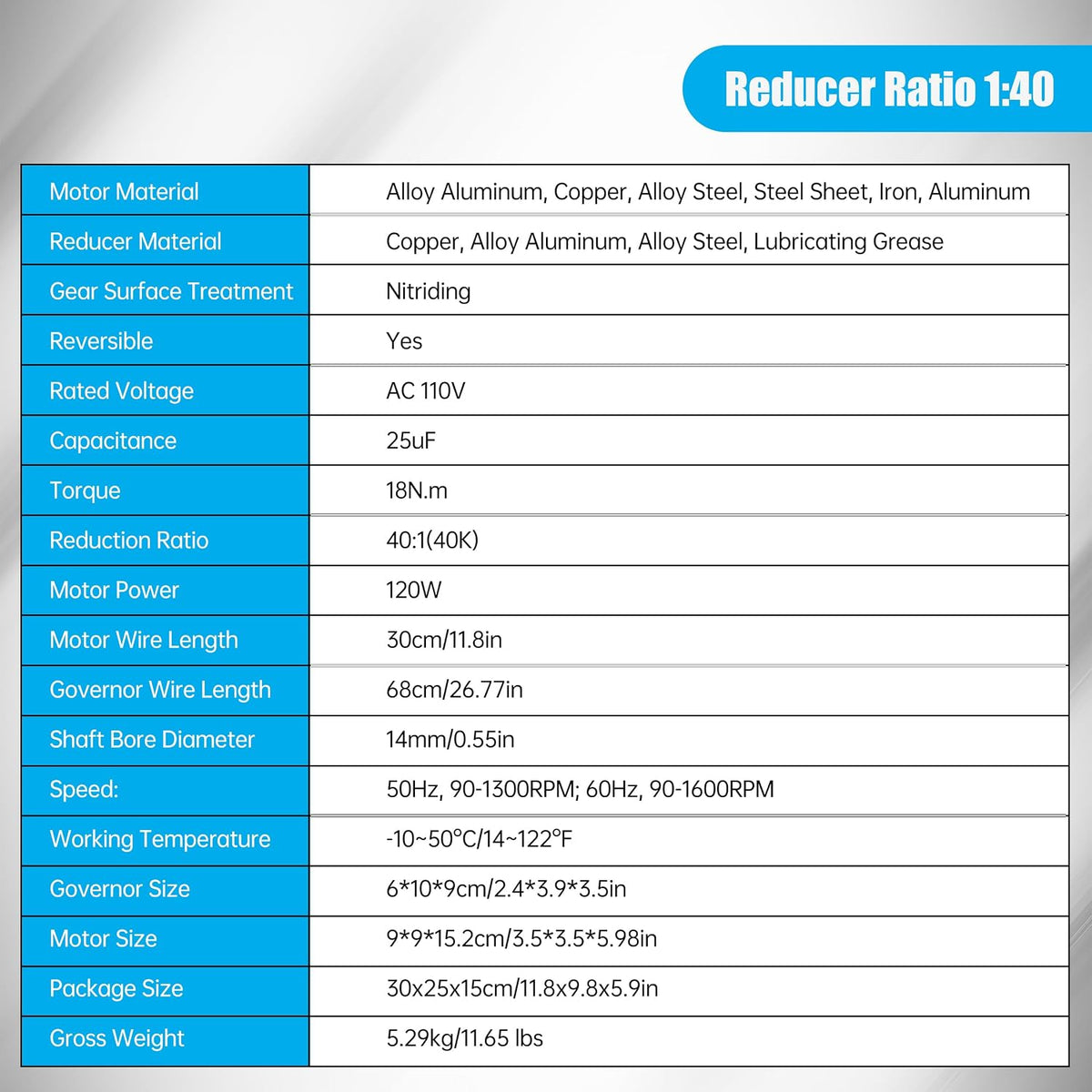

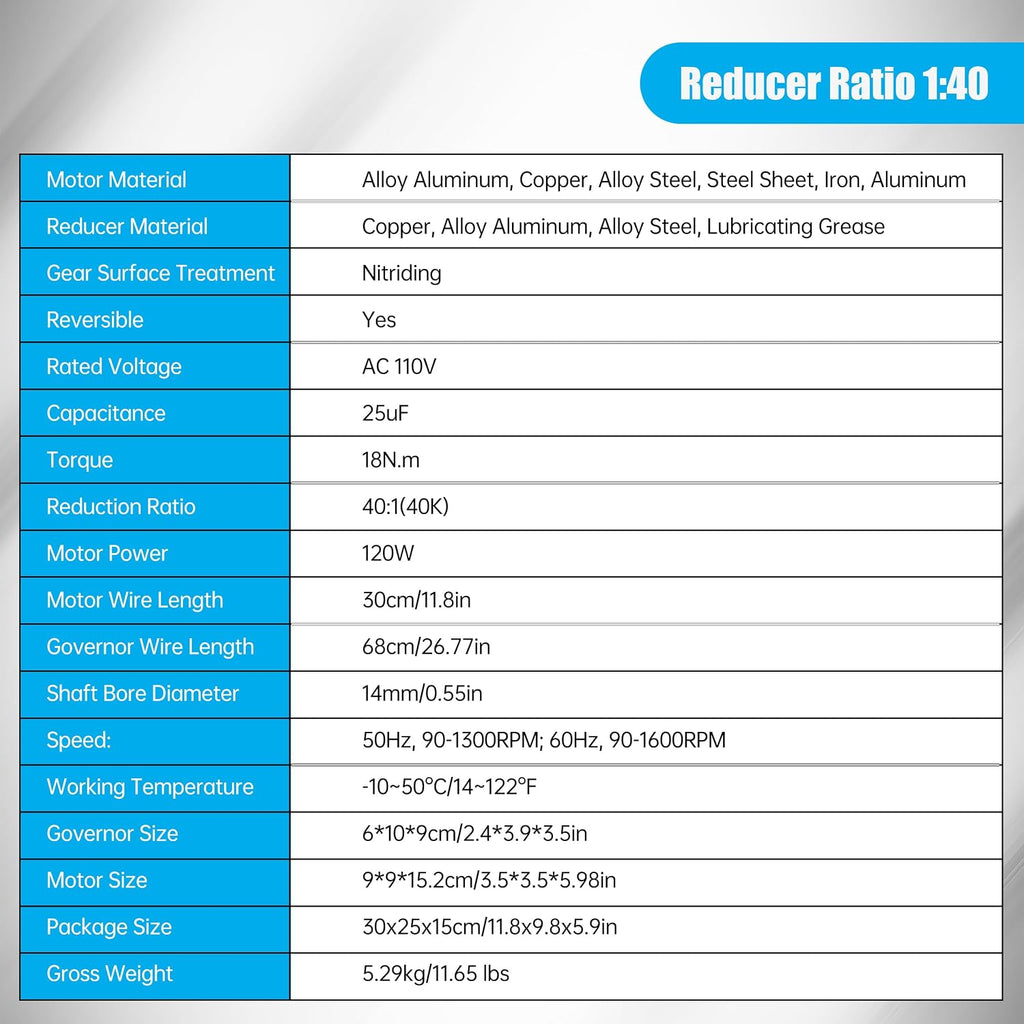

• Specifications: Power:120W; Rated Voltage:110V AC; Speed:90-1300rpm 110V/50HZ / 90-1600rpm 110/60HZ; Reduction Ratio:1:40 40K; Torque:18N.m; Output Shaft diameter:14 mm/0.55 inch ;Worm gearbox Model: NMRV30

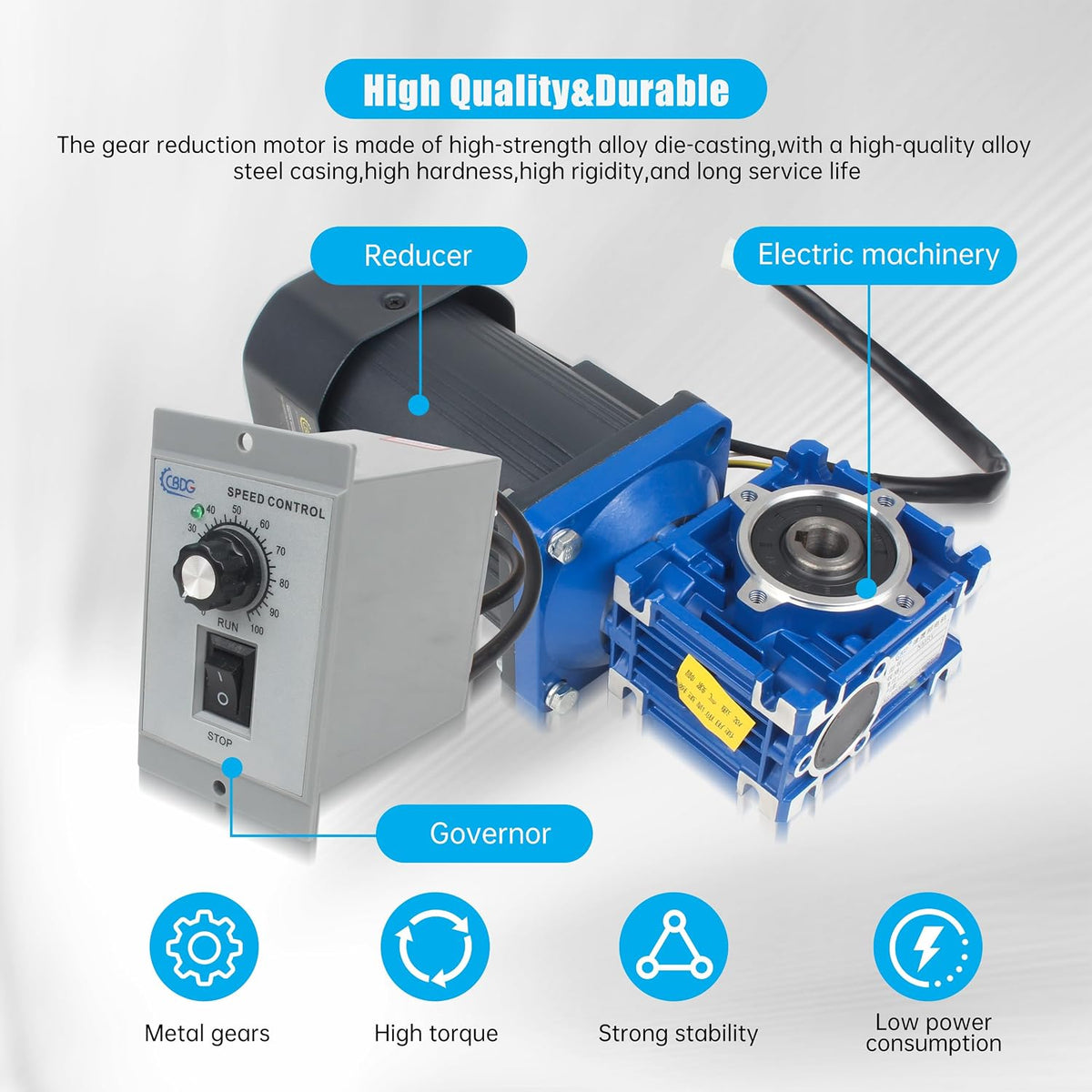

• High Quality and Durable: The gear reduction motor is made of high-strength alloy die-casting,with a high-quality alloy steel casing,high hardness,high rigidity,and long service life; Adopting thick all copper coils, with low heat generation, good electrical performance, more stable and smooth motor power output, and a lifespan 10 times that of ordinary coils
• Metal gears and Ball bearings: Using metal gears for greater wear resistance, the gears are made of 40CR steel and undergo high-frequency quenching and nitriding to make them more beautiful and durable; Adopting high-quality full ball bearings, high-strength bearings can withstand larger load rates
• Large Torque: The torque of this worm gear motor is 18NM. Moreover, this motor has a maximum speed of 1600 R/MIN. The high torque and speed make it operate high-efficiently
• Widely applications: Widely used in industrial machinery, packaging industry, printing, textile, dyeing, robotics, chemical industry, food industry and other engineering machinery, as well as advertising, office, petrochemical, instrumentation, stage lighting, transmission, automated warehouses and other equipment
