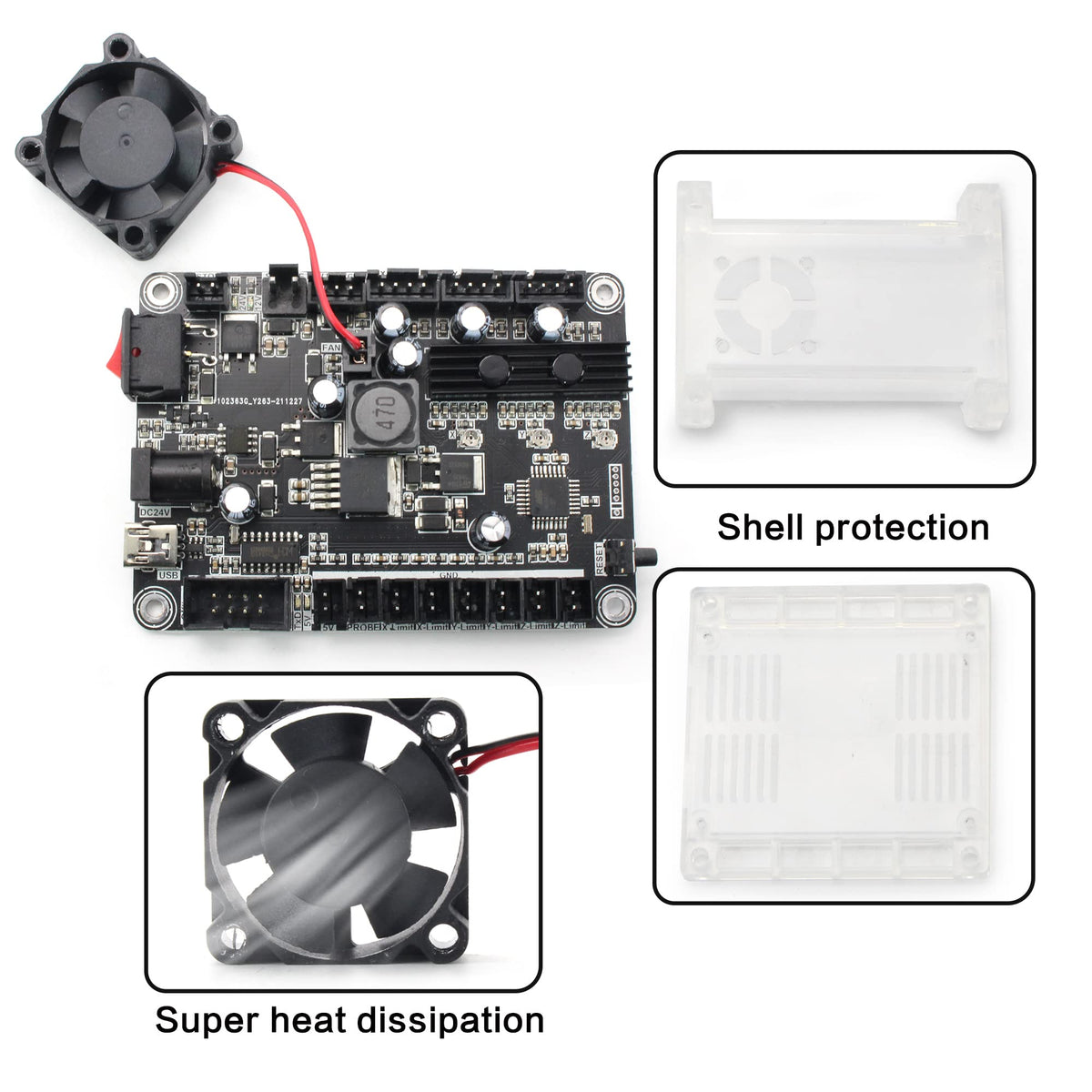

CNCTOPBAOS 3 Axis GRBL Control Board with Offline Controller for CNC Router

3 Axis GRBL Control Board with Offline Controller for CNC Router

Key features

• Model: Upgraded 3 Axis GRBL 1.1F Control Board with Offline controller; Input voltage: 24VDC;Applications: The control board can be used with the 1310,1610-PRO, 3018,3018-PRO and 3018-PRO-MAX etc engraving machine or other GRBL Control CNC Router Machine
• Features: Add emergency stop button port,probe port and XYZ limit switches port; Add the power button switch; Used integrated imported stepper motor drive;Enhanced spindle drive,can support max. 20000rpm spindle
• Support software: GRBL Contol/Candle/Universal Gcode Sender; Support Computer System: Windows XP/7/8/10;The terminal of stepper motor,limit switch,tool setting and emergency stop button are 2-pin 2.54mm pitch,spindle is 2-pin port VH3.96mm pitch
• Stepper Motor: Support XYZ three-axis Nema17 or Nema23 stepper motor, motor's Max. Current of 2A or less is recommended within 1.5A; Spindle: Support 24V DC Spindle PWM speed 0%-100%,also support 12V 3-pin PWM/TTL Max. 3.0A engraving module
• Offline Controller:It supports SD card and TF card at the same time,standard capacity 1G, notebooks generally have SD card interface, copy files are very convenient,you can control the machine without computer
