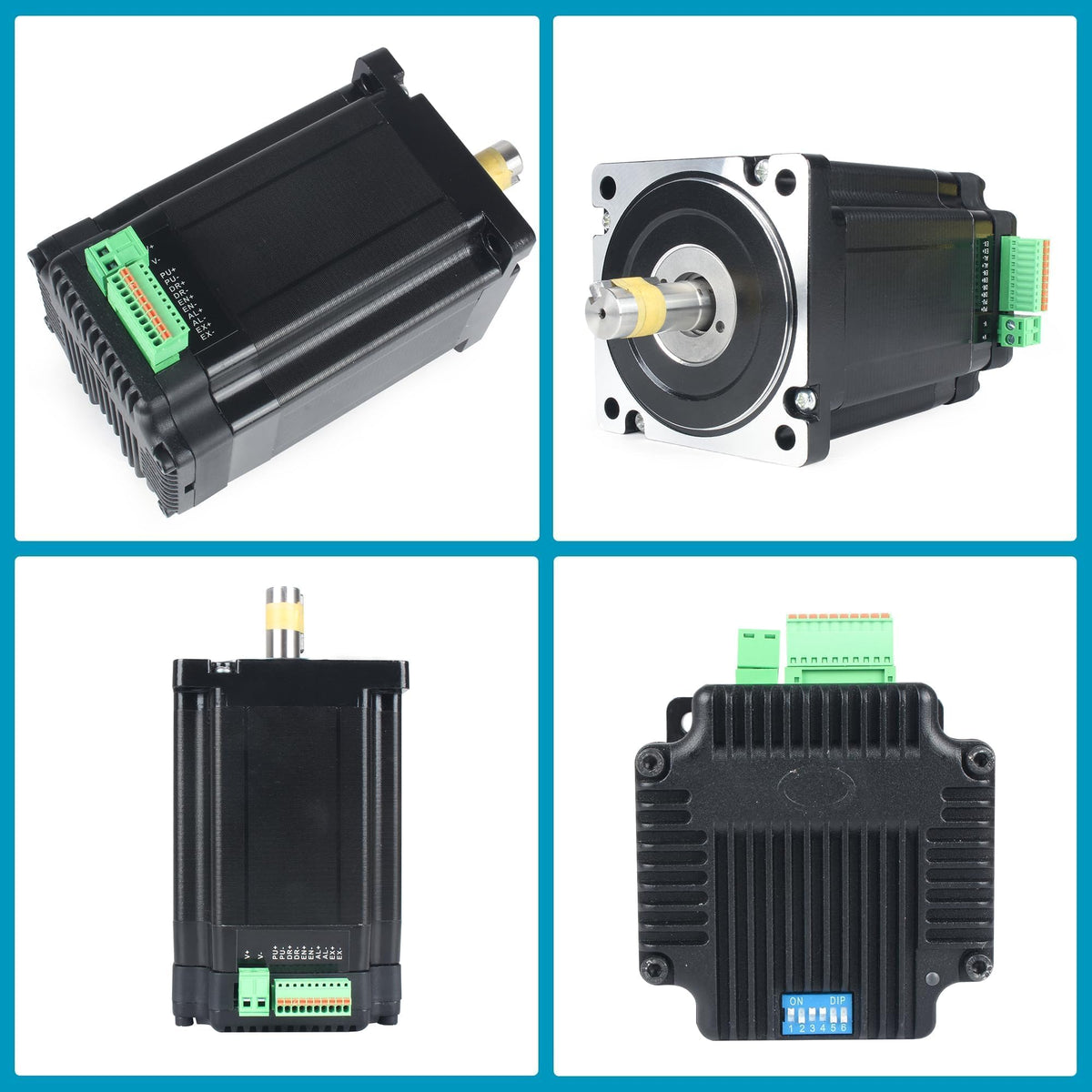

CNCTOPBAOS Integrated Nema34 Closed Loop Stepper Motor 8.5N.m 6A DC24V-60V

Key features

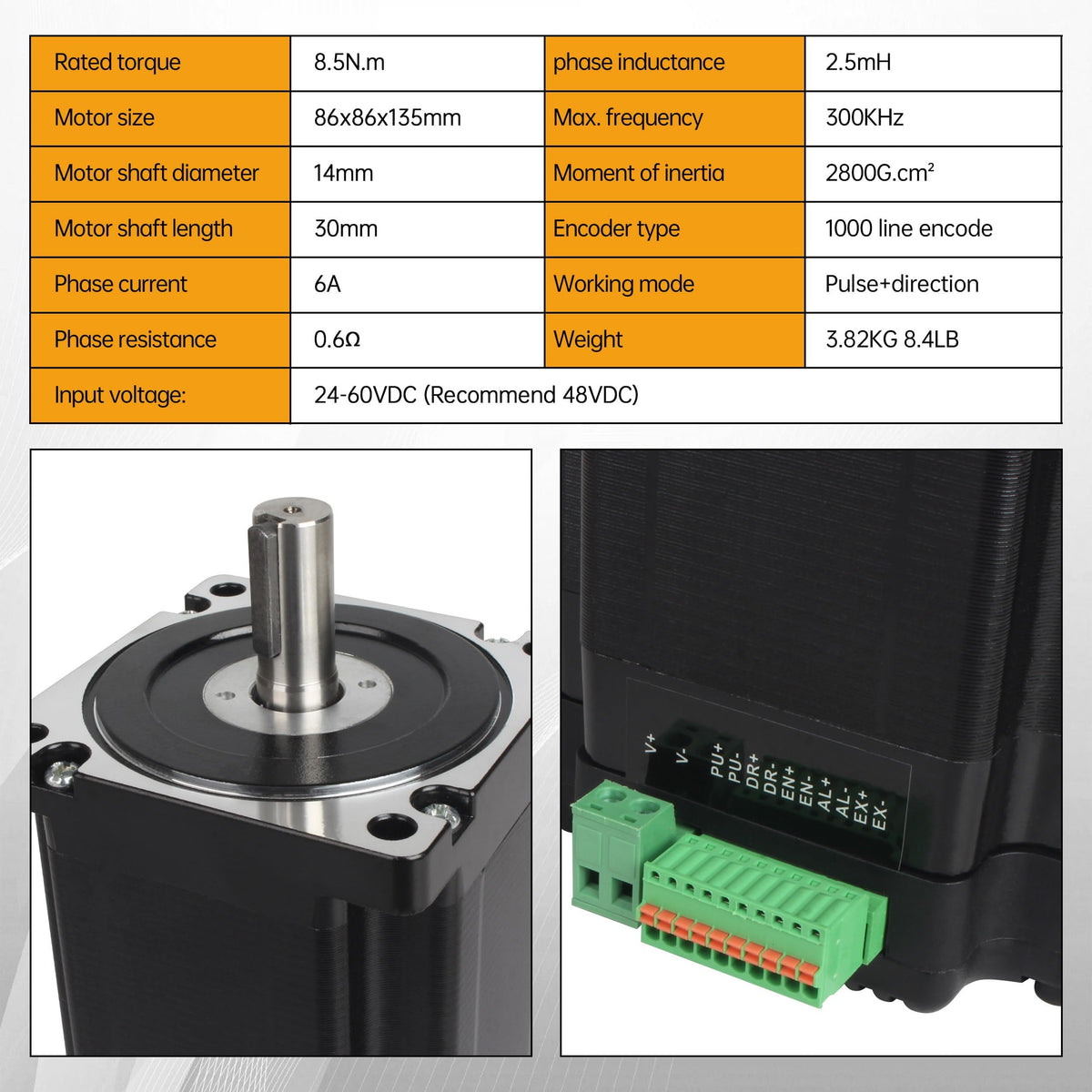

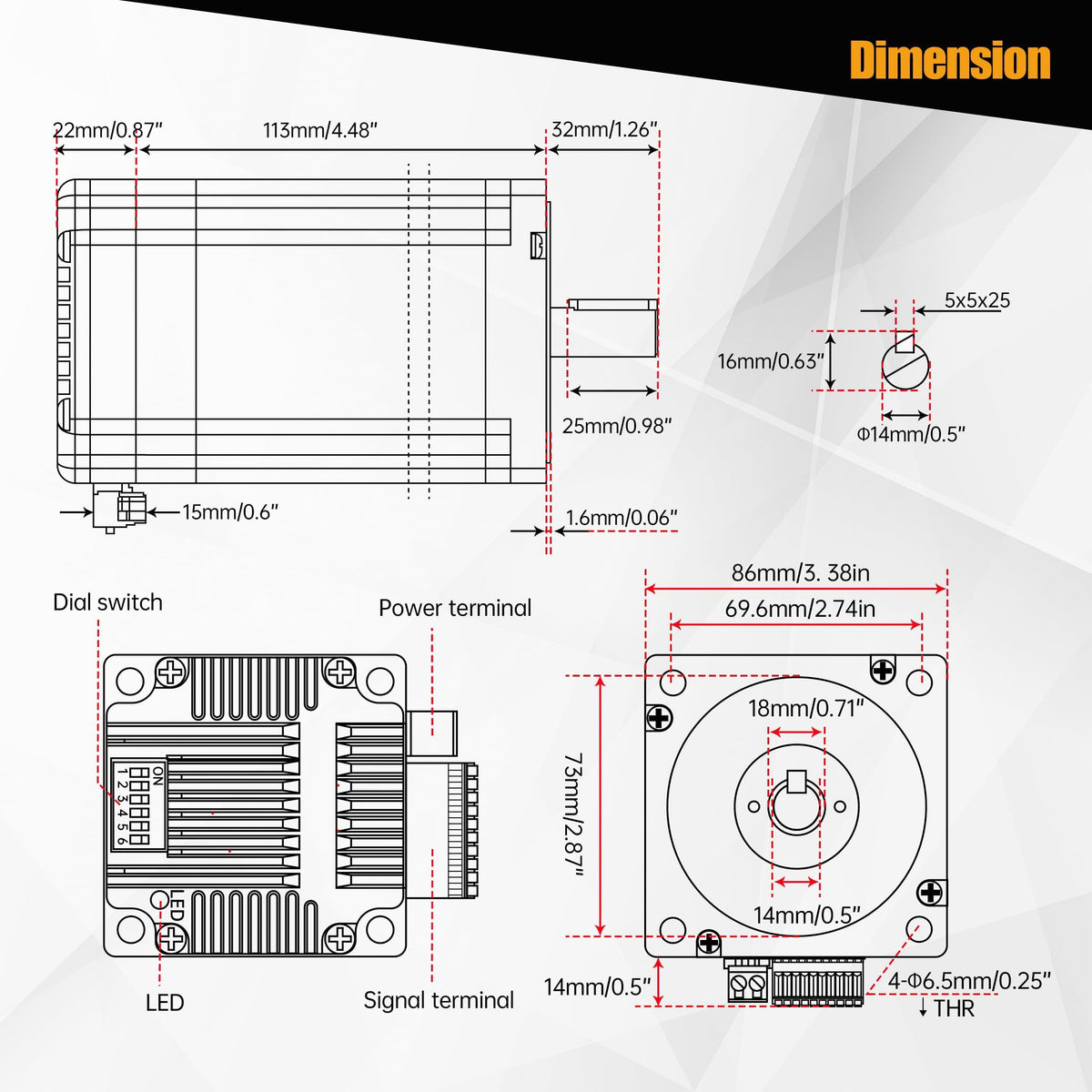

• Specifications: Type: Nema34 Integrated Closed loop Stepper Motor; Rated Torque: 8.5N.m; Rated Speed: 1000rpm; Encoder line: 1000; Motor size: 86x86x135mm; Shaft Diameter: 14mm; Input: DC24-60V; Current: 6A; Max. frequency: 300KHZ; Weight: 8.4LB
• Integrated design: The integrated closed-loop stepper motor integrates the driver and motor body together, simplifying the system structure and reducing the difficulty of installation and maintenance; The is designed and produced using an ARM processor with a DSP core, which has the characteristics of full closed-loop, all digital, low heat generation, low vibration, and fast response;

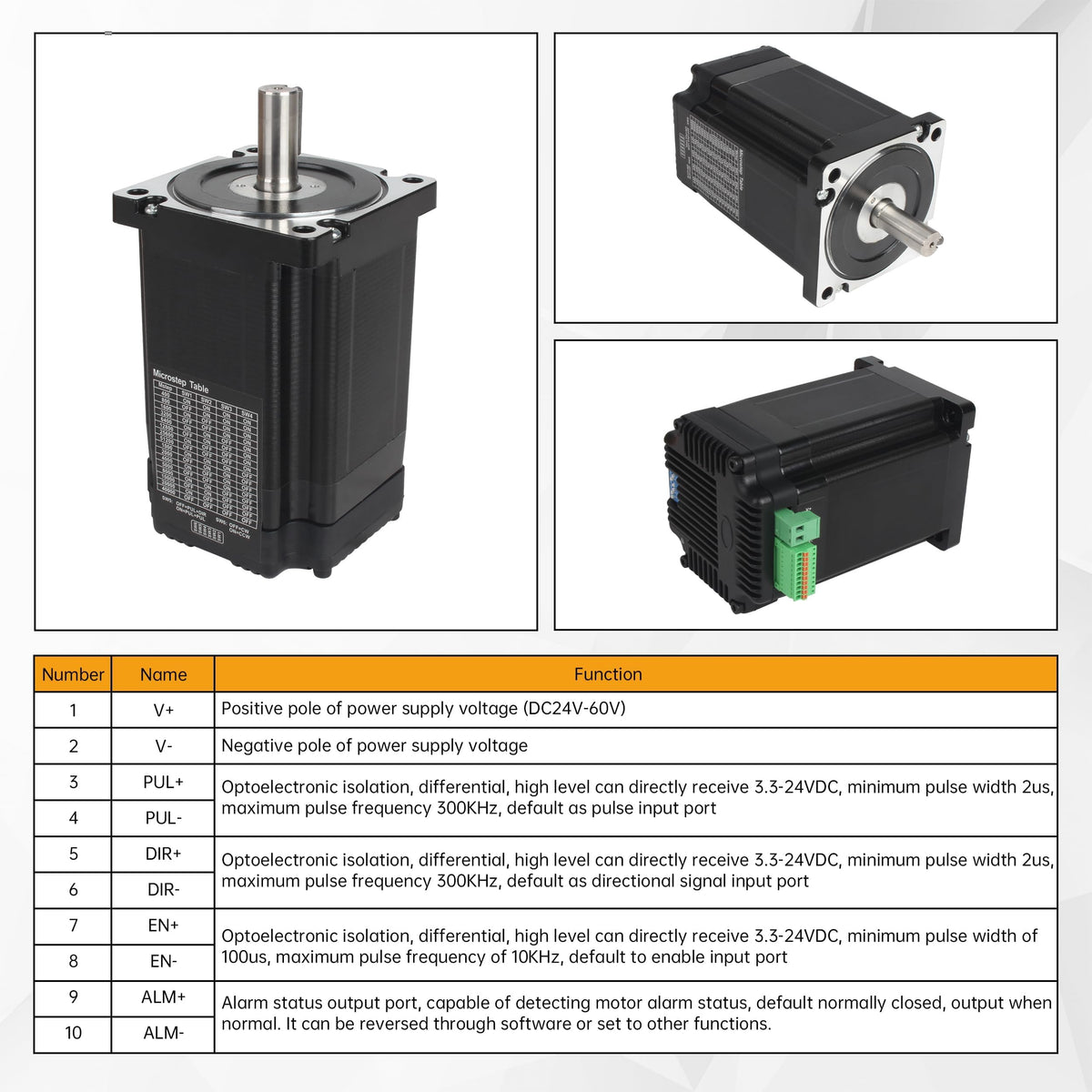

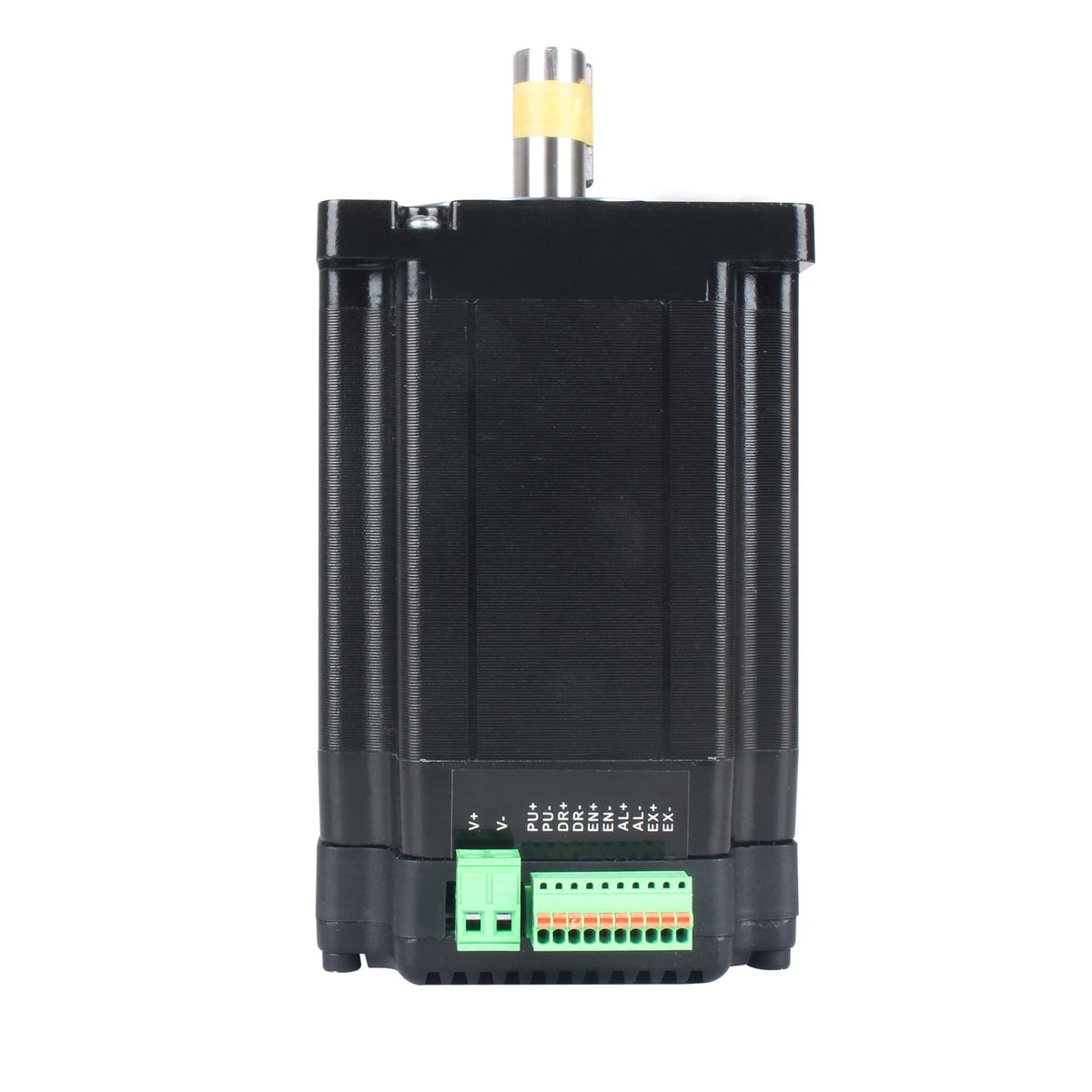

• Standard Pulse and Direction Control – Industry‑Standard Interface The motor accepts standard Pulse + Direction signals via the high‑speed input interface (PUL+/PUL‑, DIR+/DIR‑), with a maximum input frequency of 300kHz. This makes it fully compatible with PLCs, motion controllers, microcontrollers, and CNC systems—seamlessly integrating into your existing automation architecture
• High performance control: Adopting closed-loop control technology, precise control of the motor is achieved by feeding back the position and speed information of the motor, improving the stability and accuracy of the system. The closed-loop motor effectively reduces the out of step phenomenon of the stepper motor, improves the positioning accuracy of the system, and its torque is also larger than that of ordinary stepper motors
• Widely used: including CNC machines, industrial automation, and robotics technology,t hey are applied in joint drives, end effectors and other parts to achieve high-precision and high-speed motion control; Automated production line: used for equipment such as conveyor belts; Medical device field and other precision manufacturing equipment, etc
