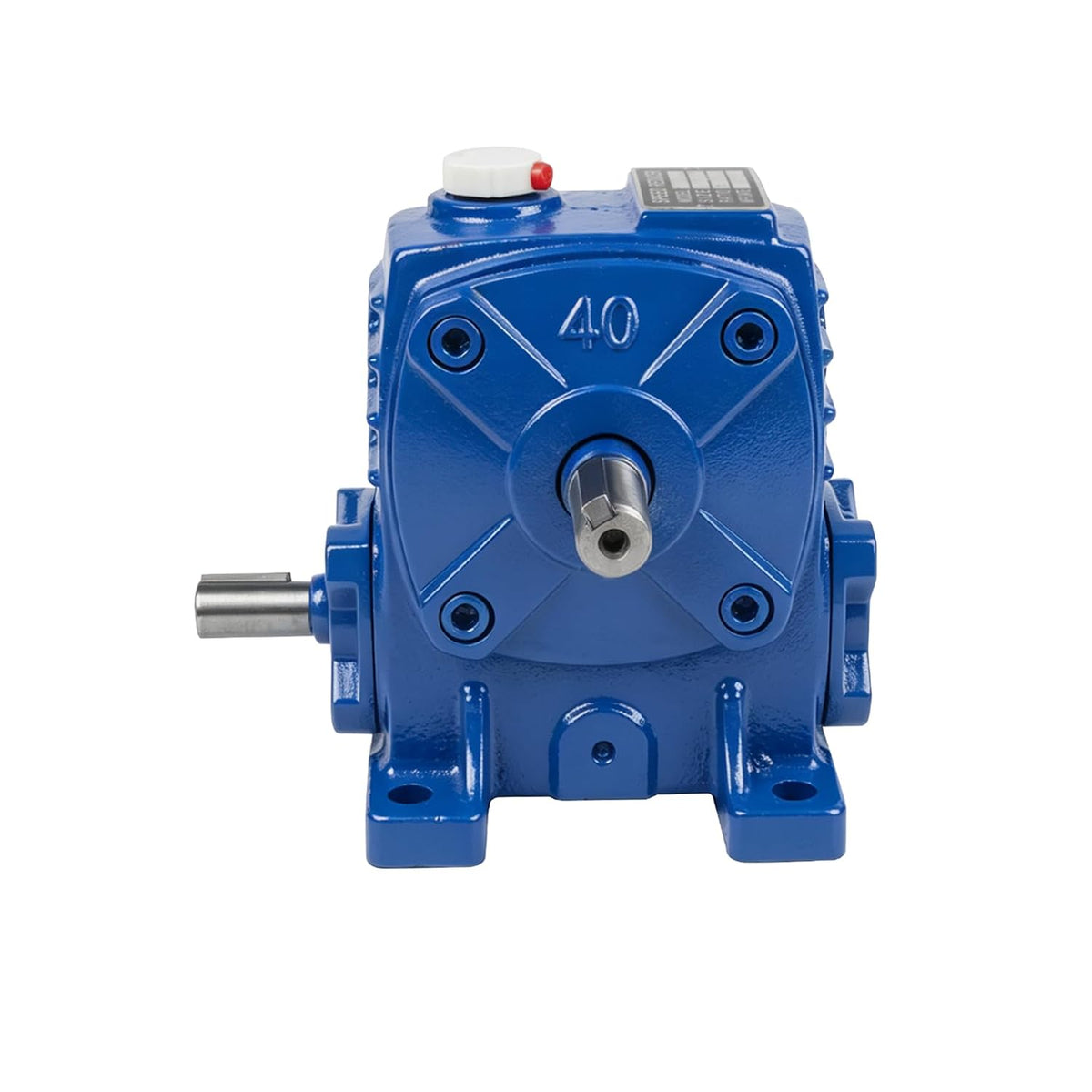

CNCTOPBAOS WPA40 Worm Gear Reducer 10:1, 12mm Input 14mm Output Gearbox
CNCTOPBAOS WPA40 Worm Gear Reducer 10:1, 12mm Input 14mm Output Gearbox
Key features
- Compact Mounting with Reversible Rotation – With a 10:1 reduction ratio, 12mm input shaft and 14mm output shaft, this perpendicular-shaft reducer offers space-saving installation. Simply change wiring connections to reverse rotation direction for different equipment setups
- Heavy-Duty Cast Iron Housing for High-Speed Operation – Built with reinforced cast iron body and thickened worm wheel, this WPA40 10:1 reducer delivers high tensile strength and stable power output. Ideal for applications requiring faster output speeds while maintaining reliable load capacity under continuous operation
- Precision-Ground Worm for Smooth High-Speed Transmission – The precision-ground worm shaft and premium steel bearings minimize noise and backlash even at higher input speeds. This design controls temperature rise during rapid operation, reducing wear and extending the service life of internal components
- Leak-Proof Double Oil Seal – Features high-temperature resistant skeleton oil seals that reliably prevent oil leakage and seepage under high-speed working environments. Extends gearbox service life and reduces maintenance frequency. Note: Before first use, fill with N320 series lubricating oil to above the red center mark on the oil level gauge, and remove the red breather plug from the vent cap. DO NOT operate without oil
- Ideal for Conveyor & Packaging Lines – Widely applicable for belt conveyors, small packaging equipment, filling machines, textile machines, printing machinery, woodworking equipment, and light assembly lines. The 10:1 ratio provides optimal speed reduction for continuous-flow production environments
Engineered for speed reduction in automated production lines, the WPA40 10:1 worm gear reducer delivers consistent performance for high-throughput industrial applications. Built with heavy-duty cast iron construction and precision-machined internal components, it handles continuous operation with stability and low maintenance.The reinforced cast iron housing features thickened ribs for excellent load capacity, resisting deformation under sustained use. Its thickened worm wheel maintains steady power output, while the precision-ground worm shaft paired with premium bearings reduces operating noise, minimizes backlash, and lowers component wear.With a high-temperature resistant double skeleton oil seal design, this gearbox effectively prevents oil leakage even during high-speed operation, preserving internal lubrication and reducing upkeep. Rotation direction can be easily reversed by adjusting wiring connections.SpecificationsModel: WPA40Reduction Ratio: 10:1Housing Material: Cast IronInput Shaft Diameter: 12mmOutput Shaft Diameter: 14mmNet Weight: 2.65kg / 5.8 lbPackage Includes1 × WPA40 Worm Gear Reducer 10:1 Applications: Compatible with conveyor systems, packaging equipment, fil
Free shipping included. 30-day hassle-free returns.
