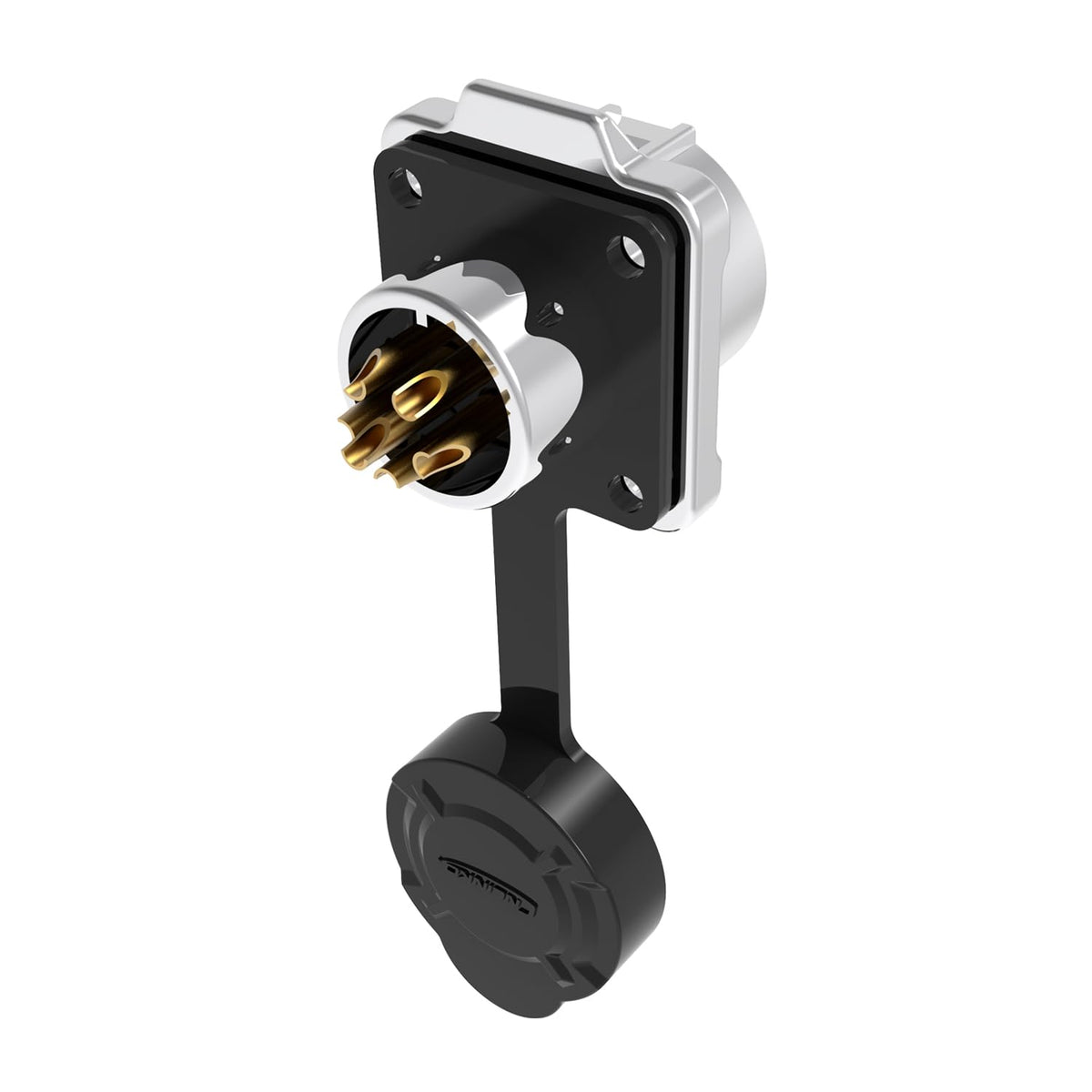

CNLINKO LP12 6-Pin Metal Shell Waterproof Circular Connector M12

Key features

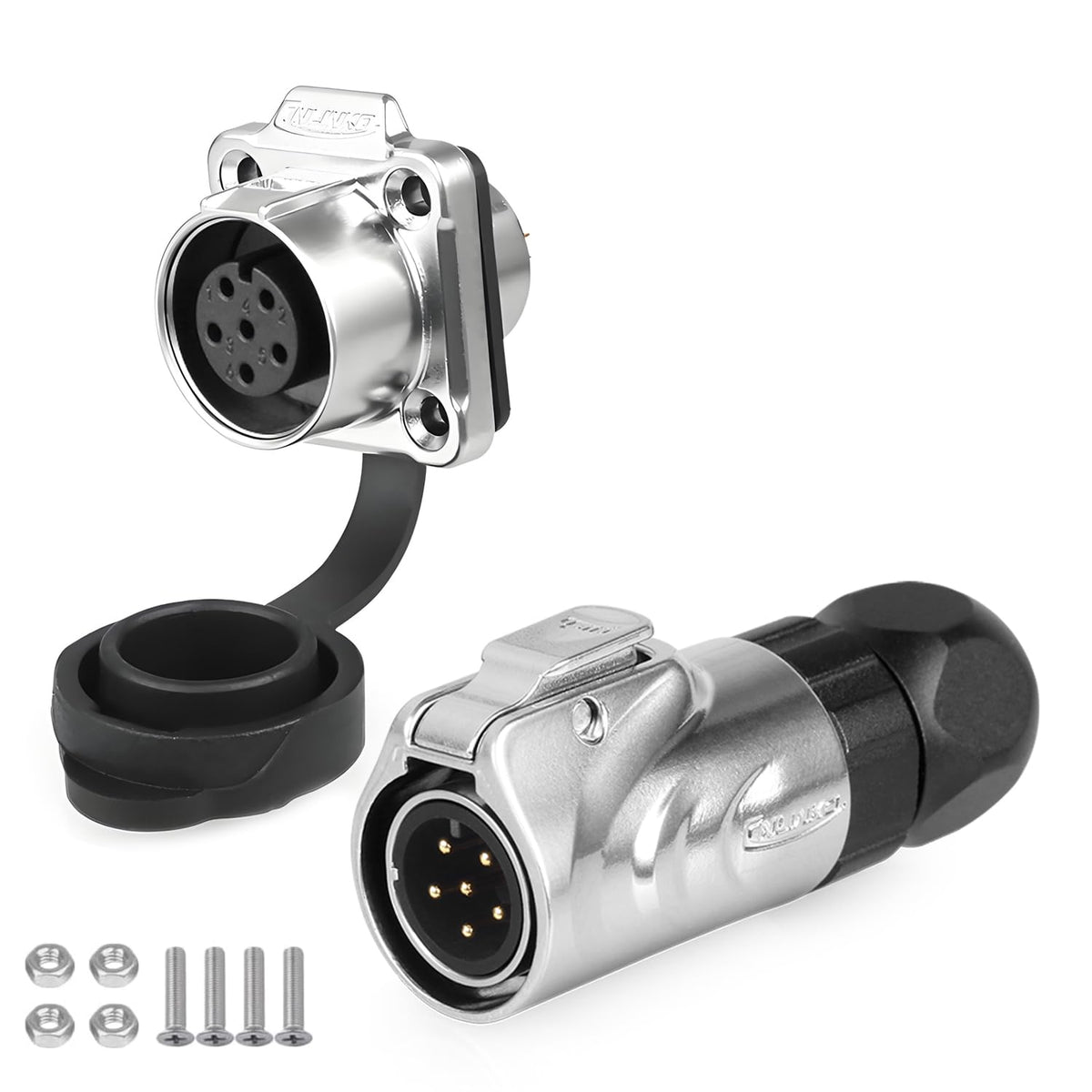

• Product Overview:The LP12 Male Plug and LP12 Female Socket are designed for plug/unplug connections with an IP68 protection rating (when mated), ensuring excellent dust and water resistance.

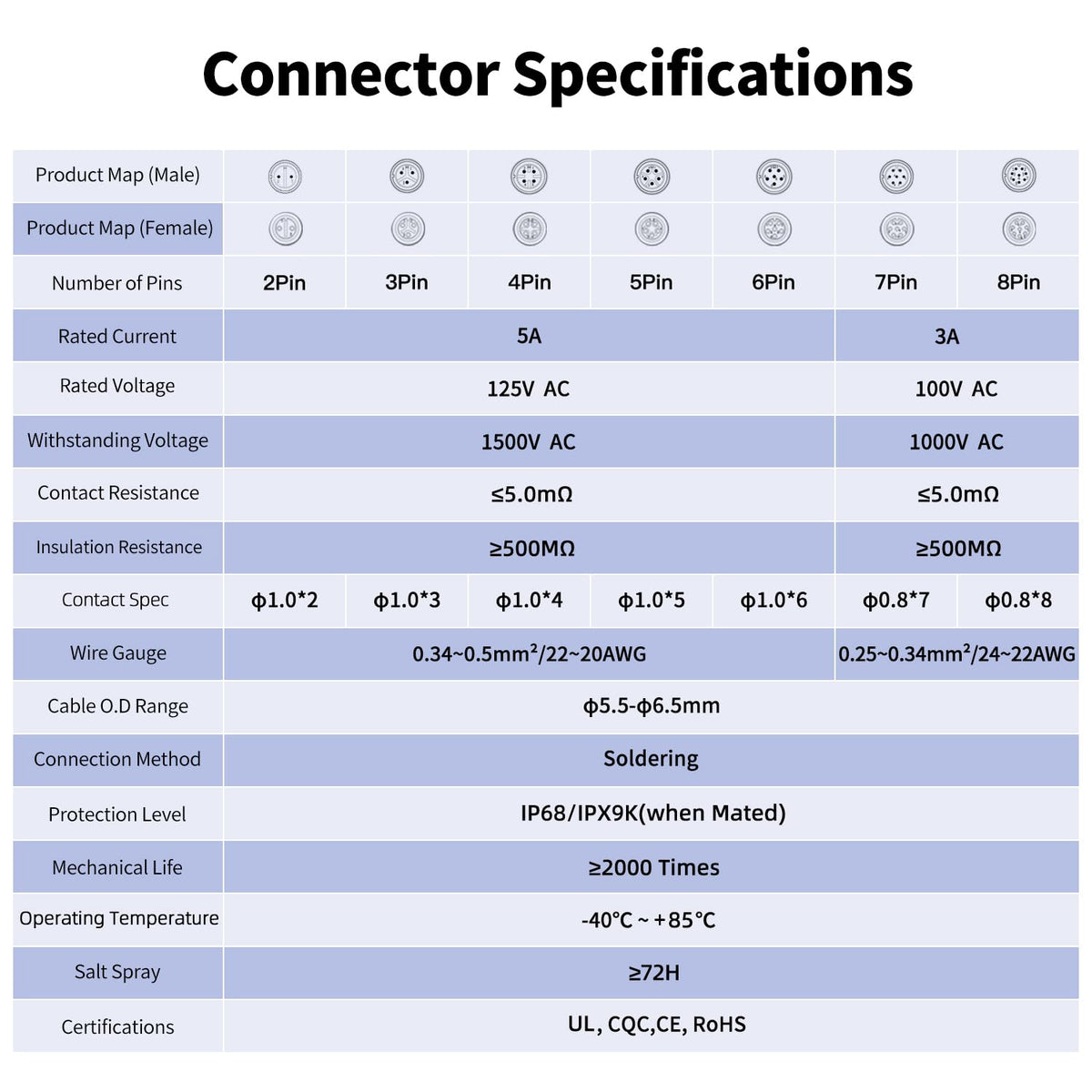

• Cable Specifications: Compatible with cables ranging from 0.34-0.5mm² /22-20 AWG with a cable diameter range of Φ5.5~Φ6.5mm. The contact diameter is Φ1.0x6. Assembly Style: Soldering.
• Electrical Specifications: Rated for 5A current and 125V AC operating voltage. With a withstand voltage of 1500V for 1 minute, contact resistance under 5.0mΩ, and insulation resistance over 500MΩ, ensuring reliable and stable electrical performance. Note: Avoid charging during insertion
• Materials: Constructed with high-performance engineering plastics and a zinc alloy shell, the LP12 connector ensures corrosion resistance and durability. Gold-plated copper contacts provide excellent conductivity, while the silica gel seal offers superior waterproofing.
• Applications: Widely used in medical equipment, servers, communications equipment, solar energy systems, smart grids, electrical power equipment, stage equipment, ship equipment, vehicle equipment, and heavy machinery. Ideal for a wide range of industrial and professional applications
