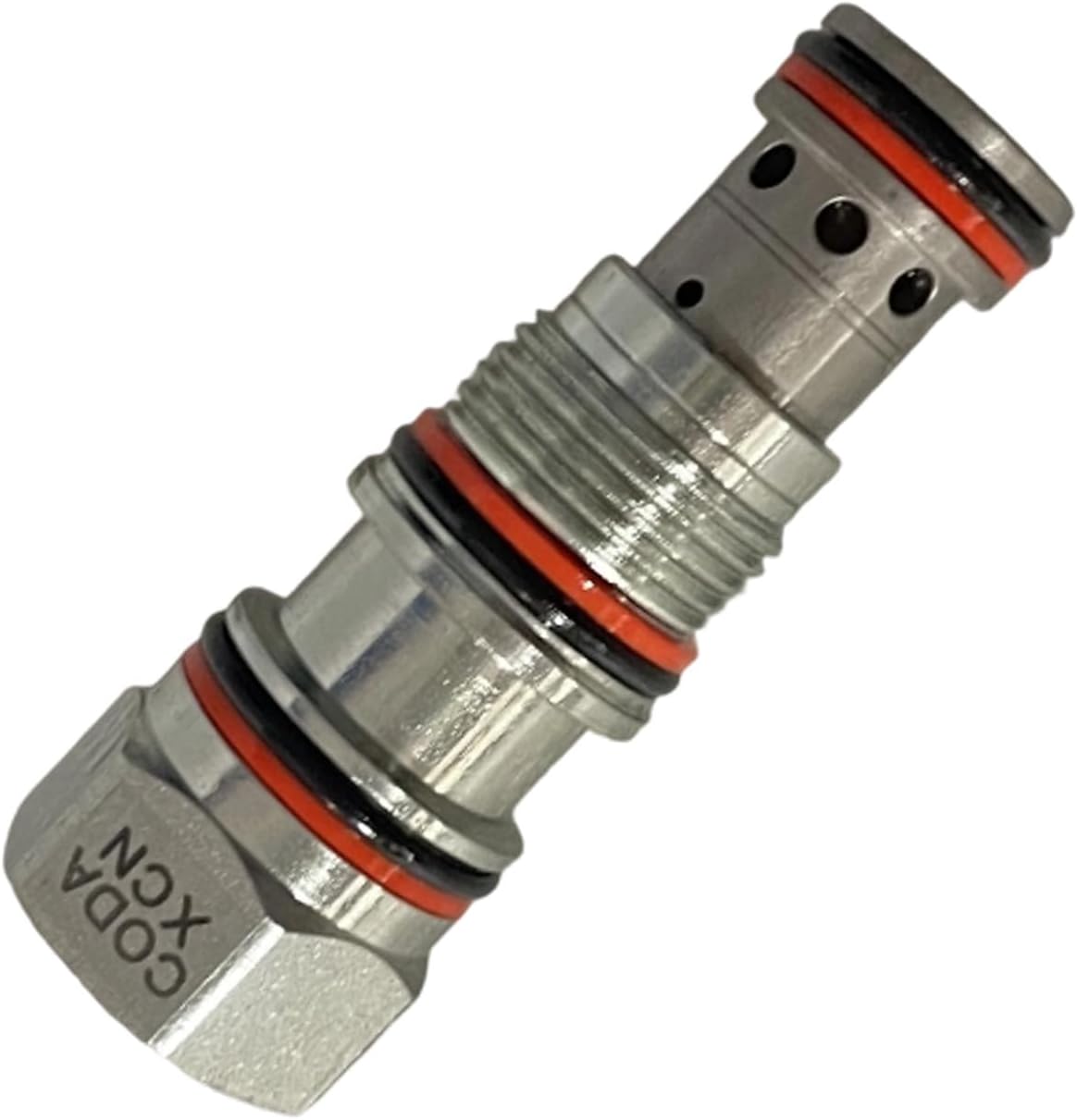

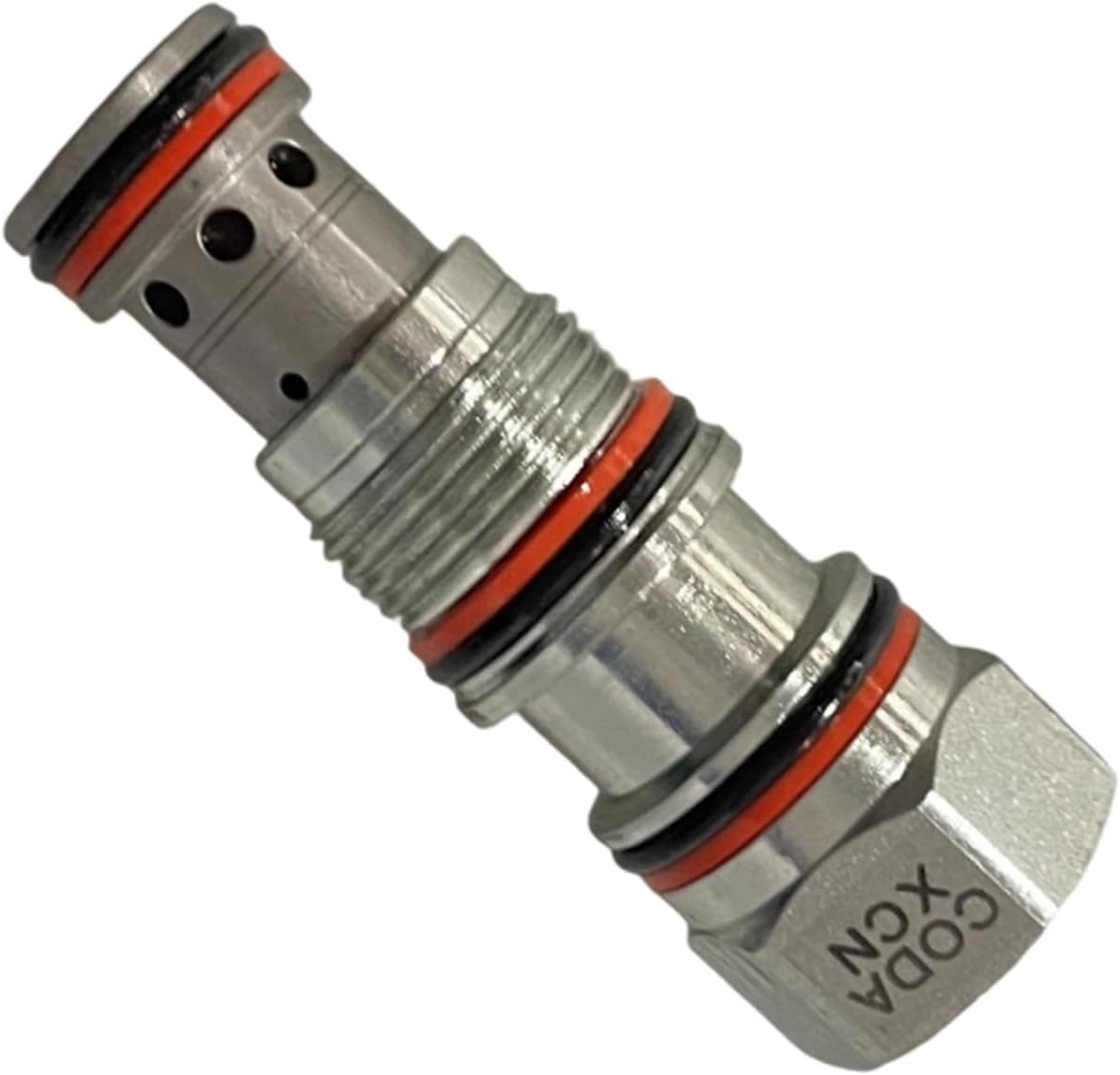

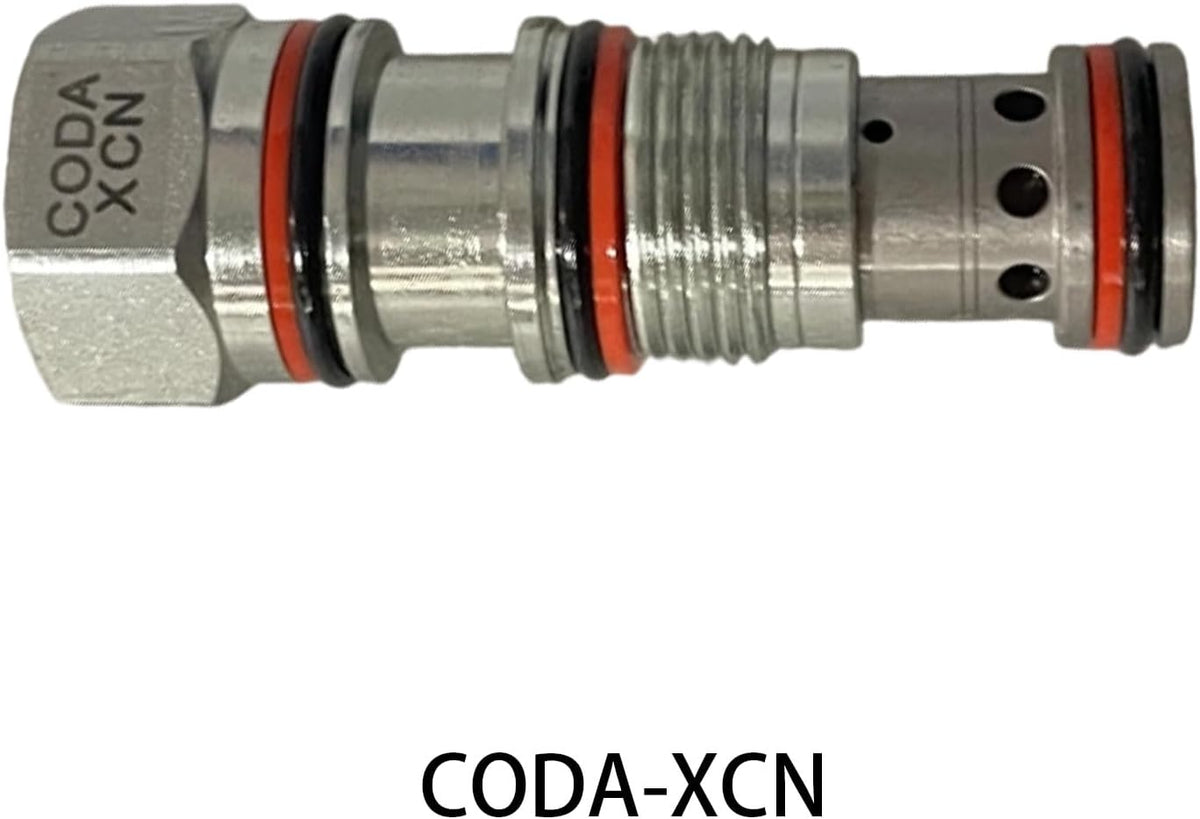

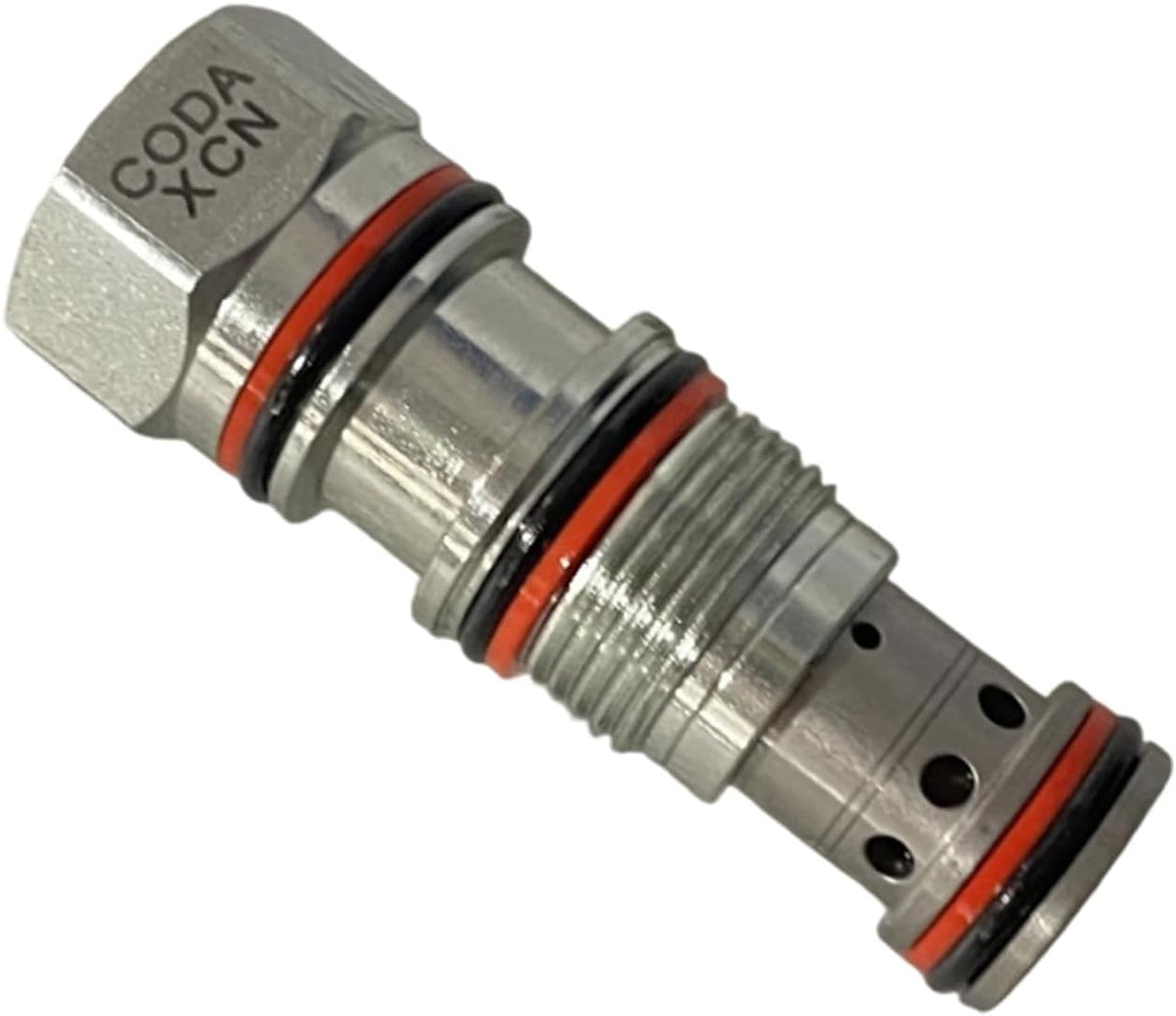

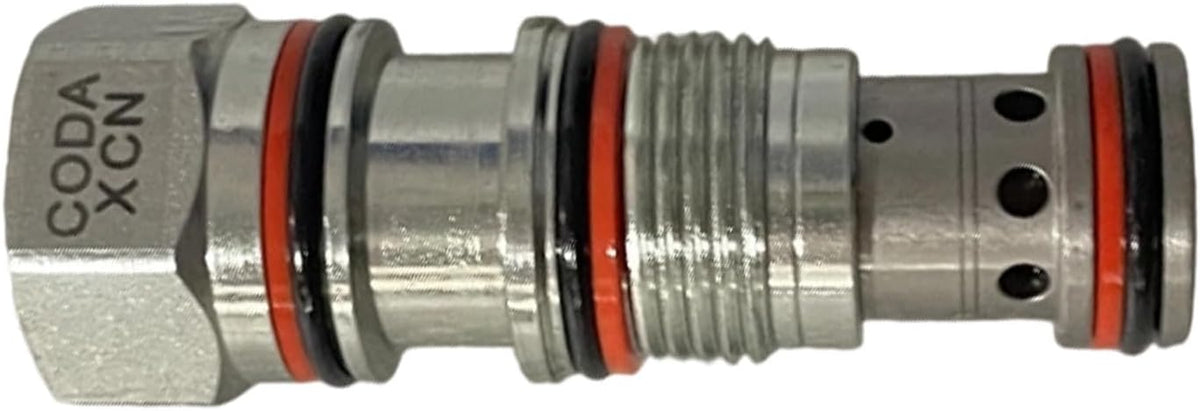

CODA-XCN CODAXCN Pilot to Close Check Valve compatible with Sun Hydraulics

Key features

• Part Name: This valve is a spring biased closed, pilot-to-close check cartridge that has a 1.8:1 pilot ratio.
• Model Number: CODA-XCN CODAXCN
• Standard thread port, easy to install, fits most industrial & marine machinery.
• When purchasing a product, please let me know the engine model you need or provide a photo of the nameplate. We have a professional team that can assist you to avoid any mistakes.
• Our product does not come with an installation manual; we recommend that you have it installed by a professional.

TECHNICAL DATA Cavity: T-11A Series: 1 Capacity: 20 gpm Maximum Operating Pressure: 5000 psi Pilot Ratio: 1.8:1 Maximum Valve Leakage at 110 SUS (24 cSt): 1 drops/min. Valve Hex Size: 7/8 in. Valve Installation: Torque 30 - 35 lbf ft Seal kit - Cartridge: Buna: 990011007 Seal kit - Cartridge: EPDM: 990011014 Seal kit - Cartridge: Polyurethane: 990011002 Seal kit - Cartridge: Viton: 990011006 Model Weight: 0.28 lb.
