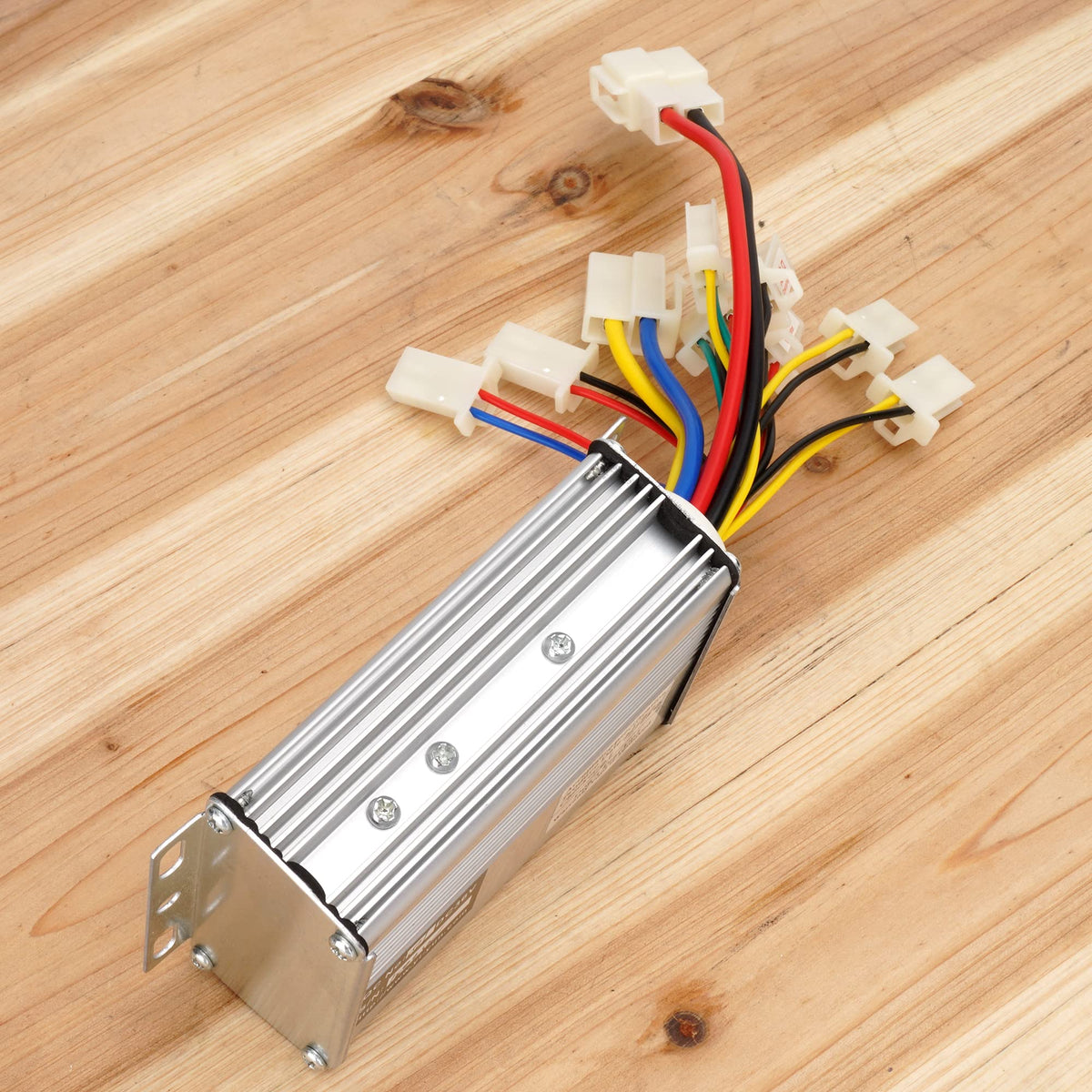

Controller 36V1000W for Brushed Motor with White Battery Connector Terminal

Key features

• 36v Brushed Controller - This controller for 36v 1000w brushed electric motor/engine, can NOT work on brushless motor.
• 36V Controller Parameters - Voltage: 36V, Rated Power:1000W, Compatible for: 700-1000W motor. Under Voltage Protection: 32V
• Full speed ahead - Sport mode is on by default, with the top speed unchanged and torque increased by 5%. If you don't want to use sport mode, you can leave it unconnected.

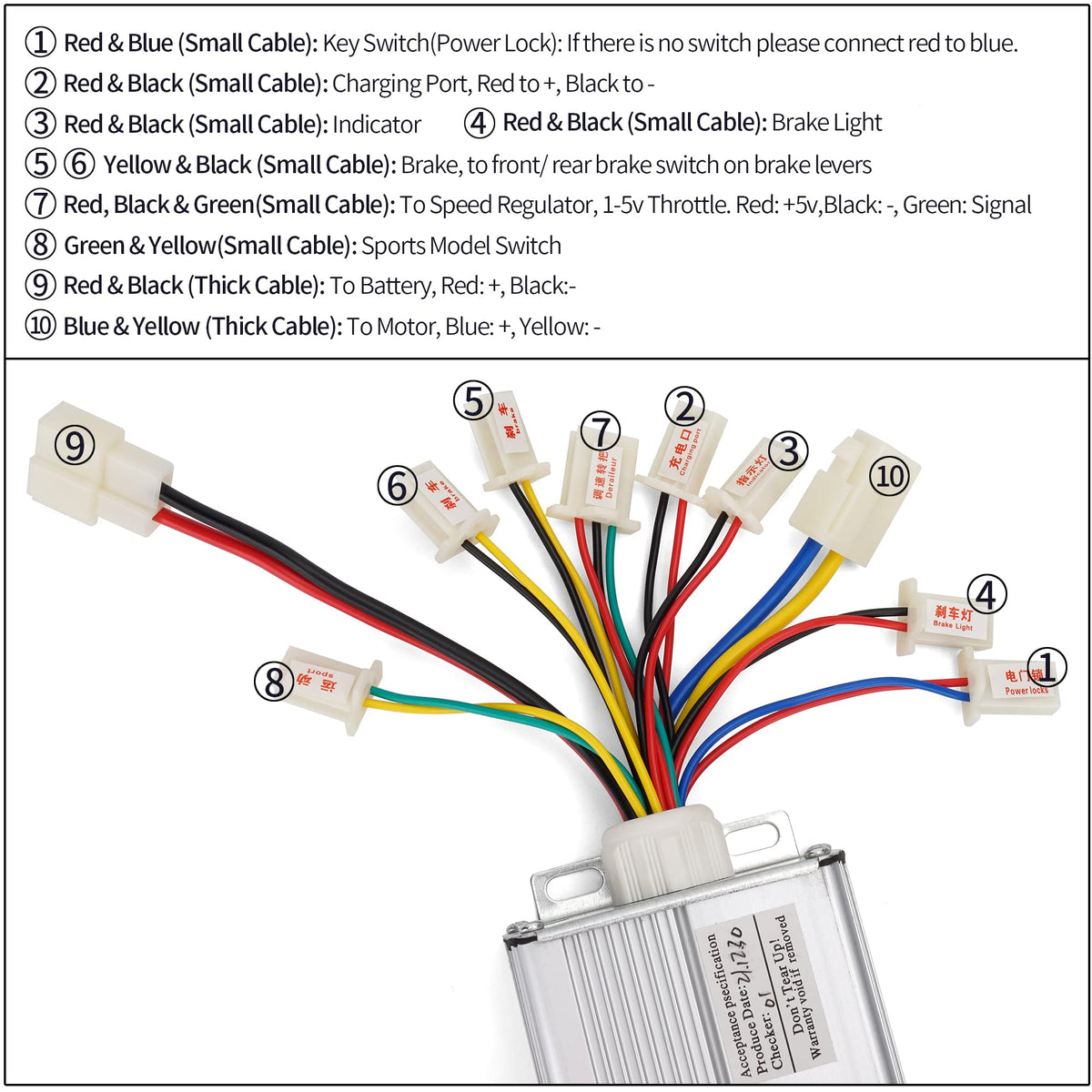

• NOTE - Please see pictures for detail Wiring Diagram; Please note do not take the wrong power cord, or will burn. If you have any questions please contact me
• There are 2 styles of battery and engine connector for this controller .They are not compatible. This listing is with WHITE connector as picture showed.
• If you have any questions about the controller's compatible vehicle models, functions, connection methods, troubleshooting after purchase, or are dissatisfied with the product, please feel free to contact us
• To operate the controller, at least four connectors must be connected first. First, connect the two thicker wires on the controller (blue and yellow) to the motor, with the blue wire connecting to the motor's red wire and the white wire connecting to the motor's black wire. Next, connect the two thicker wires on the controller (red and black) to the battery, with the red wire to the positive terminal and the black wire to the negative terminal. Third, connect the throttle connector (the throttle has three wires; ensure red wire to red and black wire to black). Finally, connect the ignition switch, turn it on, and the motor will start running
