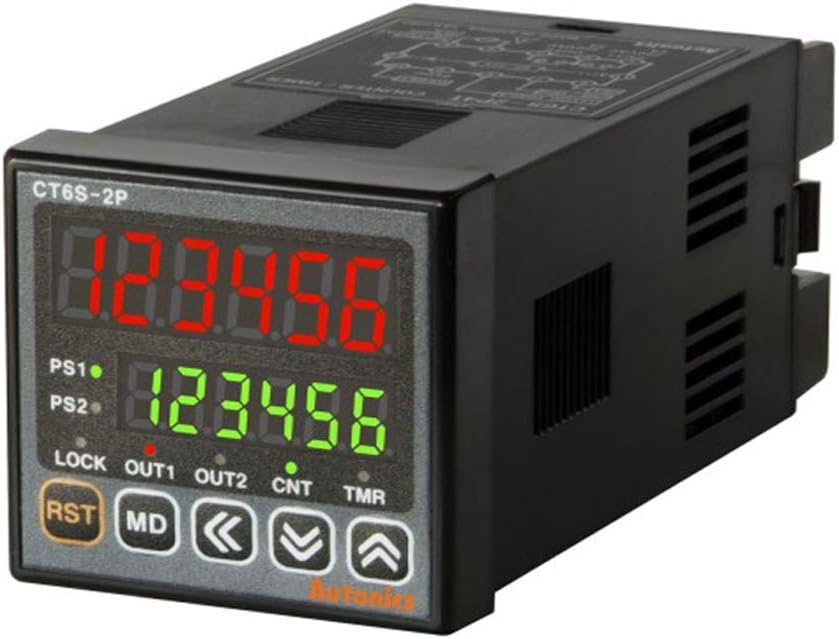

CT6S-2P4 Multi Functional Counter/Timer

Key features

• Display method: 6-digit 7-segment LED; Operation method: Counter: Count up, Count down, Count up/down; Timer: Count up, Count down; Terminal: Terminal block; Output Operation: SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME; Power supply: 100-240VAC~ 50/60Hz
• Time operation: POWER ON START, SIGNAL ON START; External Power Supply: Max. 12VDC ±10%, 100mA; Signal Input Method: Voltage input(PNP), No-voltage input(NPN); Control output_Relay: SPST (1a): 2; Control output_NPN open collector: 1; Protection structure: IP65(front panel)
• Operating Temperature: -10°C to 55°C, Relative Humidity: 35 to 85% RH; Storage Temperature: -25°C to 65°C; Relative Humidity: 35 to 85% RH
• Max. Counting Speed: 1, 30, 1k, 5k, 10k [cps]; Min. signal Width: 1ms/20ms; Memory Protection: Approx. 10 years; Setting Range: 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour; Control output_Type: 2-stage preset
• Counter_Counting Range: -99999 to 999999; Counter_Scale: Decimal point up to fifth digit; Counter_Min. input signal width: RESET: Selectable 1ms/20ms; Timer_Min. input signal width: INA, INH, RESET: Selectable 1ms/20ms

The CT6S‑2P4 Multi-Functional Counter/Timer is a versatile industrial device combining counting and timing functions in a single unit. It features dual 4-digit displays, counting range 0–9999, timing range 0.01 s to 9999 h, input voltage 100–240 VAC or 24 VAC/VDC, relay output 5 A/250 VAC, and multiple counting/timing modes with adjustable setpoints and high switching accuracy. Suitable for production lines, batching systems, packaging machinery, conveyor control, and other automation applications, it ensures precise and reliable count and time control in demanding industrial environments.
