CYDIKA TMC2209 V1.3 Stepstick Stepper Motor Driver UART 2.8A, 4PCS
CYDIKA TMC2209 V1.3 Stepstick Stepper Motor Driver UART 2.8A, 4PCS
Key features
- Quiet Motion for 3D Printing: The TMC2209 V1.3 stepper motor driver uses StealthChop2 silent technology to help reduce motor noise while supporting smoother, more stable motion on compatible 3D printer control boards.
- 2A RMS and 2.8A peak current: Built for common stepper motor driver replacement and upgrade projects, this module supports up to 2.0A RMS current, up to 2.8A peak current, and up to 256 microstepping interpolation.

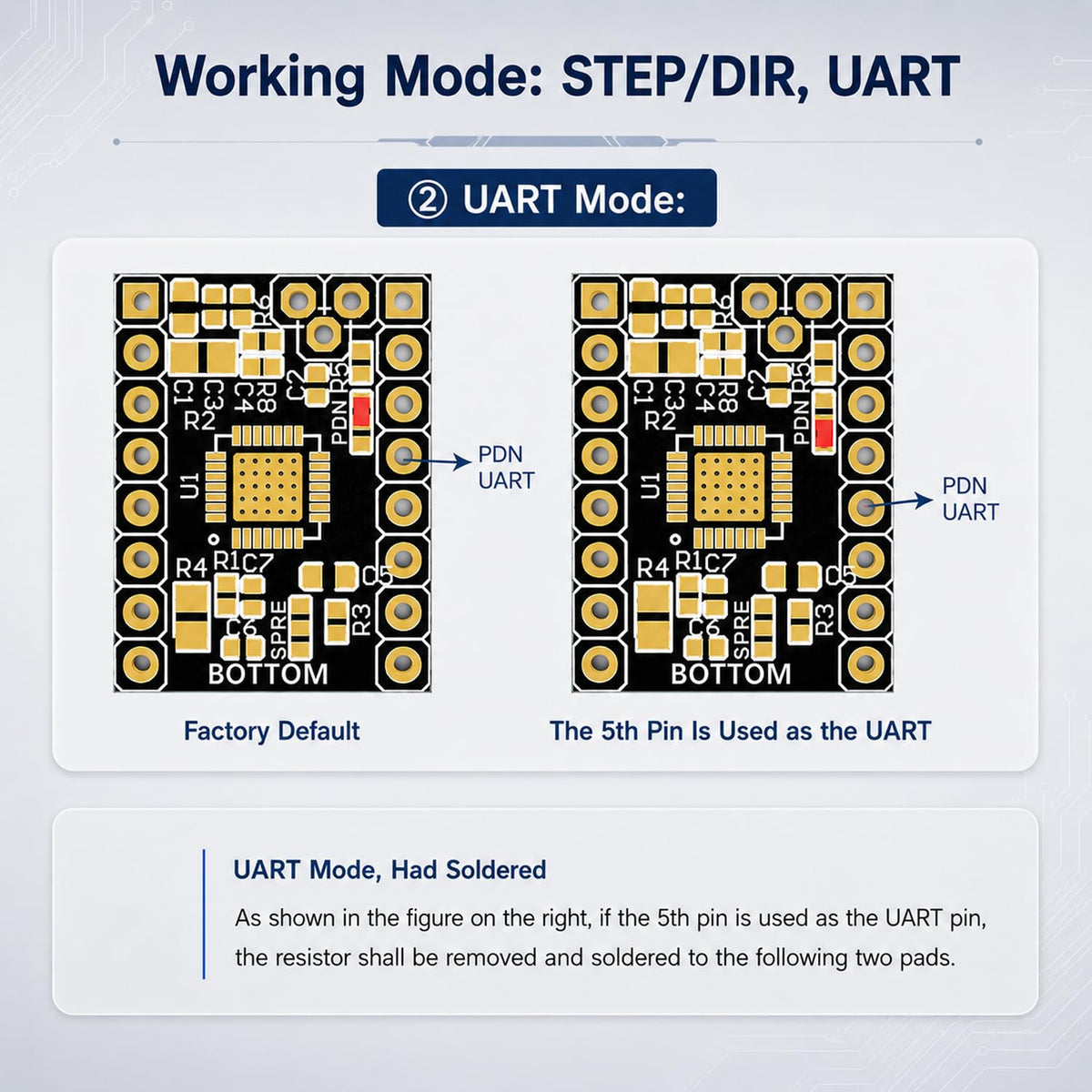

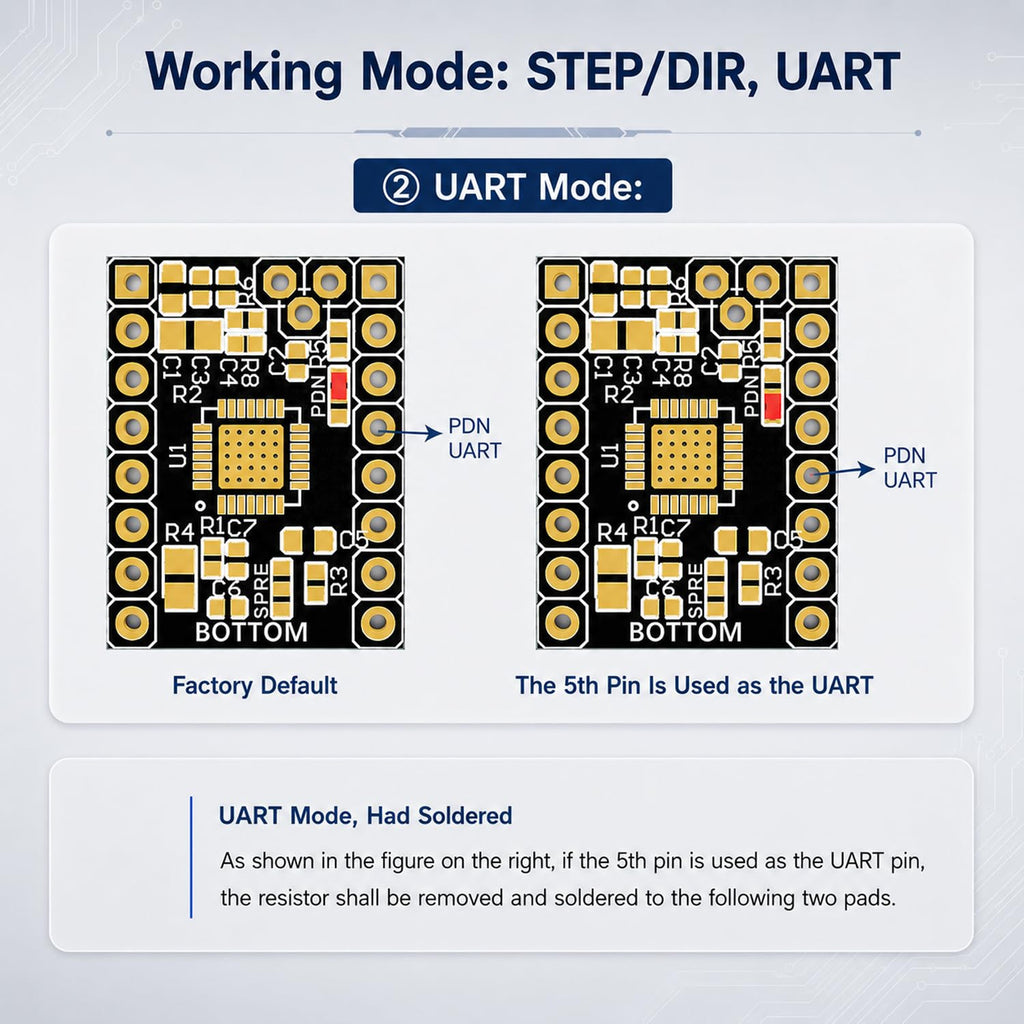

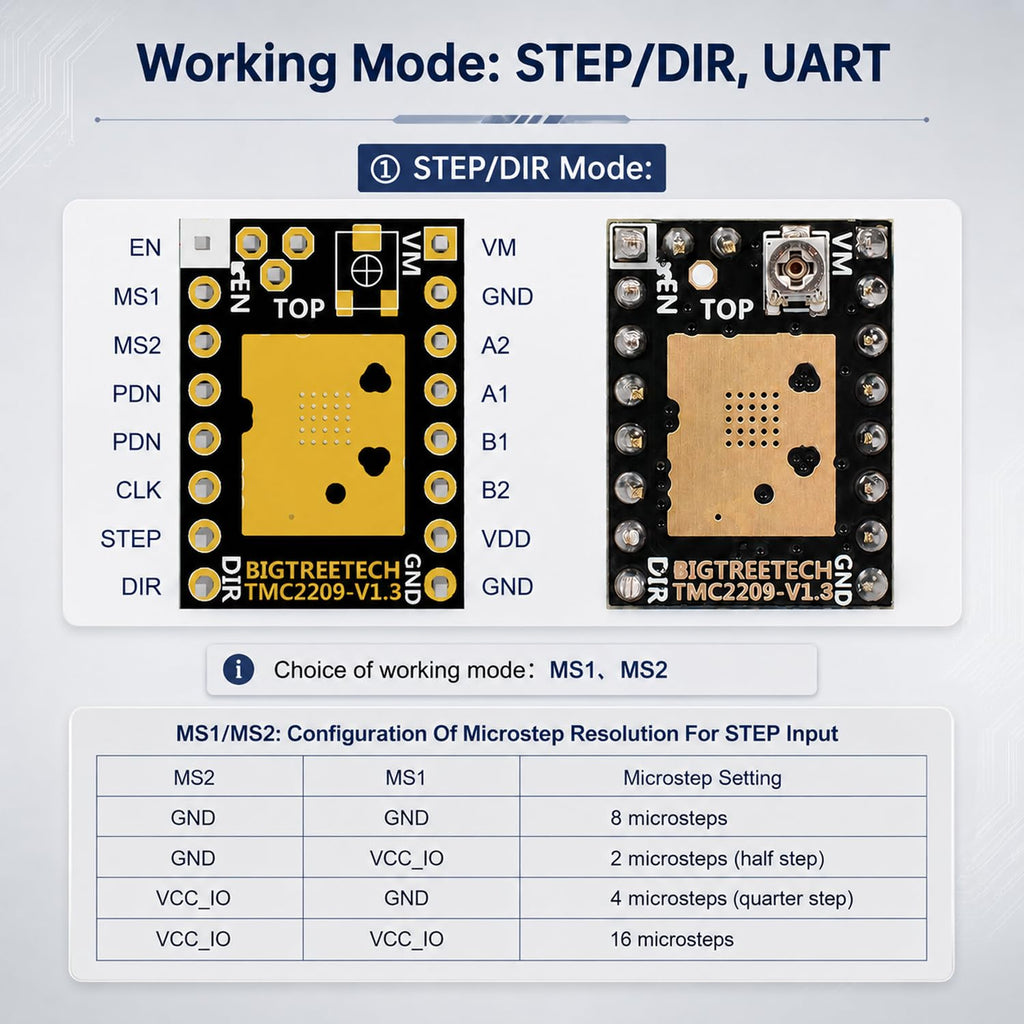

- Flexible UART or STEP/DIR Setup: Use UART mode for advanced configuration or STEP/DIR mode for traditional control-board wiring, giving makers a practical driver option for Marlin and Klipper printer builds.
- Sensorless Homing Support: StallGuard4TM-based stall detection can support sensorless homing workflows when the mainboard, firmware, wiring, and tuning settings are configured for this function.
- 4PCS Driver Pack: Includes Four TMC2209 V1.3 stepper driver modules for printer maintenance, spare-part planning, or multi-axis builds; confirm pin direction, cooling, and power-off installation before use.

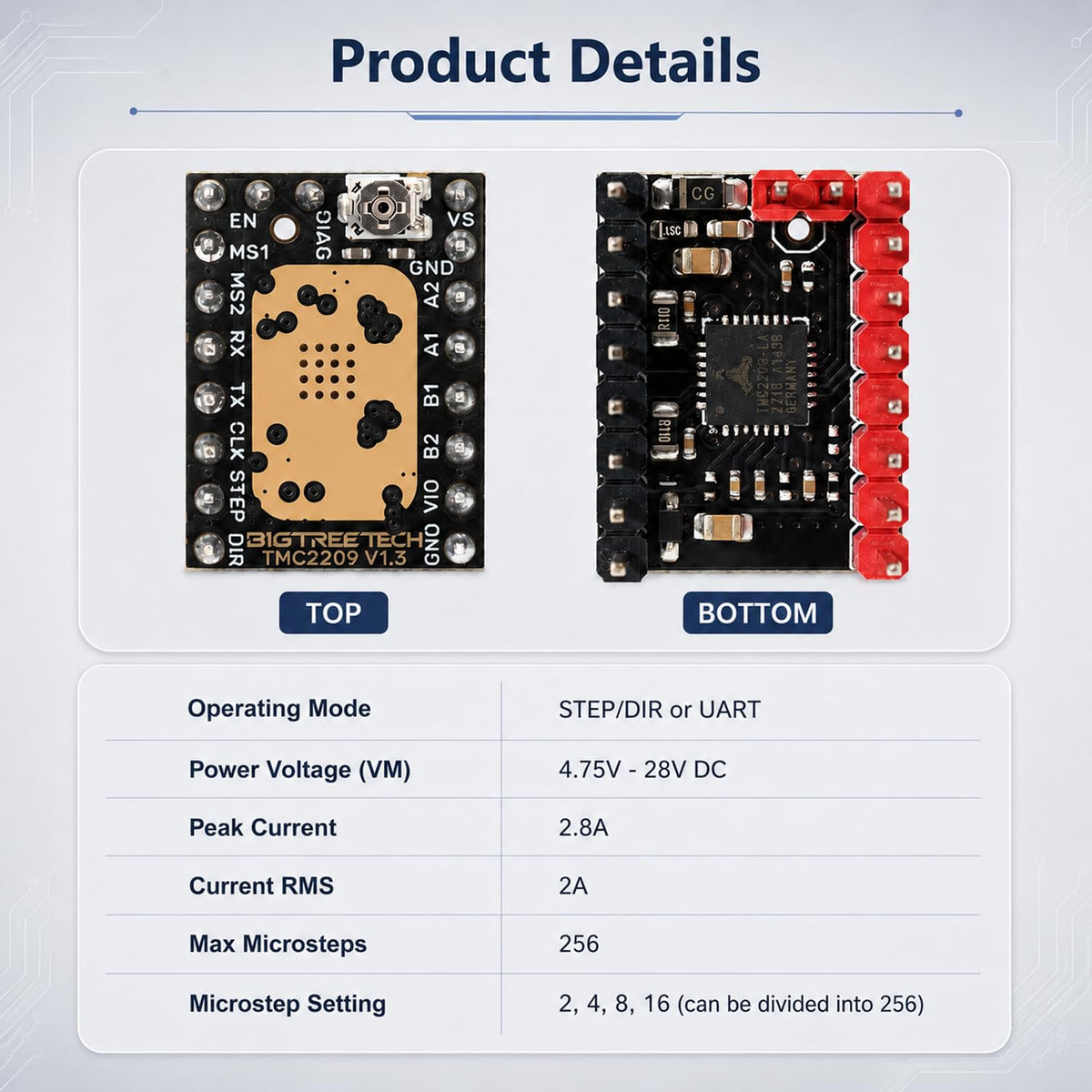

The TMC2209 V1.3 is a silent stepper motor driver module for 3D printer control-board projects, maintenance, and driver replacement workflows. It supports StealthChop2 silent technology, UART and STEP/DIR operating modes, up to 256 microstepping interpolation, sensorless homing workflows, and Marlin or Klipper firmware setups when the connected board and configuration support those functions. Product Parameters: - Product Type: TMC2209 V1.3 stepper motor driver module - Quantity: 4PCS - Supported Modes: UART and STEP/DIR - Current Reference: up to 2.0A RMS, up to 2.8A peak - Microstepping: up to 256 microstepping interpolation - Firmware Workflows: Marlin and Klipper setups - Application: 3D printer stepper motor control-board projects Before Purchase and Installation: - Confirm your control board pinout, driver socket direction, voltage range, firmware settings, and cooling setup. - Disconnect power before installing or removing the driver module. - Sensorless homing requires matching board support, correct wiring, and firmware tuning.
Free shipping on orders $50+. 30-day hassle-free returns.
