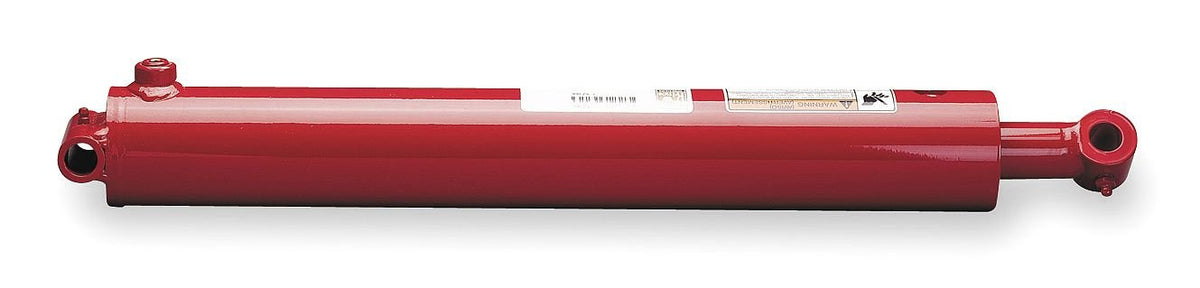

Cylinder, hyd, 4 In Bore x 16 In Stroke

Key features

• Price For: Each Rod Seal: Urethane U-cup Material: Steel Piston Rod: Polished Chrome Ring Material: Cast Iron Item: Hydraulic Cylinder Piston Seal: Cast Iron Dimension E (In.): 15/16 Dimension Y (In.): - NPT Port (In.): 1/2 Piston Material: Ductile Iron Dimension D (In.): 1.265 Dimension W (In.): - Inlet SAE (In.): - Tie Rods: - Dimension C (In.): 1/2
• Dimension V (In.): - Includes: - Dimension Mm (In.): - Dimension B (In.): 1/2 Dimension P (In.): - Finish: Red Painted Dimension Lb (In.): - Dimension A (In.): 3/16 Dimension O: 2-7/8 Port Size (NPT): 1/2" Dimension N (In.): 1-5/16 Dimension Kk (In.): - Bore Dia. (In.): 4 Dimension L1: 2 Dimension L (In.): 4-1/2 Dimension Ee (In.): - Dimension K (In.): -
• Dimension Zj (In.): - Dimension J (In.): - Bushing: - Type: Double Acting Welded Pin Dia.: 2" Dimension H (In.): 2-1/8 Standards: - Temp. Range: - Wear Band: - Dimension G (In.): 1-1/8 Retract (In.): 25 Stroke (In.): 16 Tubes: Heavy-wall Honed Steel Dimension F (In.): - Max. Pressure (PSI): 2500 Rod Dia. (In.): 2 Country of Origin (subject to change): United States

'Hydraulic Cylinder, Double Acting Welded, Bore Dia 4 In, Stroke 16 In, Rod Dia 2 In, Retract 25 In., NPT Port 1/2 In, Max Pressure 2500 PSI, Ductile Iron Piston Material, Polished Chrome Piston Rod, Cast Iron Ring Material, Heavy-wall Honed Steel Tubes, Urethane U-cup Rod Seal, Steel Material, Cast Iron Piston Seal, Red Painted Finish'
