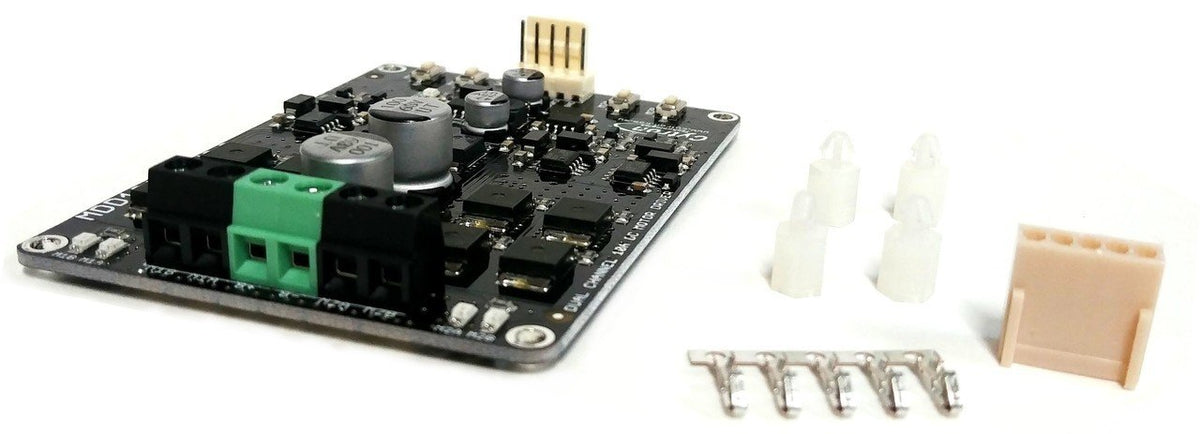

Cytron Dual Channel 10A DC Motor Driver MDD10A

Key features

• Brand: Makermotor
• Material: Copper
• Voltage: 30 volts
• Speed: 20 KHz
• Voltage: 30.0 volts

MDD10A is the dual channel version of MD10C which is designed to drive 2 brushed DC motors with high current up to 10A continuously. Like MD10C, MDD10A also supports locked-antiphase and sign-magnitude PWM signal. It is using full solid state components that result in faster response time and eliminate the wear and tear of the mechanical relay. **Note that it is not for "RC PWM" Features: Bi-directional control for 2 brushed DC motor. Support motor voltage ranges from 5V to 30V (Rev2.0). Maximum current up to 10A continuous and 30A peak (10 second) for each channel. Solid state components provide faster response time and eliminate the wear and tear of mechanical relay. Fully NMOS H-Bridge for better efficiency and no heat sink is required. Speed control PWM frequency up to 20KHz. Support both locked-antiphase and sign-magnitude PWM operation. 2 activation buttons for fast test on each channel. Dimension: 84.5mm x 62mm
