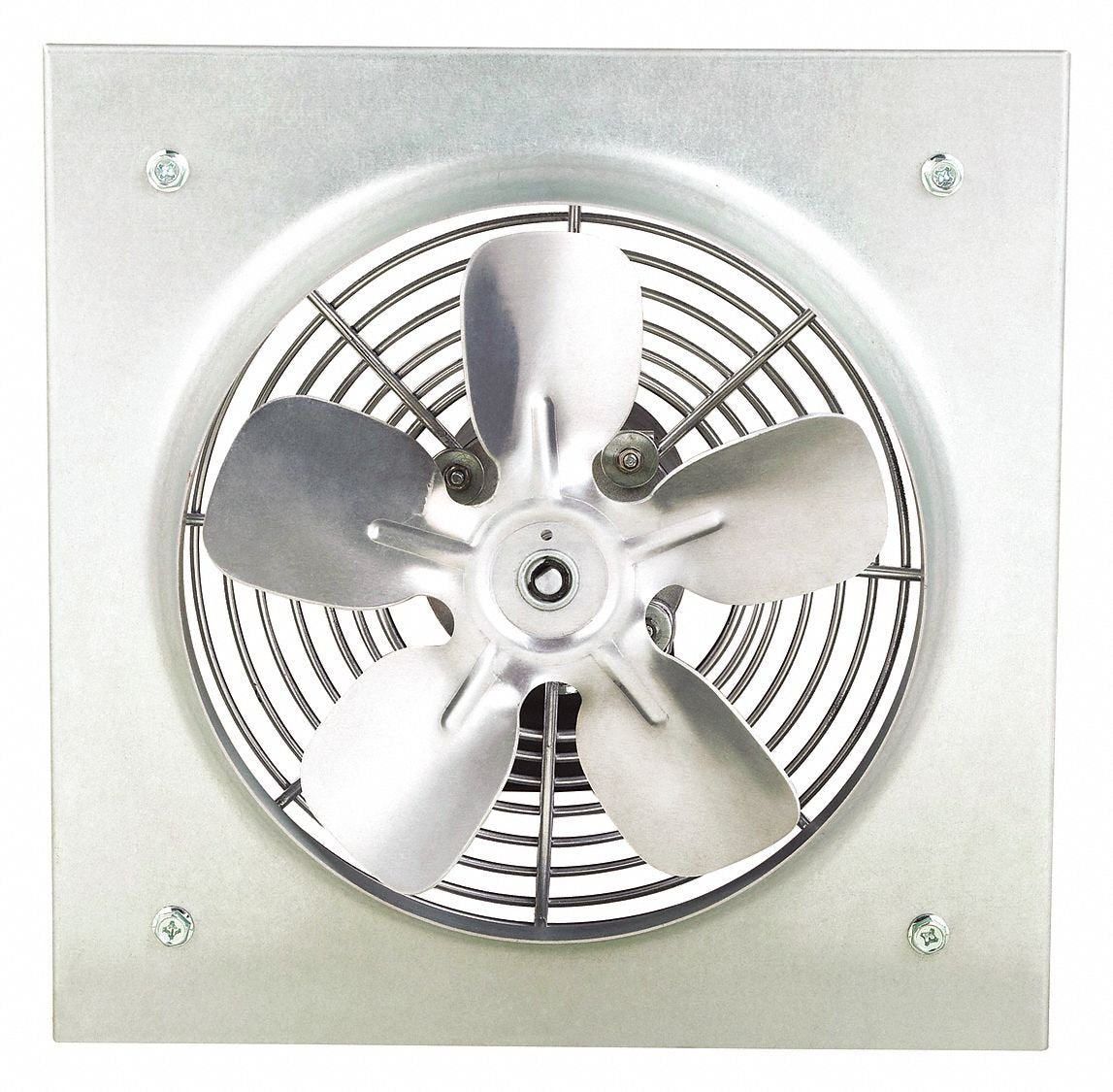

Dayton 14" x 14" 115VACV Medium Duty Direct Drive Exhaust Fan with 10" Blade Dia.

Key features

• Item: Exhaust Fan
• Type: Medium Duty Direct Drive
• Blade Dia.: 10"
• CFM @ 0.000-In. SP: 752
• CFM @ 0.125-In. SP: 641

Item: Exhaust Fan Type: Medium Duty Direct Drive Blade Dia.: 10" CFM @ 0.000-In. SP: 752 CFM @ 0.125-In. SP: 641 CFM @ 0.250-In. SP: 431 CFM @ 0.375-In. SP: 297 Sones @ 0.000-In. SP @ 5 Ft.: 9.4 Sones @ 0.125-In. SP @ 5 Ft.: 8.1 Fan Voltage: 115VAC Exhaust/Supply Fan Item: Exhaust Fan Hz: 60 Phase: 1 Full Load Amps: 0.6 Exhaust/Supply Fan Motor HP: 1/30 Motor Enclosure: Totally Enclosed Air Over Motor Insulation: Class B Bearing Type: Ball Motor RPM: 1669 Watts: 25 Max. Ambient Temp. (F): 104 Height (In.): 14 Width (In.): 14 Max. Depth (In.): 7-5/8 Outside Dia. (In.): 14 Inside Dia. (In.): 10-1/4 Flange Width (In.): 1 Venturi Depth (In.): 2 Venturi Clearance Dia. (In.): 10-3/8 Mounting Position: Vertical Frame Material: Galvanized Frame Finish: Galvanized Guard Material: Steel Wire Guard Finish: Zinc Plated Propeller Material: Aluminum Number of Blades: 5 Agency Compliance: UL and cUL Listed, AMCA Speed Control: 48C172 Aluminum Wall Shutter No.: 4C555 Fiberglass Wall Shutter No.: 5C210 Galvanized Wall Shutter No.: 2C526 Dimension A (In.): 14 Dimension B (In.): 5 Dimension C (In.): 2-5/8 Dimension D (In.): 10-1/4 For Use With: General Ventilation Applications
