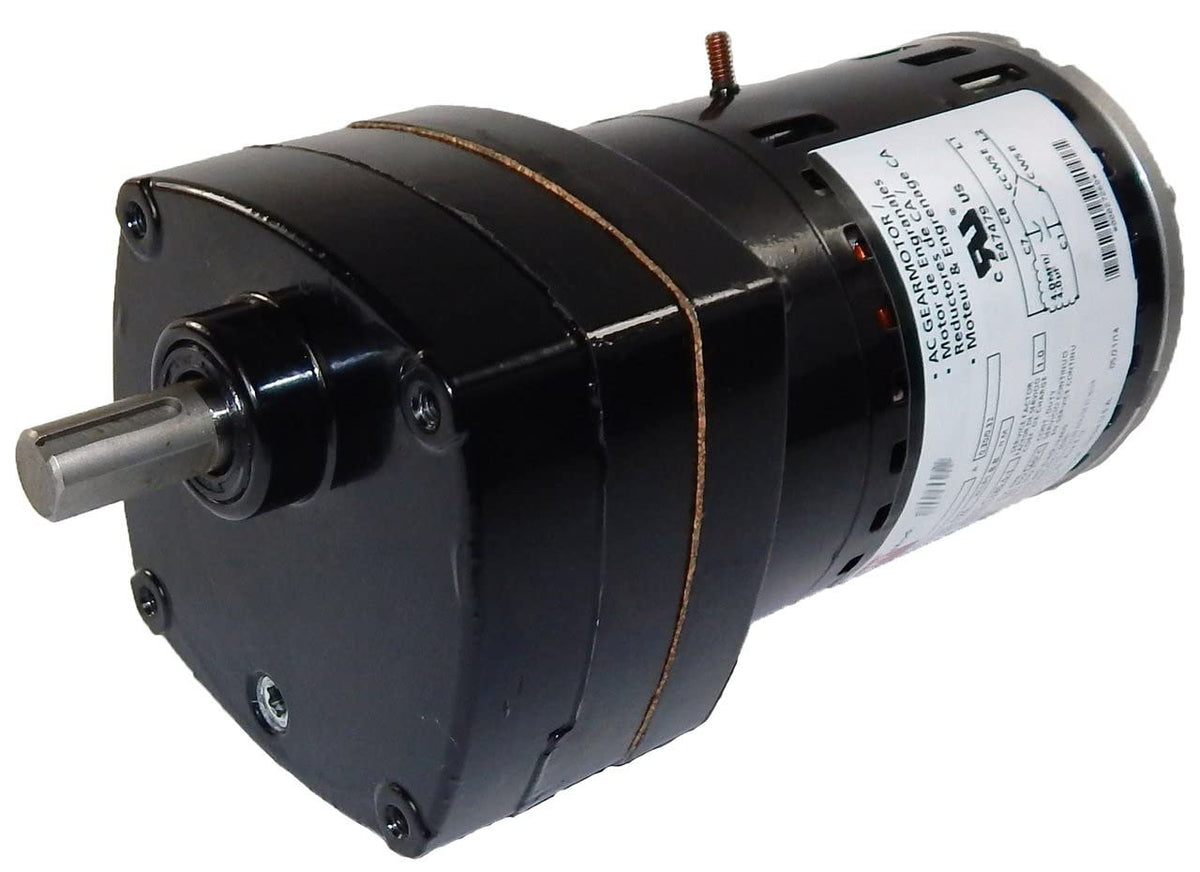

Dayton 1L528 Model Gear Motor

Key features

• 1/20 hp, 154 rpm, 0.60 amps, 230 volts, 50/60Hz
• Run torque 18 inch pounds; tefc
• Rotation = reversible; over hung pounds = 90

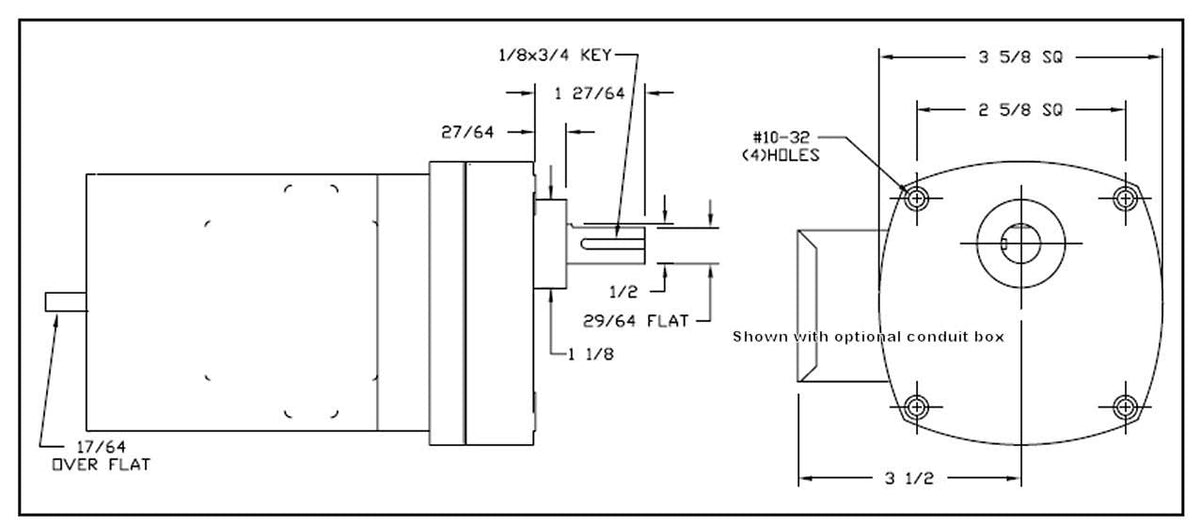

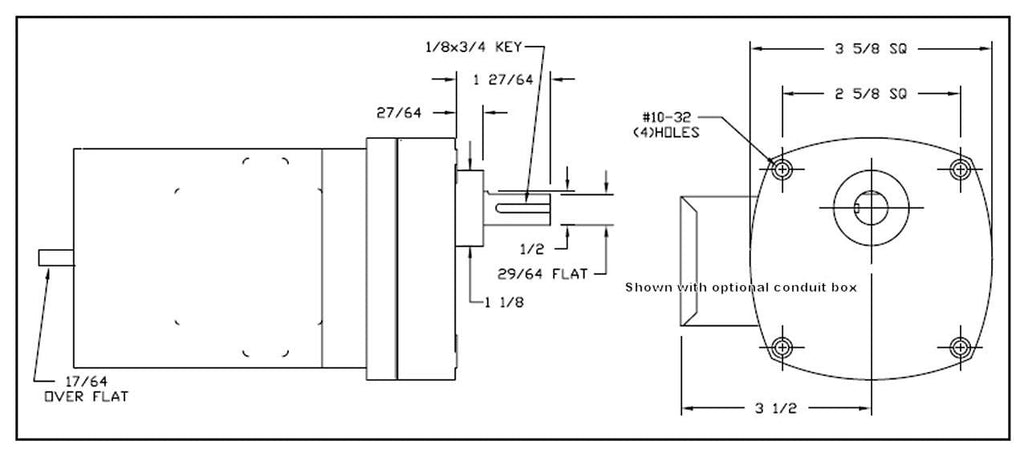

• Shaft: 1/2" x 1"; Optional conduit box # 4JV45 available
• One year manufacture warranty

AC gear motor, voltage 230VAC, phase 1, Hz 50/60, shaft orientation parallel, Nameplate RPM 154, max. Torque 18 in.-Lb., overhung load 90 lb., input HP 1/20, gear ratio 10: 1, full load Amps 0.3, enclosure TENV, thermal protection none, max. Ambient Temp. 40 Degrees C, rotation reversible, mounting all position, motor Type permanent split capacitor, capacitor required included, Length less shaft 8", brake adaptable to 5X400, bearings heavy duty needle on case, ball on motor, lubrication permanent heavy duty gear oil, gears 1st stage steel, helical, subsequent stages steel or heat treated powdered metal spur, gear material steel or heat treated powdered metal, gear Type helical first stage/spur, seals spring loaded lip Type on input and output shaft, RPM range 151 to 200.
