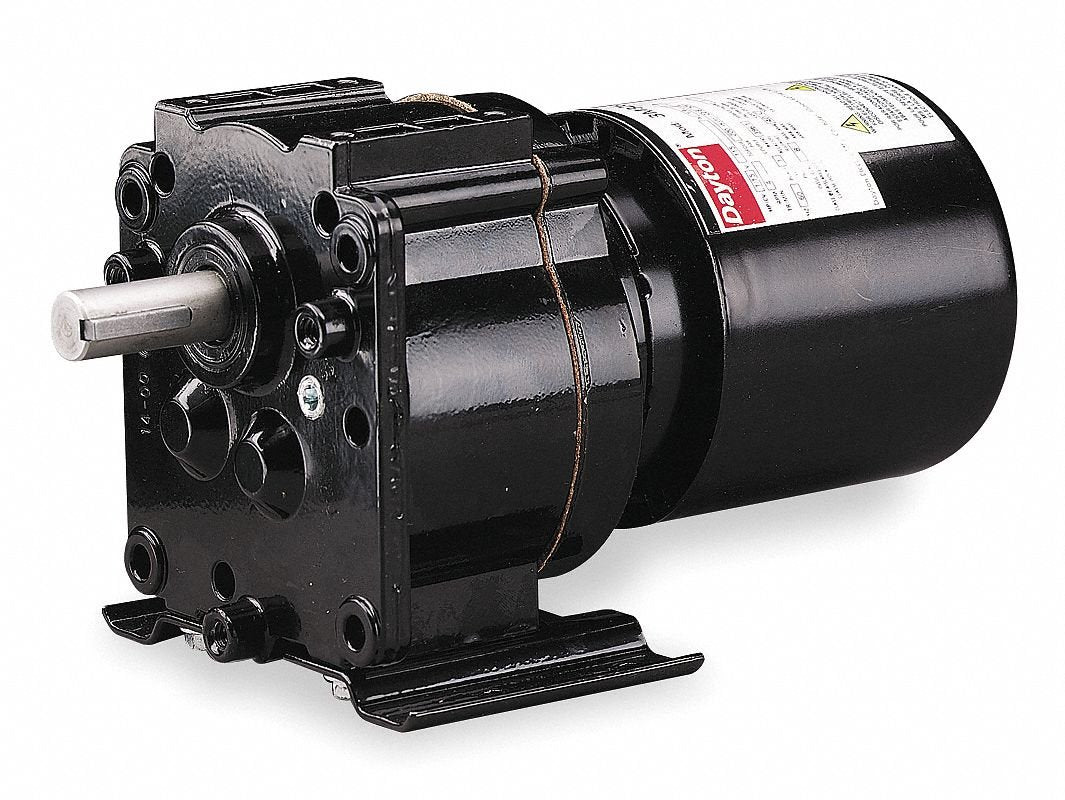

Dayton 3M327 AC Gearmotor, 6.1 RPM, TEFC, 115V, Degrees_Fahrenheit, to Volts, Amps, (

Key features

• 1/40 hp, 6.1 rpm, 1.5 amps, 115 volts, 60Hz
• Run torque 200 inch pounds
• Rotation - cw facing shaft; tefc
• Over hung pounds = 175; shaft: 5/8" x 1 1/2"
• One year manufacture warranty

SHAFT orientation: parallel Nameplate RPM: 6.1 full load torque: (in.-Lbs.) 200 voltage rating: 115 VAC phase: 1 overhung load (lb.): 175 input HP: 1/40 gear ratio: 265: 1 full load Amps: 1.40 enclosure: TEFC thermal protection: none ambient: (C) 40 Hz: 60 rotation: CW mounting: all position motor Type: shaded pole Length less shaft (in.): 8 3/8 shaft dimensions (in.): 5/8 x 1 1/2 brake: 5X400 number of brake discs required: 1 bearings: heavy duty needle roller and thrust balls on case, ball on motor lubrication: permanent heavy duty gear oil gear case: die cast aluminum gears: hardened steel, 1st stage helical, subsequent stages spur, AGMA Class 9 seals: lip Type on input and output shaft
