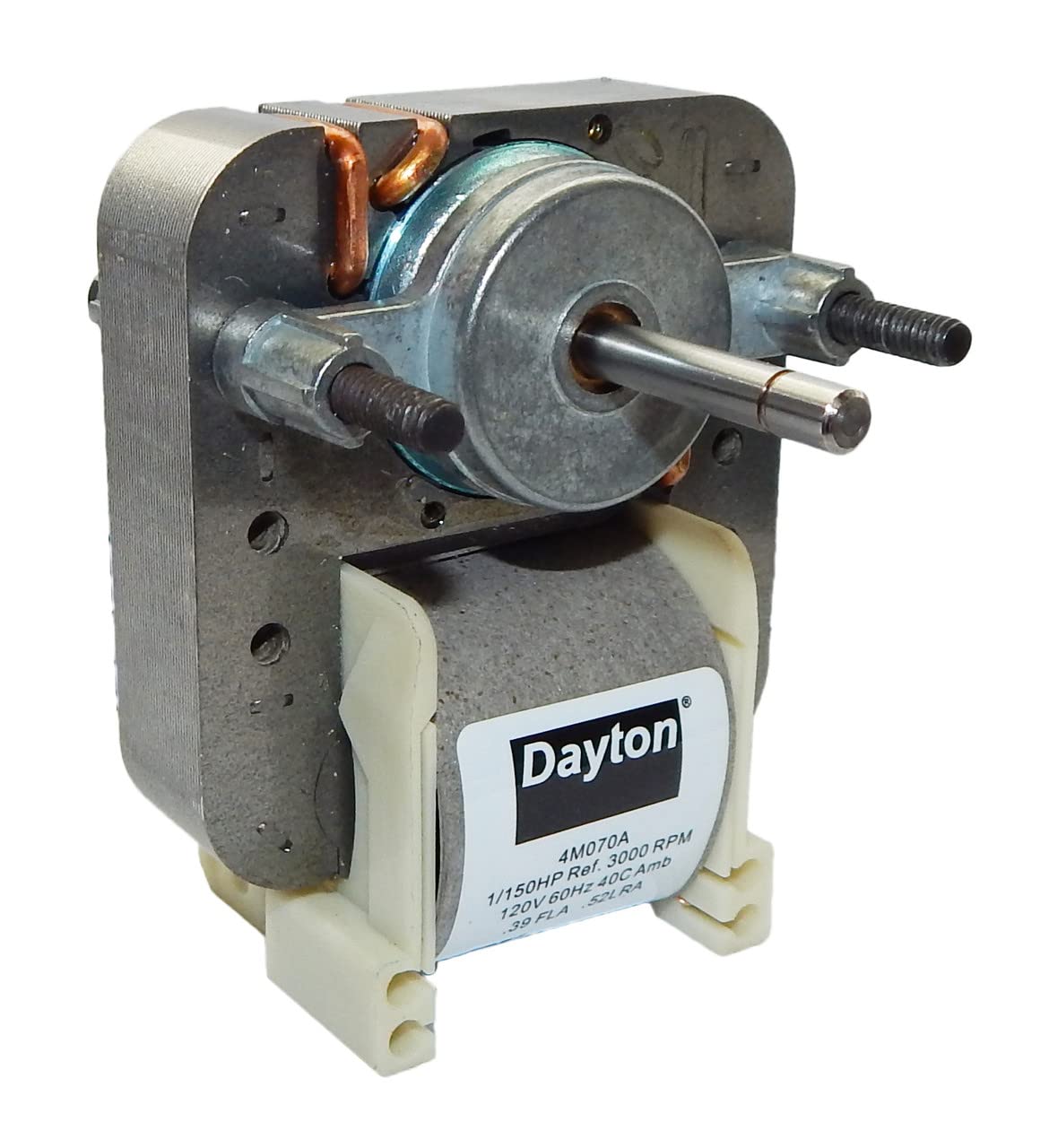

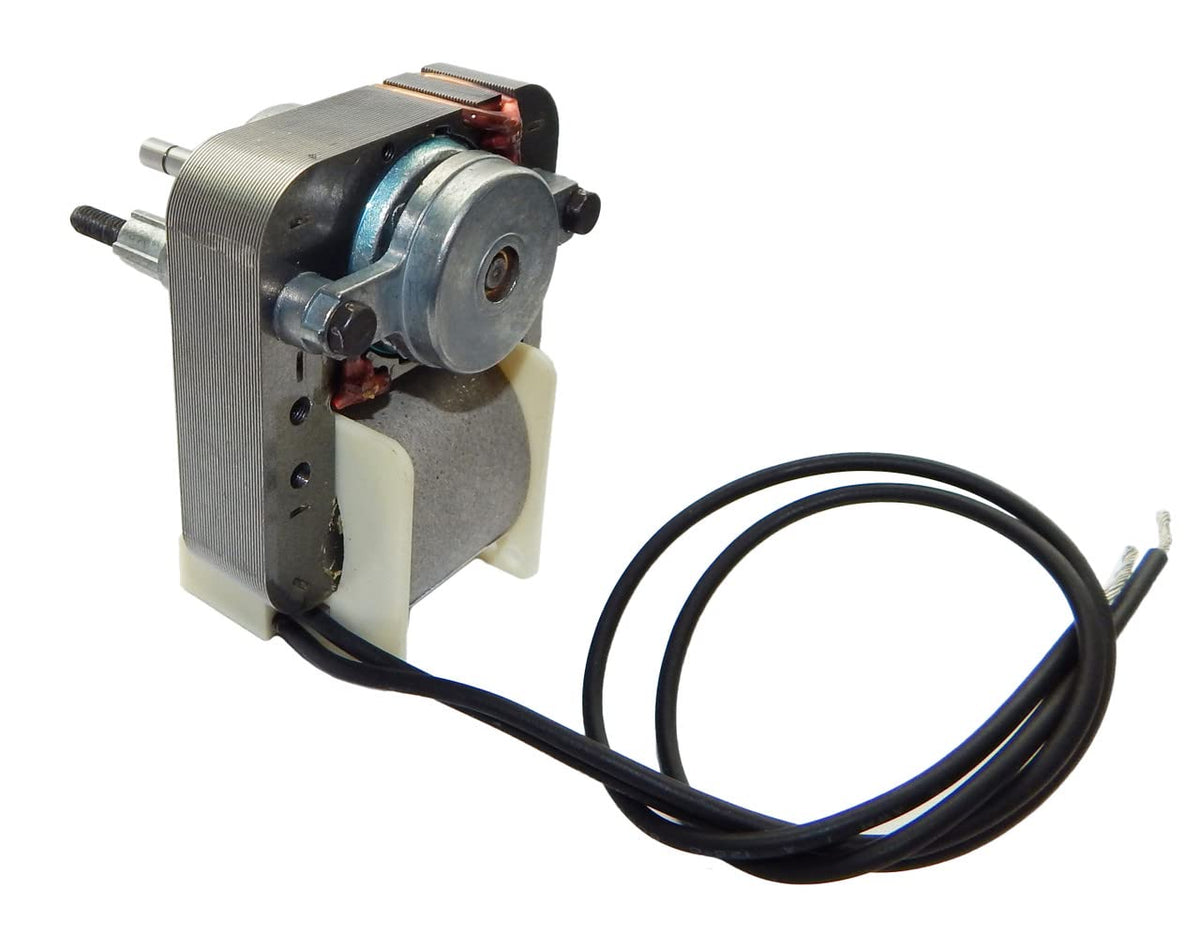

Dayton 4M070 C-Frame Motor, Shaded Pole, 1" Length, Sleeve

Key features

• 1/150 hp, 3000 rpm, 0.54 amps 115 volts 60Hz
• Mounting: 2 studs 1 7/8 inch
• Shaft = 3/16"x 1, stack size = 5/8"; rotation = cw
• Continuous duty - class b insulation
• 1 year manufacture warranty

C-Frame Motor, Motor Application HVAC/R, Motor Sub Application Direct Dr Fan/Blower, Motor Type Shaded Pole, Enclosure Open Air-Over, HP 1/150, Number of Speeds 1, Nameplate RPM 3000, Voltage 115, Frequency 60 Hz, Phase 1, Full Load Amps 0.54, Mounting Stud/Hole, Thermal Protection Impedance, Insulation Class B, Service Factor 1.0, Bearings Sleeve, Ambient Temperature 40 Degrees C, Rotation CWSE, Length Less Shaft 1-11/16", Shaft Dia. 3/16", Shaft Length 1", Stack Size 5/8", Stud Quantity 2, Stud Size #8-32, Stud Location Shaft End, Mounting Holes Each Side of Stator, O.C. Mounting 1-7/8", RPM Range 1801-3000, Standards UL Recognized (E37403/E40077/E47479), CSA Certified (701887).
