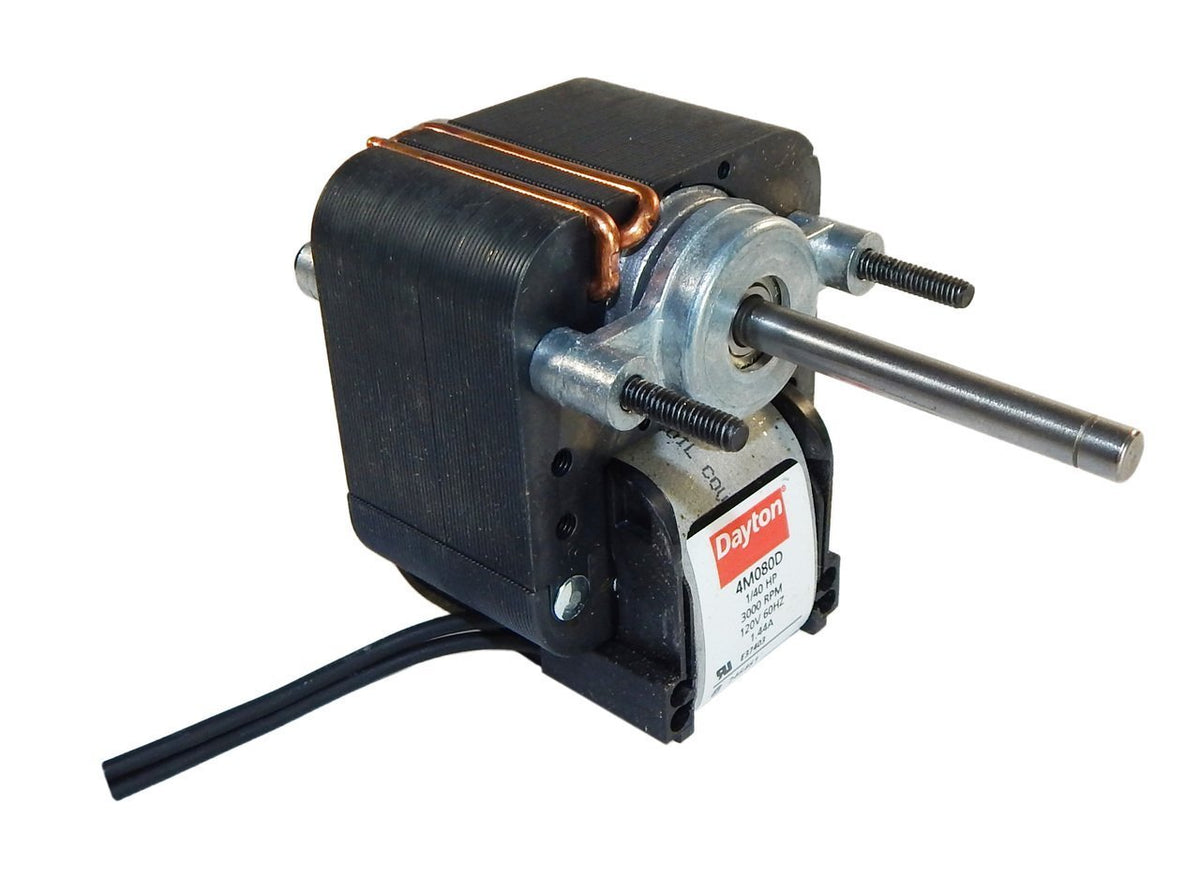

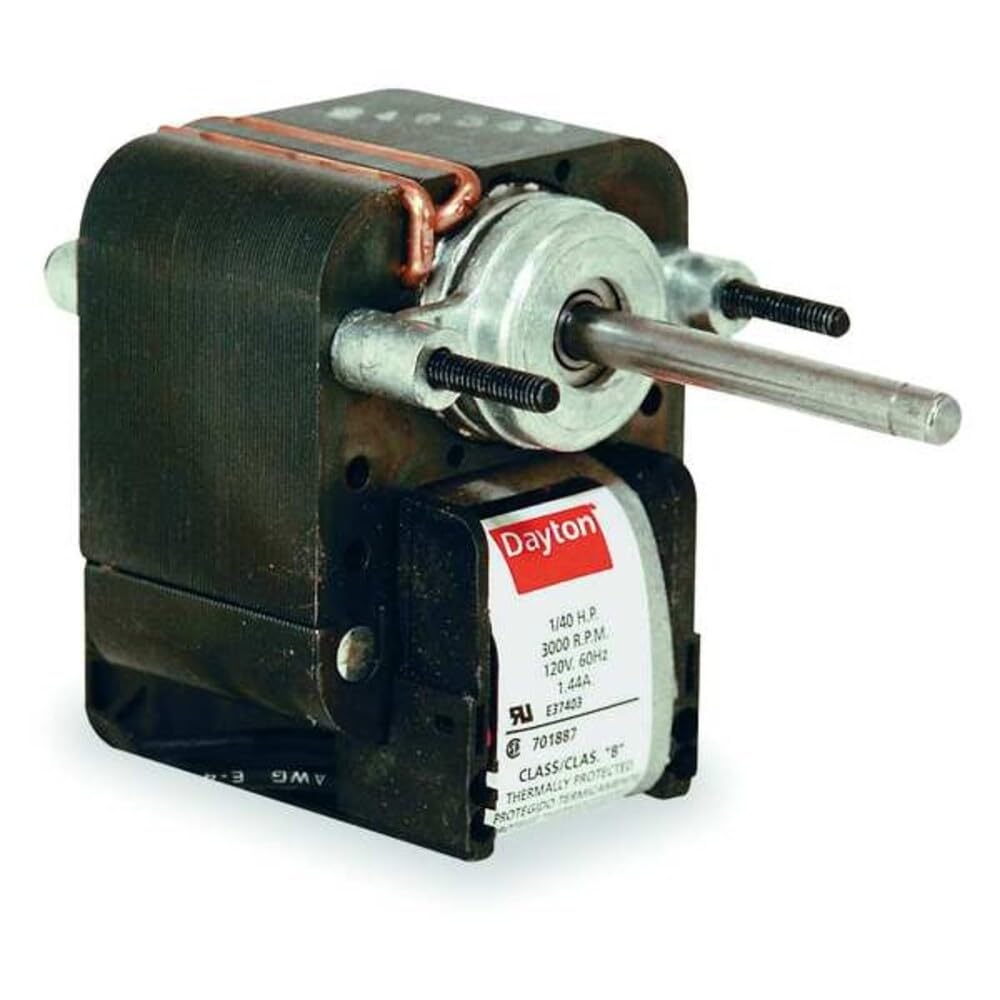

Dayton 4M080 C-Frame Motor, Ball, Shaded Pole, 2" Length

Key features

• 1/40 hp, 3000 rpm, 1.44 amps 115 volts 60Hz
• Mounting: 2 studs 1 7/8 inch
• Shaft = 1/4 x 2, stack size = 1 1/2 inch
• Continuous duty - class b insulation
• 1 year manufacture warranty

C-Frame Motor, Motor Application HVAC/R, Motor Sub Application Direct Dr Fan/Blower, Motor Type Shaded Pole, Enclosure Open Air-Over, HP 1/40, Number of Speeds 1, Nameplate RPM 3000, Voltage 115, Frequency 60 Hz, Phase 1, Full Load Amps 1.44, Mounting Stud/Hole, Thermal Protection Auto, Insulation Class B, Service Factor 1.0, Bearings Ball, Ambient Temperature 40 Degrees C, Rotation CWSE, Length Less Shaft 2-1/2", Shaft Dia. 1/4", Shaft Length 2", Stack Size 1-1/2", Stud Quantity 2, Stud Size #8-32, Stud Location Shaft End, Mounting Holes Opposite Shaft End, O.C. Mounting 1-7/8", RPM Range 1801-3000, Standards UL Recognized (E37403/E40077/E47479), CSA Certified (701887).
