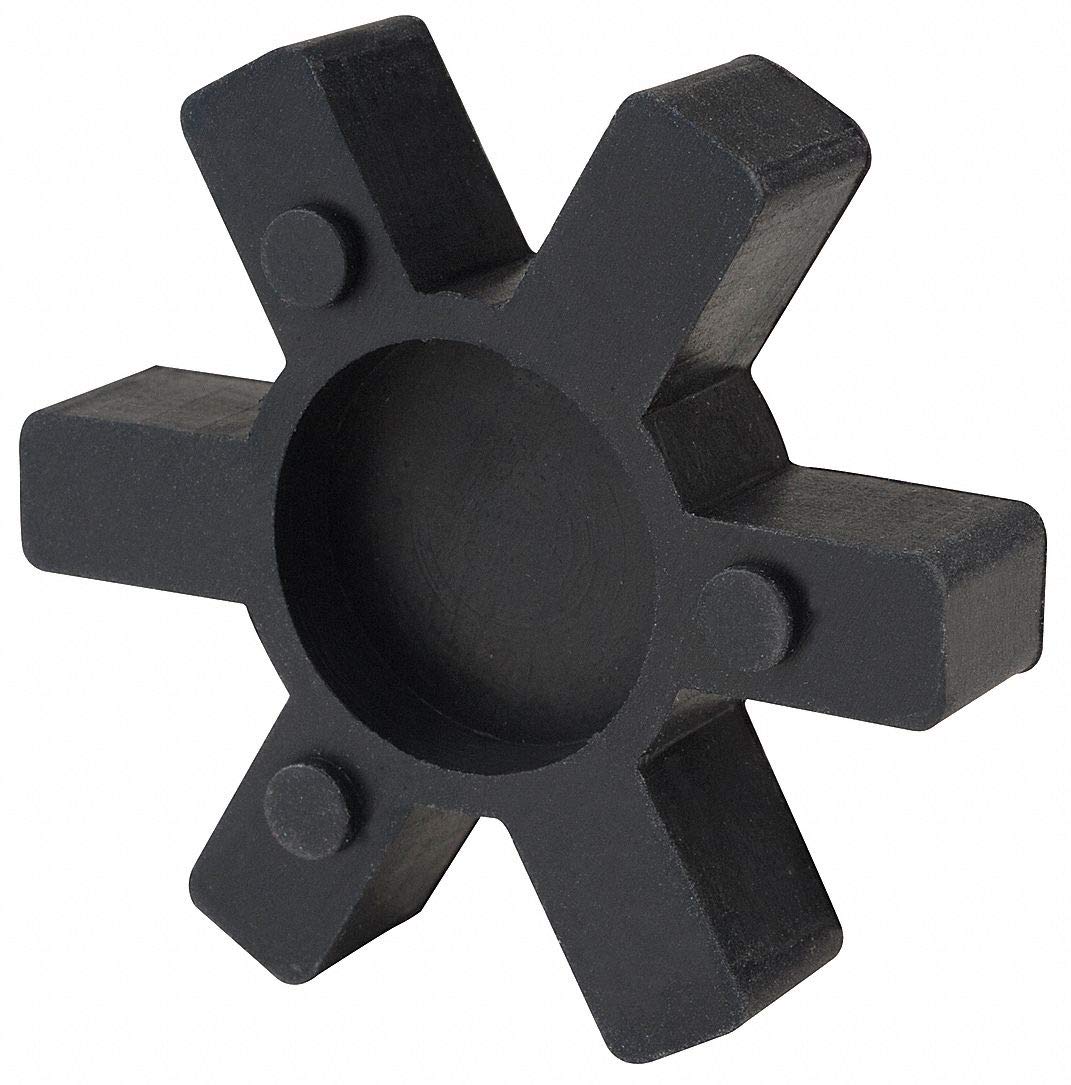

Dayton Jaw Coupling Insert, L099/L100, Buna N

Key features

• Item - Jaw Coupling Spiders: Jaw Coupling Insert
• Size - Jaw Couplings: L099/L100
• Material - Spiders: Buna N
• Rated Torque: 415 in.-lb.
• Max. RPM: 7000

Oil- and high temperature-resistant insert conforms to the sintered alloy couplings to help them maintain position and structure for equal power transfer.Specification: Item - Jaw Coupling Spiders: Jaw Coupling InsertItem - Jaw Coupling Spiders: Jaw Coupling InsertSize - Jaw Couplings: L099/L100Size - Jaw Couplings: L099/L100Material - Spiders: Buna NMaterial - Spiders: Buna NRated Torque: 415 in.-lb.Rated Torque: 415 in.-lb.Max. RPM: 7000Max. RPM: 7000HP Rating @ 100 RPM: 0.49/0.65HP Rating @ 100 RPM: 0.49/0.65Temp. Range: 104 Degrees to 212 Degrees FTemp. Range: 104 Degrees to 212 Degrees FHP Rating @ 1200 RPM: 5.99/7.9HP Rating @ 1200 RPM: 5.99/7.9HP Rating @ 1800 RPM: 8.99/11.85HP Rating @ 1800 RPM: 8.99/11.85HP Rating @ 3600 RPM: 17.99/23.7HP Rating @ 3600 RPM: 17.99/23.7Coupling Weight (Lb.): 0.075Coupling Weight (Lb.): 0.075Max. Parallel Misalignment (In.): 0.015Max. Parallel Misalignment (In.): 0.015Max. Angular Misalignment: 1 DegreesMax. Angular Misalignment: 1 DegreesShaft Dia. Range (In.): 7/16 - 1-3/8Shaft Dia. Range (In.): 7/16 - 1-3/8Color: BlackColor: BlackLength (In.): 0.63Length (In.): 0.63Width (In.): 2.52Width (In.): 2.52Height (In.): 2.52Height (In.): 2.52Accom
