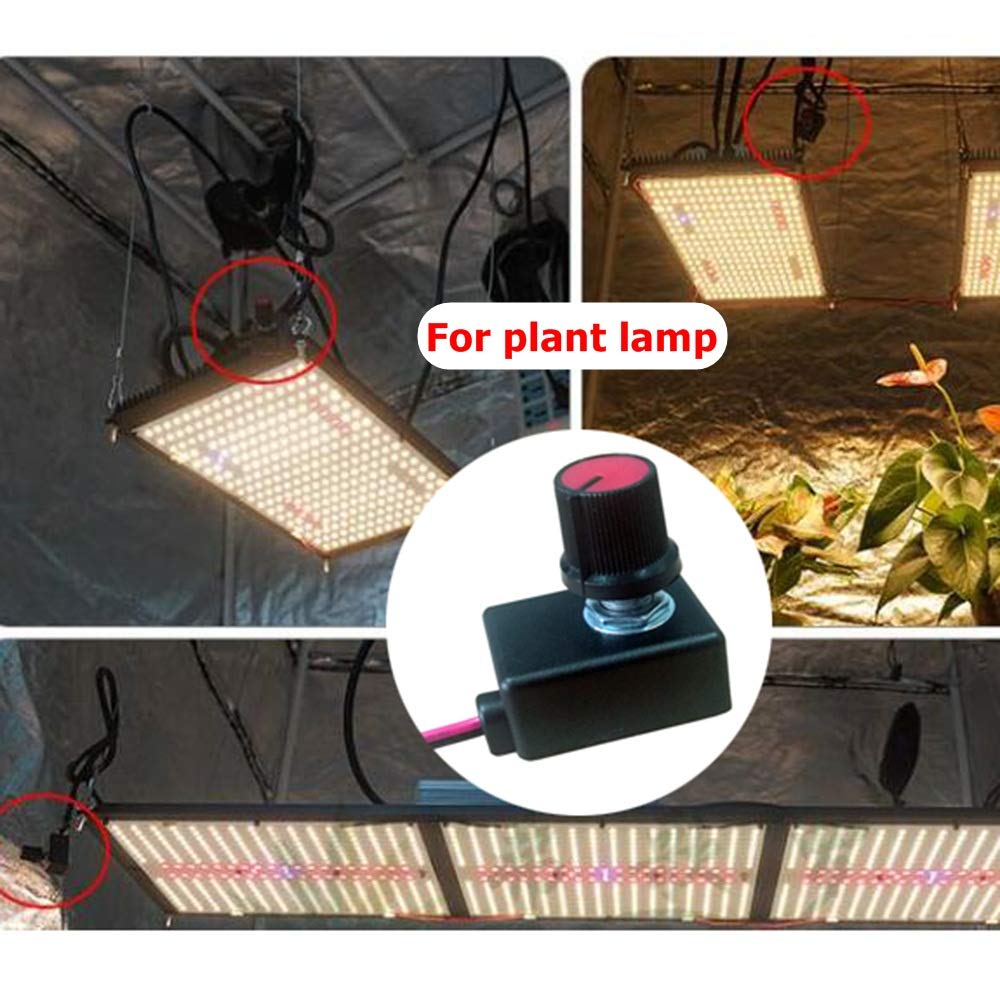

DC 0/1-10V LED Dimmer Knob Controller Rotary Mini Switch PWM Dimming for Dimmable Interior Lighting Spotlight Grow Lamp LED Driver

Key features

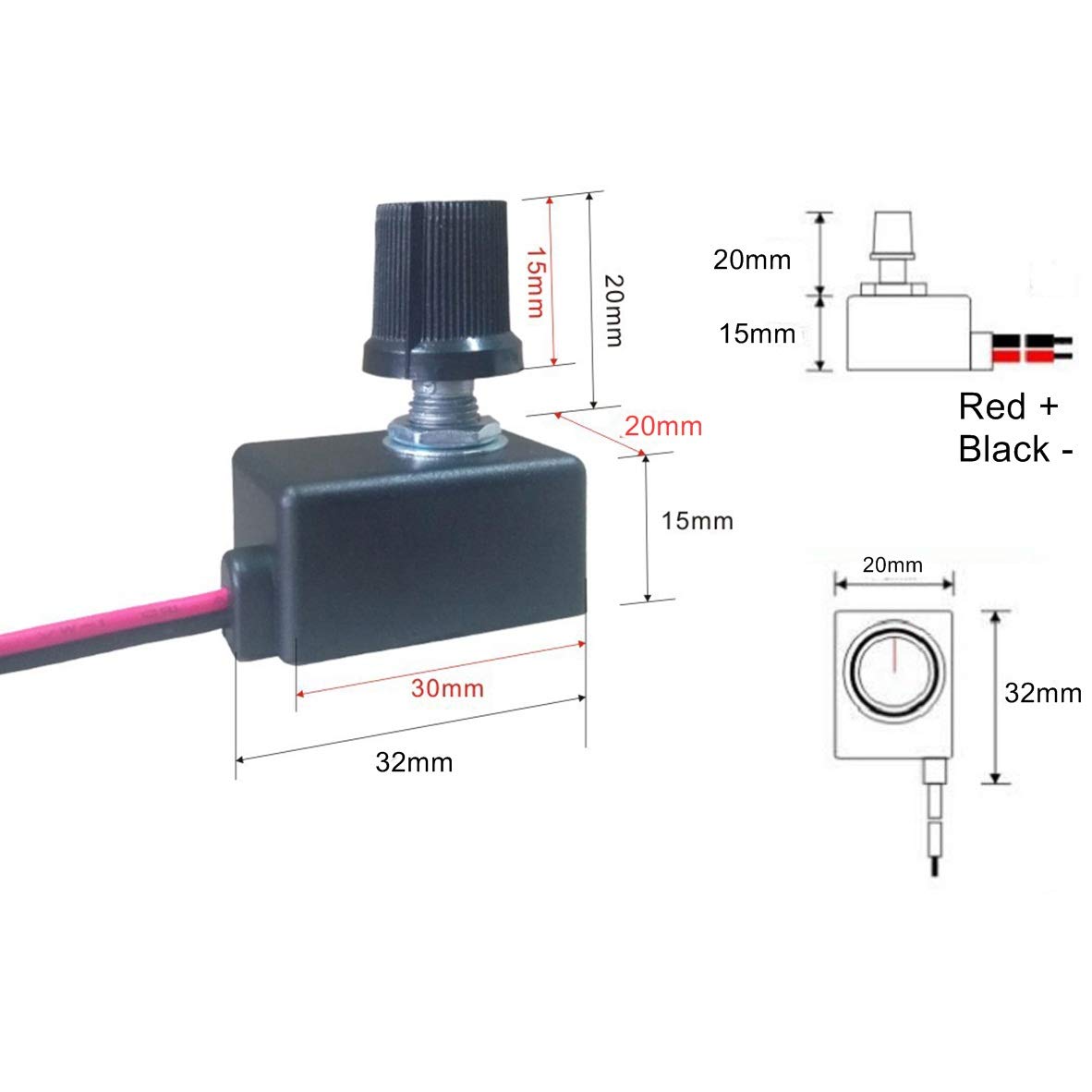

• The dimmer is small and easy to install,Switch Size: 32*20*35（mm）,Mounting Hole Diameter : φ7mm.
• The connected power 0/1-10V interface must have a voltage of 10V for dimming;Adjustment range: 1-100% ;The max load connected to the drive is 10V/40mA;Minimum output connect cable size is 1007#20AWG;Maximum output cable length :50M
• Designed for 0-10V regulating and compatible all 0/1-10V interface dimmable electronic LED Driver & ballasts & transformers and power dimmers .
• Place the driver away from direct heat sources and in well-aired spaces .If the driver is built-in ,sufficient ventilation must be ensured.

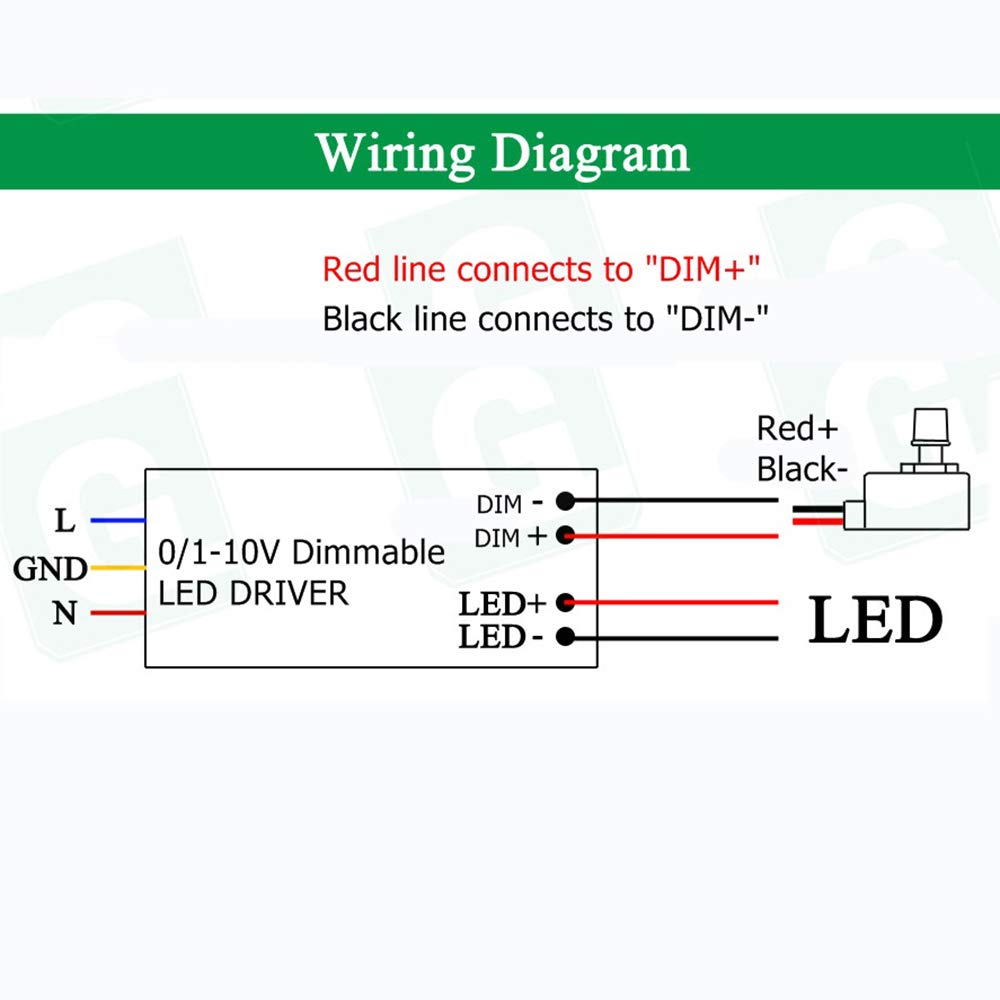

• When connecting the electronis LED Driver & ballasts & transformers and power dimmers ,careful attention should be paid to connecting "+" and "-" as the picture of Wiring Diagram .(Red line connects to "DIM+" ,Black line connects to "DIM-" )

Package include 1 piece of switch Specification : Input Voltage(Max.):10V DC Input Voltage(Min.):0.5V DC Output Control Current(Max.): 40mA Working Temperature:-10℃-40℃ ambient operating at full load Working humidity: 20%-90% RH non-condensing Storage temperature, humidity: -20℃-80℃, 10%-90% RH Dimension: 32*20*35.5mm

Free shipping included. 30-day hassle-free returns.
