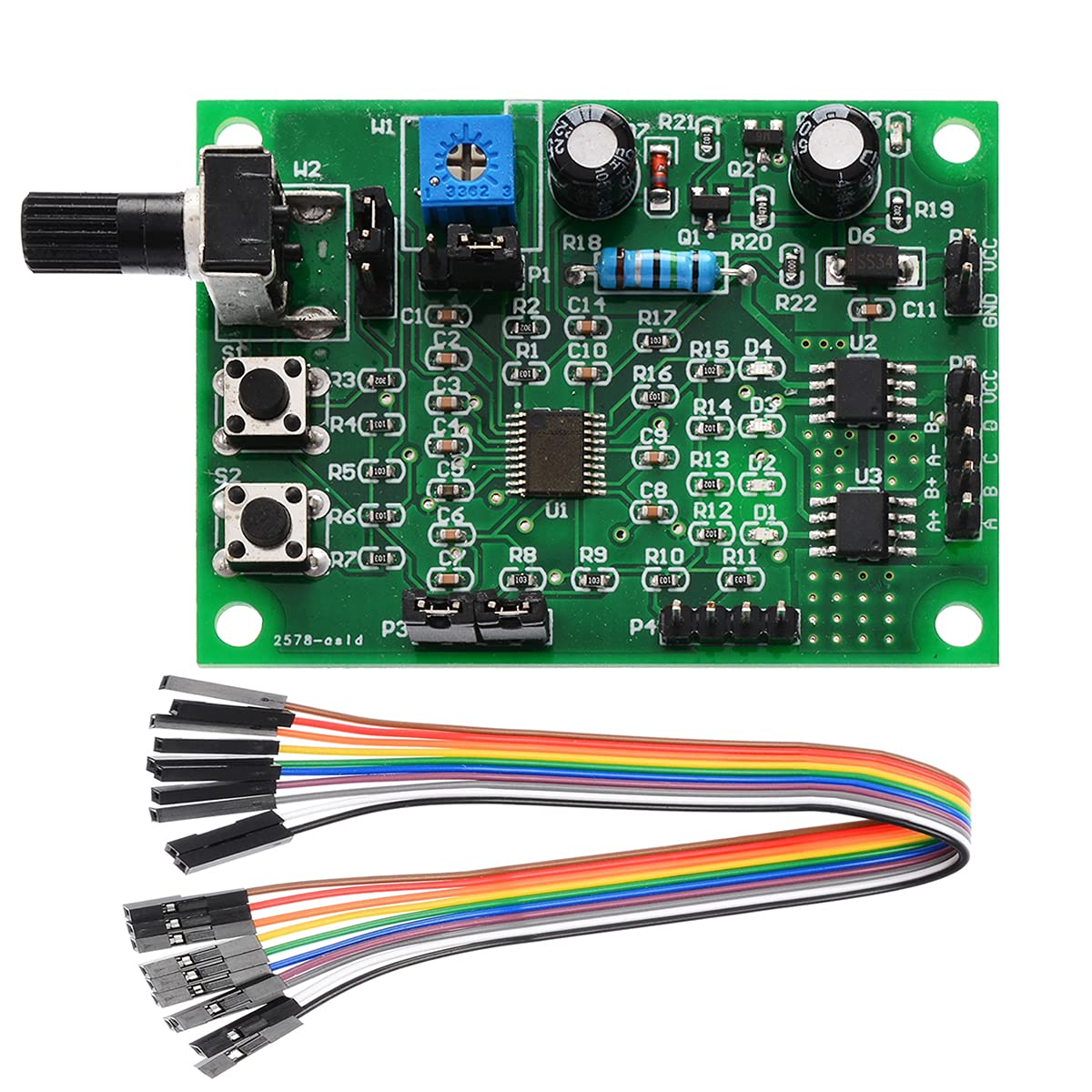

DC 4V-6V 5V 2-Phase 4-Wire Stepper Motor Driver Controller Board

DC 4V-6V 5V 2-Phase 4-Wire Stepper Motor Driver Controller Board

Key features

• Multifunction: This driver board has 4 working modes: Normal Mode 1 / Normal Mode 2 /Jog Mode / Automatic Round-trip Mode.(For details, please refer to the description below)

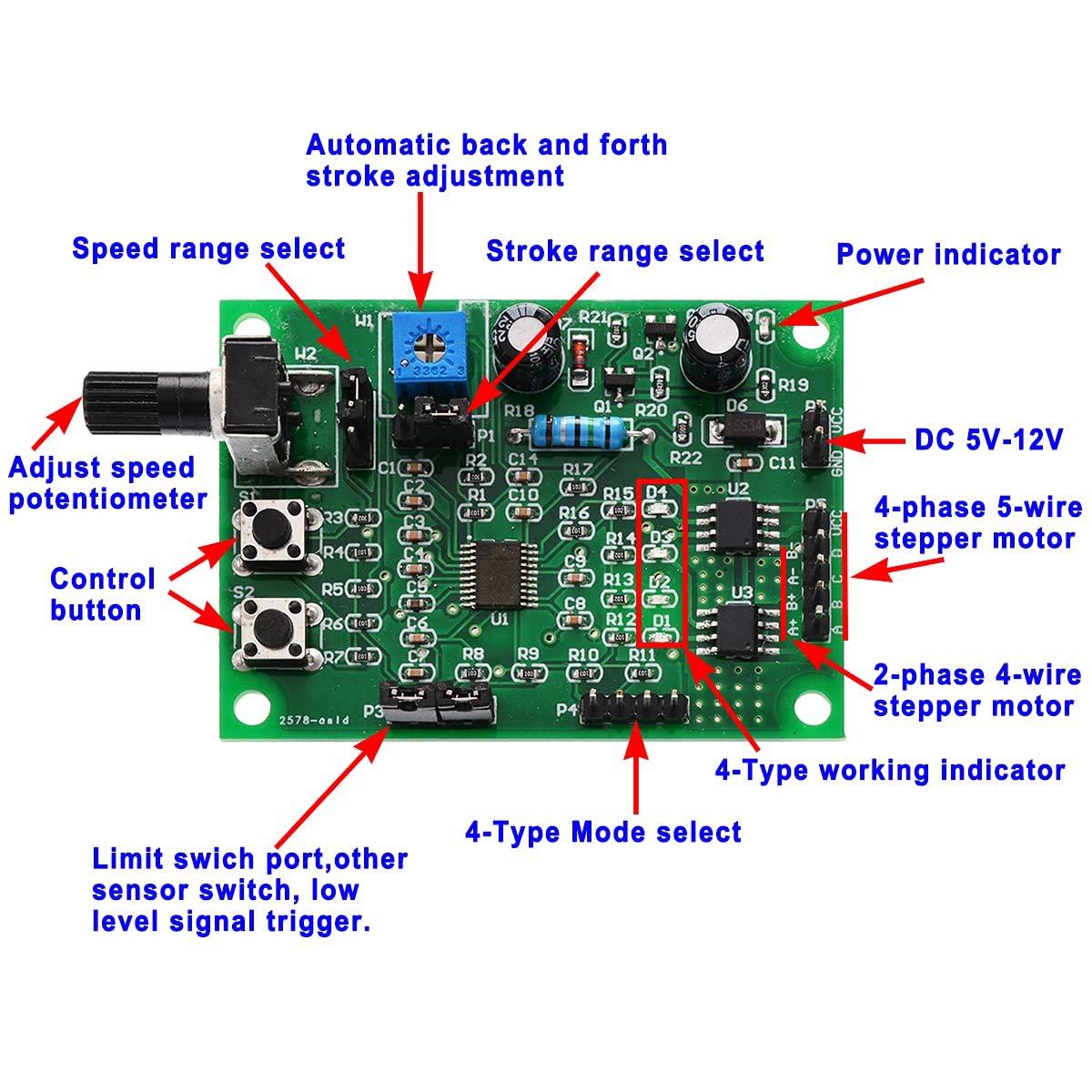

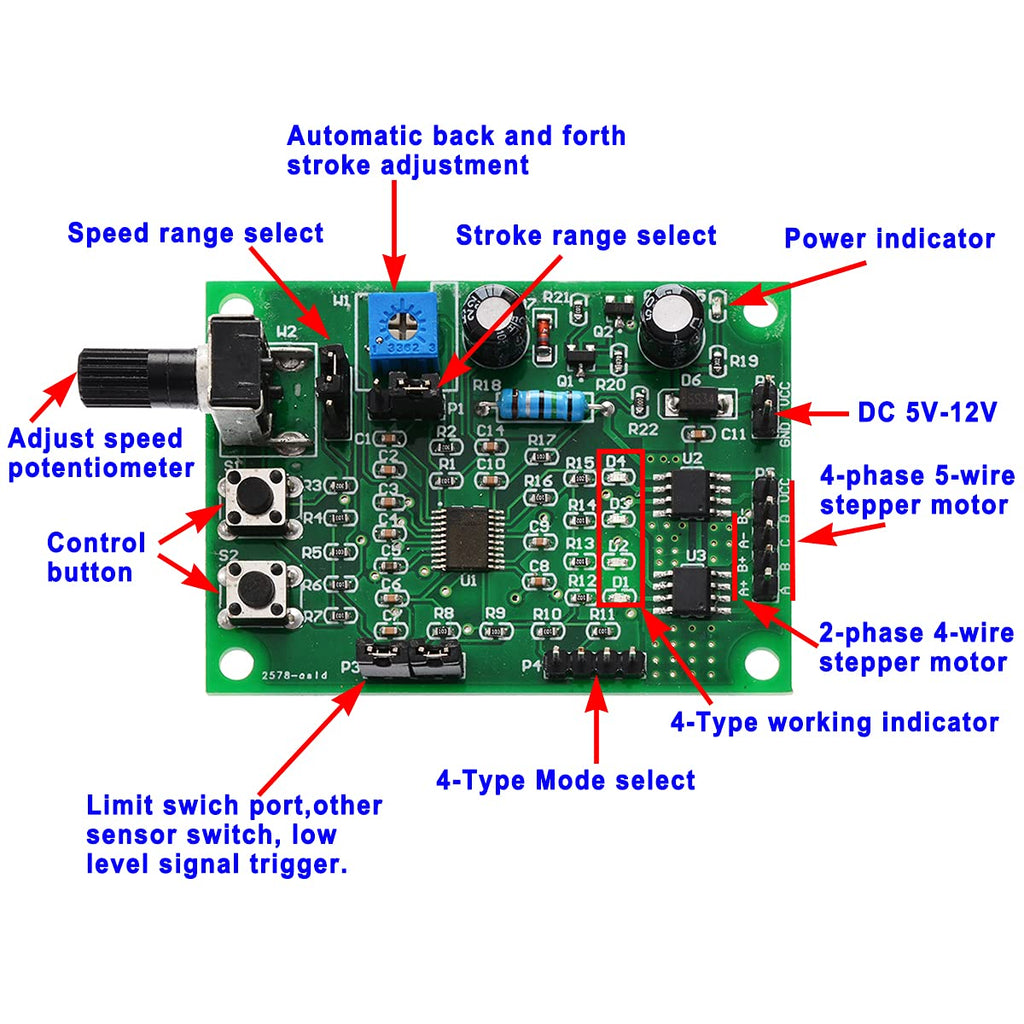

• Driver Specs: Voltage Range: DC 5V-12V; Rated Current: less than 800mA; Board Size: 60x44x16mm/ 2.36x1.73x0.62inch; Button Function: Please refer to the 4th-8th picture remarks
• Fit Motor: 2-phase 4-wire and 4-phase 5-wire stepper motor (can drive 3V-24V stepper motor to rotate, the motor torque is different)
• Built-in Protection: Power Reverse Connection Protection, Over-current Protection, Overheat Protection. Fine workmanship and good performance. Long service life
• Usage Note: (1)If you want to change any function pins of P1, P2, P4, you need to cut off the on-board power supply and re-power on the selected function to take effect. (2) When the load current exceeds 800mA, the circuit is protected, and the running indicator flashes once every 2 seconds. At this time, it is necessary to reduce the working voltage or replace the motor to work normally
