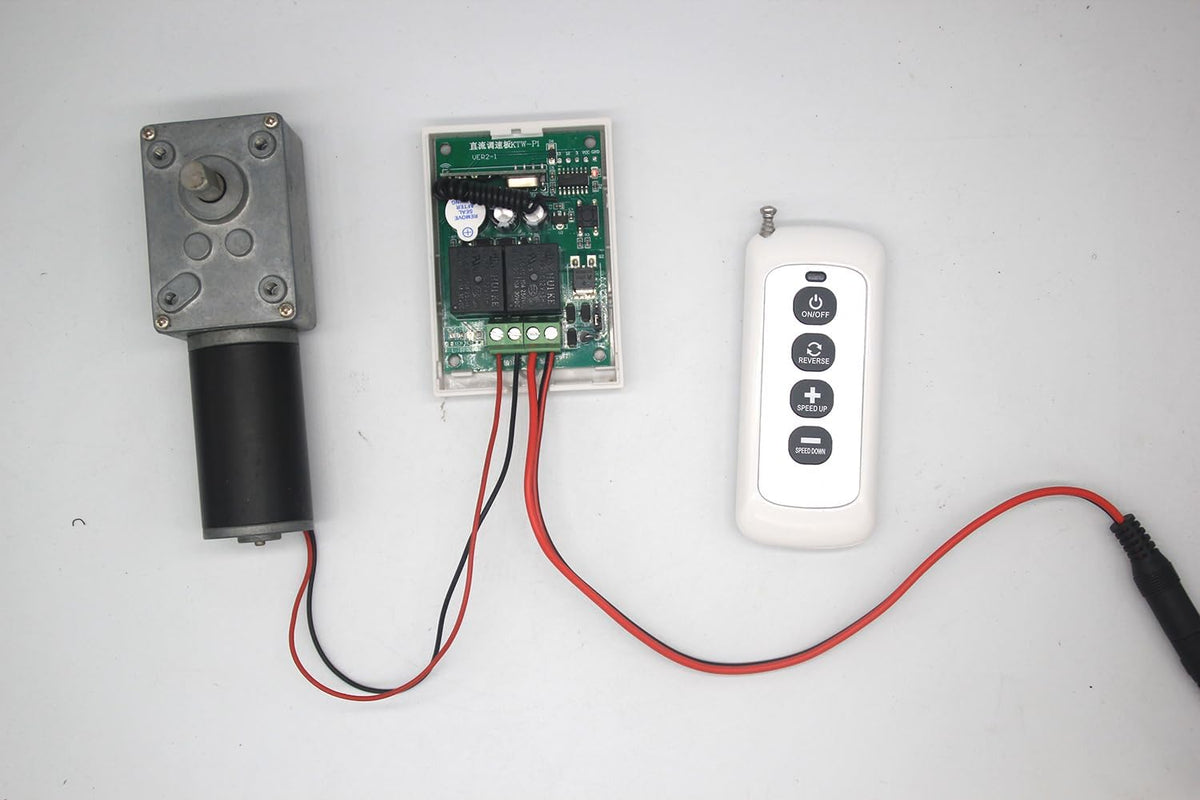

DC Motor Speed Controller with Remote Control 12V 24V PWM stepless Speed Control Switch 10A Wireless Speed Controller Linear Actuator Motor Forward and Reverse Rotation

Key features

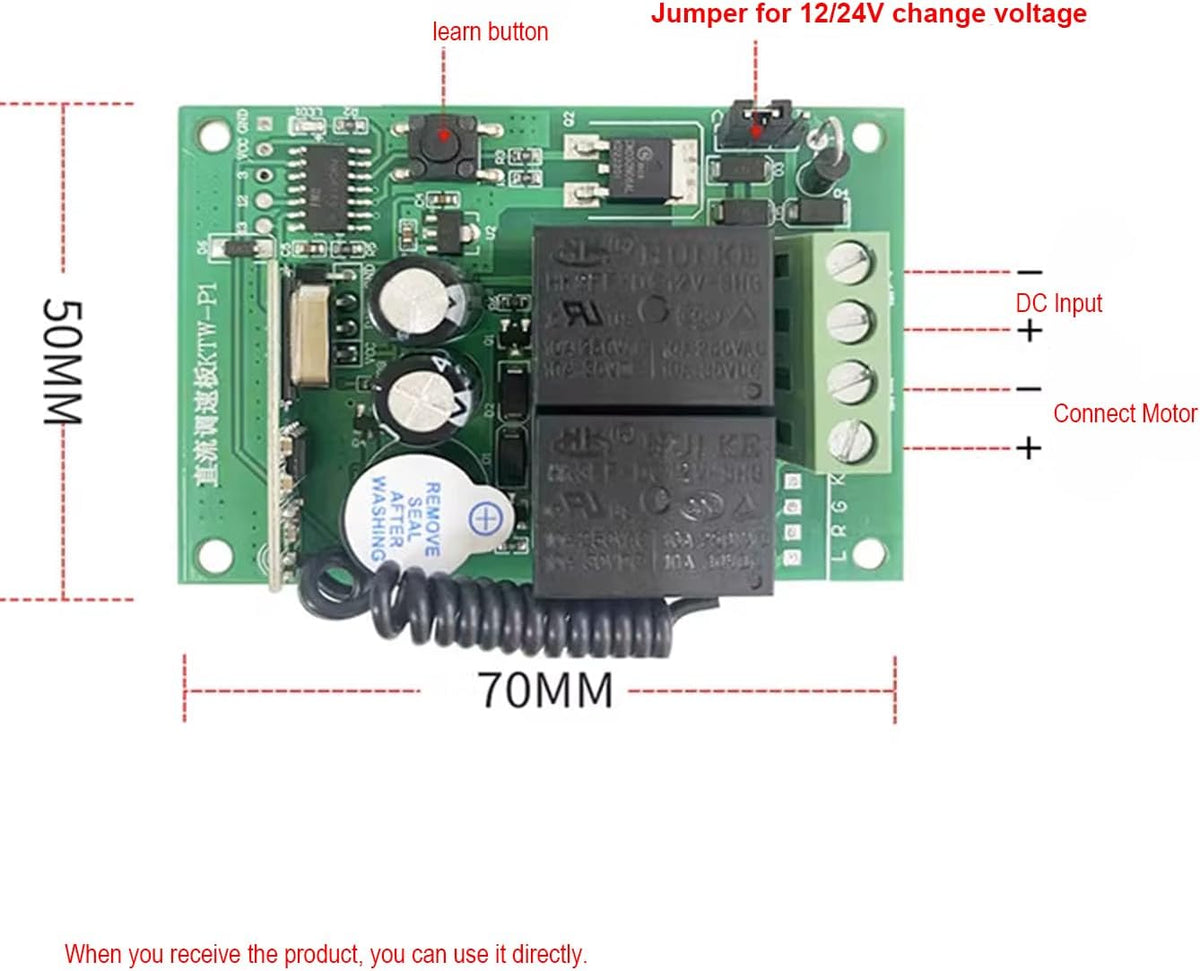

• Voltage: 12V 24V DC; Use for remote control speed and direction of motor,man can use jumper change voltage.
• Range: 50-200m in the open field
• Description about the remote control button: A: ON OFF; B:change direction; C: speed up; D: Speed Down.
• High efficiency, high torque, low heat generation. It possesses powerful function, stable performance and beautiful appearance.
• fifth gear：The product has five speed control gears, the first gear is 20%, the second gear is 40%, the third gear is 60%, the fourth gear is 80%, and the fifth gear is 60% full speed. For example, if your Motor speed is 100 RPM, the first gear speed is 20 RPM, the second gear speed is 40 RPM, and the third gear speed is 60 RPM. Fourth gear is 80 RPM, the fifth gear is 100 RPM.

delivery 1 x receiver 1x remote control with battery Technical data Working voltage: DC 12/24V Silent current: <10mA Maximum current: <10A Frequency: 433 MHz Working temperature: -10~+60°C Reception sensitivity: >110dbm Reception range: The open space is more than 50-200 meters Description about the remote control button A: ON OFF B:Change direction C: Speed Up D: Speed Down note: 12v: It is recommended to use motors within 8A 24V: It is recommended to use motors within 5A

Free shipping included. 30-day hassle-free returns.
