DD31-00013B Dishwasher Spray Arm Motor Compatible with Samsung Models

Fits models: DW60M9990AP, DW80H9930MO, DW80H9940US, DW80H9950US, DW80H9970US, DW80J7550UG, DW80J7550UW, DW80M9550UG, DW80M9960US, DW80R9950UG, DW80R9950US. Check your model number before ordering.

Key features

• DD31-00013B dishwasher waterwall spray arm motor replaces the SRM-36HR geared unit. This part drives the belt mechanism that moves the spray arm forward and backward inside the tub, restoring proper wash coverage. Cannot replace TYD-50.
• Compatible with Samsung DW80R9950UG, DW80R9950US, DW80J7550UW, DW80J7550UG, DW80H9950US, DW80H9970US, DW80M9550UG, DW80M9960US, DW24M999US, DW24T999BB, DW60M9990AP, DW80H9930MO, DW80H9940US and additional models. This dd31-00013b for samsung dishwasher unit matches original mounting points for straightforward integration.

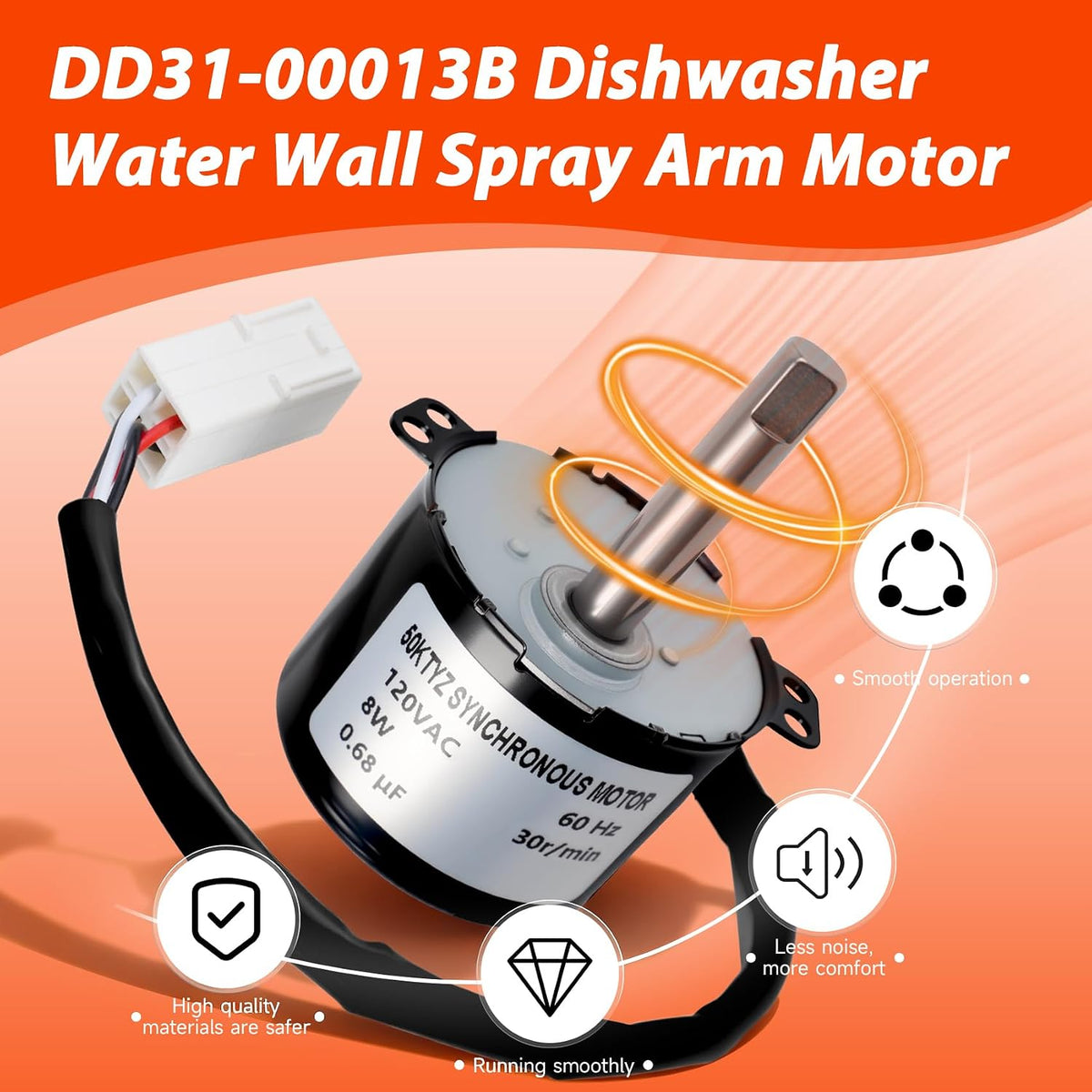

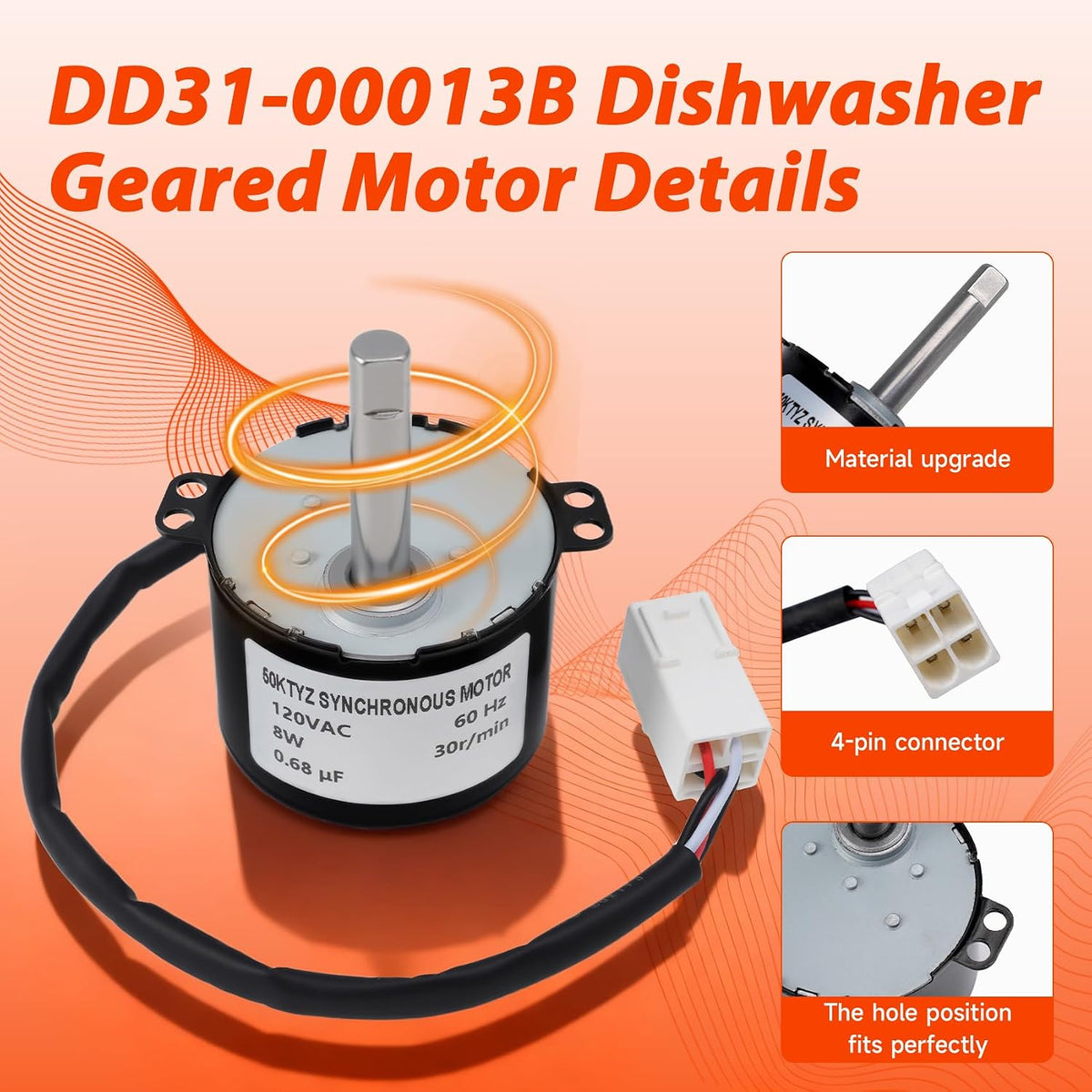

• The dd31-00013b motor features an upgraded metal motorized shaft that offers reliable conductivity for stable and efficient operation. Smoother gear engagement delivers quieter operation, providing extended service life and better resistance to wear.
• Disconnect power and water supply before installation. Remove the spray arm and rotating water pipe inside the tub, detach the dishwasher from its connections, then disconnect the electrical wiring, three water pipes, and lock ring to access the old unit. Replace with the new waterwall motor and reassemble in reverse order. This dishwasher spray arm motor restores full cleaning coverage. Qualified technician installation is recommended.

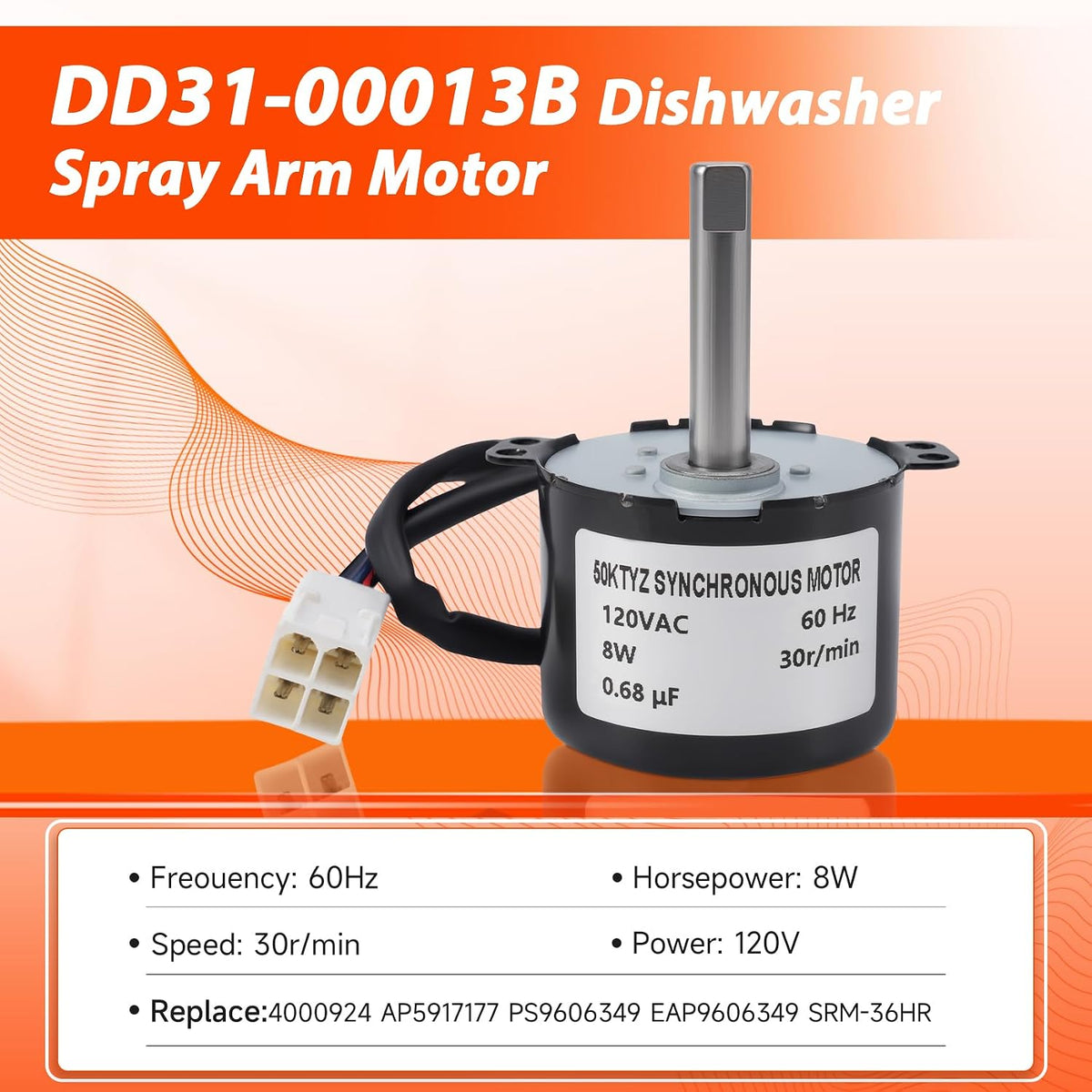

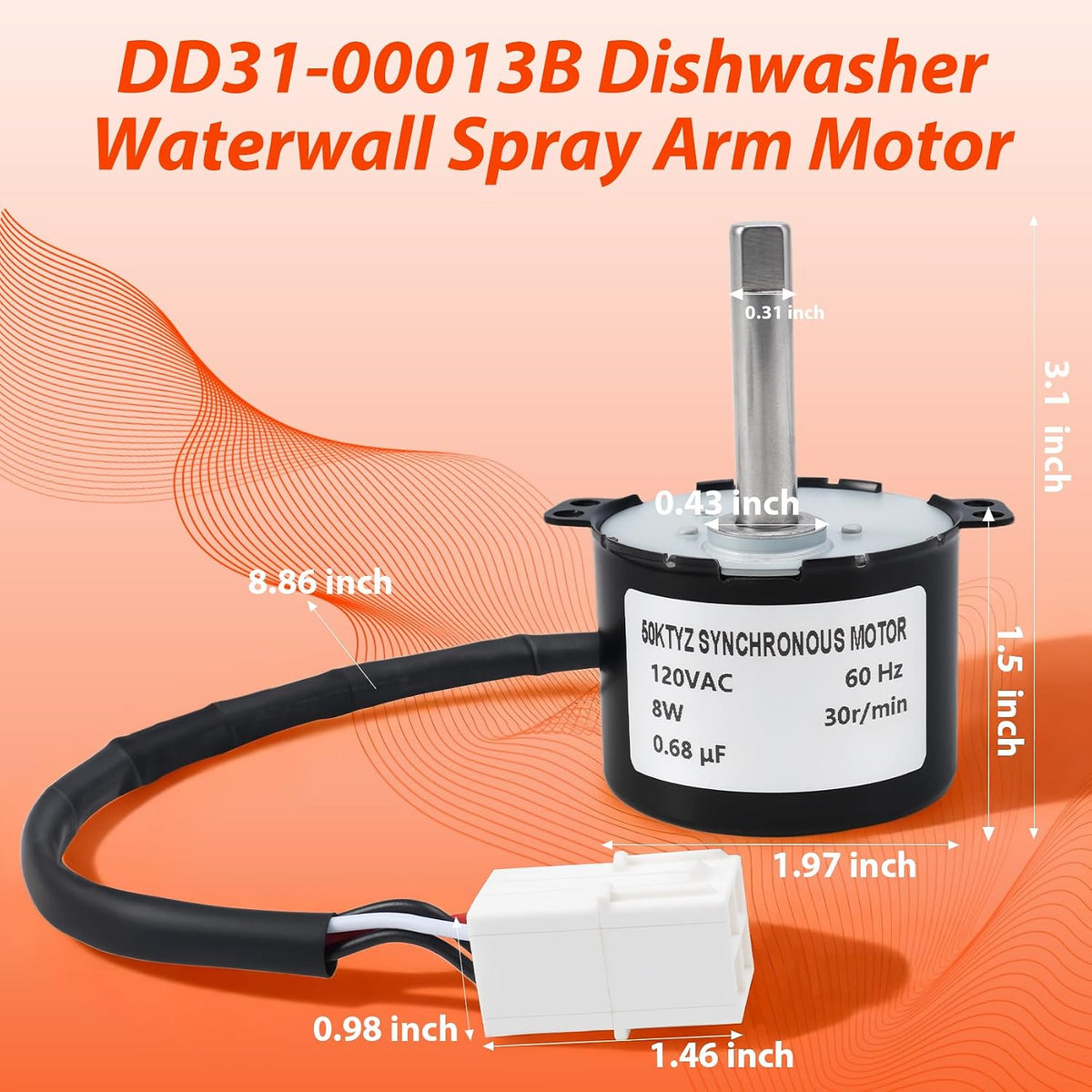

• Specifications: 120V, 8W, 60Hz, 30RPM, 0.68uF capacitor. Dimensions: 11.83 x 1.97 x 3.1 inches. Weight: 8.1 ounces. This dishwasher motor serves as a direct replacement for the original geared unit. This is a third-party replacement part, not the original factory unit.
