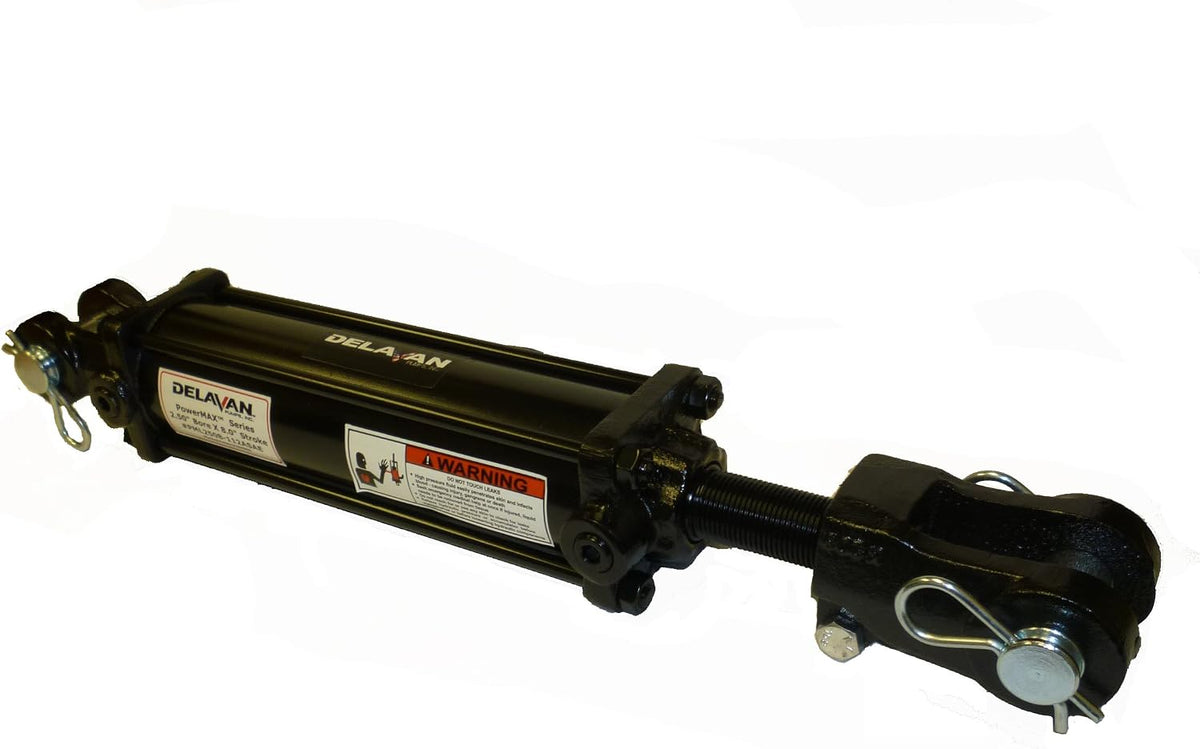

Delavan PML2508-112ASAE PowerMAX 2.5" x 8" Hydraulic Tie-Rod Cylinder ASAE Certified

Key features

• This ASAE Certified Tie-Rod Cylinder has 2,500 PSI Working Pressure and NPT Ports
• Bore: 2.5” - Stroke: 8” - Rod Diameter: 1.25” - Clevis Pin Diameter: 1” - Port Size: 3/8” FNPT
• Pin to Pin Center Retracted x Extended: 20-1/4” x 28-1/4”
• Max Rated PSI on Full Extension: Full PSI - Max Rated Column Load on Full Extension: 12,272 Lbs
• Warranty: 3 Years from date of purchase

Features:• Chromed, polished and individually heat-treated shaft provides extended cylinder life• Built tough enough to stand up to the roughest conditions • Pins and retainers: high tensile steel, zinc plated to prevent corrosion, comes with cotter pin retainers• Ports: double ported NPTF for greater flexibility of assembly, unless otherwise stated, cylinders assembled with ports inline• Piston nut: heavy duty automation grade self locking piston nut holds piston in place under high cycle loading • Piston: ductile iron, precision machined providing a malleable bearing surface for extended cylinder life• Piston seal: 90 durometer O-ring with anti extrusion back up washers provide sealing under high load conditions• Tie-rods: high tensile steel to prevent failure under high pressure• Cylinder shaft: high strength, hard chrome plated shaft provides extended cylinder life in harsh applications• Tube: precision finished skive and burnished heavy wall steel tubing for extended seal and cylinder life• Rod seal: Premium Double Lip Polyurethane BS profile using a double lip design for leak-free performance throughout the pressure range and longer life expectancy• Rod cap and clevis cap: du
