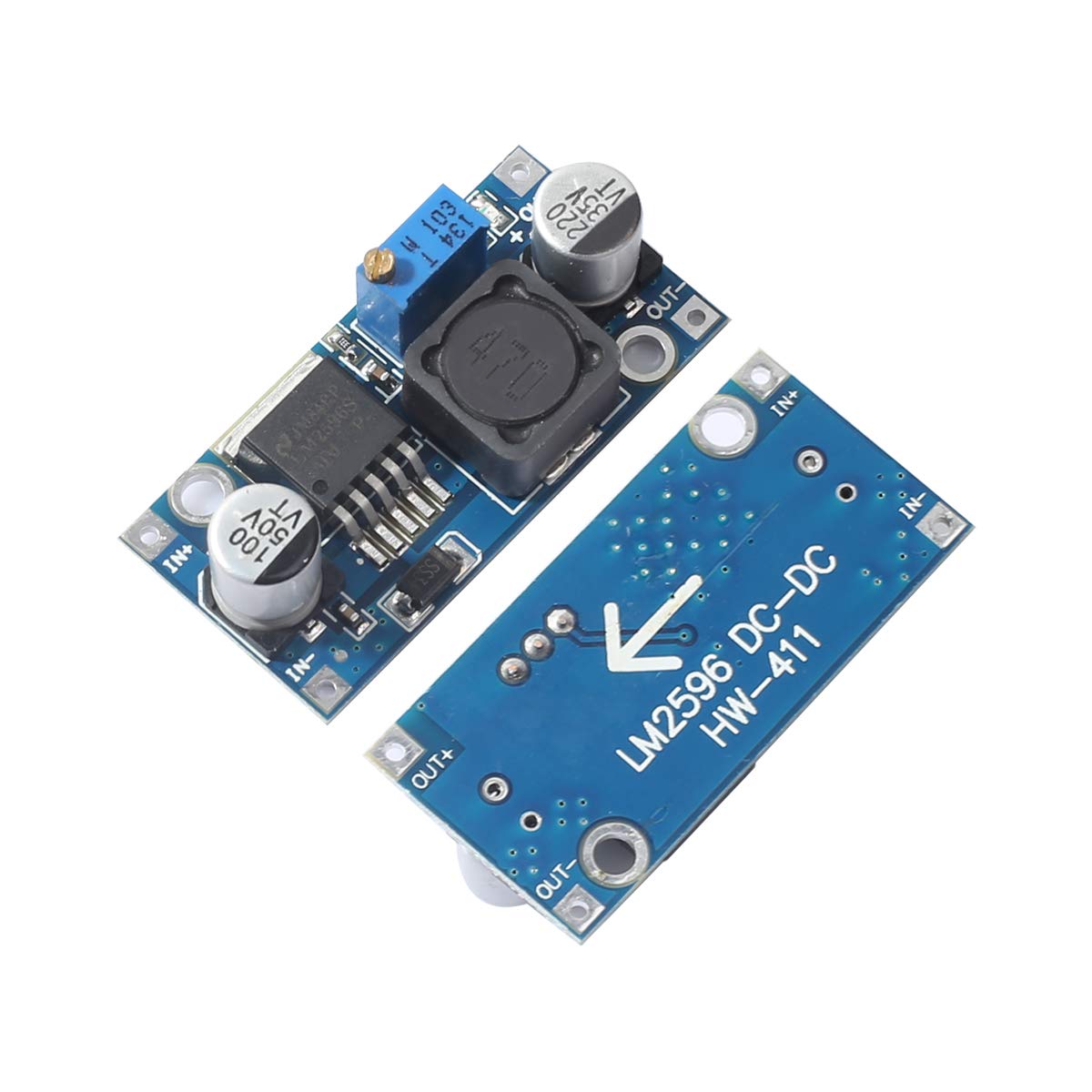

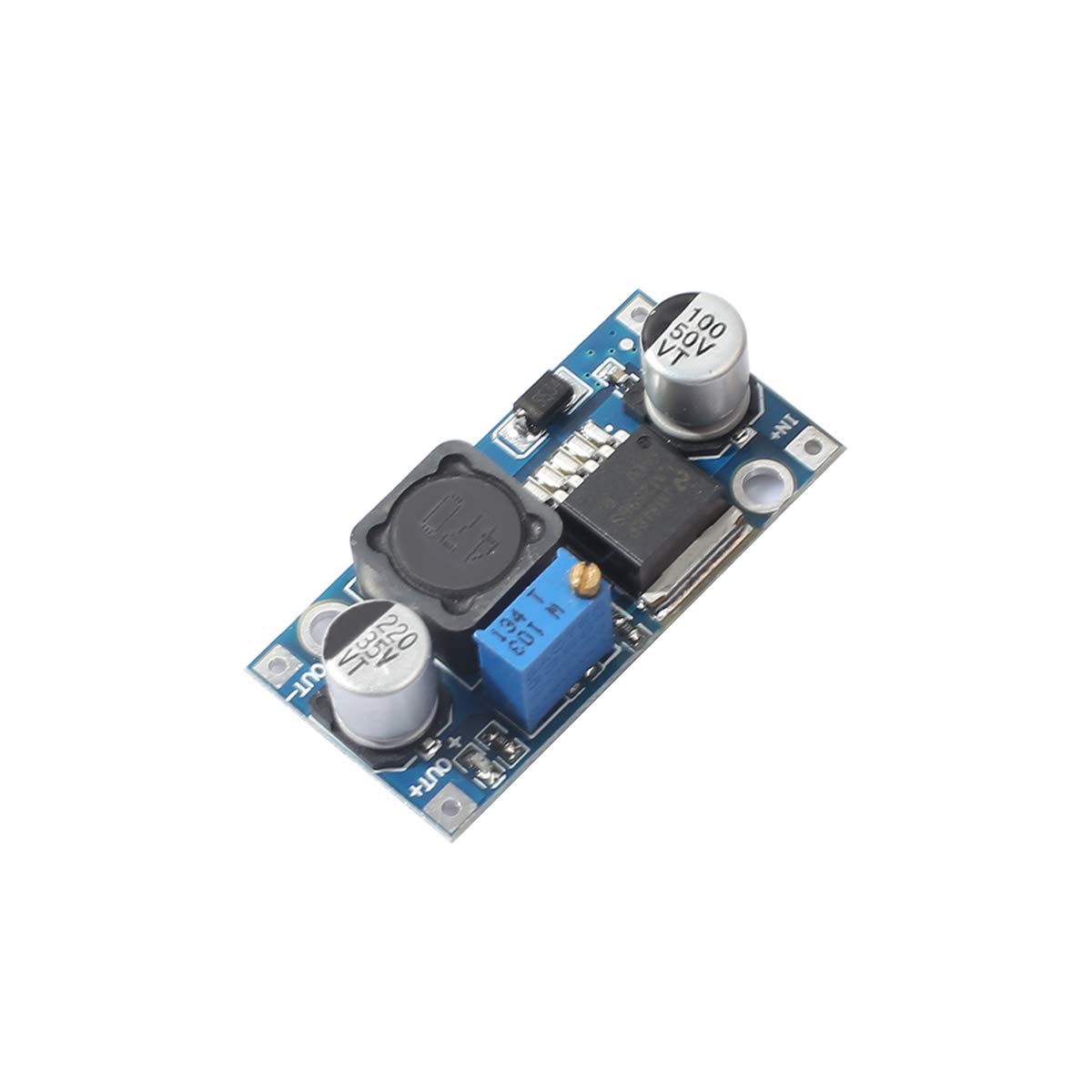

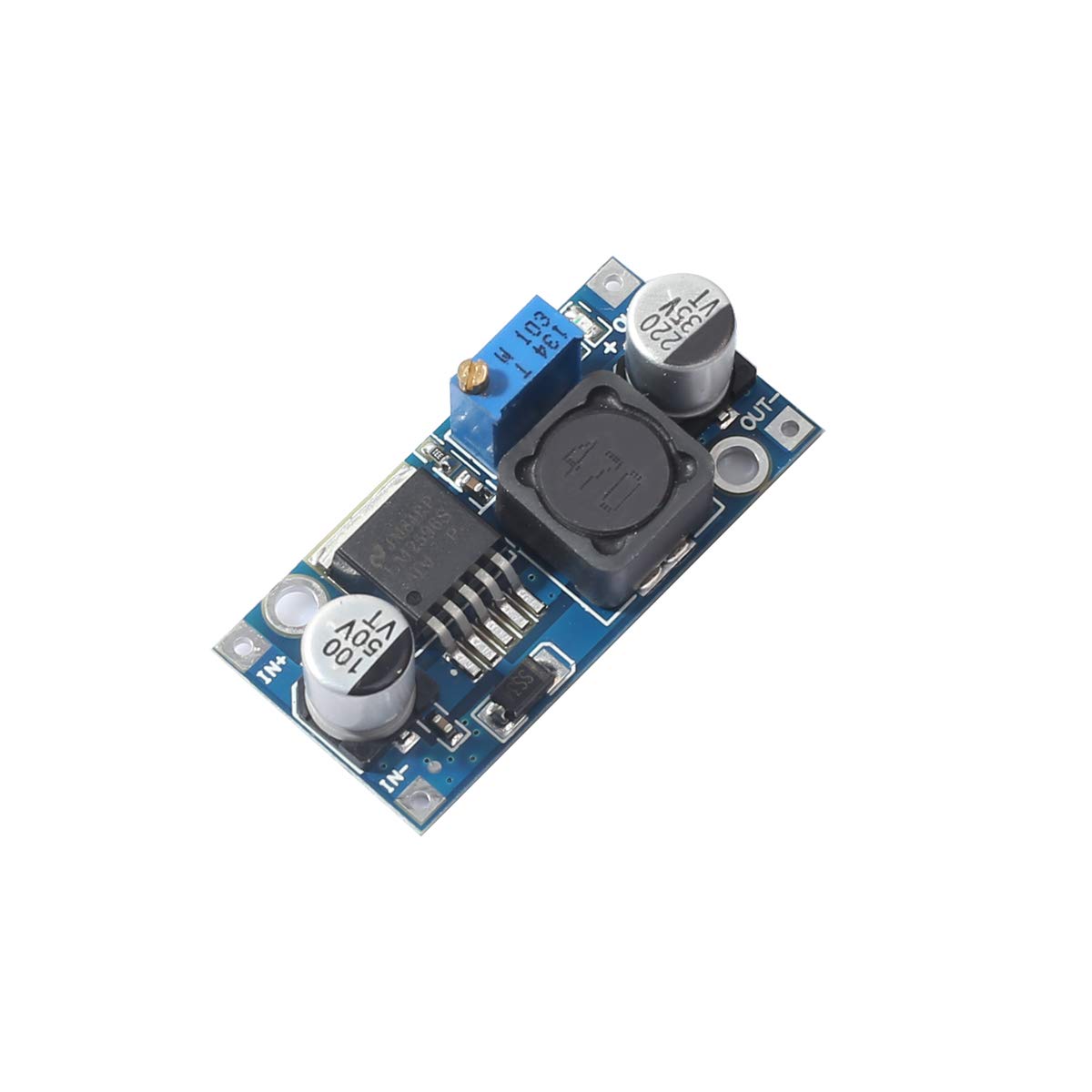

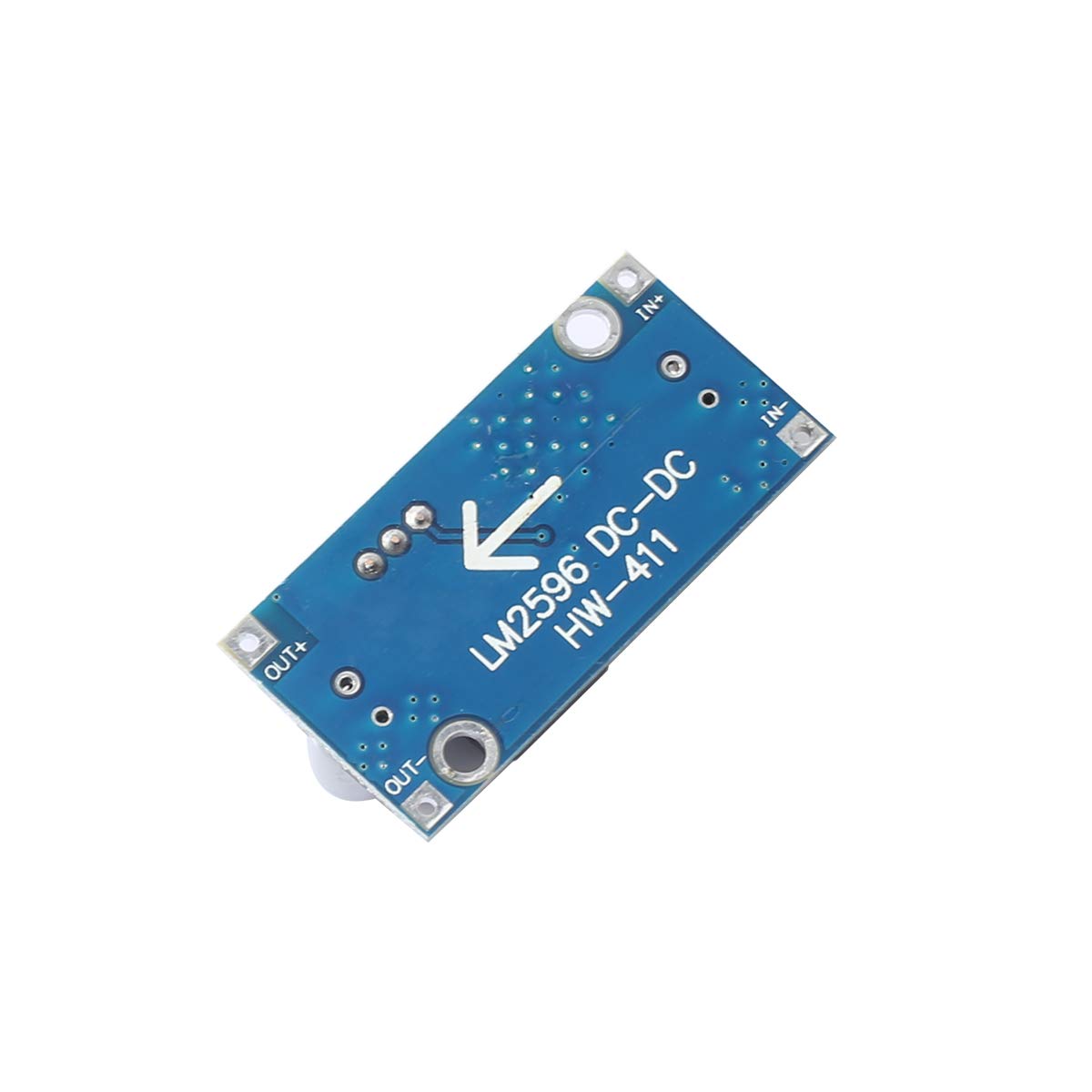

DEVMO 10 Pack LM2596 LM2596S DC-DC Step Down Variable Volt Regulator Input 3.0-40V Output 1.5-35V Adjustable Buck Converter Electronic Voltage Stabilizer Power Supply Module
DEVMO 10 Pack LM2596 LM2596S DC-DC Step Down Variable Volt Regulator Input 3.0-40V Output 1.5-35V Adjustable Buck Converter Electronic Voltage Stabilizer Power Supply Module
Key features
- ★Input： DC 3-40 V (input voltage must be 1.5 V higher than the output voltage, no boost).
- ★Output: DC 1.5-35 V voltage is continuously adjustable, maximum output current is 3 A.
- ★Easy work: convenient to accurately adjust the output voltage with a mini screwdriver.
- ★Features: Thickened circuit boards,Short circuit and over-temperature protection.
- ★Application: widely used for DIY mobile power, monitor power supply, power buggies,communications equipment supply,etc.
LM2596 DC to DC Buck Converter 3.0-40V to 1.5-35V Power Supply Step Down Module Features: - DC to DC step down module - Thickened circuit boards - Advanced solid-state capacitor - Short circuit and over-temperature protectionTested, sealed in anti-static packaging Kindly Note: 1. Input voltage must be 1.5 V higher than the output voltage, no boost 2. Do not reverse the input and output interface 3. Keep output under 2.5A and use a heat sink when for a long time working Specifications: - Model: LM2596 - Input voltage: DC 3V - 40V - Output Voltage: DC 1.5V - 35V (adjustable) - Output Current: 3A (max.) - Conversion Efficiency: 92% (max.) - Switching Frequency : 65KHz - Rectification: non-synchronous rectification - Module property: non-isolated buck module - Operating Temperature: -45℃ to +85℃ - Load Regulation: ±0.5% - Voltage Regulation: ±2.5% Package List:10 x LM2596 DC-DC Buck Converter Module.
Free shipping included. 30-day hassle-free returns.
