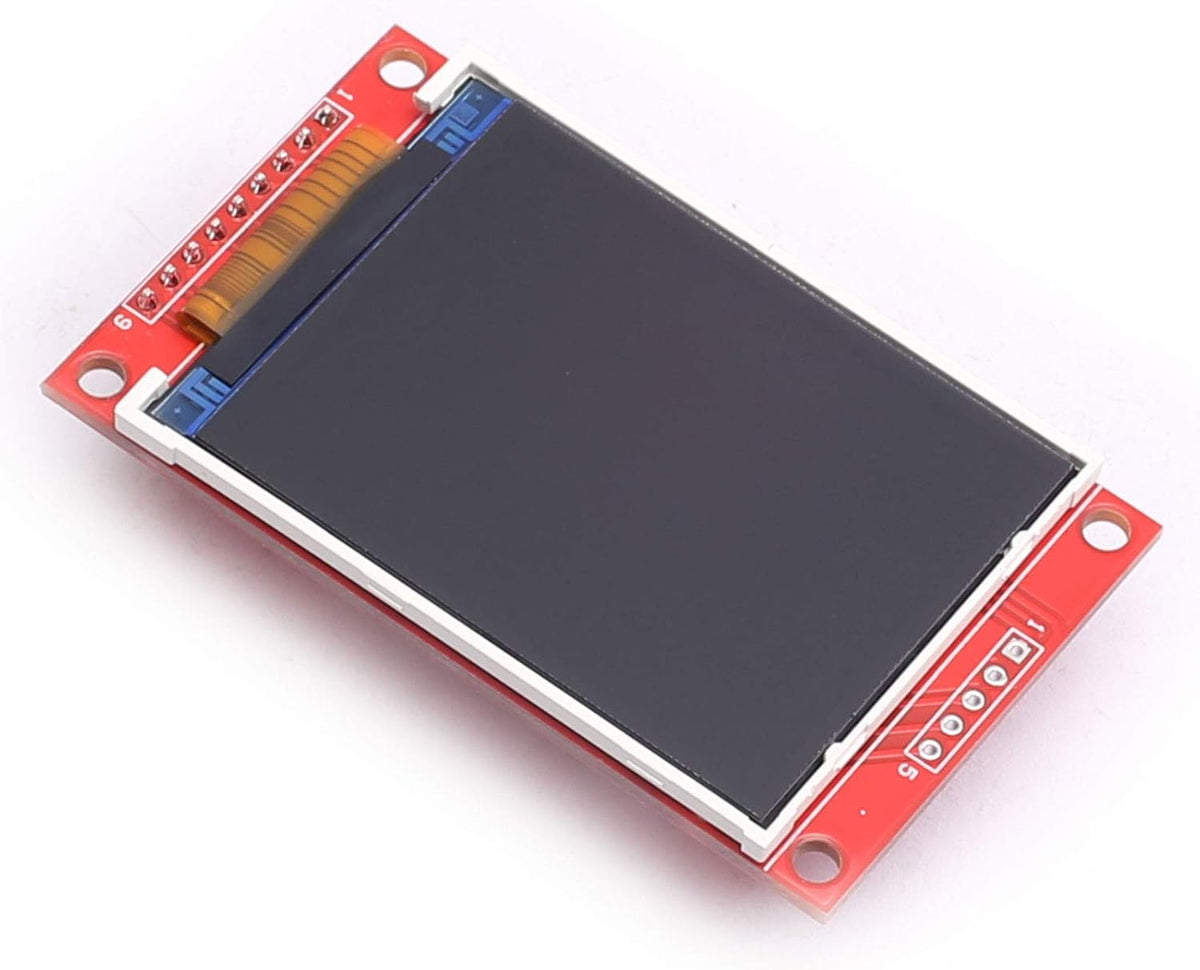

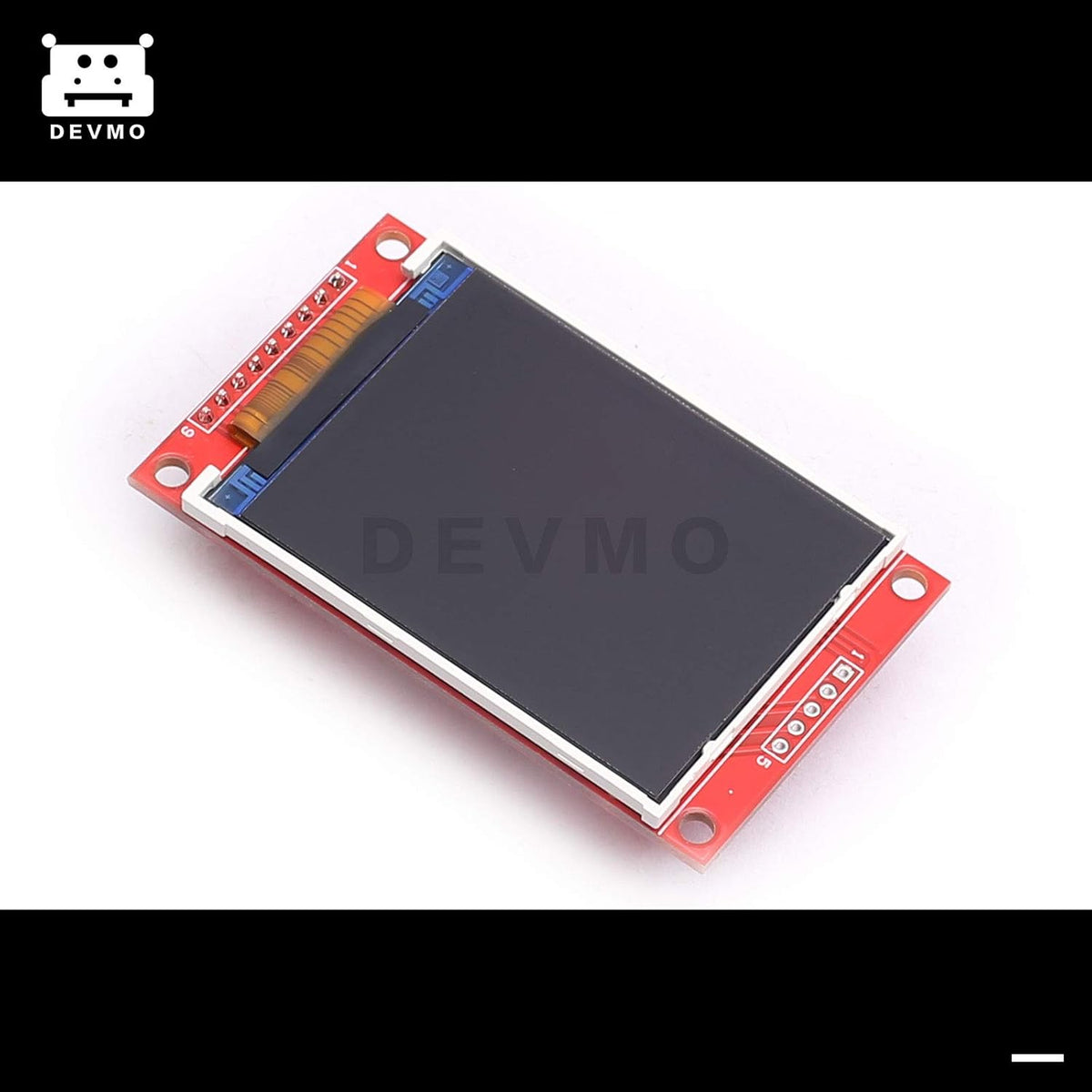

DEVMO 2.2 Inch ILI9341 SPI TFT LCD Display 240x320 ILI9341 LCD Screen with SD Card Slot Compatible with Ar-duino Raspberry Pi 51/AVR/STM32/ARM/PIC

Key features

• ★Durable hard PCB board and SD card socket, ideal for 5110 interface
• ★2.4 inch TFT LCD shield without touch panel, fast to operate
• ★Support Serial SPI Mode, Interface 4-Wire SPI, Need 4 IOs from your MCU only
• ★Support a variety of microcontroller IO connection, professional and practical
• ★5V compatible, use with 3.3V or 5V logic

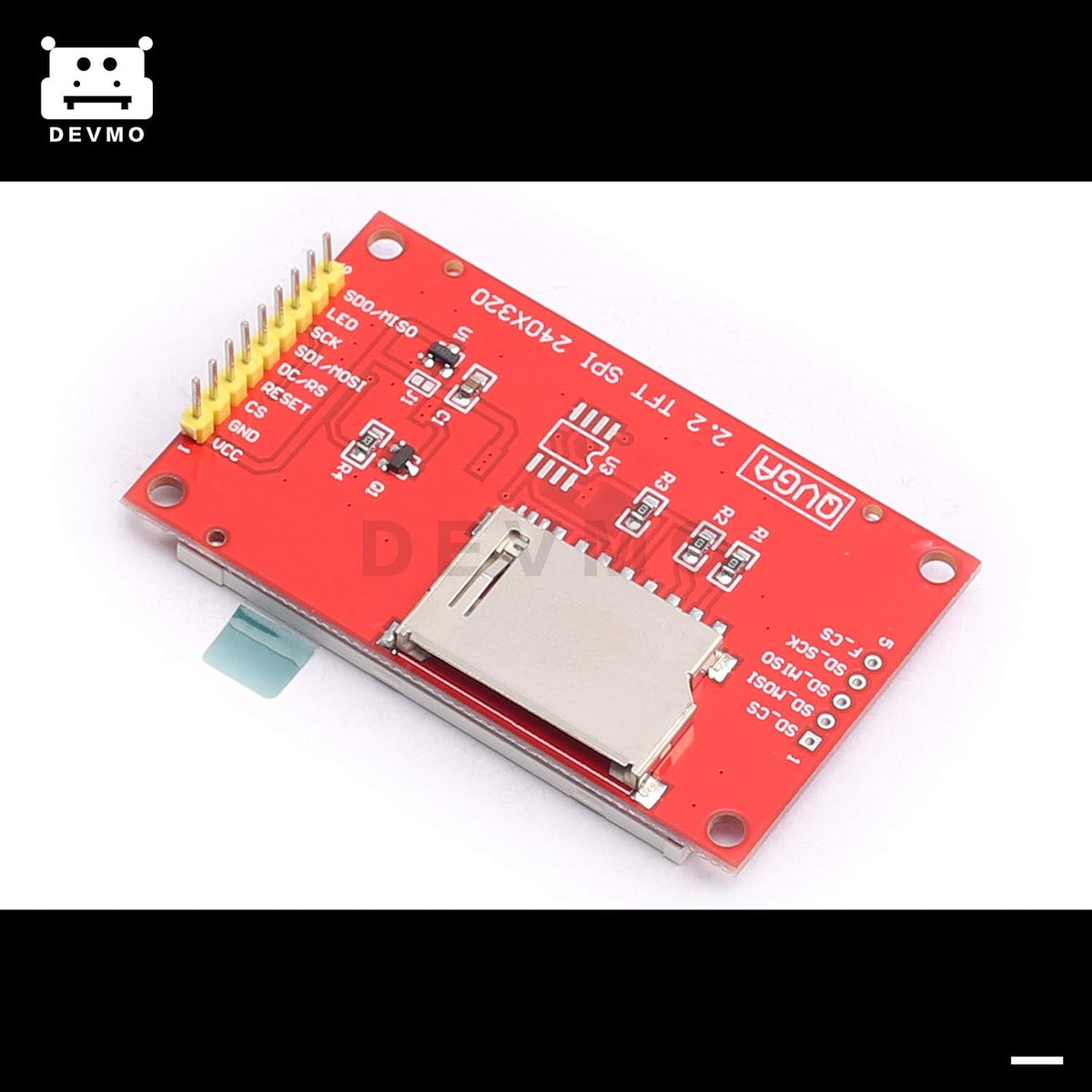

Industrial & Scientific › IndSpecifications: Resolution: 240x320 Driver IC: ILI9341 Input Voltage: 5V/3.3V Size 2.2 inch, It has PCB backplane with power IC, SD card socket LED Numbers 4 LEDs, Driver IC: ILI9341, Color Depth 262K/65K Module Size:67mm(length)*40mm(width)*4mm(thickness), Active Area: 47.5mm(Length)x36.5mm(Width)Package Included: 1*2.2" 2.2 inch 4-Wire SPI TFT LCD Display ModuleHow to use it? 1. use 5v to led pin, 3.3v to vcc and 1k / 1.5k resistor voltage dividers to get it to work. 1k resistor in series from Ar-duino to tft logic pin, 1.5k from tft pin to ground. 2.#define TFT_DC 9 #define TFT_CS 10 #define TFT_MOSI 11 #define TFT_CLK 13 #define TFT_RST 12 #define TFT_MISO 8 3.// Use hardware SPI (on Uno, #13, #12, #11) and the above for CS/DC //ILI9341 tft = ILI9341(TFT_CS, TFT_DC); 4.// If using the breakout, change pins as desired ILI9341 tft = ILI9341(TFT_CS, TFT_DC, TFT_MOSI, TFT_CLK, TFT_RST, TFT_MISO).Serial monitor output: 1-- ILI9341 Test! Display Power Mode: 0x94 MADCTL Mode: 0x48 Pixel Format:0x5 ImageFormat: 0x80 Self Diagnostic: 0xC0 Benchmark Time (microseconds) 2-- Screen fill 18159720 Text 921664 Lines 8537648 Horiz/Vert Lines 1485756 Rectangles (o
