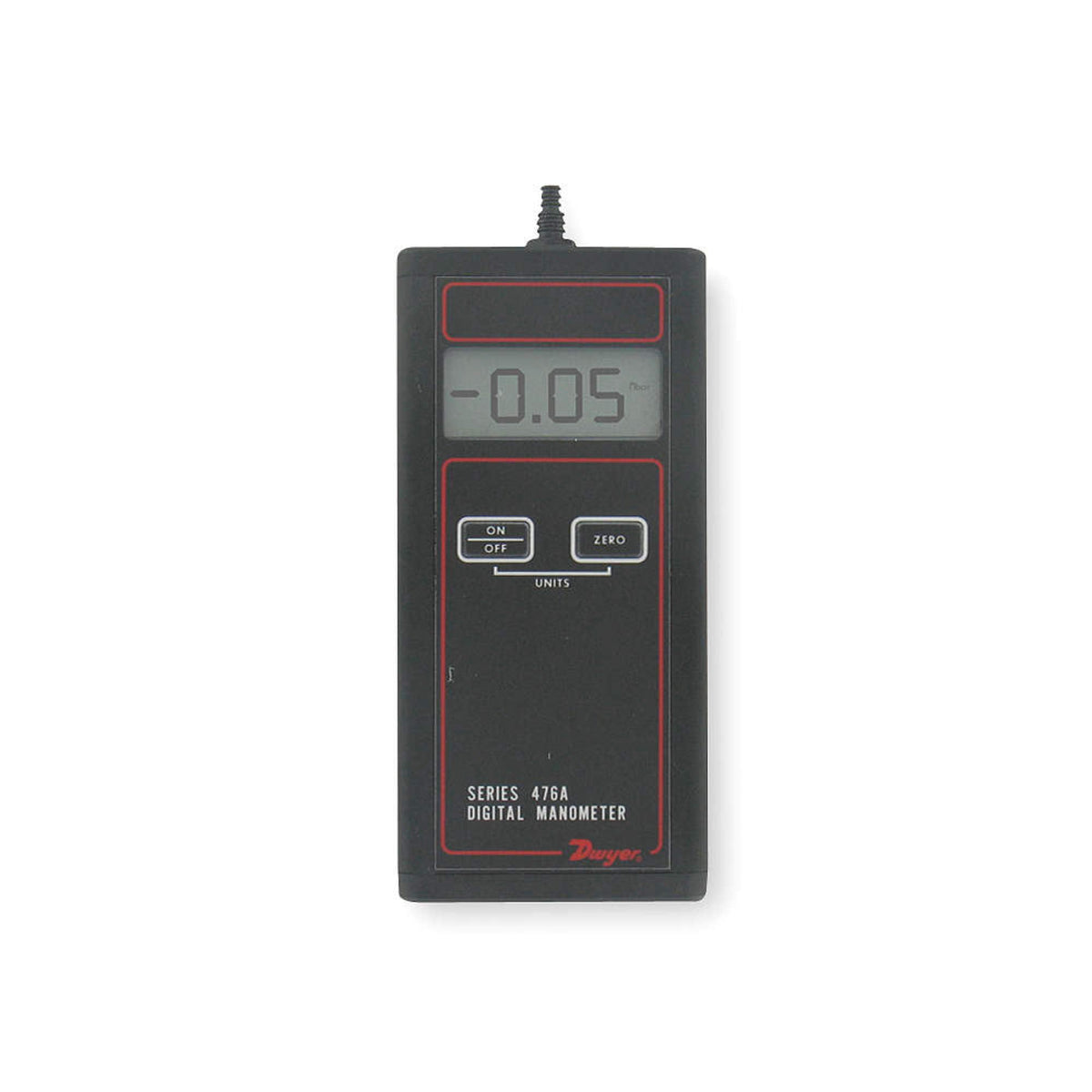

Digital Manometer.-20 to 20 In WC

Dwyer 476A-0 Single Pressure Differential Pressure Digital Manometer can be used to measure low pressures from -20 to 20 in w.c. with ±1.5% FS accuracy. The digital manometer features an extruded aluminum housing for exceptional durability, large easy-read LCD and eight user-selectable English/metric units. Includes one button auto-zero function and auto power off to conserve battery life. The barbed connection accepts 3/16" or 1/4" I.D. tubing. SPECIFICATIONS for the Dwyer 476A-0 Single Pressure Digital Manometer: Service: Air and compatible gases. Wetted Materials: Consult factory. Accuracy: ±1.5% FS @ 72°F (22.2°C). Includes linearity and repeatability. Pressure Hysteresis: ±0.1% of FS. Pressure Limits: 5 psig (.34 bar). Temperature Limits: 0 to 140°F (-17.8 to 60°C). Compensated Temperature Limits: 32 to 104°F (0 to 40°C). Thermal Effect: 0.05% F.S./°F. Display: 4 digit LCD (.425"H x .234"W digits). Power Requirements: 9 V alkaline battery, installed non-functional, user replaceable. Process Connections: Barbed connection for use with 3/16" or 1/4" I.D. tubing. Weight: 10.8 oz (306 g). Agency Approvals: CE.
