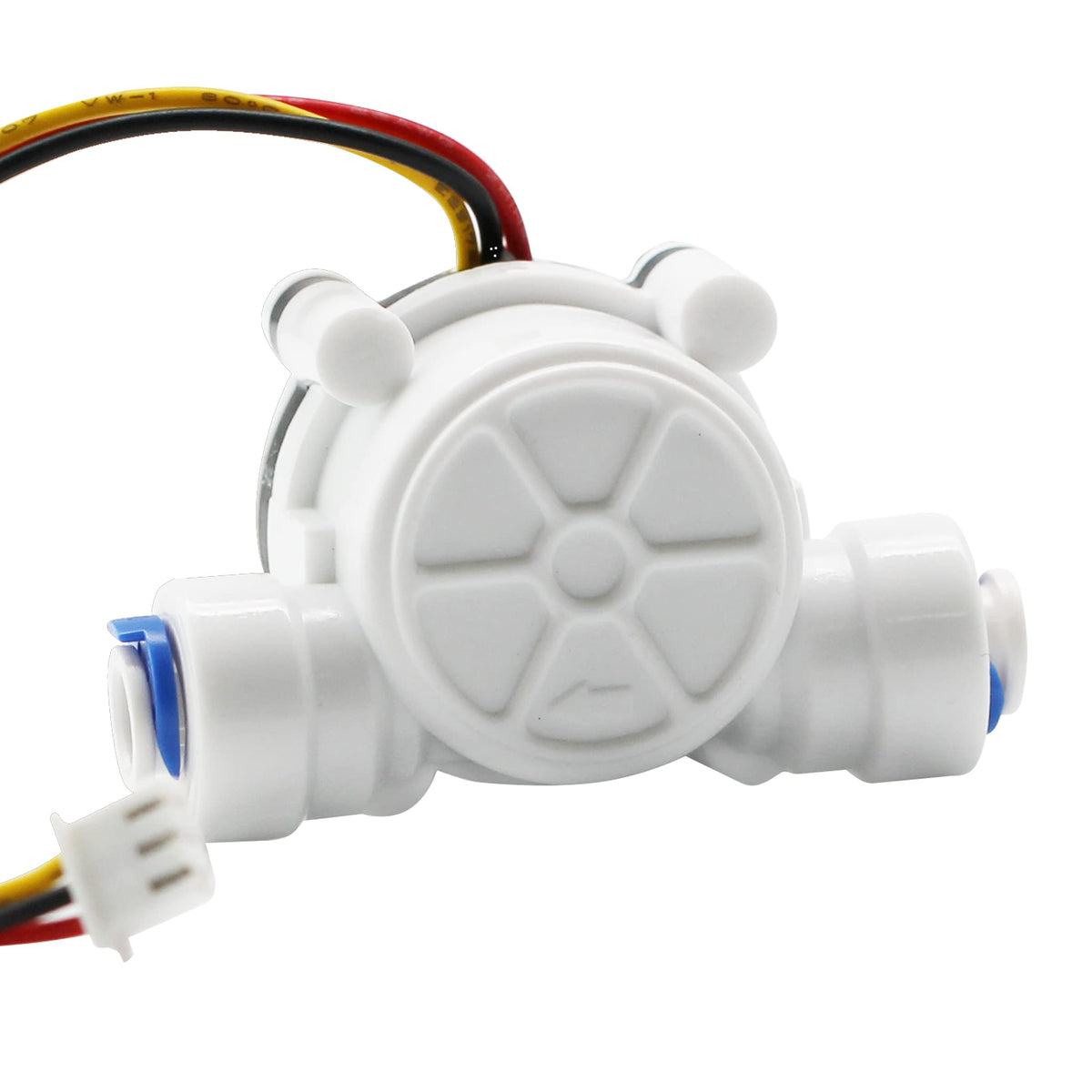

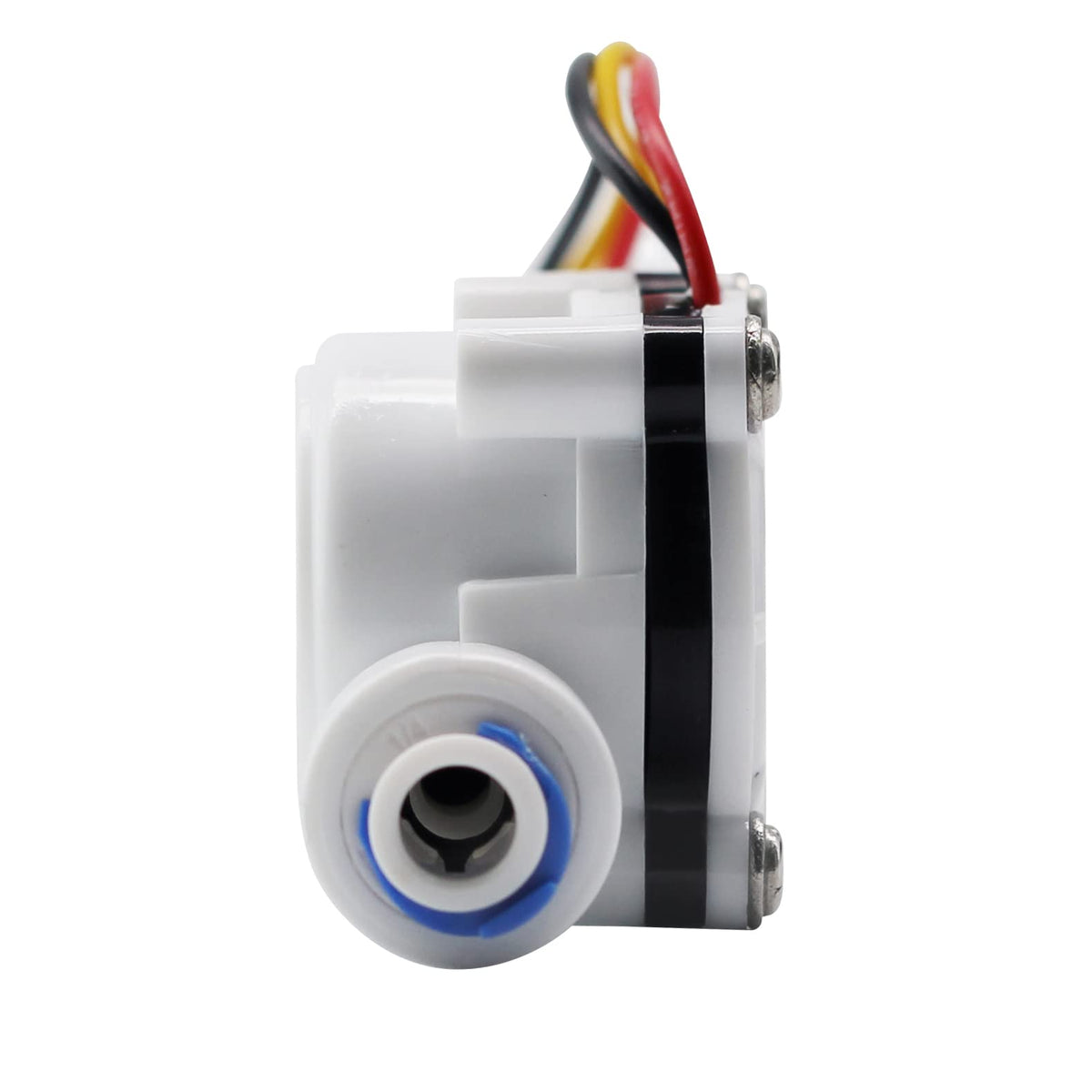

DIGITEN 1/4 Quick Connect 0.3-10L/min Water Hall Effect Flow Sensor Meter
DIGITEN 1/4 Quick Connect 0.3-10L/min Water Hall Effect Flow Sensor Meter
Key features
- Easy to install, 1/4 Quick connect
- Flow range:0.3-10L/min
- Frequency: F=36 * Q (L / Min) error:± 2%
- Working voltage range: 3-24 VDC, Pressure range: 0-0.8MPa
- Work for Android and PI system.
Waterproof,Heat resistance,pressure resistance,cold resistance. Easy to install Frequency: F=36 * Q (L / Min) error: ±2% Flow range:0.3-10L/min Suitable for 1/4" tube Maximum Consumption current:1.5 mA(DC 5V) Working voltage range:DC3-24V Operating Temp:0-80℃ Operating humidity:35%-90%RH Pressure range: 0-0.8MPa Storage Temperature:-25-80℃ Storage humidity:25%-95%RH Output Waveform:Square Wave,output pulse singal. ROHS Compliant. Cable length:15cm. Application:water heater thermostat, water purifier, boiler, water dispensers, coffee machines, smart card equipment, the boiler and so on. Note:The thread is BSP, if used for NPT, need thread seal tape.
Free shipping included. 30-day hassle-free returns.
