DIGITEN G1.5" Water Flow Sensor, Hall Effect Sensor Flow Meter Flowmeter Control 5-150L/min - Arduino, Raspberry Pi, and Reverse Osmosis Filter Compatible

DIGITEN G1.5" Water Flow Sensor, Hall Effect Sensor Flow Meter Flowmeter Control 5-150L/min - Arduino, Raspberry Pi, and Reverse Osmosis Filter Compatible

$48.99
$48.99 $64.99
Skip to product information
DIGITEN G1.5" Water Flow Sensor, Hall Effect Sensor Flow Meter Flowmeter Control 5-150L/min - Arduino, Raspberry Pi, and Reverse Osmosis Filter Compatible
  • DIGITEN G1.5" Water Flow Sensor, Hall Effect Sensor Flow Meter Flowmeter Control 5-150L/min - Arduino, Raspberry Pi, and Reverse Osmosis Filter Compatible
  • DIGITEN G1.5" Water Flow Sensor, Hall Effect Sensor Flow Meter Flowmeter Control 5-150L/min - Arduino, Raspberry Pi, and Reverse Osmosis Filter Compatible
  • DIGITEN G1.5" Water Flow Sensor, Hall Effect Sensor Flow Meter Flowmeter Control 5-150L/min - Arduino, Raspberry Pi, and Reverse Osmosis Filter Compatible
  • DIGITEN G1.5" Water Flow Sensor, Hall Effect Sensor Flow Meter Flowmeter Control 5-150L/min - Arduino, Raspberry Pi, and Reverse Osmosis Filter Compatible
  • DIGITEN G1.5" Water Flow Sensor, Hall Effect Sensor Flow Meter Flowmeter Control 5-150L/min - Arduino, Raspberry Pi, and Reverse Osmosis Filter Compatible
  • DIGITEN G1.5" Water Flow Sensor, Hall Effect Sensor Flow Meter Flowmeter Control 5-150L/min - Arduino, Raspberry Pi, and Reverse Osmosis Filter Compatible
  • DIGITEN G1.5" Water Flow Sensor, Hall Effect Sensor Flow Meter Flowmeter Control 5-150L/min - Arduino, Raspberry Pi, and Reverse Osmosis Filter Compatible
  • DIGITEN G1.5" Water Flow Sensor, Hall Effect Sensor Flow Meter Flowmeter Control 5-150L/min - Arduino, Raspberry Pi, and Reverse Osmosis Filter Compatible
DIGITEN G1.5" Water Flow Sensor, Hall Effect Sensor Flow Meter Flowmeter Control 5-150L/min - Arduino, Raspberry Pi, and Reverse Osmosis Filter Compatible

DIGITEN G1.5" Water Flow Sensor, Hall Effect Sensor Flow Meter Flowmeter Control 5-150L/min - Arduino, Raspberry Pi, and Reverse Osmosis Filter Compatible

$48.99
$48.99 $64.99
FREE shipping on this itemShips from West Long Branch, NJ. Typically arrives in 3–7 business days.
30-day returnsChanged your mind? Send it back within 30 days. Return policy
Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET

Key features

  • ✔Work for Arduino, Raspberry Pi, and Reverse Osmosis Filter. Small size, waterproof, easy to install, heat resistance, pressure resistance, cold resistance.
  • ✔Material: All materials align with ROHS testing standards, and can be used for potable water.
  • ✔Hall effect sensor. Flow range:5-150L/min, working voltage range: DC 5-18 V, allow compression: Water pressure 1.75 Mpa below.
  • ✔Connect to G1.5 inch BSPT male thread, if used for NPT, need thread seal tape. Output waveform: square wave, output pulse signal.
  • ✔Wide application: It is mainly used in water heater, coffee machine, water purifier, drinking fountain, beverage machine, campus smart card equipment, etc.

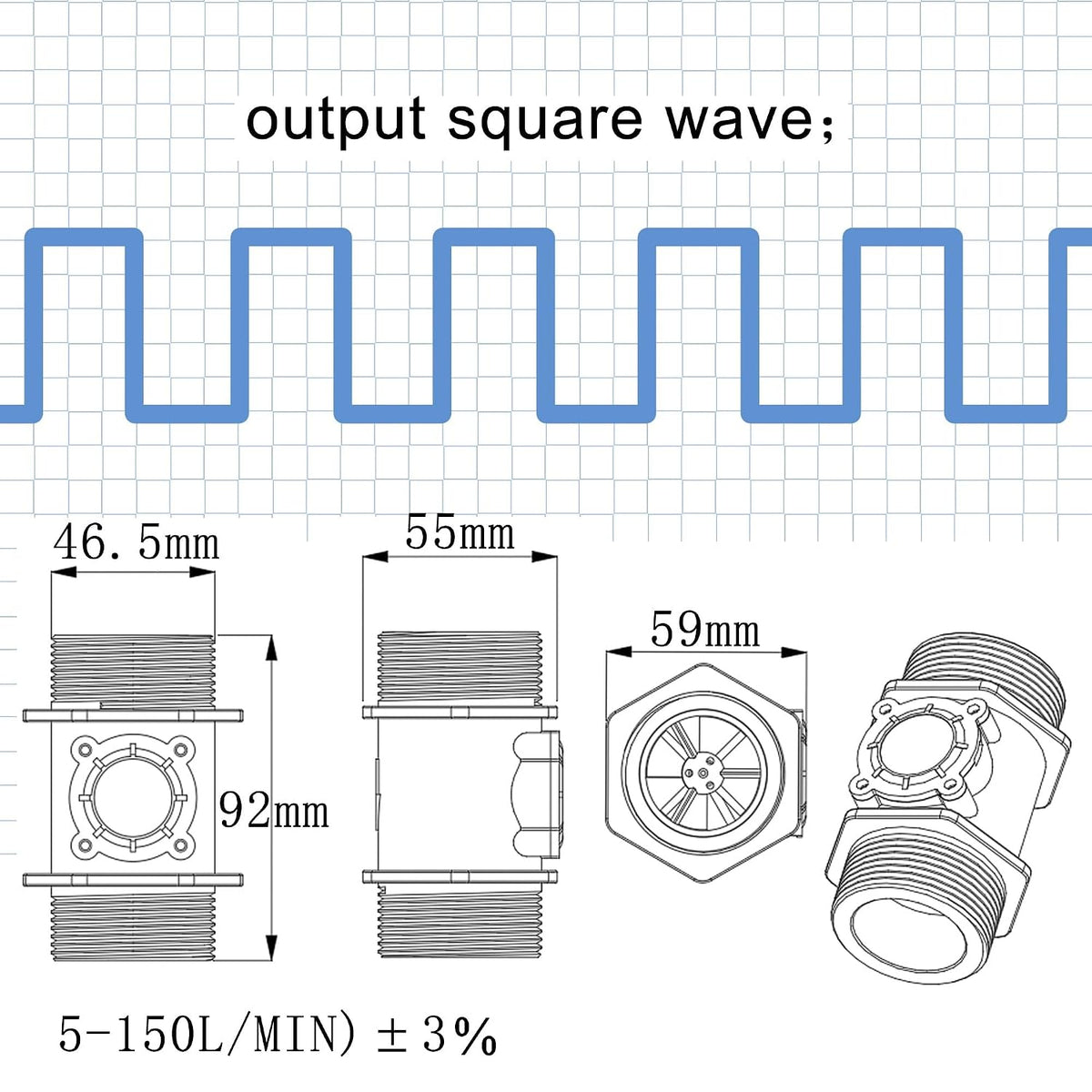

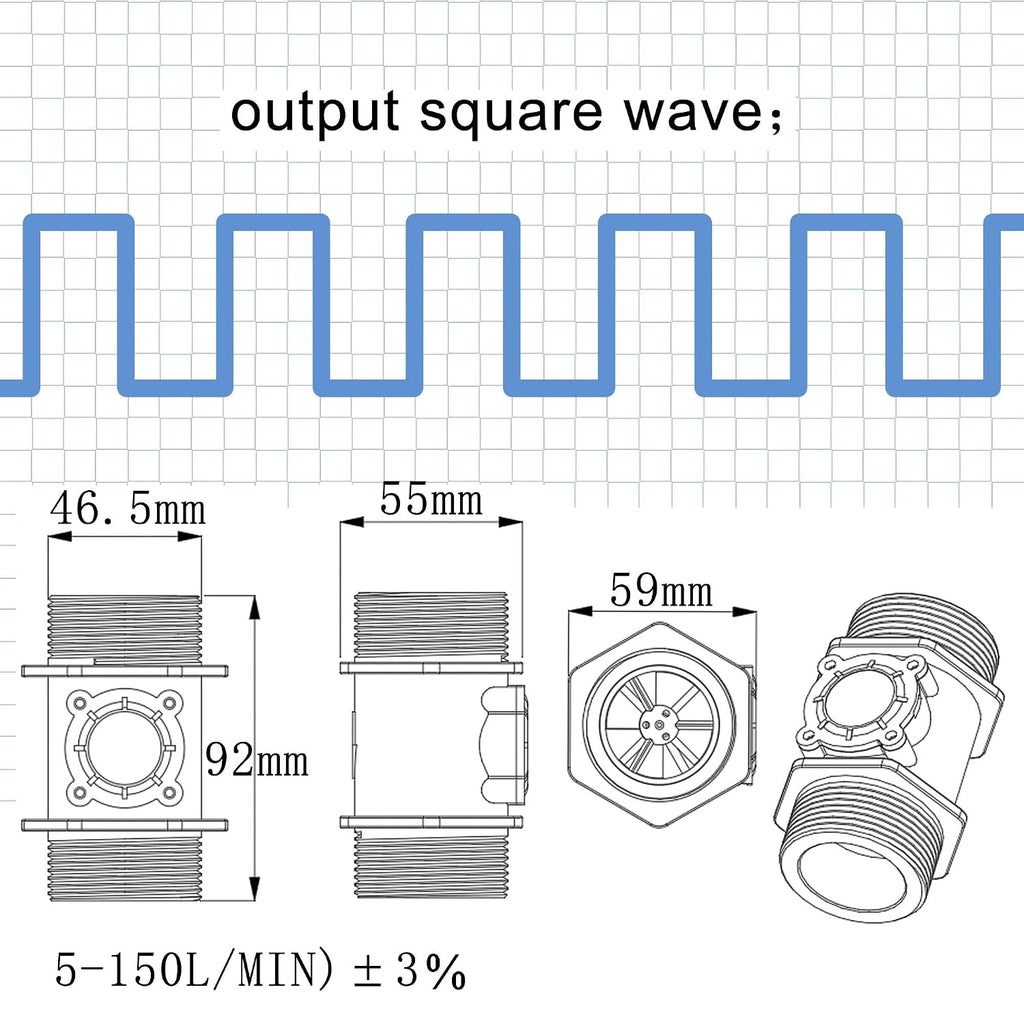

Specifications:Flow range: 5-150L/minSensor: Hall effect Maximum current:10 mA(DC 5V)Working voltage range:DC 5-18 VLoad capacity:≤10 mA(DC 5V)Operating Temp: ≤80℃ Operating humidity: 35%- 90%RHAllow compression:Water pressure 1.75 Mpa belowInsulation resistance:>100M OHMStorage Temperature:-25℃-80℃Storage humidity:25% - 95%RHOutput Waveform:Square Wave,output pulse singal. Cable length:480mmMax Size:92mm*68mmPackage include:Flowmeter x 1

Free shipping included. 30-day hassle-free returns.
