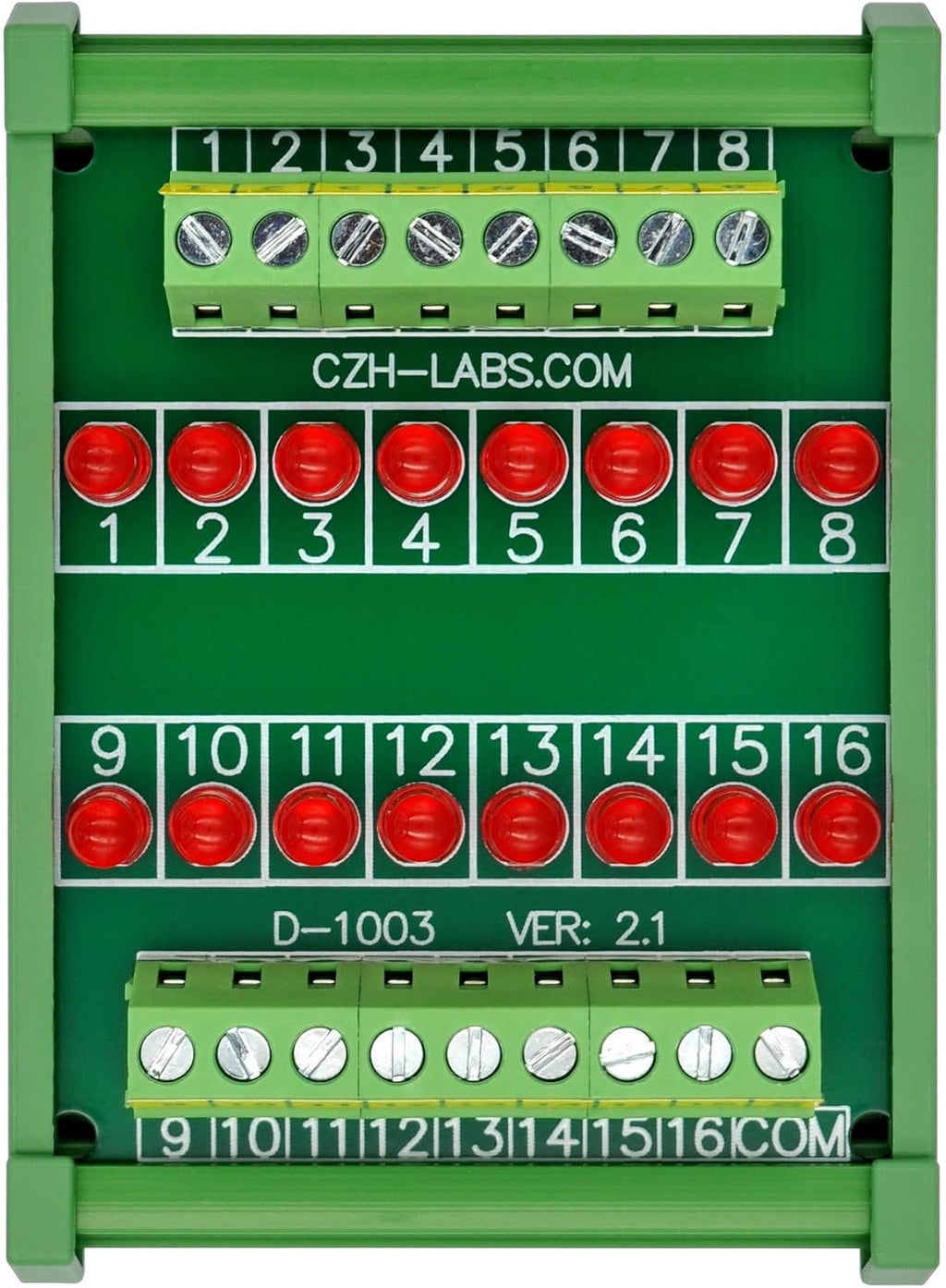

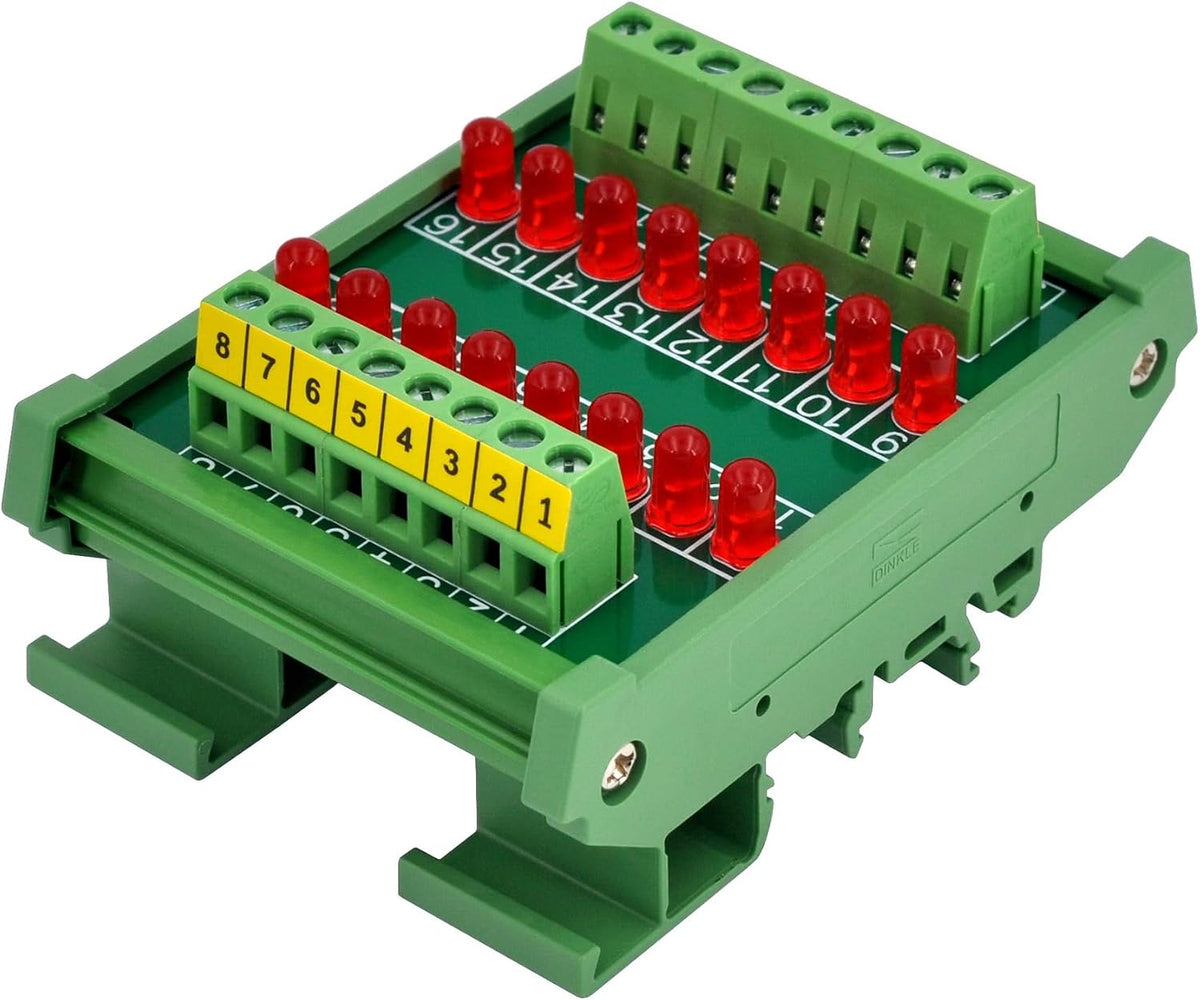

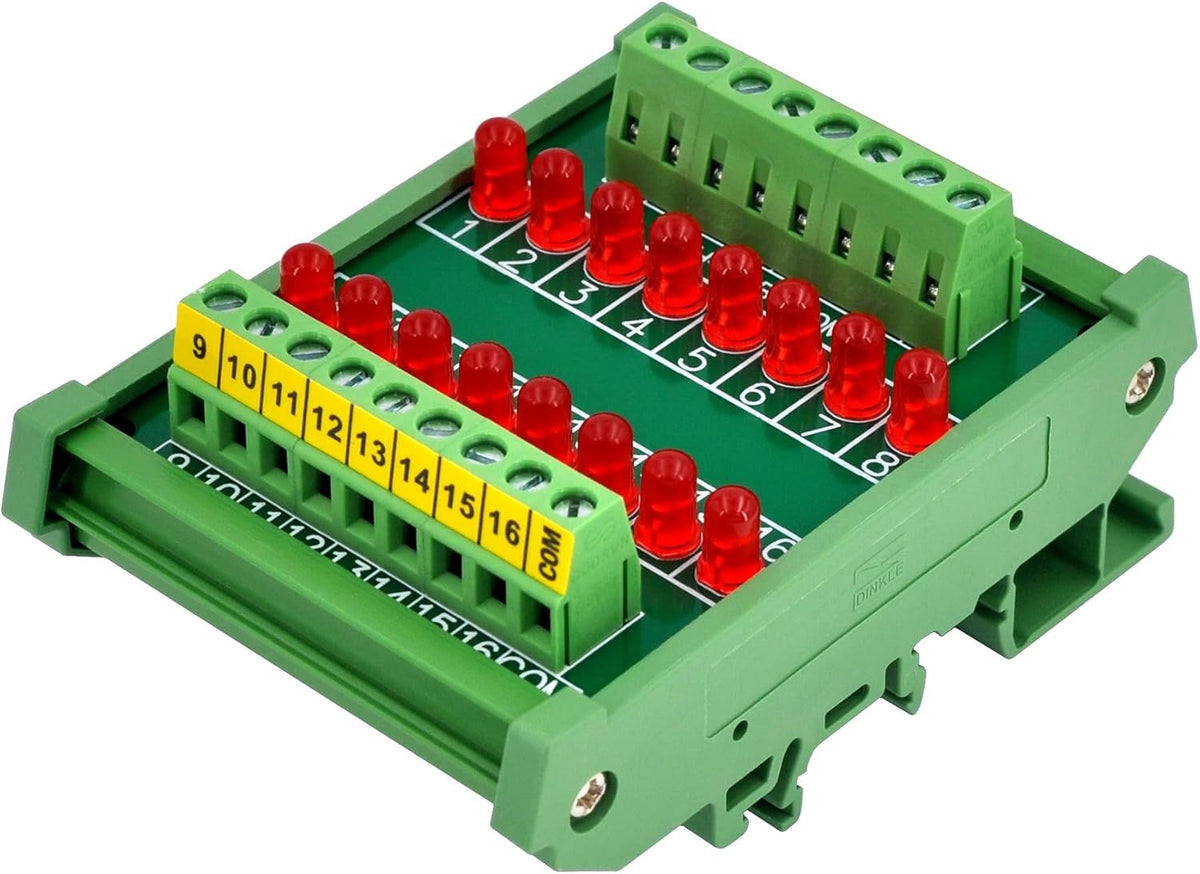

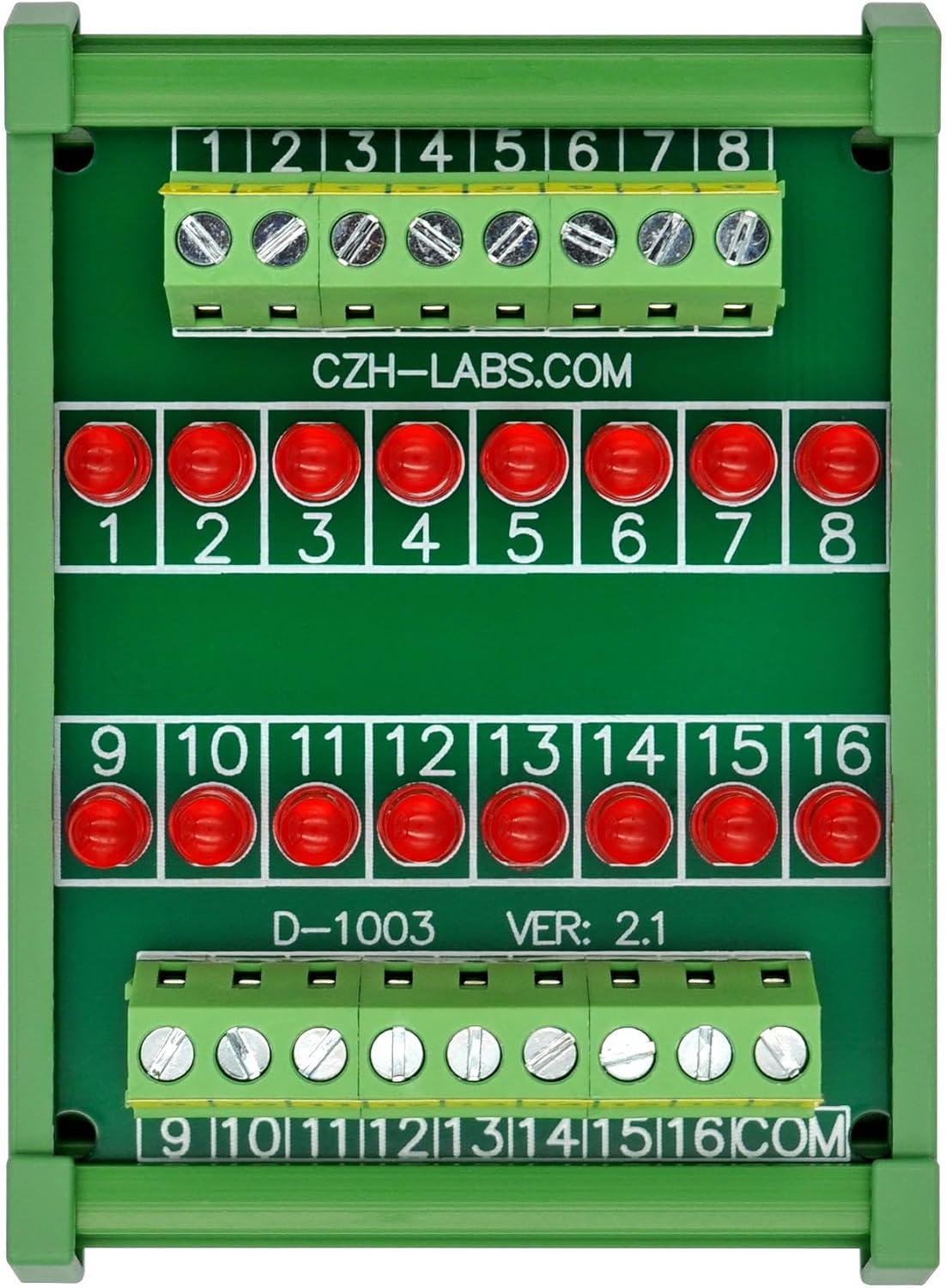

Name: DIN Rail Mount 16 LEDs Indicator Light Module, Support 5~50VDC Common Positive/Negative (Red)
Brand: Belmont Warehouse
SKU: BW-B0DF7RQLVP
Price: 41.99 USD
Availability: InStock

DIN Rail Mount 16 LEDs Indicator Light Module, Support 5~50VDC Common Positive/Negative (Red)

$41.99

$41.99 $60.99

FREE shipping on this itemShips from West Long Branch, NJ. Typically arrives in 3–7 business days.

30-day returnsChanged your mind? Send it back within 30 days. Return policy

Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET

Key features

16 Channels LED Indicator Light Module.
Operating voltage: 5 ~ 50VDC. Diameter 5mm LEDs. Color - red.

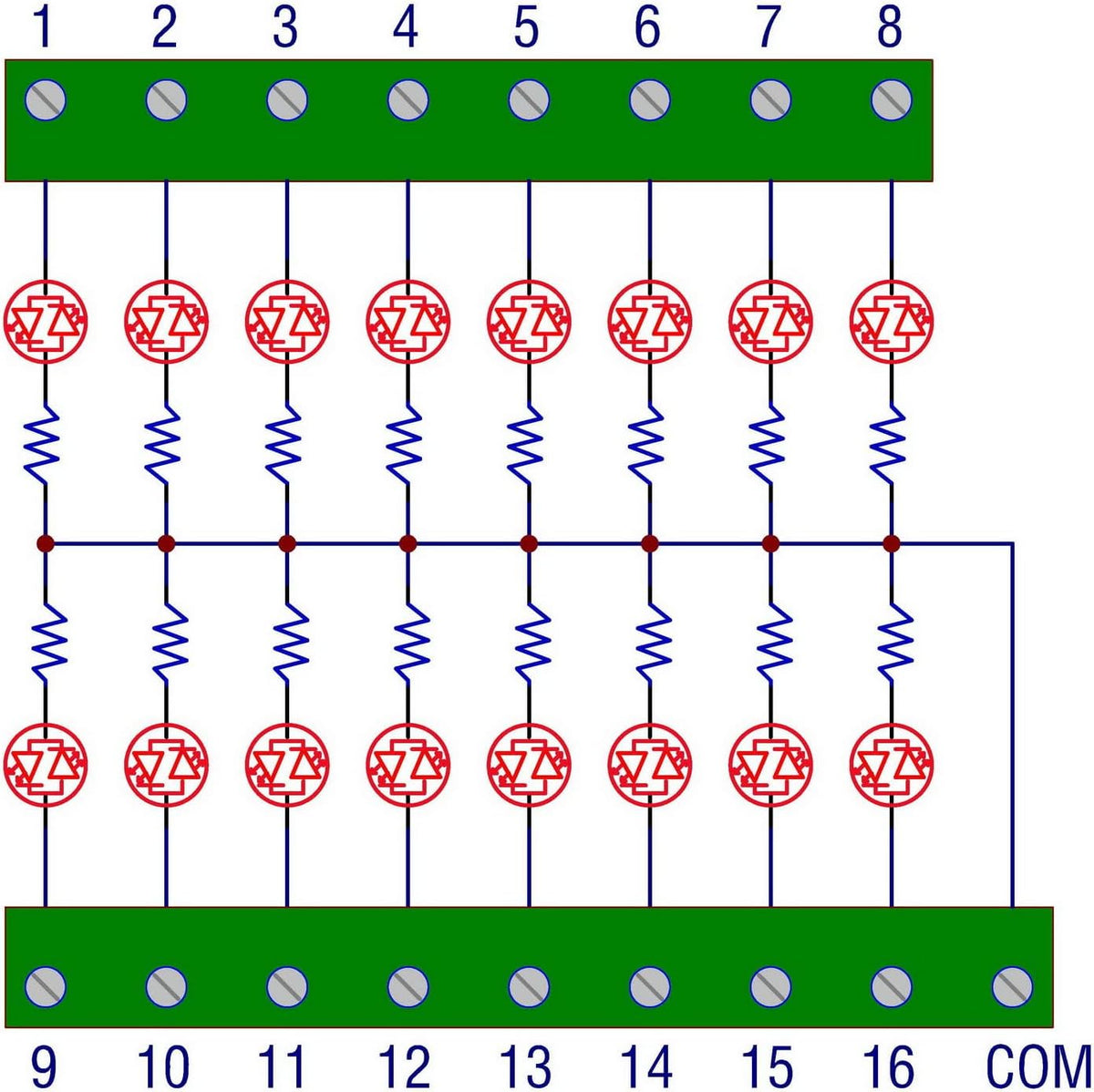

Support Common Positive and Common Negative control modes.
Terminal Block: Pitch 5.0mm/0.197" screw terminal blocks. Wire range 26 to 12AWG / 2.5mm square. Strip length 7mm / 0.28" Screws - M2.5, steel, Cr3+ Zn plated. Pin header and Cage - Brass. FR-4 fiber glass PCB.

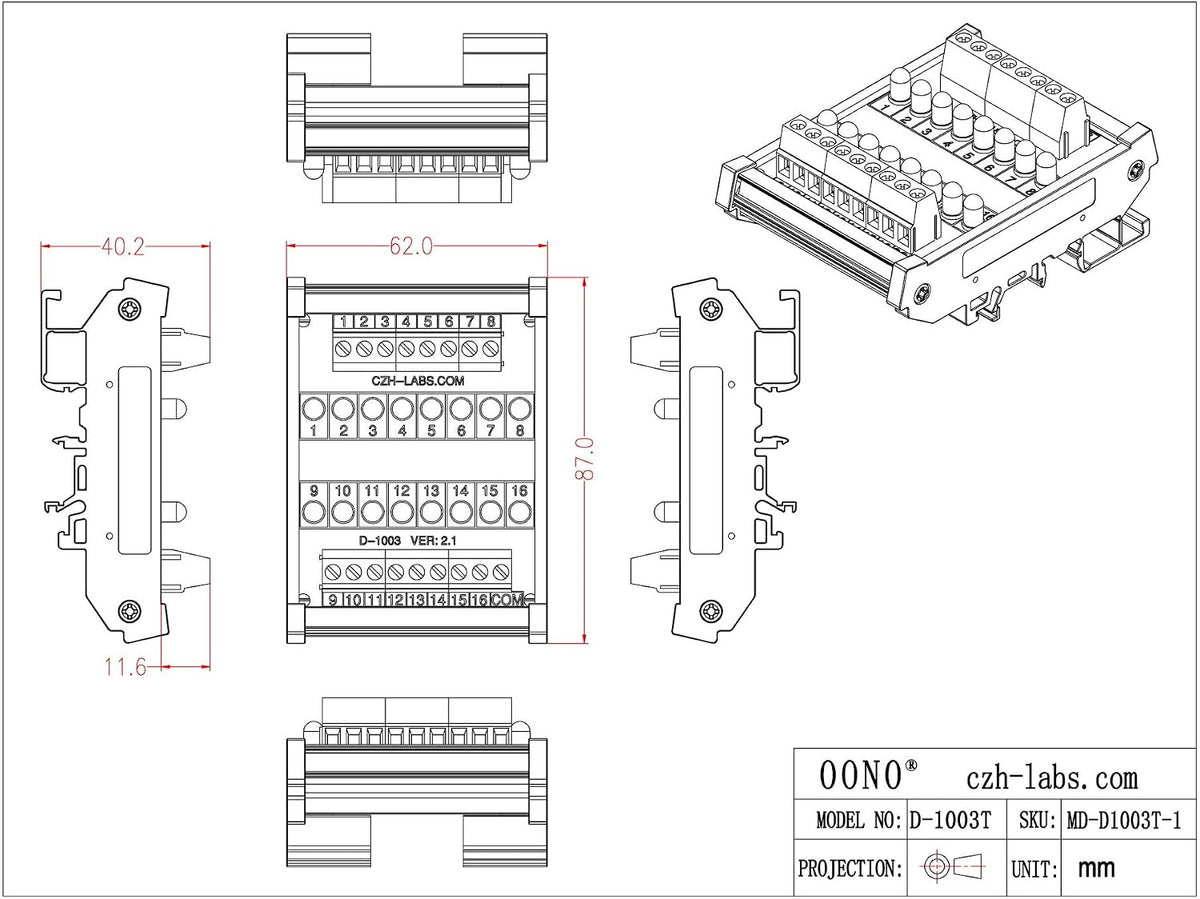

High quality fireproof nylon material DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.

16 Channels LED Indicator Light Module. Operating voltage: 5 ~ 50VDC. Diameter 5mm LEDs. Color - red. Support Common Positive and Common Negative control modes. Terminal Block: Pitch 5.0mm/0.197" screw terminal blocks. Wire range 26 to 12AWG / 2.5mm square. Strip length 7mm / 0.28" Screws - M2.5, steel, Cr3+ Zn plated. Pin header and Cage - Brass. FR-4 fiber glass PCB. High quality fireproof nylon material DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use. Drive current (one LED): At 5VDC: 0.3mA At 12VDC: 1mA At 24VDC: 2.2mA At 48VDC: 4.6mA
