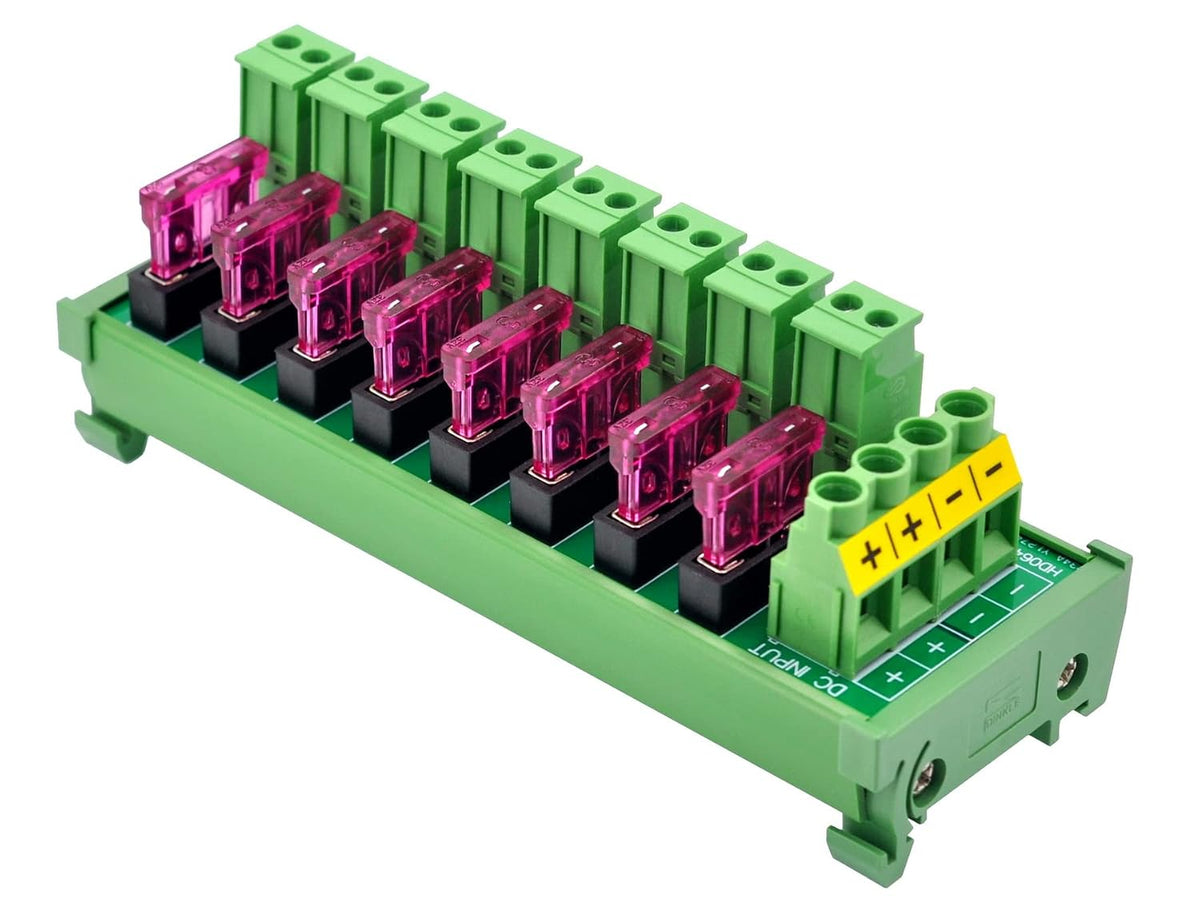

DIN Rail Mount DC 5-32V 8 Channel Pluggable Side Wiring Terminal Block Power Distribution Fuse Module, HCDC HD064RT

Key features

• Operating voltage DC 5 to 32V. Maximum total input / output current 20 Amp.

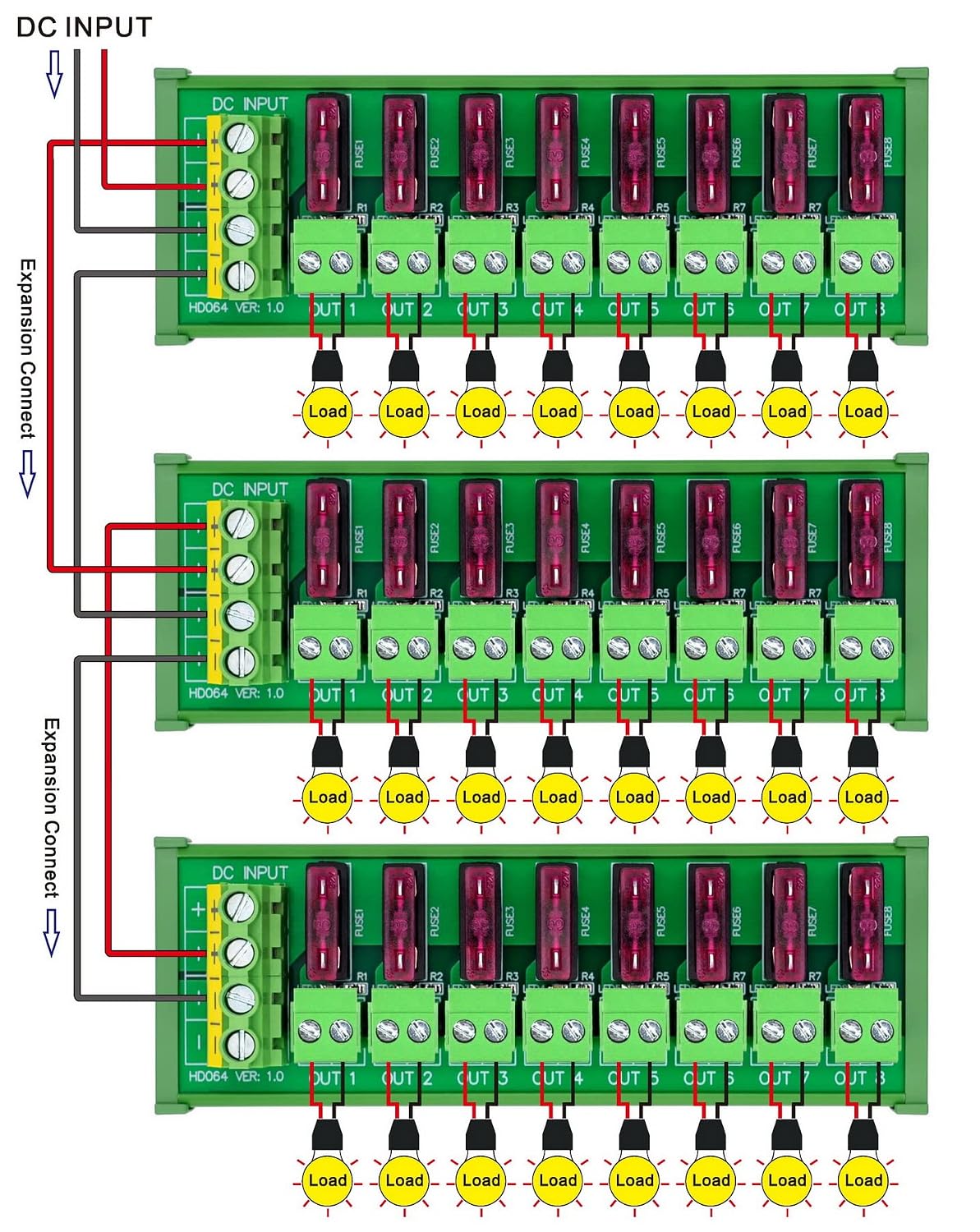

• Input: Maximum current 20 Amp for per position. Double positions + and - polarity terminal, support power supply expansion connect to other modules. Pin pitch 7.62mm/0.3", wire size 26 - 10 AWG, stripping length 8mm, Metric M3 slotted screw.

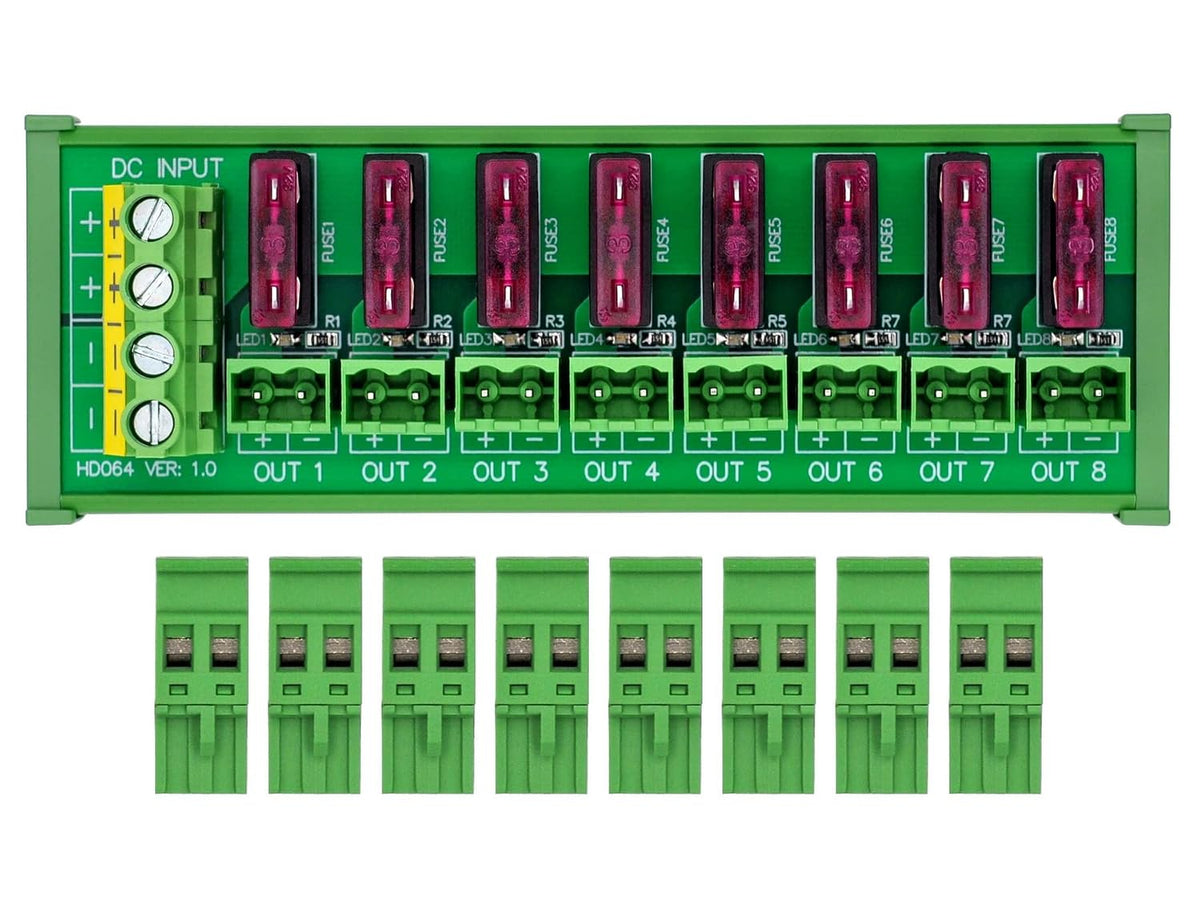

• Output: 8 position pluggable side wiring terminal blocks. Maximum current 3 Amp for per position (the terminal highest working current can support up to 10 Amp, but factory pre-installed fuse value is 3 Amp, if you want more output current, please change the fuse). Pin pitch 5.08mm/0.2", wire size 28 - 12 AWG, stripping length 7mm, Metric M2.5 slotted screw.

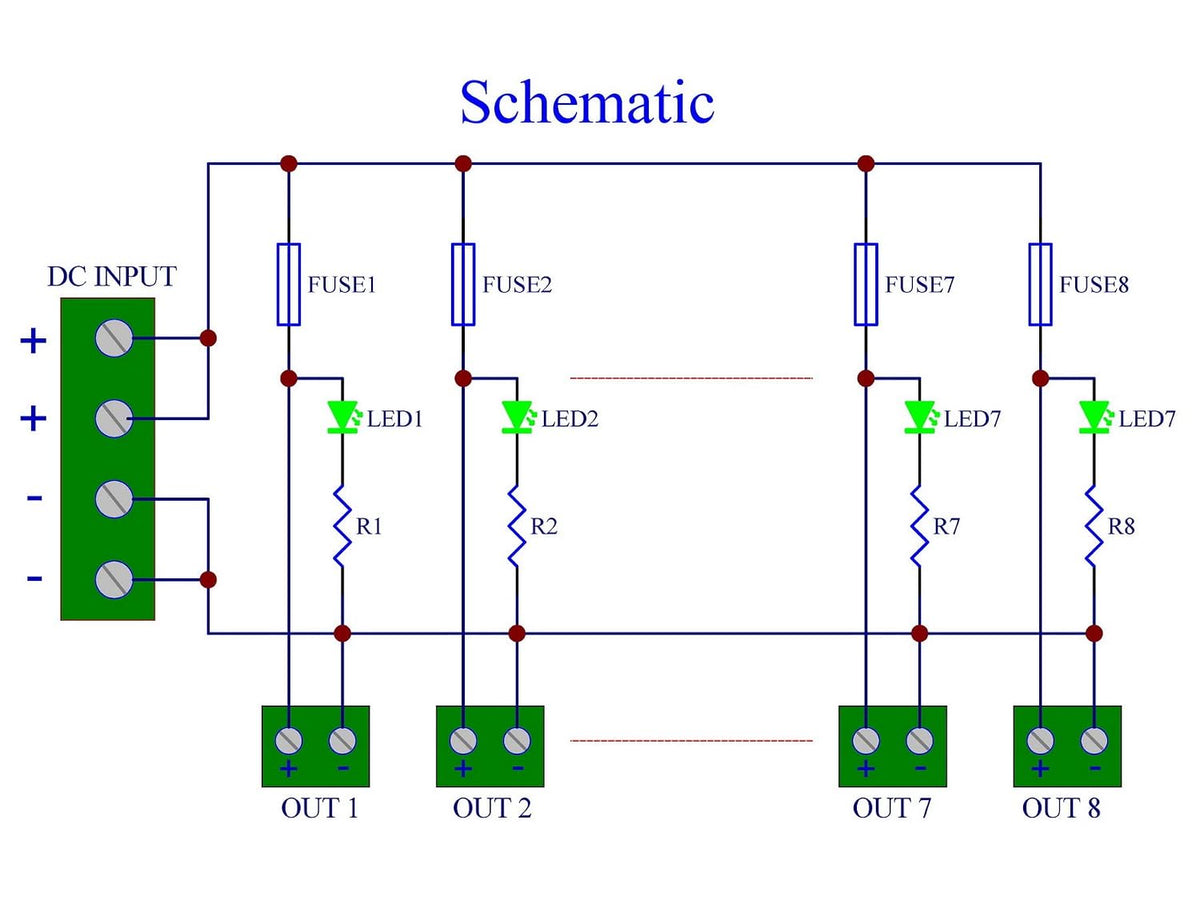

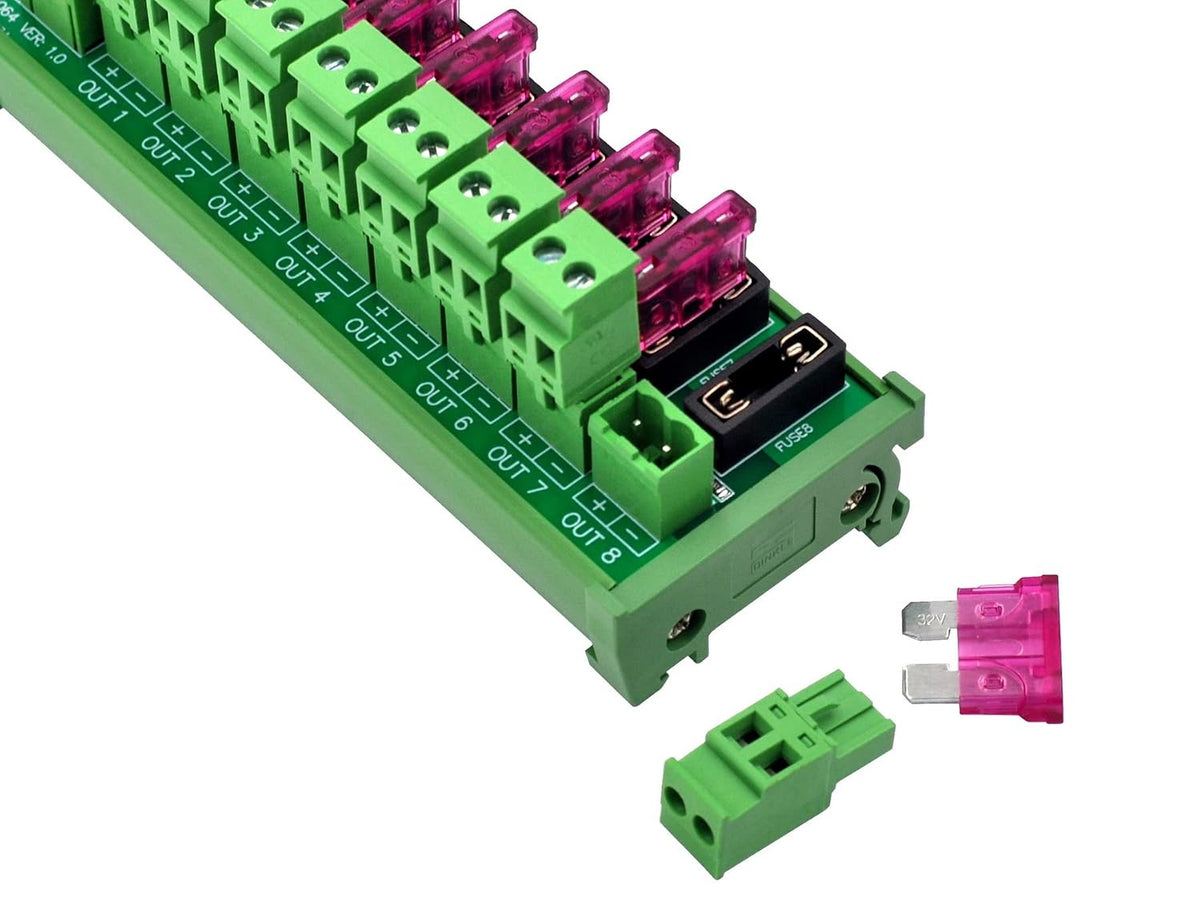

• Pluggable fuse holder, can support medium blade ATO / ATC fuse. Each output channel has a green LED indicator, when the fuse is blown or pulled out, the LED indicator will be off.

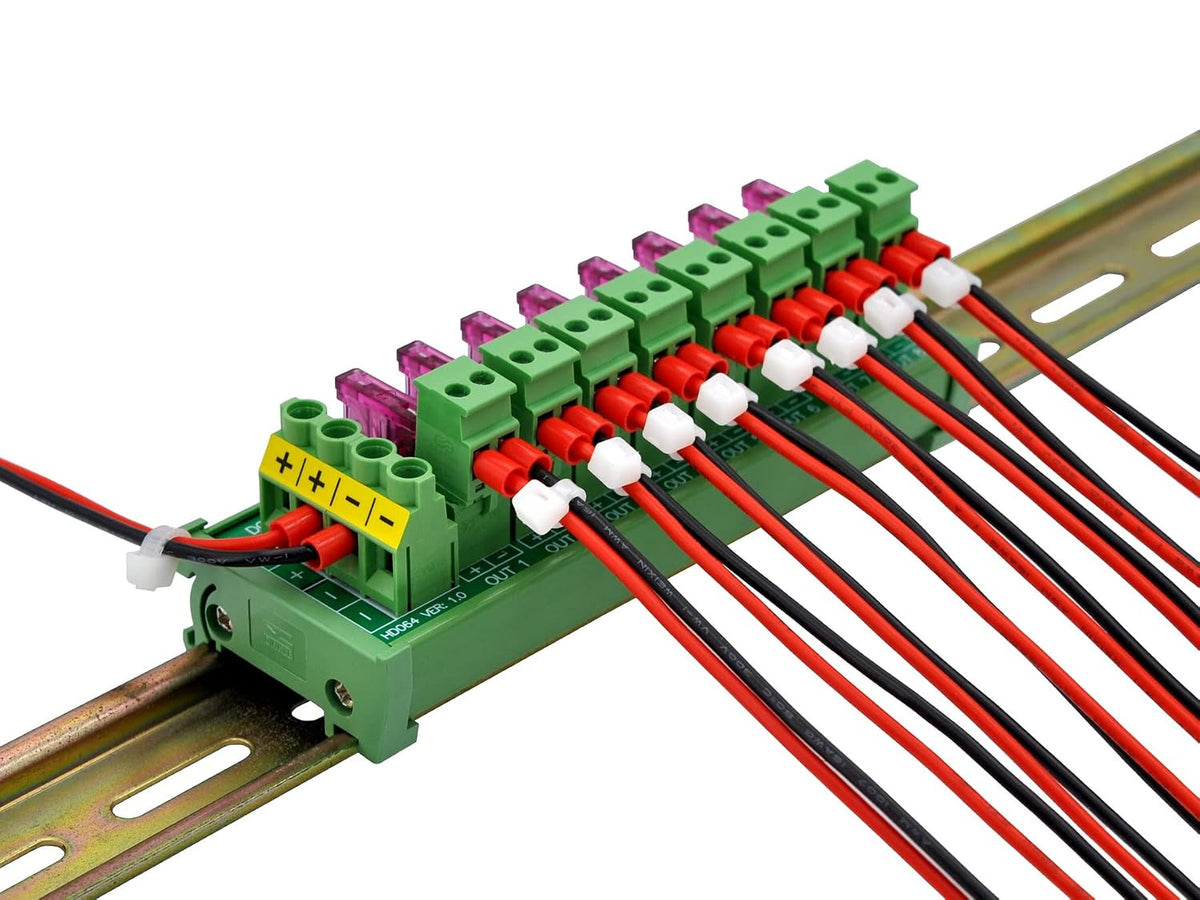

• High quality fireproof nylon material DIN rail mount carrier, can support width 35mm rail. FR-4 fiberglass dual copper layers PCB. UL CE CQC certified terminal blocks, UL 94-V0 certified PCB, and UL CE certified DIN rail mount carrier.
