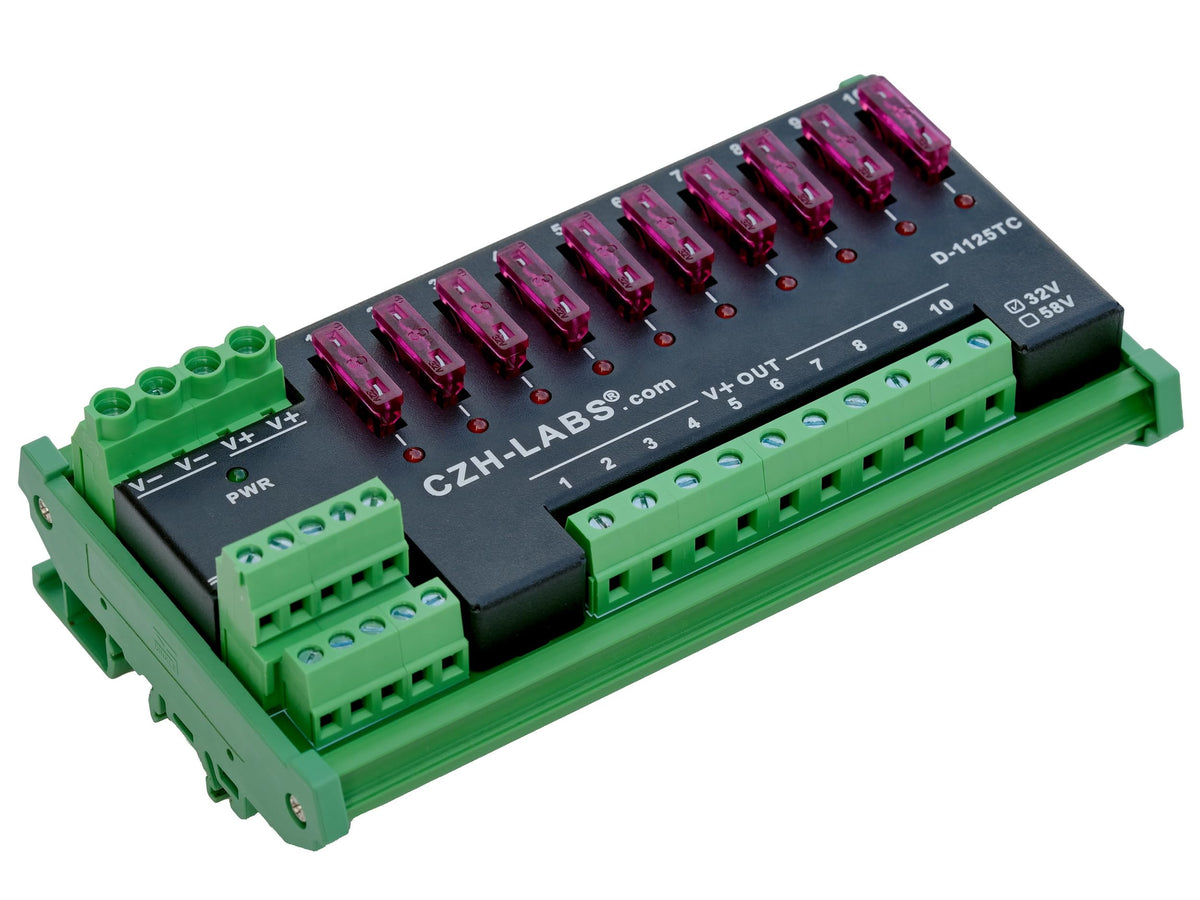

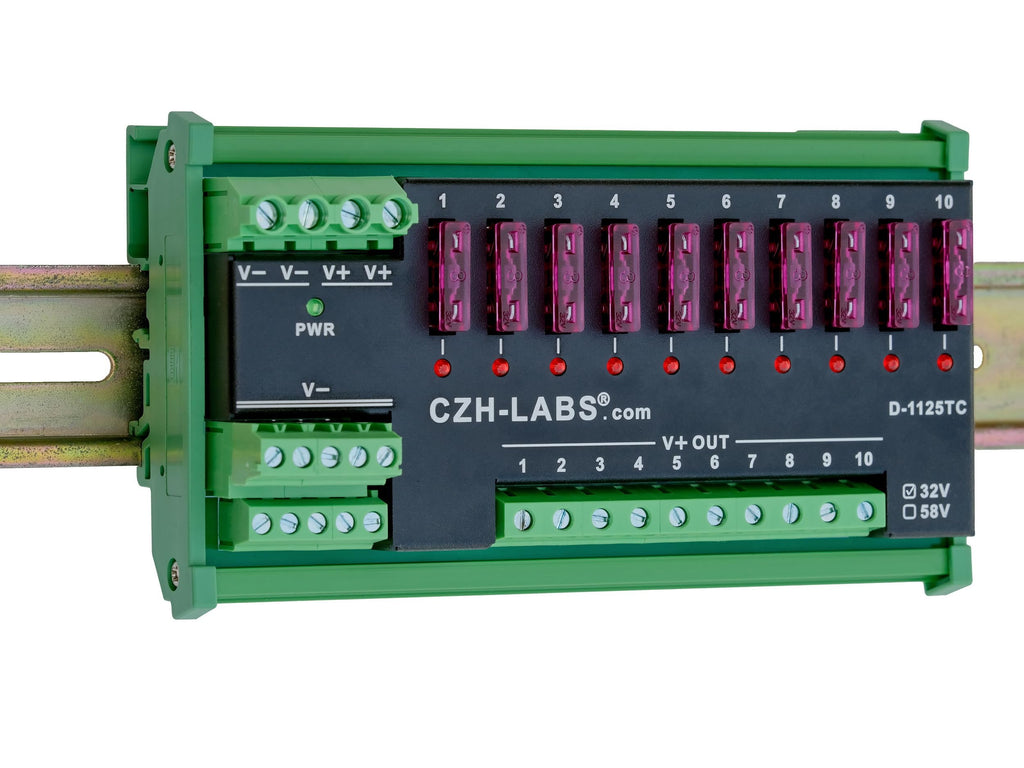

DIN Rail Mount DC5-32V 10 Position Terminal Block Power Distribution Module

Key features

• Wide Operating Voltage: Supports DC 5–32V with a maximum total input/output current of 30A.
• High-Current Input Terminal Block: Rated for up to 30A per terminal position. Features dual (+/-) polarity terminals for convenient power distribution to additional modules. Terminal specifications: 7.62mm (0.3") pitch, supports 26–10 AWG wire, 8mm stripping length, and M3 slotted screws.
• Output Terminal Block: Terminal specifications: 7.5mm (0.295") pitch, supports 26–12 AWG wire, 7mm stripping length, and M2.5 slotted screws.
• 10 Individually Fused Output Channels: Each channel is factory-equipped with a 3A fuse. Although the terminal itself is rated for up to 16A, higher output current requires replacing the factory-installed fuse with an appropriate rating. Features pluggable fuse holders compatible with ATO/ATC medium blade automotive fuses.
• Power & Fuse Status Indicators: A green LED indicates input power status. Each output channel includes a red fuse fault LED that illuminates automatically when the corresponding fuse blows while a load is connected.
• Industrial-Grade Construction: Equipped with a high-quality flame-retardant nylon DIN rail mounting carrier, compatible with 35mm, 32mm, and 15mm DIN rails. Built with a dual-layer FR-4 fiberglass PCB . Uses UL, CE, and CQC certified terminal blocks, a UL 94 V-0 rated PCB, and a UL & CE certified DIN rail mounting carrier.
• Premium Finish & OEM Customization: Features an aluminum top cover with laser-engraved markings. For volume orders (more than 100 pieces), custom logos, model numbers, and other laser markings are available upon request.
