DIN Rail Mount Screw Terminal Block Breakout Board Module for STM32 Nucleo-32

DIN Rail Mount Screw Terminal Block Breakout Board Module for STM32 Nucleo-32

$48.99
$48.99 $64.99
Skip to product information
DIN Rail Mount Screw Terminal Block Breakout Board Module for STM32 Nucleo-32
  • DIN Rail Mount Screw Terminal Block Breakout Board Module for STM32 Nucleo-32
  • DIN Rail Mount Screw Terminal Block Breakout Board Module for STM32 Nucleo-32
  • DIN Rail Mount Screw Terminal Block Breakout Board Module for STM32 Nucleo-32
  • DIN Rail Mount Screw Terminal Block Breakout Board Module for STM32 Nucleo-32
  • DIN Rail Mount Screw Terminal Block Breakout Board Module for STM32 Nucleo-32
  • DIN Rail Mount Screw Terminal Block Breakout Board Module for STM32 Nucleo-32
DIN Rail Mount Screw Terminal Block Breakout Board Module for STM32 Nucleo-32

DIN Rail Mount Screw Terminal Block Breakout Board Module for STM32 Nucleo-32

$48.99
$48.99 $64.99
FREE shipping on orders $50+· add $1.01 moreShips from West Long Branch, NJ. Typically arrives in 3–7 business days.
30-day returnsChanged your mind? Send it back within 30 days. Return policy
Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET

Key features

  • Screw terminal breakout board designed for the full STM32 Nucleo-32 series modules.
  • With the breakout board, you can easily extend ESP32-DevKitC projects to industrial control applications.
  • PCB mount Terminal Block: pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass. Wire range 28AWG ~ 12AWG / 2.5mm square.
  • High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail.
  • UL CE certified nylon material mount carrier. FR-4 fiberglass material PCB, UL 94-V0 certified PCB. UL CE CQC certified terminal blocks.

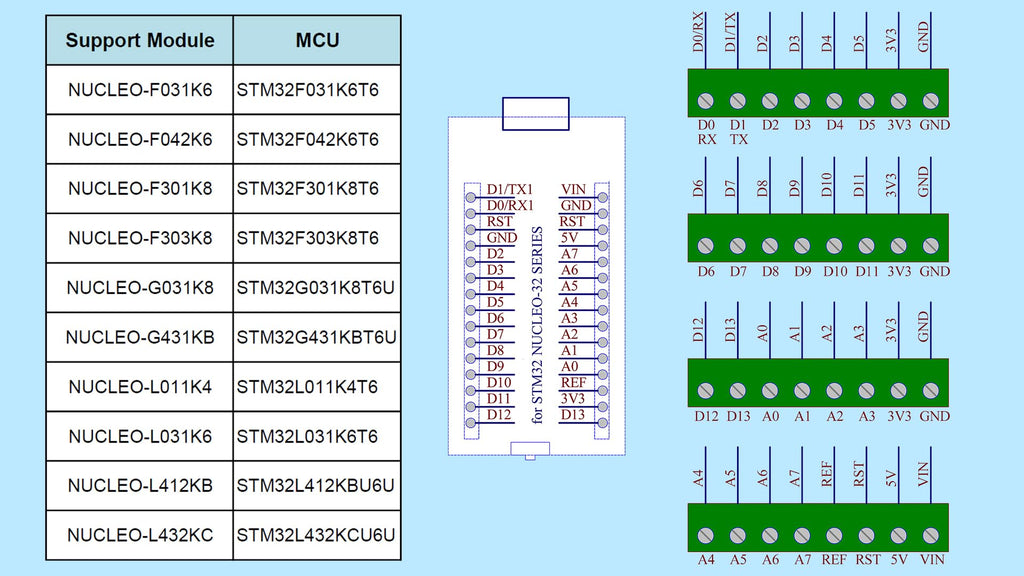

  • The following STM32 Nucleo-32 modules are supported: NUCLEO-F031K6, NUCLEO-F042K6, NUCLEO-F301K8, NUCLEO-F303K8, NUCLEO-G031K8, NUCLEO-G431KB, NUCLEO-L011K4, NUCLEO-L031K6, NUCLEO-L412KB, NUCLEO-L432KC.
  • Note: the item not include STM32 Nucleo-32 module.

Screw terminal breakout board designed for the full STM32 Nucleo-32 series modules. With the breakout board, you can easily extend ESP32-DevKitC projects to industrial control applications. PCB mount Terminal Block: pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass. Wire range 28AWG ~ 12AWG / 2.5mm square. High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail. UL CE certified nylon material mount carrier. FR-4 fiberglass material PCB, UL 94-V0 certified PCB. UL CE CQC certified terminal blocks. Note: the item not include STM32 Nucleo-32 module. The following STM32 Nucleo-32 modules are supported: NUCLEO-F031K6 NUCLEO-F042K6 NUCLEO-F301K8 NUCLEO-F303K8 NUCLEO-G031K8 NUCLEO-G431KB NUCLEO-L011K4 NUCLEO-L031K6 NUCLEO-L412KB NUCLEO-L432KC

Free shipping on orders $50+. 30-day hassle-free returns.
