DKARDU HX711 Digital Load Cell Module A/D Module Weight Pressure Sensor Display 24 Bit Weighing Meter Electronic Scale Display Meter with Micro USB Cable

Key features

• Features:Load cell display instrument has the advantages of strong anti-interference ability, powerful function, easy operation, strong versatility, small temperature drift and high linearity

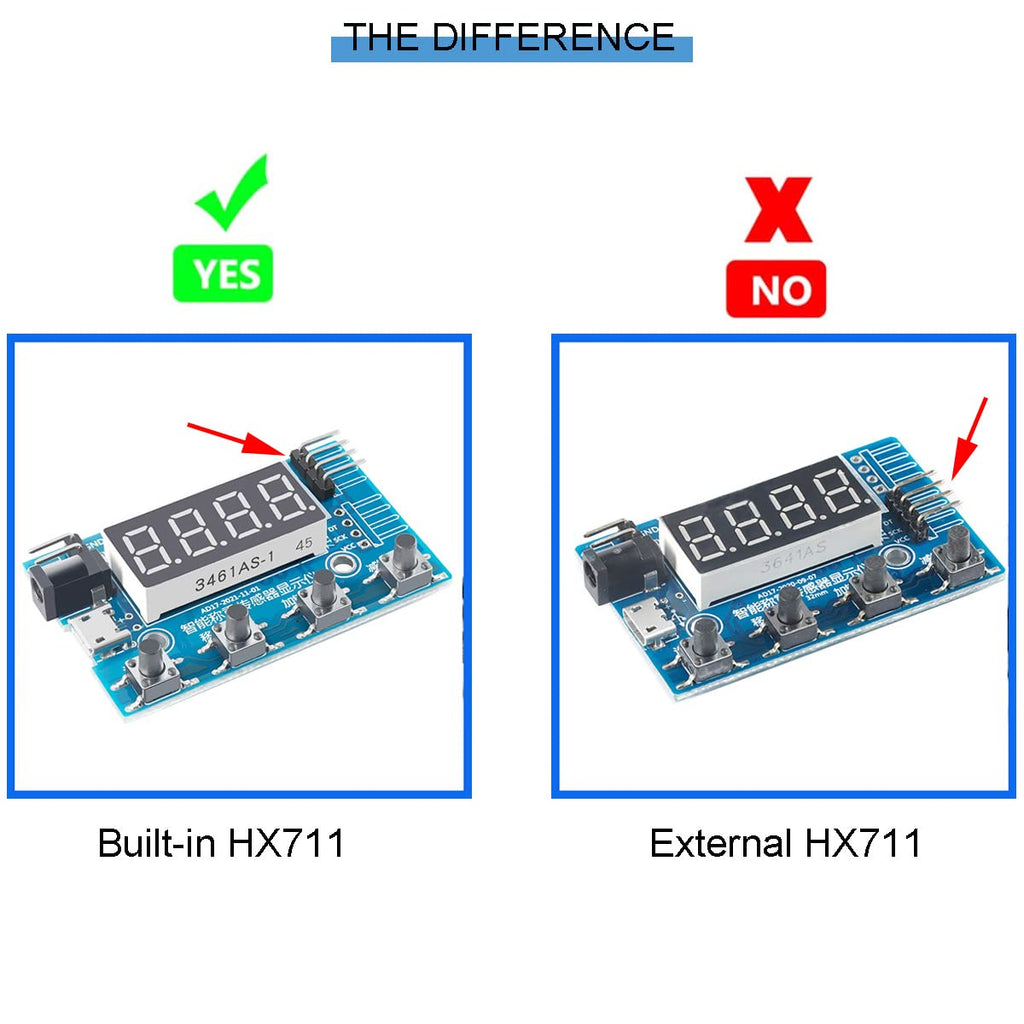

• Chip:Built-in HX711 chip for easy on-site debugging. Send data regularly, or when the weight changes

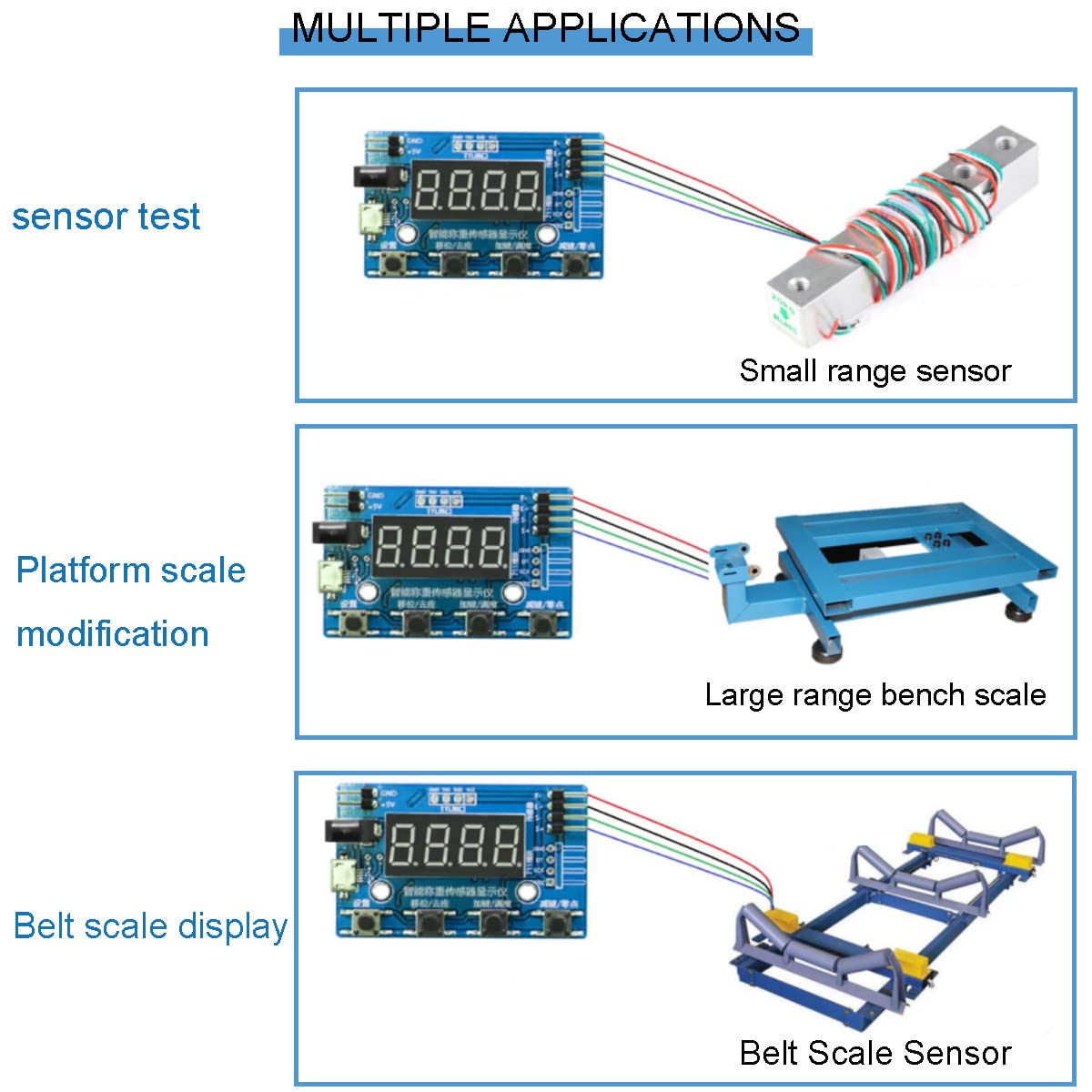

• Convenience:Small size, engineers can carry it with them, support Micro Android interface for power supply.Suitable for weighing, mechanical strength testing and other measurement occasions
• Protection function:It has multiple protections such as anti-reverse connection, anti-overvoltage, instantaneous suppression, etc.

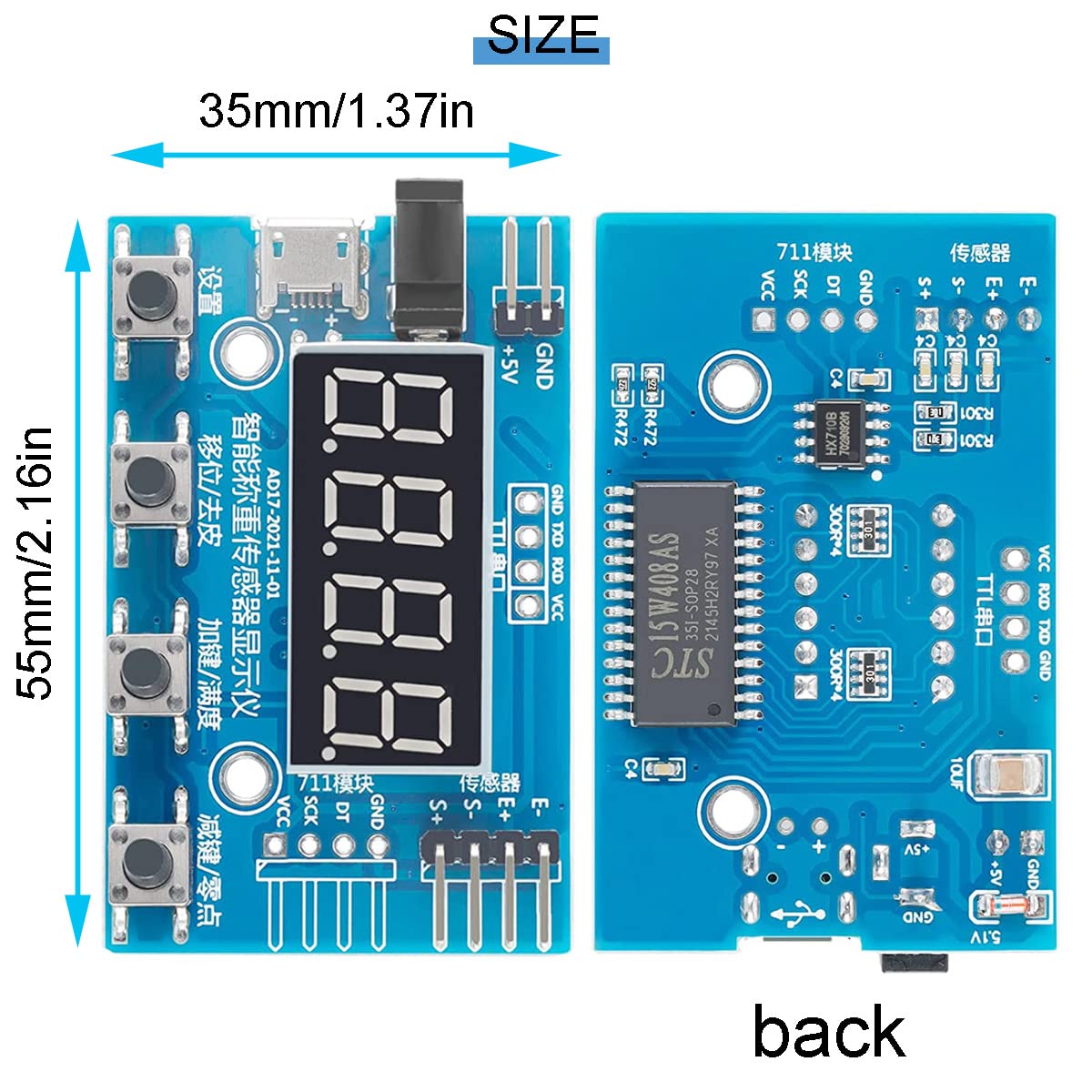

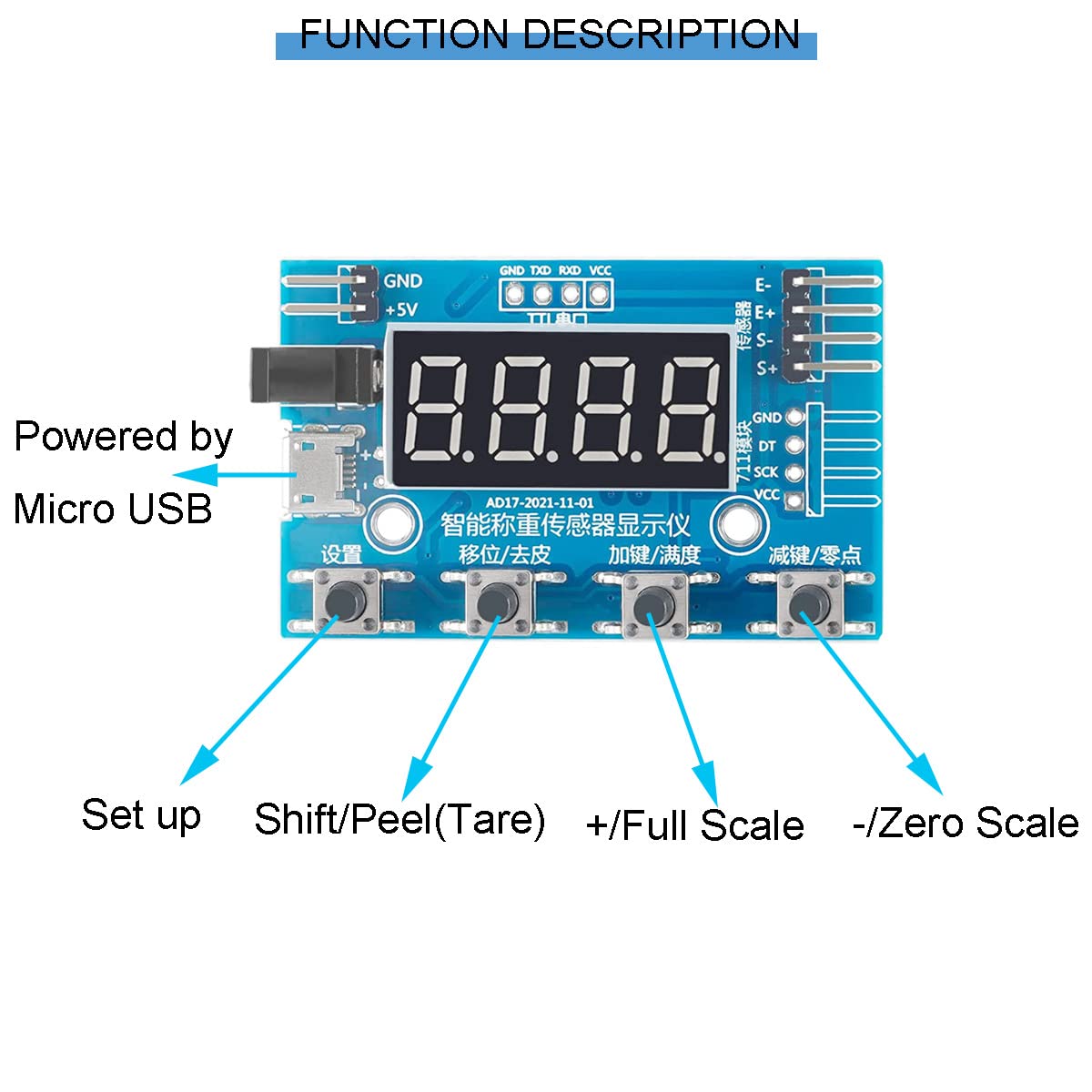

Product Description Feature: 1.Small size, engineers can carry it with them, support Micro Android interface power supply 2.HX711 chip can be built on-site for easy debugging 3.Send data regularly or when weight changes 4.Measurement signal range: ± 19mV 5.Temperature coefficient: greater than or equal to 100ppm / ℃ 6.A / D conversion rate: 6.25 ～ 100Hz 7.Comprehensive protection function: with multiple protections such as anti-reverse connection, anti-overvoltage, instantaneous suppression, etc. 8.Operating temperature range: -40 ℃ ～ + 70 ℃; Storage temperature range: -60 ℃ ～ + 90 ℃ Function Description: 1.Analog-to-digital conversion, digital calibration, peeling, zero setting, anti-shake and other functions 2.Strong anti-interference ability, strong versatility, small temperature drift, high linearity 3.Non-volatile storage of characteristic parameters, parameters are still saved after power off; 4.Display: 4 digital tubes (decimal point can be set, automatic displacement) 5.Keyboard: 4 keys 6.Power supply: 5VDC, all copper high-resistant socket 3.5-1.3, power line power supply DC3.5mm 7.Size: 55 × 35 × 12 (length × width × depth mm) 8.A / D module acquisition speed: 0-100 time
